PTFE Photoelectrochemical Cell
Chemically Inert and Thermally Stable
Designed for two or three electrode photoelectric effect studies
Specifications | Pricing | In the Box | Related Products | Technical Support
A PTFE photoelectrochemical cell designed for two or three electrode photoelectric effect studies featuring an optical window, to collect light onto the working electrode. Choosing a PTFE photoelectrochemical cell offers superior chemical inertness and thermal stability, making them suitable for more demanding or corrosive environments.
Transparent Window(s)
Enabling in-situ observation of photocatalytic reactions

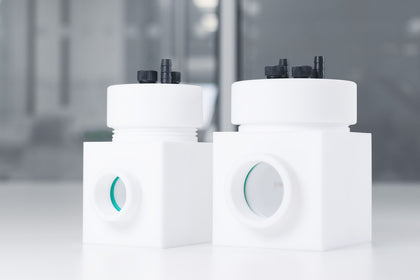

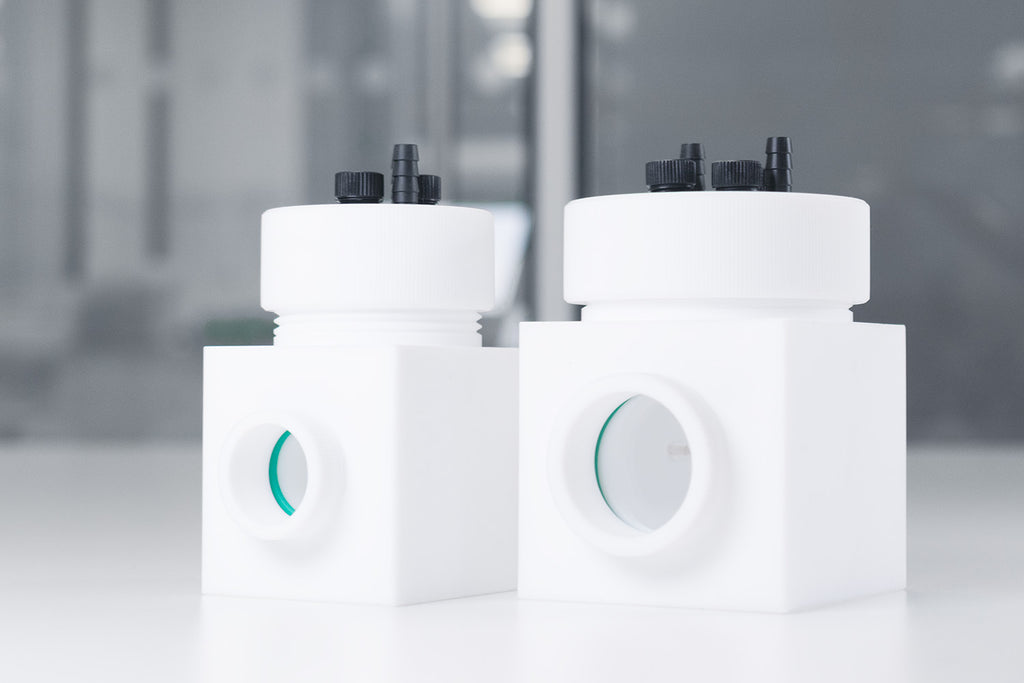

Range Of Sizes
Choose electrochemical cell to fit your experiment
Range of Accessories
Compatible with our wide range of electrodes
Expert Support
From in-house scientists & our
customer care team
Specifications
| Body Material | PTFE |
|---|---|
| Optical Window Material | Quartz |
| Optical Window Diameter | 50 ml: 29 mm 100 ml: 41 mm |
| Optical Window Cap Size | 50 mll: 31 mm with 24 mm centre hole 100 ml: 43 mm with 35 mm centre hole |
| Rubber O-ring Size | 50 ml: 42 mm outer diameter 100 ml: 54 mm outer diameter |
| Internal Seal Size | 50 ml: 30 mm outer diameter, 3 mm cross section 100 ml: 42 mm outer diameter, 2.5 mm cross section |
| Dimension Labels | |||||||
|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | |
| 50 ml (C2017C1) | 66 mm | 60 mm | 62 mm | 37.5 mm | 24 mm | 40 mm | 10 mm |
| 100 ml (C2017D1) | 76 mm | 72 mm | 68 mm | 50 mm | 35 mm | 52 mm | 19.5 mm |
Pricing and Options
| Product Name | Product Code | Price |
| PTFE Photoelectrochemical Cells - 50 ml | C2017C1 | £520 |
| PTFE Photoelectrochemical Cells - 100 ml | C2017D1 | £600 |
Product Gallery
In the Box

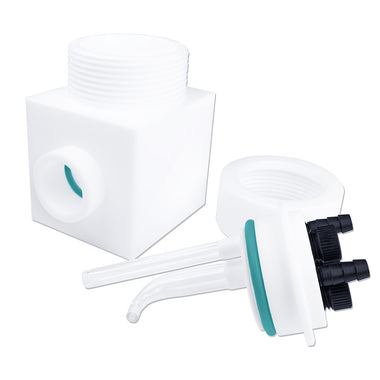

The PTFE photoelectrochemical cell components:

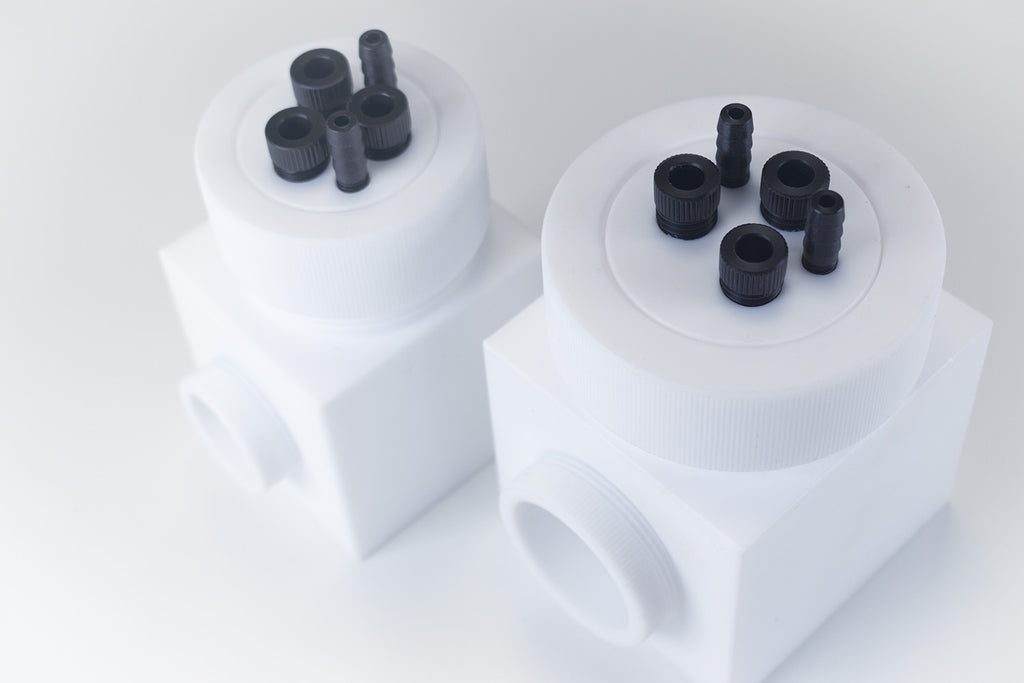

- Electrode inlet screw-in adaptor x 3
- Gas inlet screw-in adaptor x2

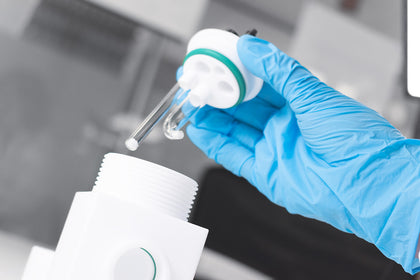

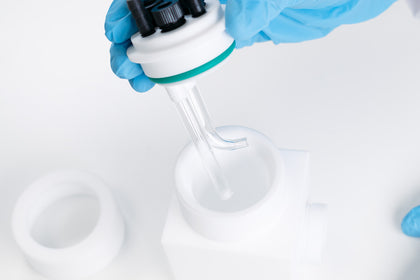

- Luggin capillary and gas bubbler
- PTFE screw-on cap for optical window
- Internal seal
- Rubber O-ring
Additional accessories included:
- 1m potentiostat PTFE tubing
- PTFE white tape
- Cell electrode inlet, blank x1
- PTFE rod 6.2 mm electrode inlet stopper x3
- PTFE rod 3 mm air inlet stopper x2
- Extra 5.5 mm & 10 mm O-rings
Photoelectrochemical Cell (PEC) Set up
Glass Photoelectrochemical Cells: with or without a water jacket. One with PTFE body also available. A JS2 Quartz optical windows included in the package
