Microscope Camera
Equipment Accessories, Probe Station
4K Imaging with Unparalleled Workflow Flexibility
Crystal-clear resolution with a lag-free HDMI monitor feed and high-speed USB capture
Overview | Specifications | Features | Software | In the Box | Related Products

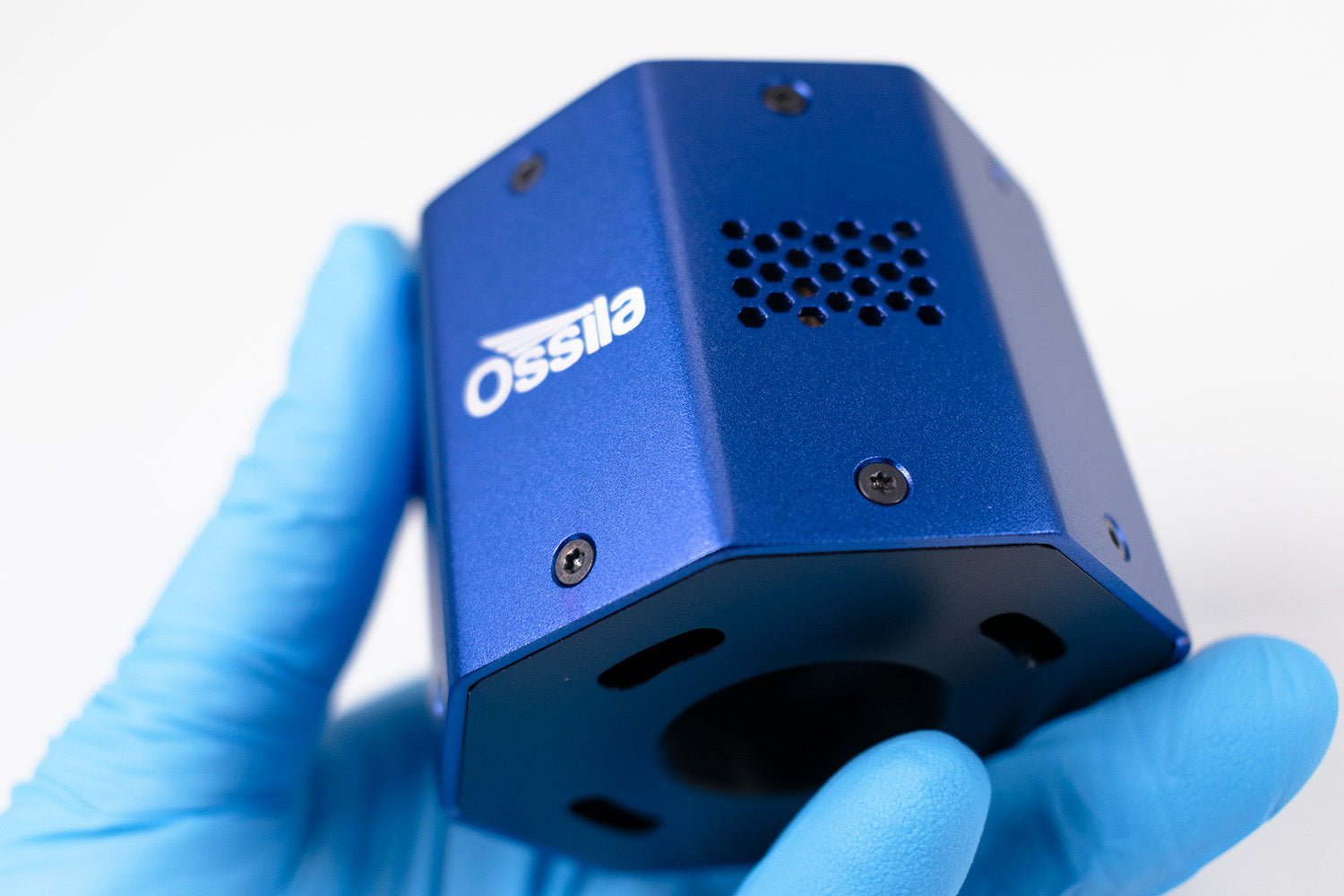

Engineered to deliver an exceptionally clear, real-time view of your work. The Ossila Microscope Camera is the perfect imaging companion for any microscope setup where visual feedback is critical for success. We designed this camera to solve a common lab frustration: the choice between a direct monitor view or a connection to your PC. Now, you don't have to choose.
With simultaneous HDMI and USB 3.0 outputs, this camera streamlines your entire workflow. Project a perfectly smooth, zero-lag image onto a large monitor for delicate manual tasks, while capturing high-resolution images and video on your computer for analysis and documentation. It's a simple, powerful, and refreshingly open tool designed for the modern laboratory.
4K UHD Clarity
Sharp, publication-ready images where the finest details are clearly resolved
Lag-Free HDMI Live View
Fluid and real-time view, essential for
precise manual adjustments
Universal Software Compatibility
Professional and open-source software thanks to driver-free UVC compliance
Specifications
Imaging Performance

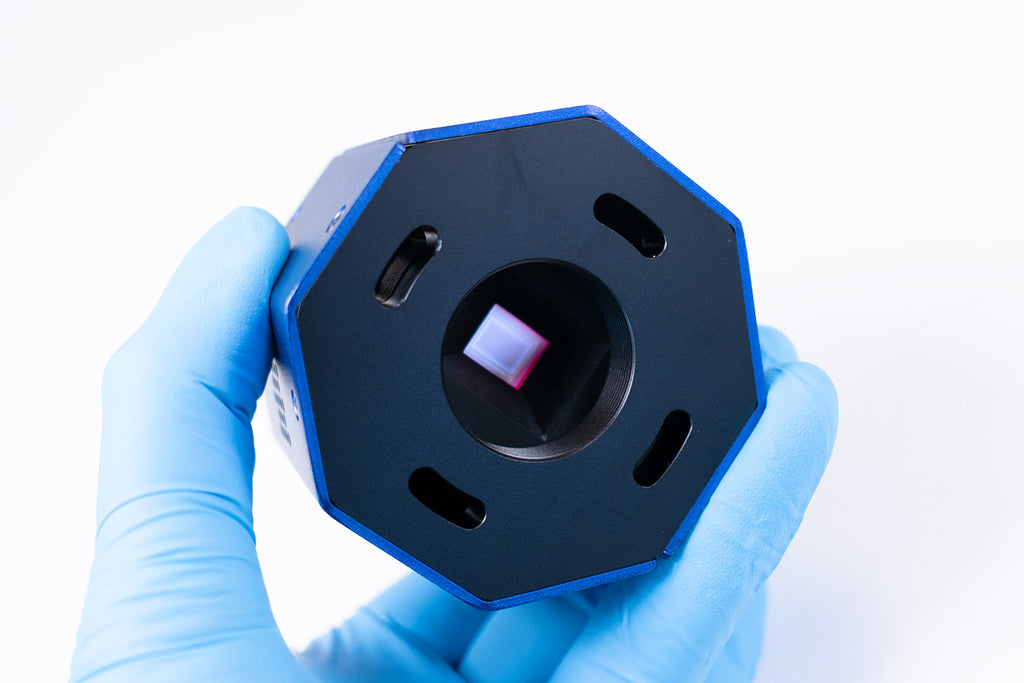

| Sensor Model | Sony IMX415 |
|---|---|
| Sensor Type | CMOS |
| Sensor Format | 1/2.8" |
| Maximum Resolution | 3840 x 2160 (4K UHD) |
| Pixel Size | 1.45 μm x 1.45 μm |
| Signal to Noise Ratio | 30 dB |
| Sensor Sensitivity | 0.65 V/lux-s @ 550 nm |
| Wavelength Sensitivity | 385 – 650 nm |
| Minimum Illumination | 0.2 lux |
| Image Control | Automatic Exposure (AEC), Automatic White Balance (AWB), Automatic Gain (AGC) |
Digital Interface & Performance
| Interface | USB 3.0 |
|---|---|
| Software Compliance | USB Video Class (UVC) |
| Maximum Framerate (compressed, MJPEG) | 60 fps @ 3840 x 2160 60 fps @ 1920 x 1080 |
| Maximum Framerate (uncompressed, YUY2) | 15 fps @ 3840 x 2160 60 fps @ 1920 x 1080 |
Direct Display Interface & Performance (HDMI)
| Interface | HDMI 1.4 |
|---|---|
| Maximum Framerate | 30 fps @ 3840 x 2160 (4K UHD) 60 fps @ 1920 x 1080 (Full HD) |
Physical & Environmental

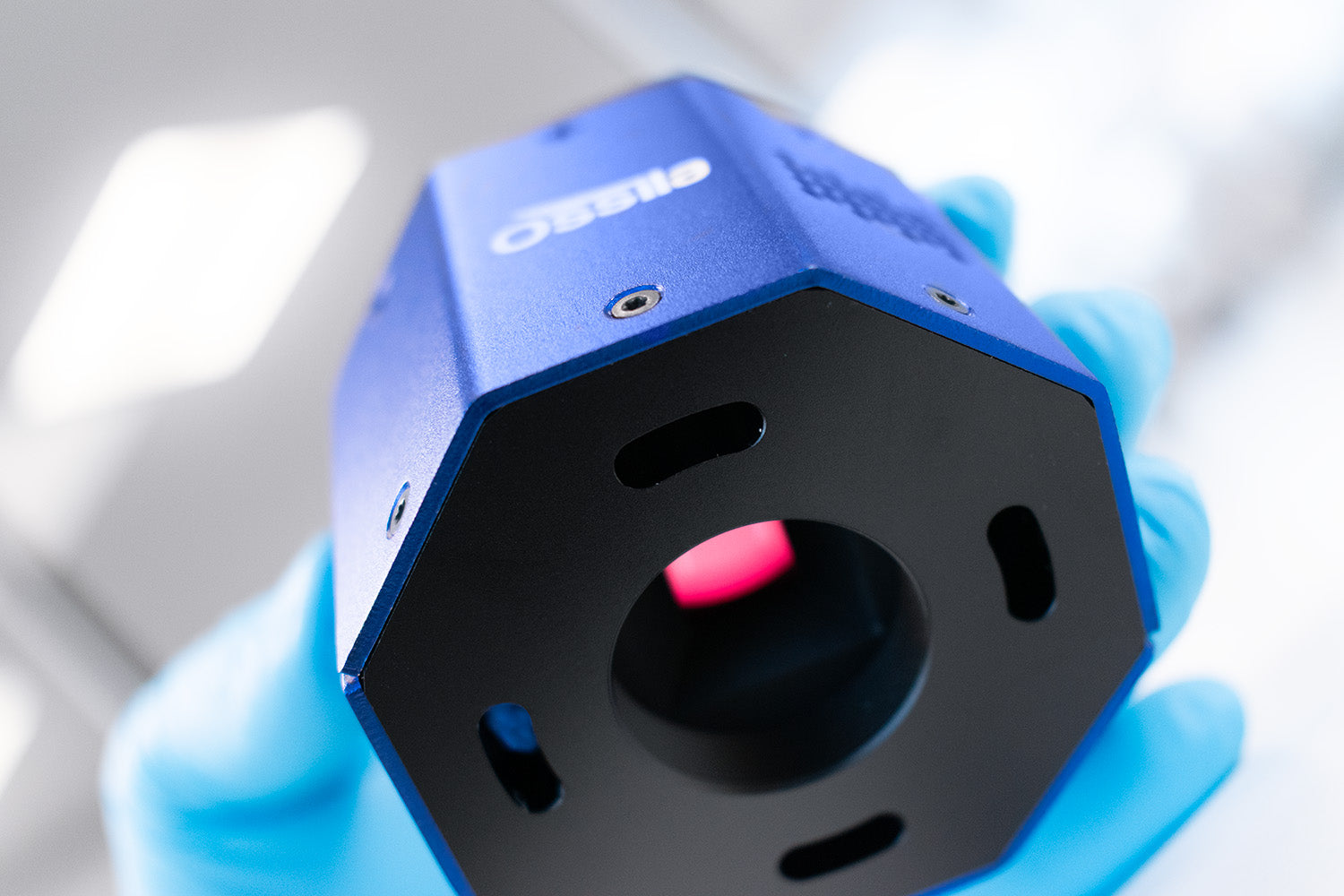

| Mounting Thread | C-mount |
|---|---|
| Dimensions (L x W x H) | 62 mm x 62 mm x 51 mm |
| Weight | 200 g |
| Power Requirement | 5V DC, 800 mA (via USB) |
| Operating Temperature | 0°C – 70°C |
Microscope Camera Features
Stunning 4K UHD Clarity
Resolve features down to a 4.4 µm line spacing, ensuring you have a sharp and informative view of your device or material. Built around a high-quality Sony 4K sensor, the high resolution makes precision tasks, like identifying material defects or confirming probe placement, significantly easier and more reliable.
Flexible Dual-Mode Connectivity

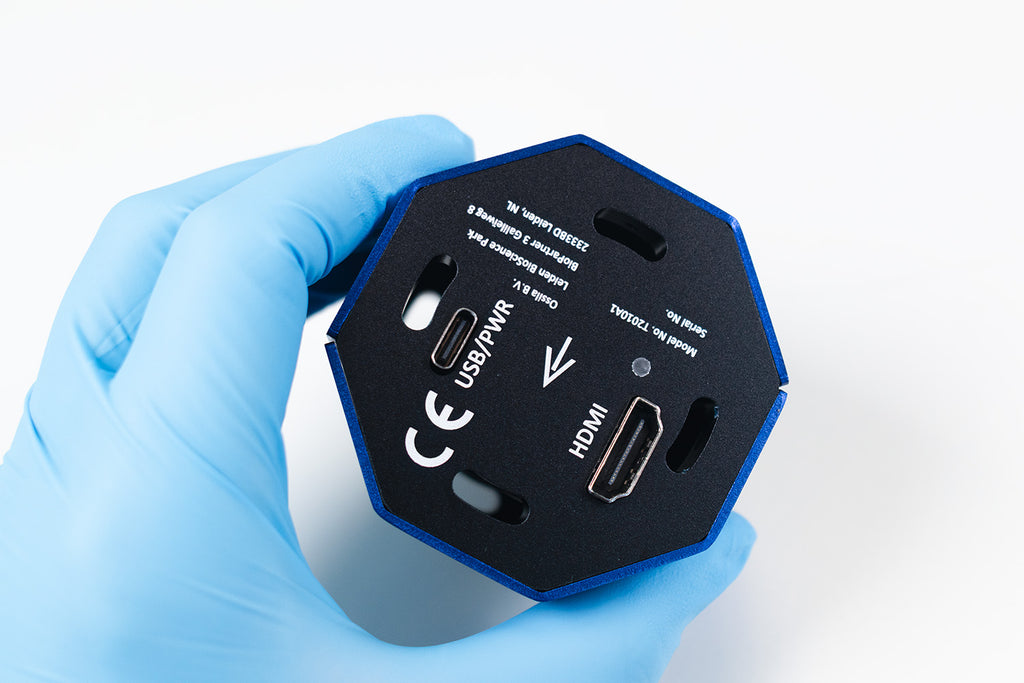

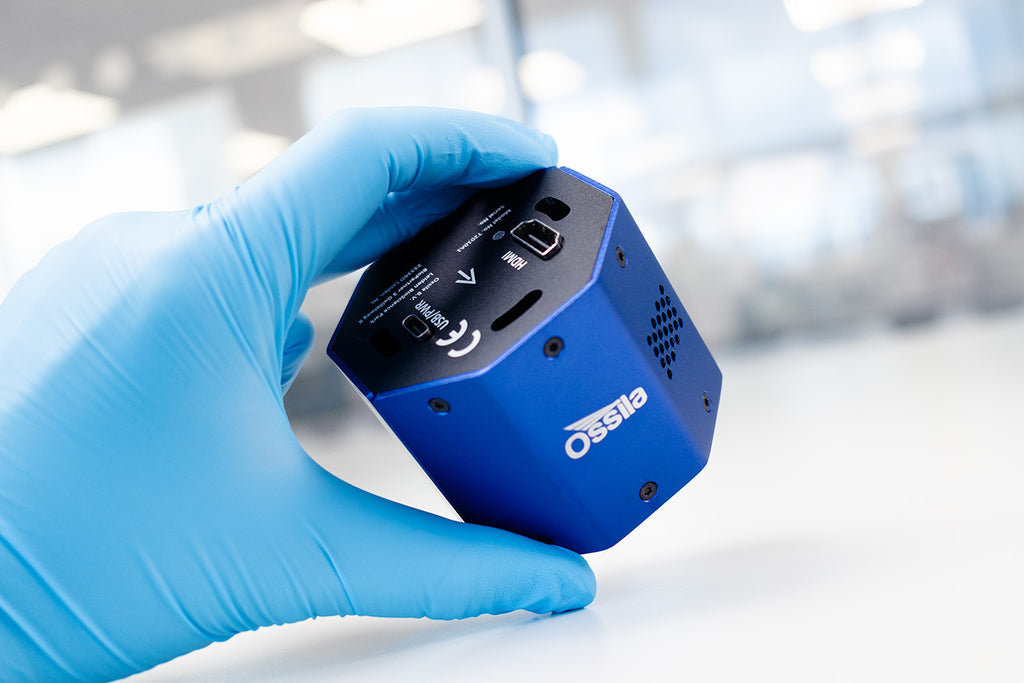

Simultaneous HDMI 1.4 and USB 3.0 outputs transform your workflow. Project a live image onto a large lab monitor for training or group observation, while connecting to your PC via USB to capture images, record high-frame-rate video, or perform advanced analysis using your preferred software.
Lag-Free HDMI for Real-Time Work
Connect directly to an HDMI display to get a fluid, 60 fps (at 1080p) video stream with no observable lag for reliable hands-on work. Ideal for delicate manual operations where immediate visual feedback is non-negotiable, such as positioning probe tips, performing micro-dissections, or carrying out precision repairs.
Effortless UVC Plug-and-Play Operation
Focus on your research, not your equipment. The camera works instantly with most computers and software without needing special drivers. Whether you use Micro-Manager for complex experiments, LabVIEW for instrument control, or Python for custom analysis, the camera is detected automatically.
Software
The Ossila USB Camera Viewer software for Windows is provided free of charge, offering a simple and direct way to view the live video feed and capture full-resolution images and videos right out of the box. It is the perfect tool for getting started quickly and for standard documentation tasks.
The true power of the Ossila Microscope Camera, however, lies in its universal compatibility. As a fully compliant UVC device, it functions as a standard webcam on Windows, macOS, and Linux, giving you the freedom to choose the best software for your work.
This allows you to use a wide range of powerful third-party applications. You can control the camera using leading scientific imaging software like Micro-Manager, integrate it into engineering platforms like NI LabVIEW and Matlab, write custom scripts with Python and OpenCV, or record high-quality video for presentations with OBS Studio. From a simple live view in VLC to complex automated experiments, this camera provides the flexibility your research demands.
In the Box
- Ossila Microscope Camera
- USB-A to USB-C power & data cable
- HDMI cable
