Slot Die Head
Equipment Accessories, Slot Die Coating
Start Slot Die Coating With The Adaptable Slot Die Head
Straightforward design compatible with the Ossila Slot Die Coater
Slot die coating heads provide channels for the even distribution of solution across the coating width. The shape of the lips at the exit to the head can help to stabilize the coating bead and provide improved coating quality. Combined with the slot die shims, the slot die head can provide even coating across a wide range of different coating rates and solution viscosities.
Specifications

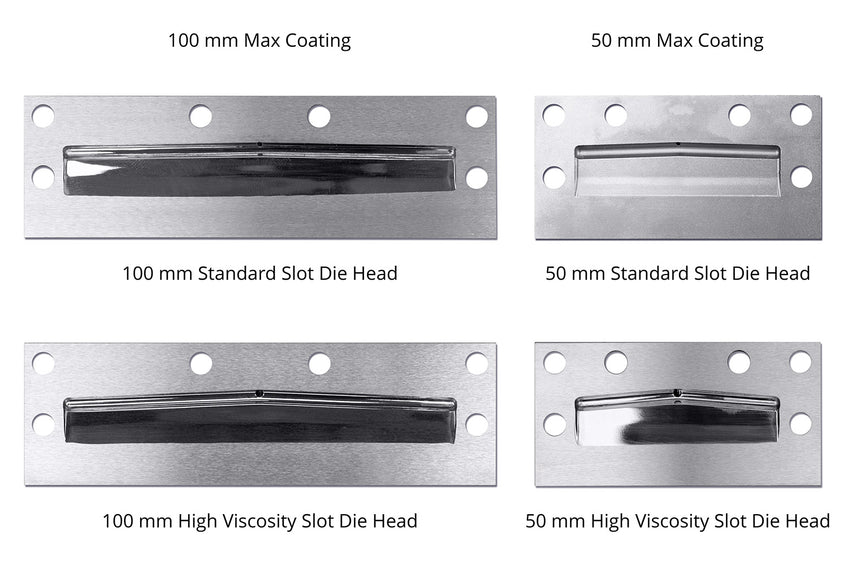

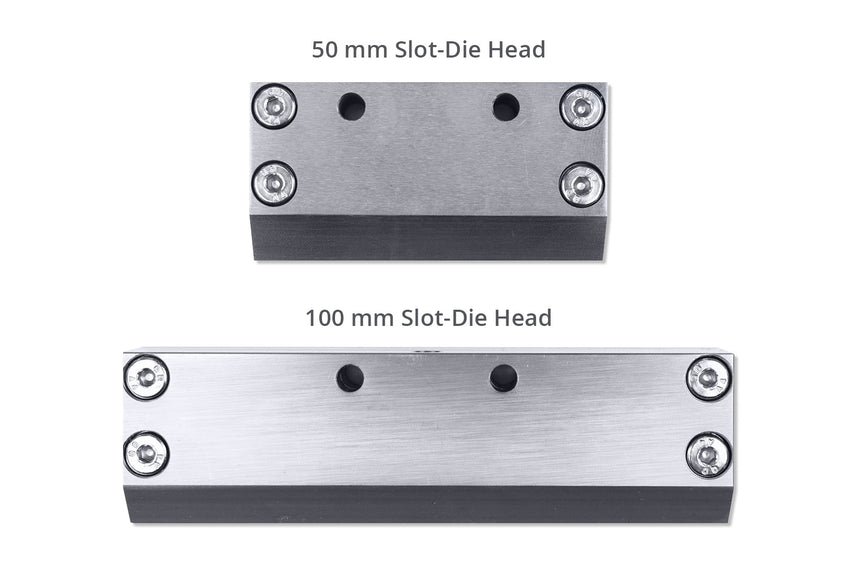

Standard Viscosity Heads
| 50 mm Coating Head | 100 mm Coating Head | |
|---|---|---|
| Head Material | Stainless Steel 316 | Stainless Steel 316 |
| Total Head Width | 70 mm | 120 mm |
| Input Adaptor | 5 mm threaded screw | 5 mm threaded screw |
| Compatible Shims* |
Thickness: 0.1 mm, 0.05 mm Coating Width: 5, 7.5, 10 , 10.9, 13 , 15, 18, 20, 22, 22.5, 25, 30 & 50 mm |
Thickness: 0.1 mm, 0.05 mm Coating Width: 75 mm, 100 mm |
| Compatible Meniscus Guides* |
Thickness: 0.1 mm, 0.05 mm Coating Width: 10, 13, 15, 18, 20, 22, 25 & 50 mm Lip Depth: 0.5 mm, 1 mm, 1.5 mm |
Thickness: 0.1 mm, 0.05 mm Coating Width: 75 & 100 mm Lip Depth: 0.5 mm, 1 mm, 1.5 mm |
*Contact us for custom designs
High Viscosity Heads
| 50 mm Coating Head | 100 mm Coating Head | |
|---|---|---|
| Head Material | Stainless Steel 316 | Stainless Steel 316 |
| Total Head Width | 70 mm | 120 mm |
| Input Adaptor | 1/8 NPT | 1/8 NPT |
| Compatible Shims* |
Thickness: 0.1 mm, 0.05 mm Coating Width: 25 & 50 mm |
Thickness: 0.1 mm, 0.05 mm Coating Width: 75 mm & 100 mm |
| Compatible Meniscus Guides* |
Thickness: 0.1 mm, 0.05 mm Coating Width: 25 & 50 mm Lip Depth: 0.5 mm, 1 mm, 1.5 mm |
Thickness: 0.1 mm, 0.05 mm Coating Width: 75 & 100 mm Lip Depth: 0.5 mm, 1 mm, 1.5 mm |
*Contact us for custom designs
Included
Standard Viscosity Heads Only

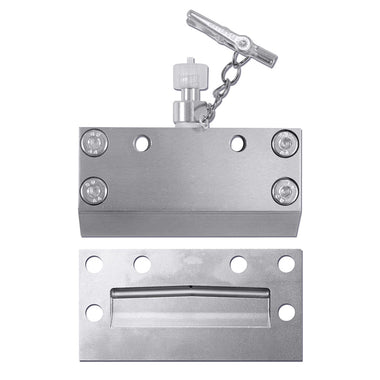

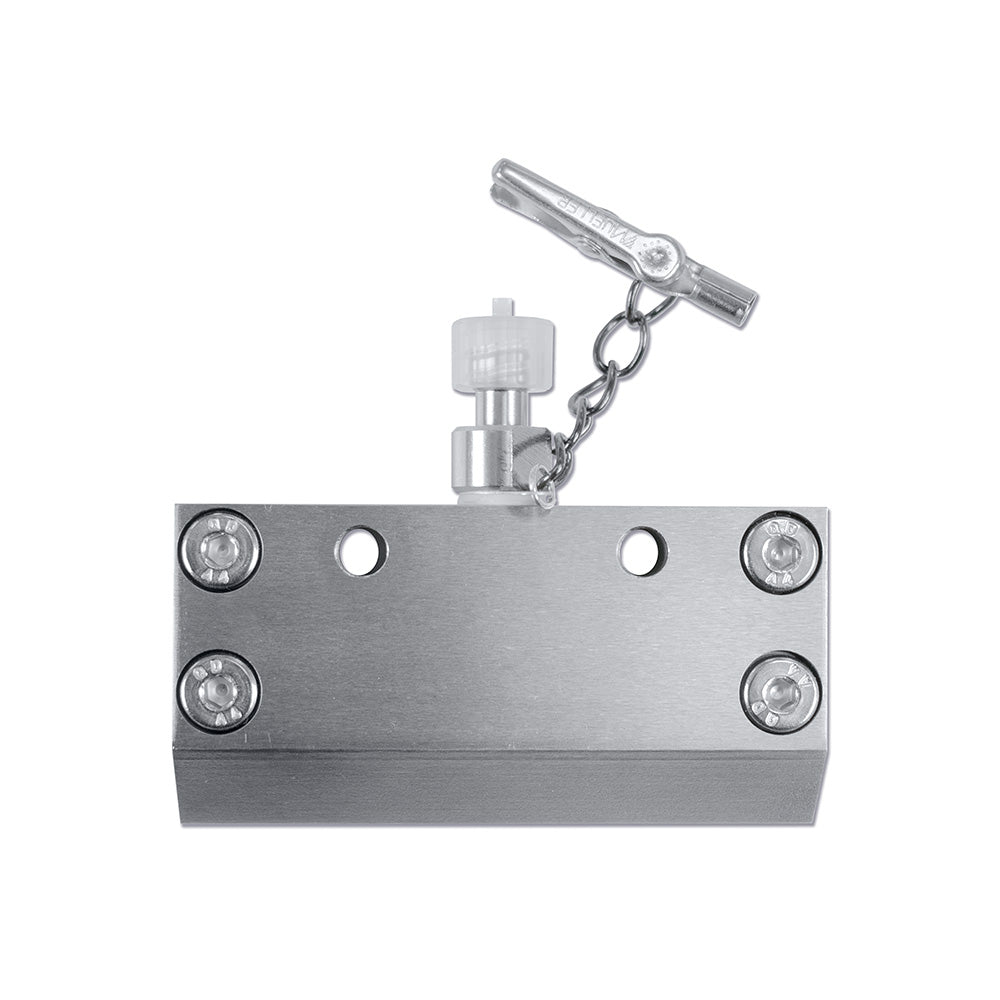

- Slot die head (2 parts)
- Screw fittings
- M5 to Luer lock adapter
- Safety clip
Standard Viscosity Heads + Accessories Box
- Slot die head (2 parts)
- Screw fittings
- Luer lock adapter
- Safety clip
- Slot die coater PTFE tubing (pack of 5)
- 5 ml (6 ml) Norm-Ject Disposable Luer Lock Syringe (pack of 10)
- Meniscus guide set
- Shim set
High Viscosity Heads
- Slot die head (2 parts)
- Screw fittings
- 1/8 NPT to Compression Fitting
High Viscosity Heads + Accessories Box
- Slot die head (2 parts)
- Screw fittings
- 1/8 NPT to Compression Fitting
- Stainless steel tubing
- 5 ml stainless steel syringe
- Meniscus guide set
- High viscosity shim set
Slot Die Head Related Products
Solution deposition through the slot die head can be managed by placing one or multiple slot die coater shims in between head pieces. This defines channel width which helps control pressure drop across the slot die head. Ossila Slot Die Coater Meniscus Guides can also be used to pin and guide the solution pathway, preventing unwanted spreading.
