Slot Die Coater Roll Attachment
Equipment Accessories,

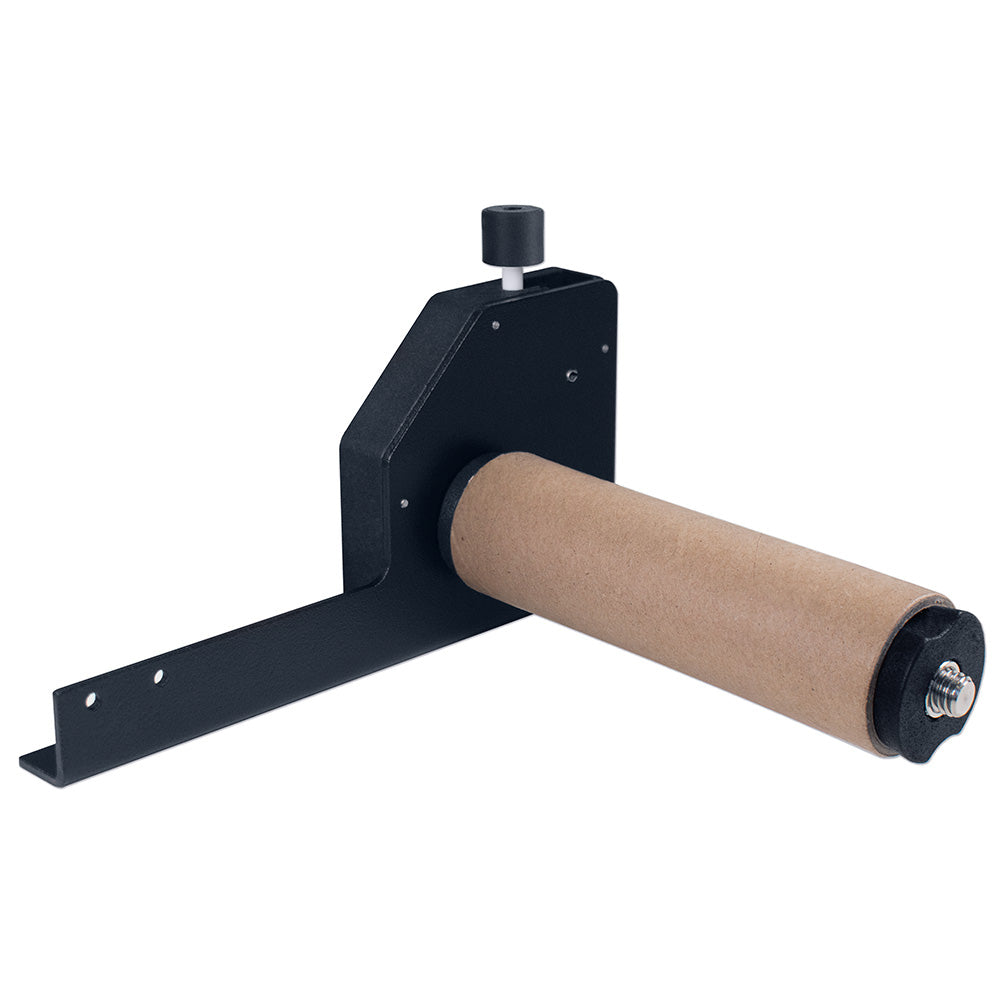

Slot Die Roll Attachment

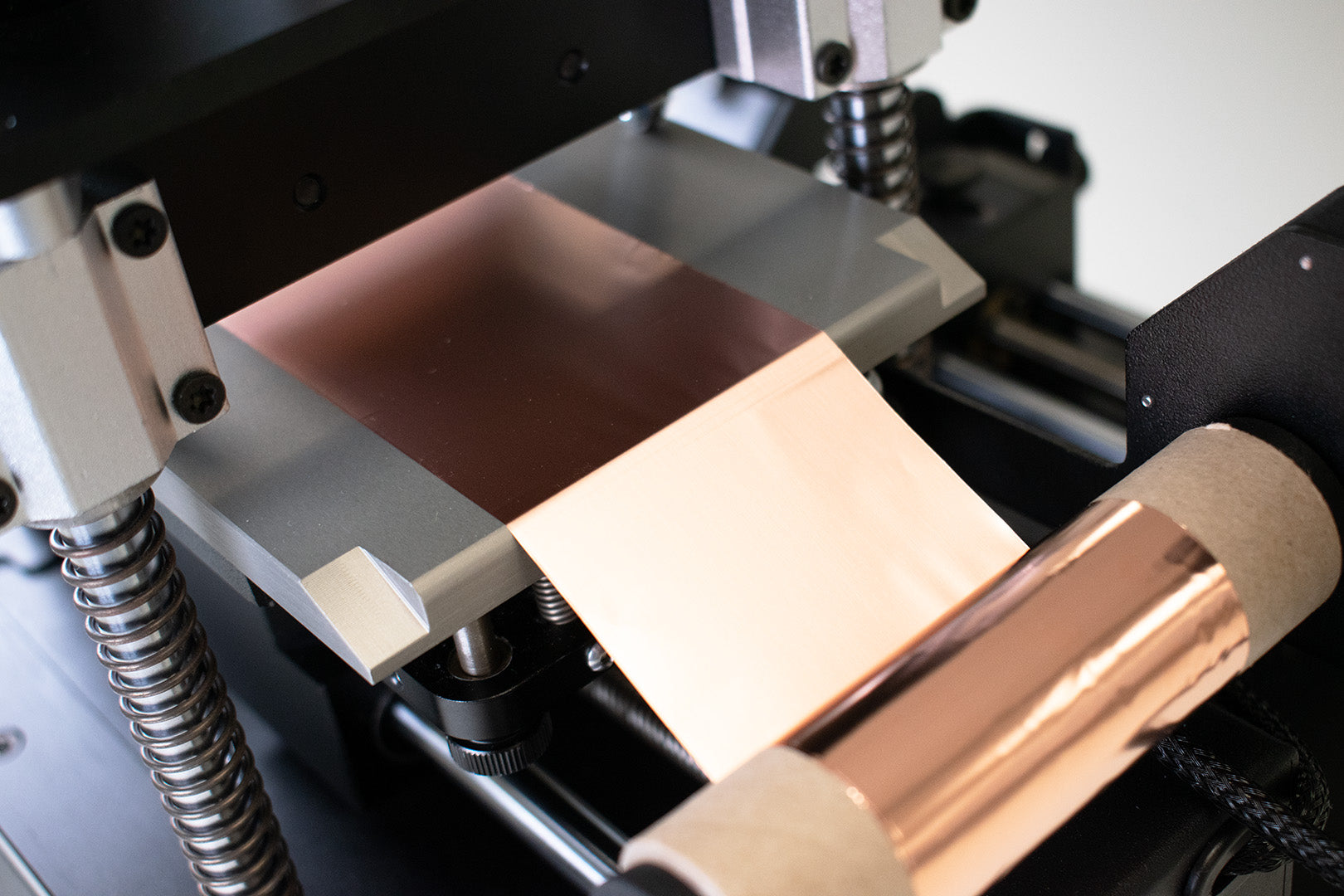

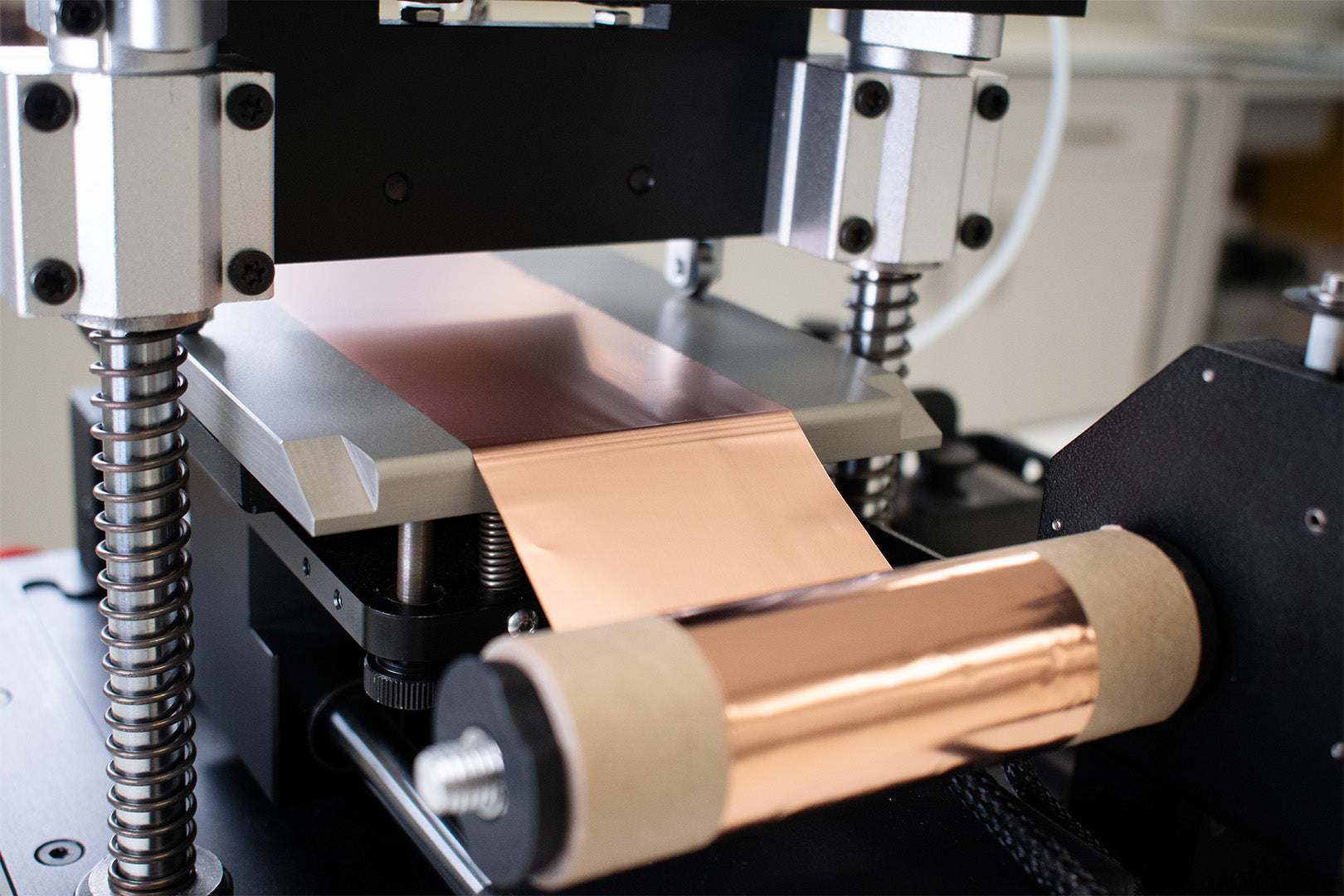

The slot die coater roll attachment is designed to allow users to coat directly onto rolls of foils or other flexible substrates. The attachment allows the users to hold substrate taut across the surface of the stage without the use of tapes or vacuum holders giving a constant gap height between the substrate and head. By utilising a front clamp connected to the stage and a ratcheting rolling mechanism users can apply tension to the substrate. The roll attachment is suitable for foils up to 100mm in width.
The slot-die coater roll attachment is compatible with the version 2 slot die coater only.

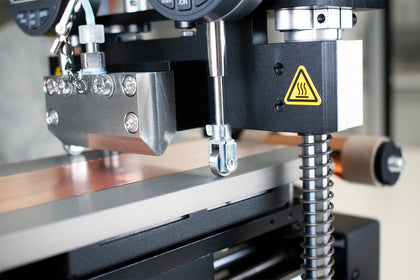

Slot Die Coater Roll Attachment Gallery
Resources and Support
How to Attach the Slot Die Coater Roll Attachment
This guide gives an overview of how to Attach the Slot Die Coater Roll Attachment. First, attach the roller to the plate below the stage, using the provided M3x12 mm bolts, spacers, and toothed washers.
Read more...
