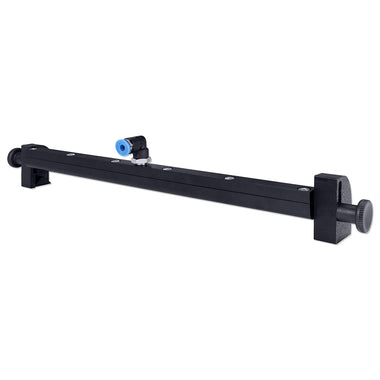

Air Knife For Automatic Thin Film Applicator
Equipment Accessories, Lab Equipment
Air Knife for Controlled Drying Conditions in Thin Film Applicators
Adjustable bracket for optimized air flow angle and distance
Overview | Specifications | Gallery
Our adjustable air knife gives you the ability to control the drying of films produced with our automated thin film applicator based equipment. The adjustable mounting bracket allows you to adjust the distance from your film and the angle of the air curtain for optimized drying conditions.
The air knife is compatible with our automatic thin film applicators, bar coaters, and blade coaters. With the 4 mm push-fit adapter, you can also quickly connect your air knife to a compressed air or pressurised gas line, such as nitrogen for inert gas quenching.
Specifications
| Air Knife Material | Aluminium 7065, black anodization |
|---|---|
| Air Curtain Width | 225mm |
| Total Head Width | 250mm |
| Max Inlet Pressure | 6 Bar |
| Minimum Inlet Pressure | > 1 Bar (Abs) |
| Input Adaptor | 5 mm threaded screw to 4mm push fit |
| Adapter Material | Nylon |
| Height Adjustment | 20 mm |
The Coandă Effect
The design of the air knife utilises the Coandă effect. Air exiting the slit between the two parts of the knife remains attached across the convex curved surface, resulting in a pressure drop that entrains additional air into the flow. This results in a multiplier effect in which the air flow within the air curtain is higher than that exiting the slit.
