Dielectric Longpass and Shortpass Optical Filters
High performance filters for a range of spectroscopy measurements
Overview | Specifications | Gallery | Related Products | Resources and Support
Optical filters from Ossila are available as longpass or shortpass in a range of wavelengths. The filters are perfect for isolating regions of the electromagnetic spectrum for fluorescence measurements, absorption measurements, and more.
Our filters have >90% transmission in the region of transmittance and are OD4 in the suppressed region (~0.01% transmission).

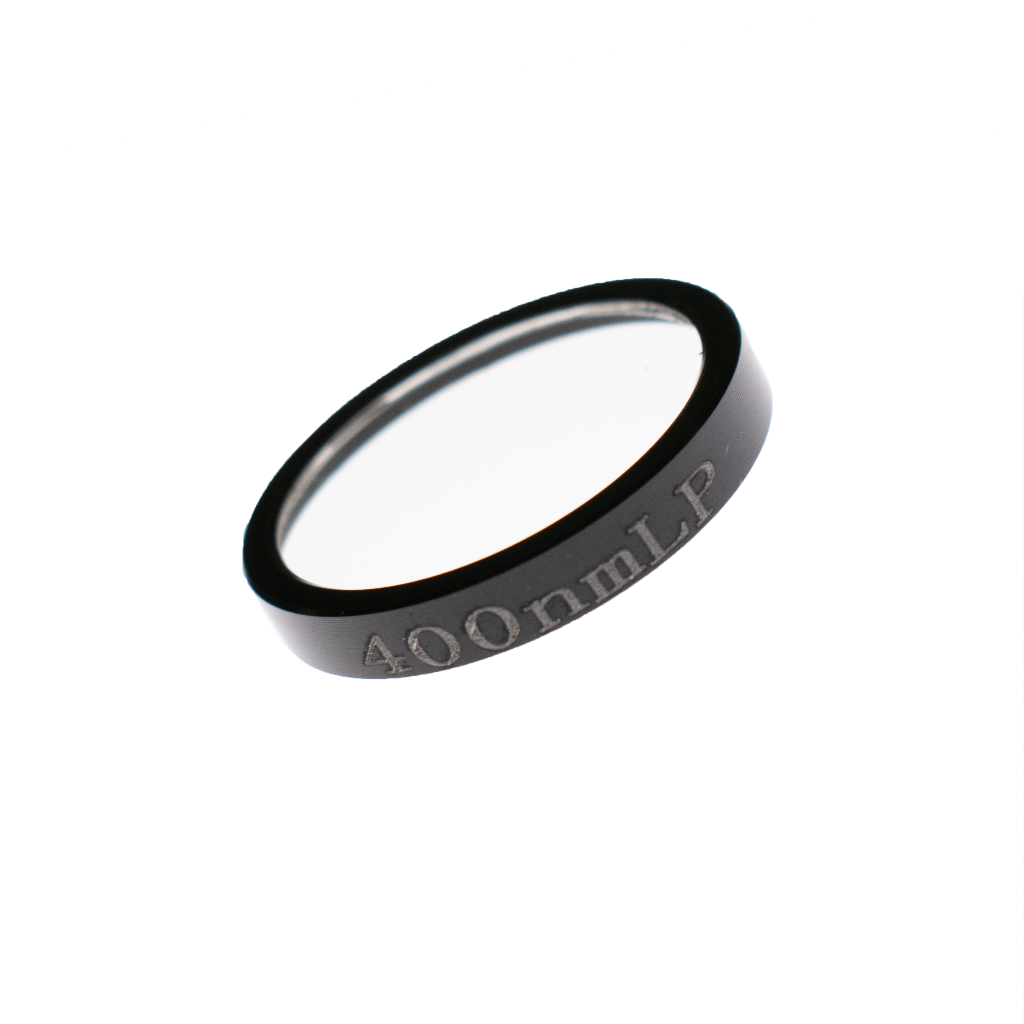

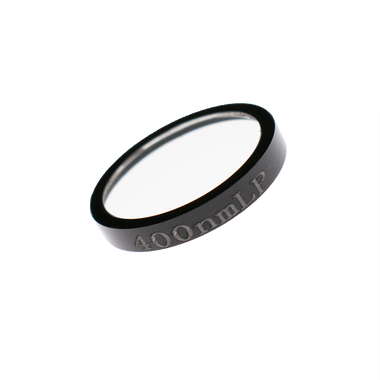

Each individual filter is housed in an outer ring to aid in handling and enhance the OD through prevention of scattering. The ring is labeled with the cut-on/off wavelength and whether the filter is long or shortpass.

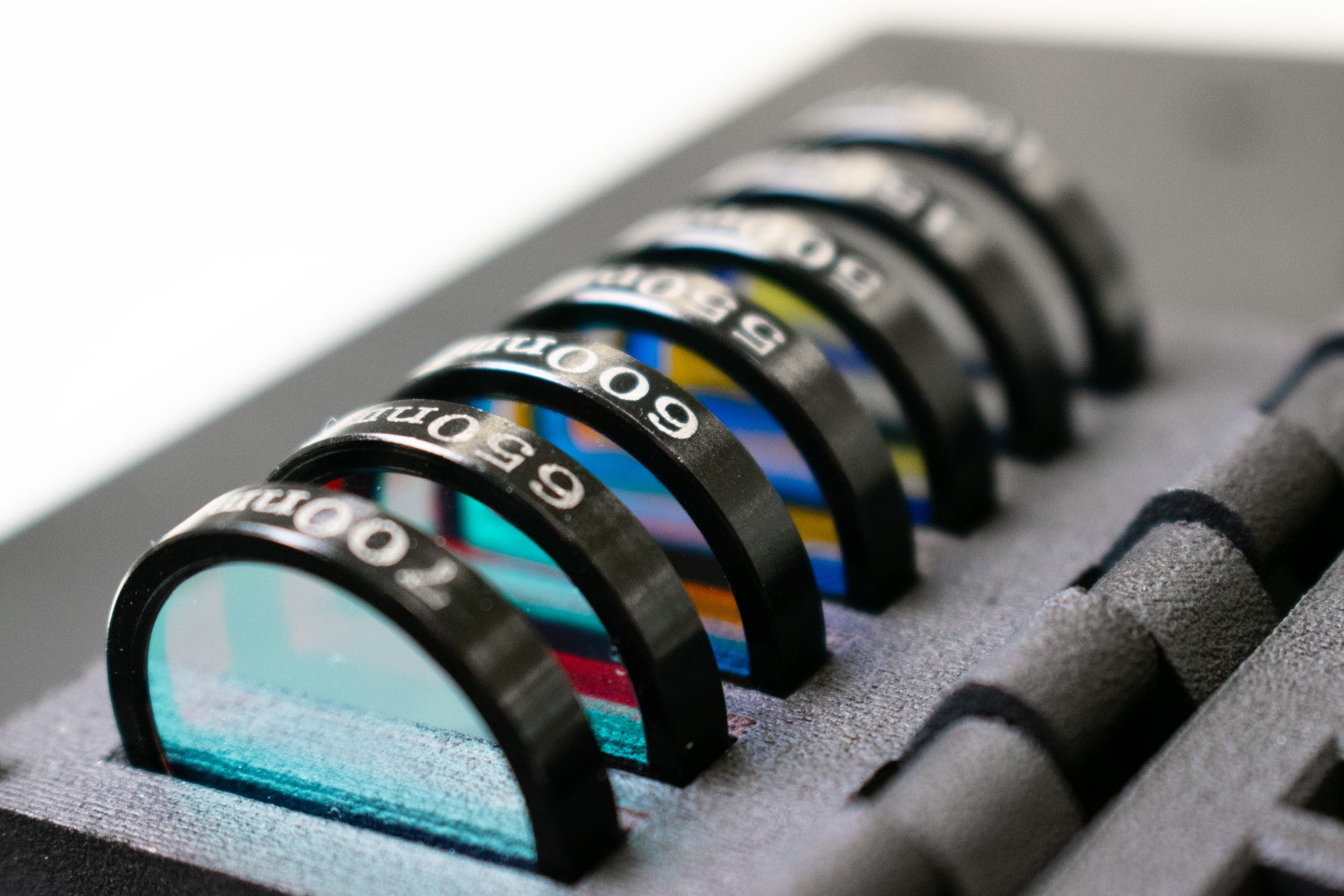

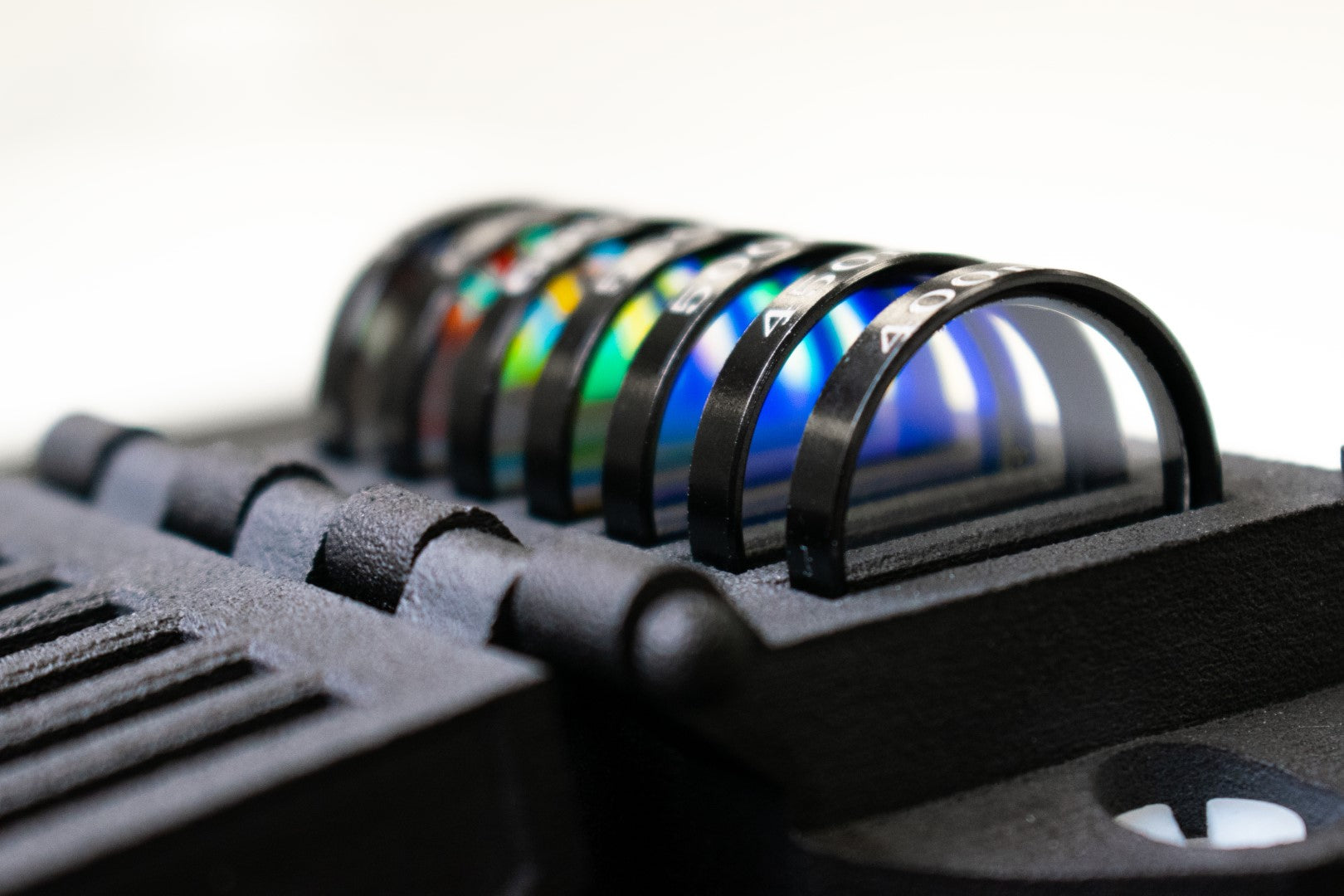

You can also buy our optical filter set, which includes either the longpass filters, shortpass filters, or full range.
Specifications
| Dimension | Ø25.0 mm |
|---|---|
| Thickness | 4.0 mm |
| Optical Density | 4 |
Longpass Transmission

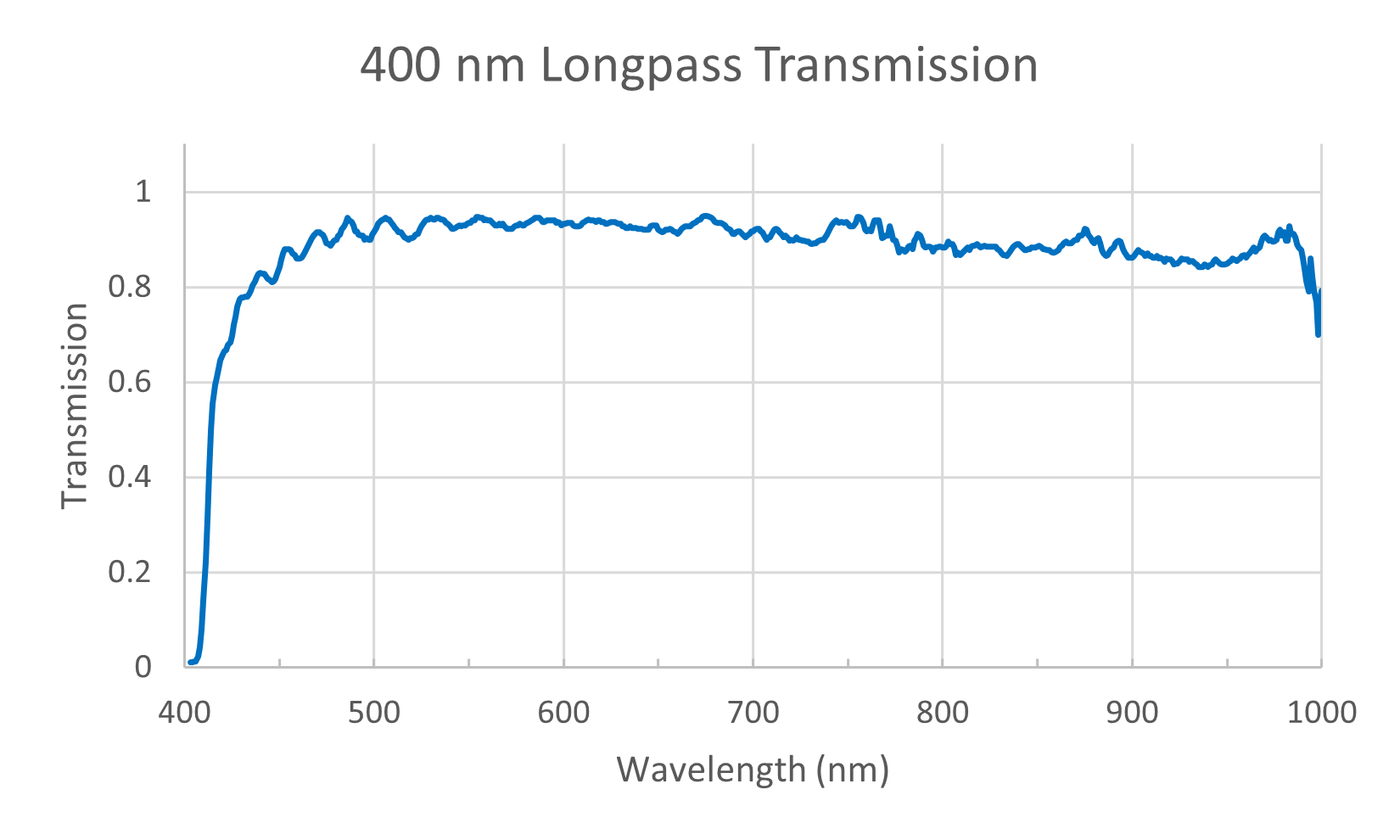

400 nm Longpass Optical Filter transmission

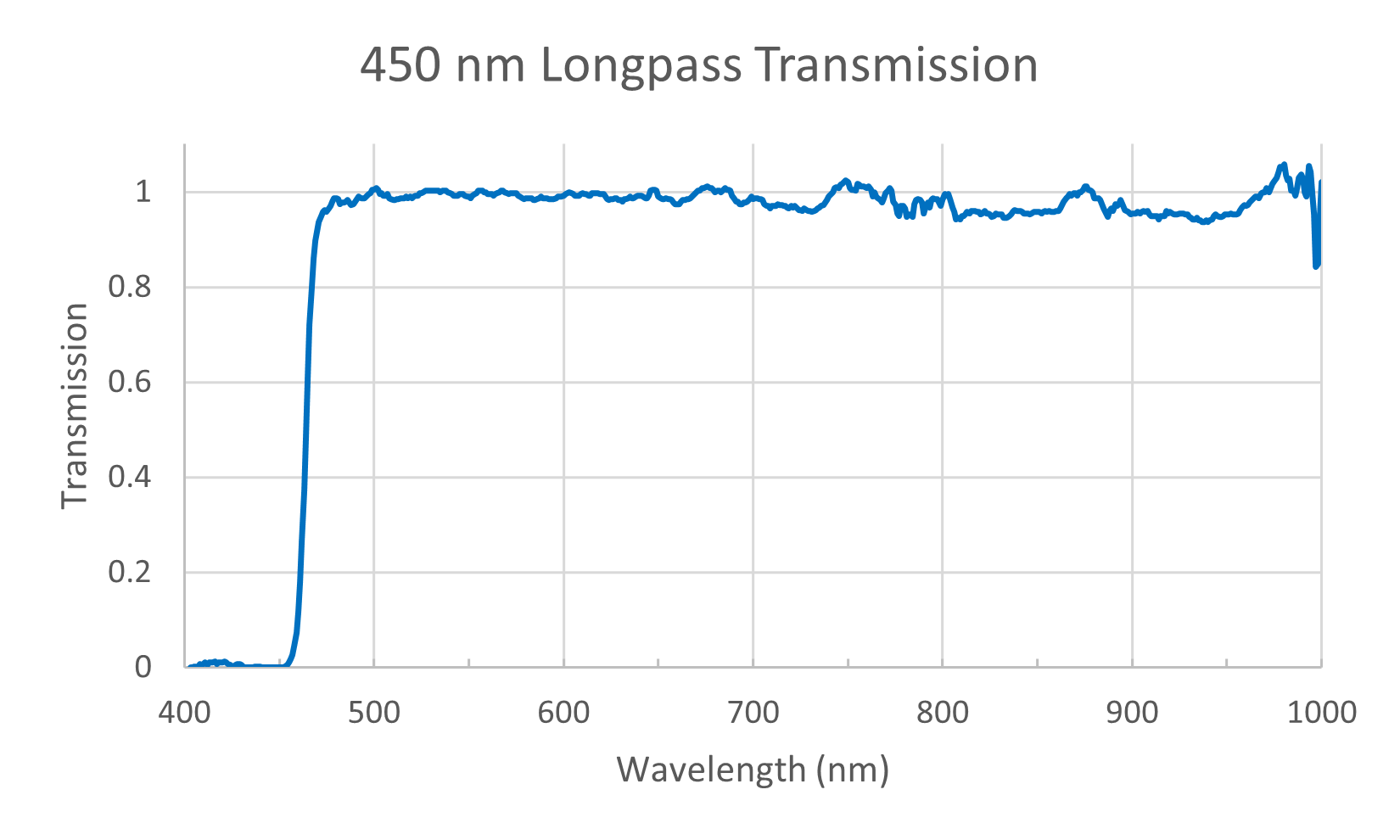

450 nm Longpass Optical Filter transmission

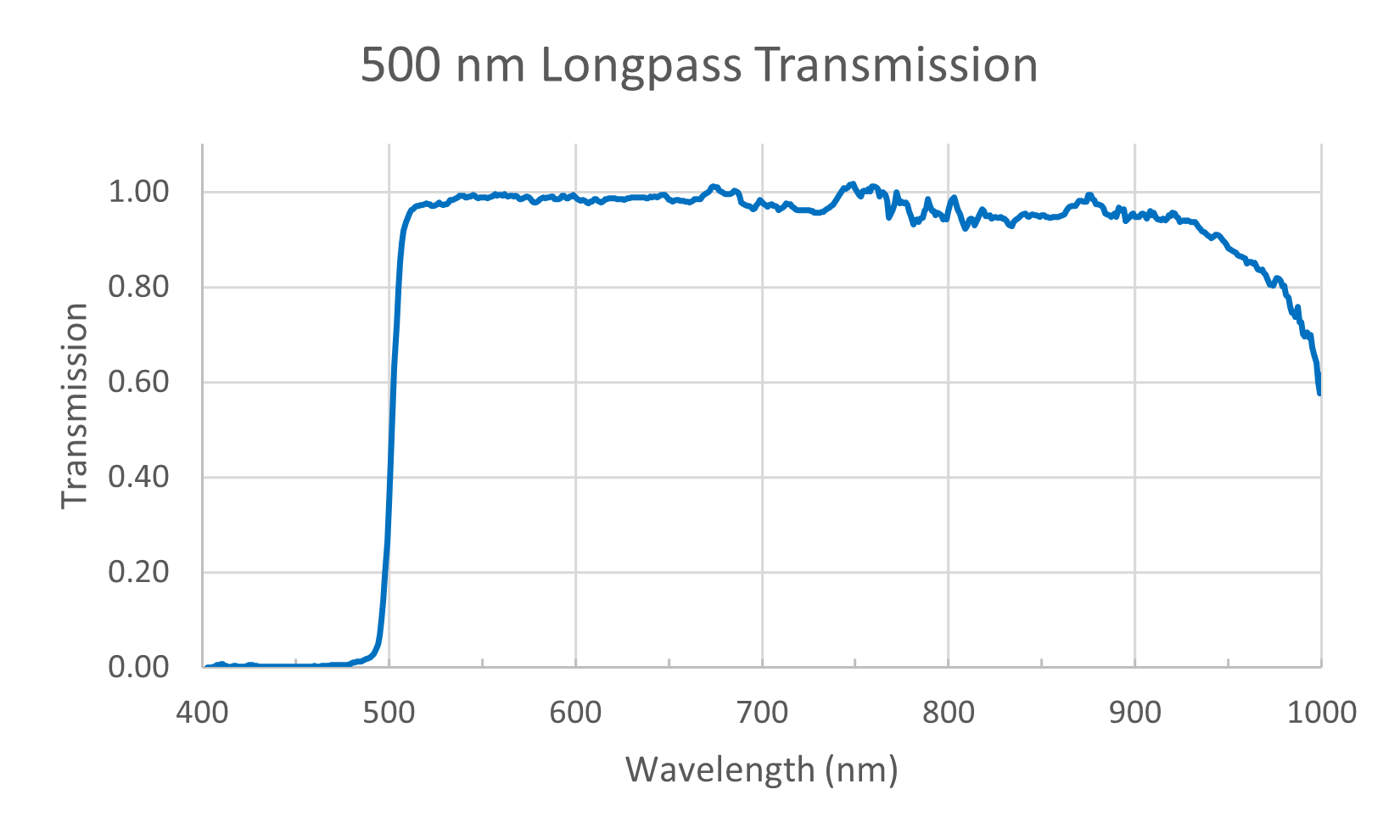

500 nm Longpass Optical Filter transmission

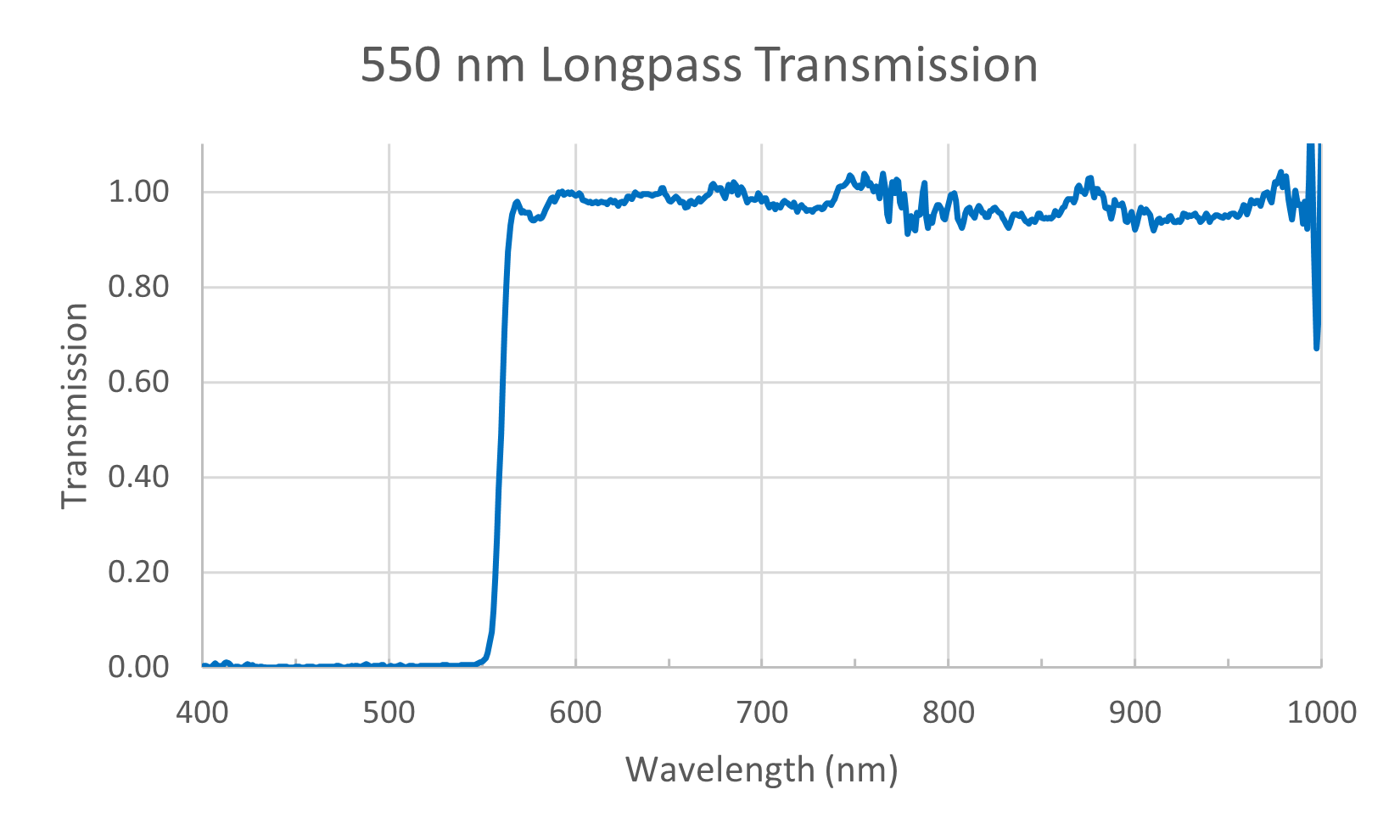

550 nm Longpass Optical Filter transmission

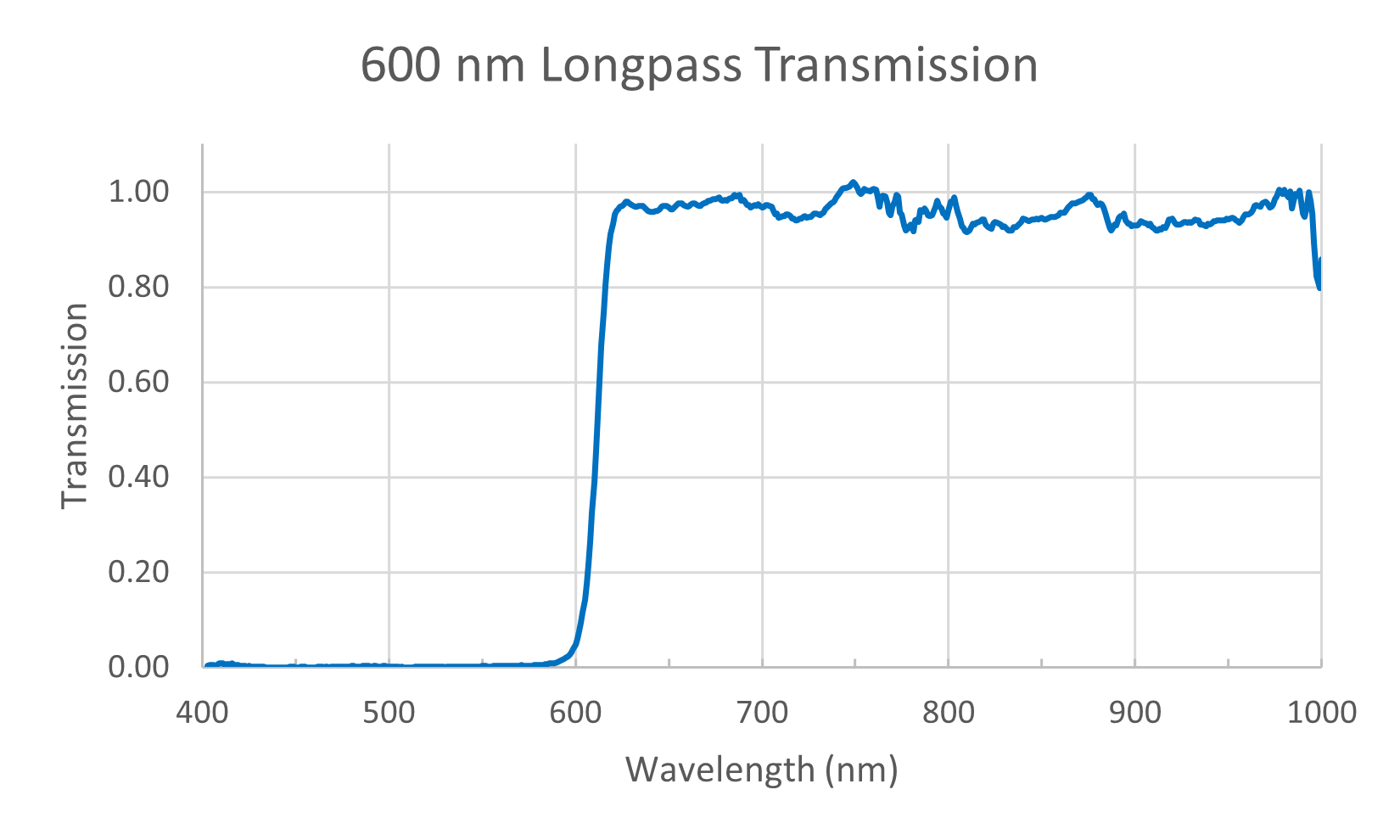

600 nm Longpass Optical Filter transmission

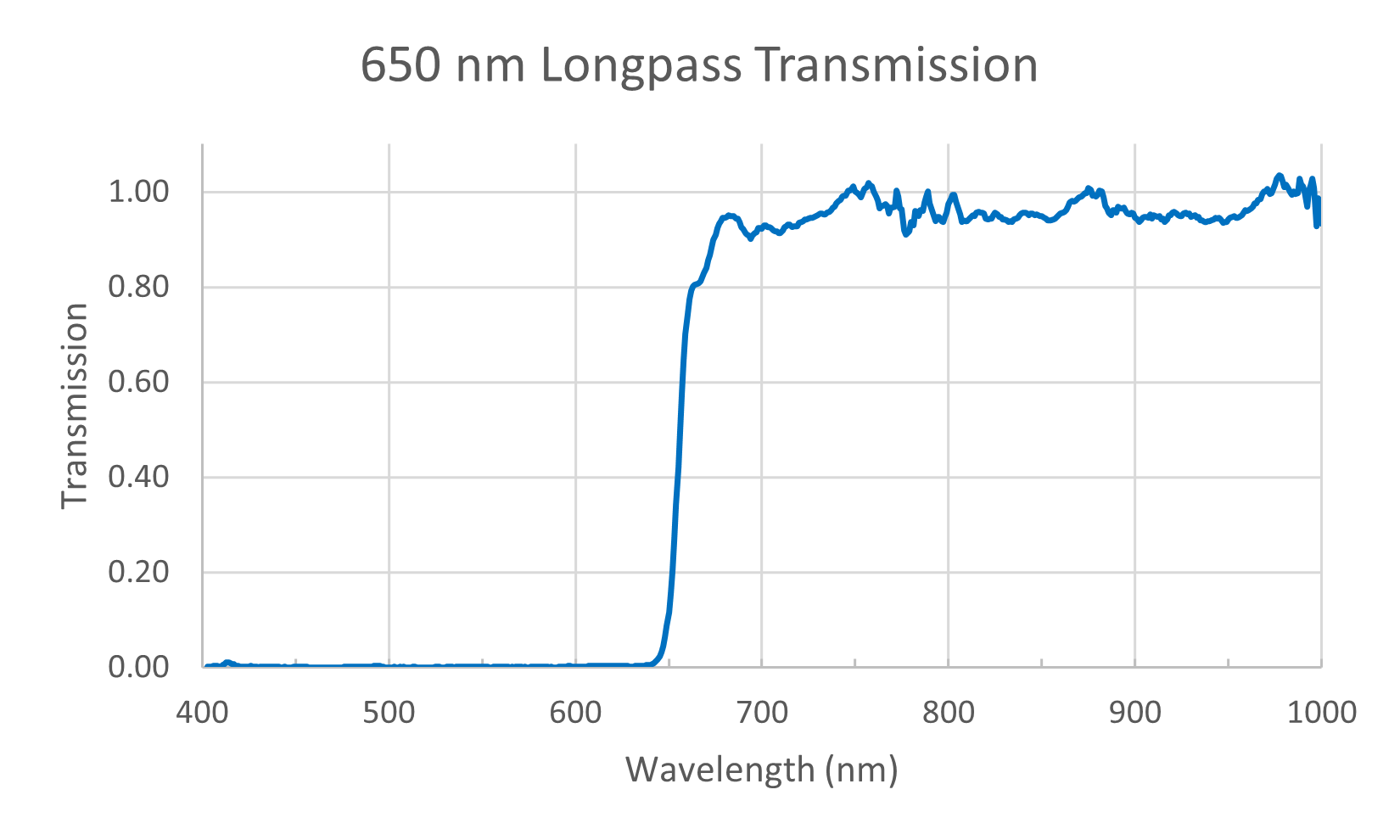

650 nm Longpass Optical Filter transmission

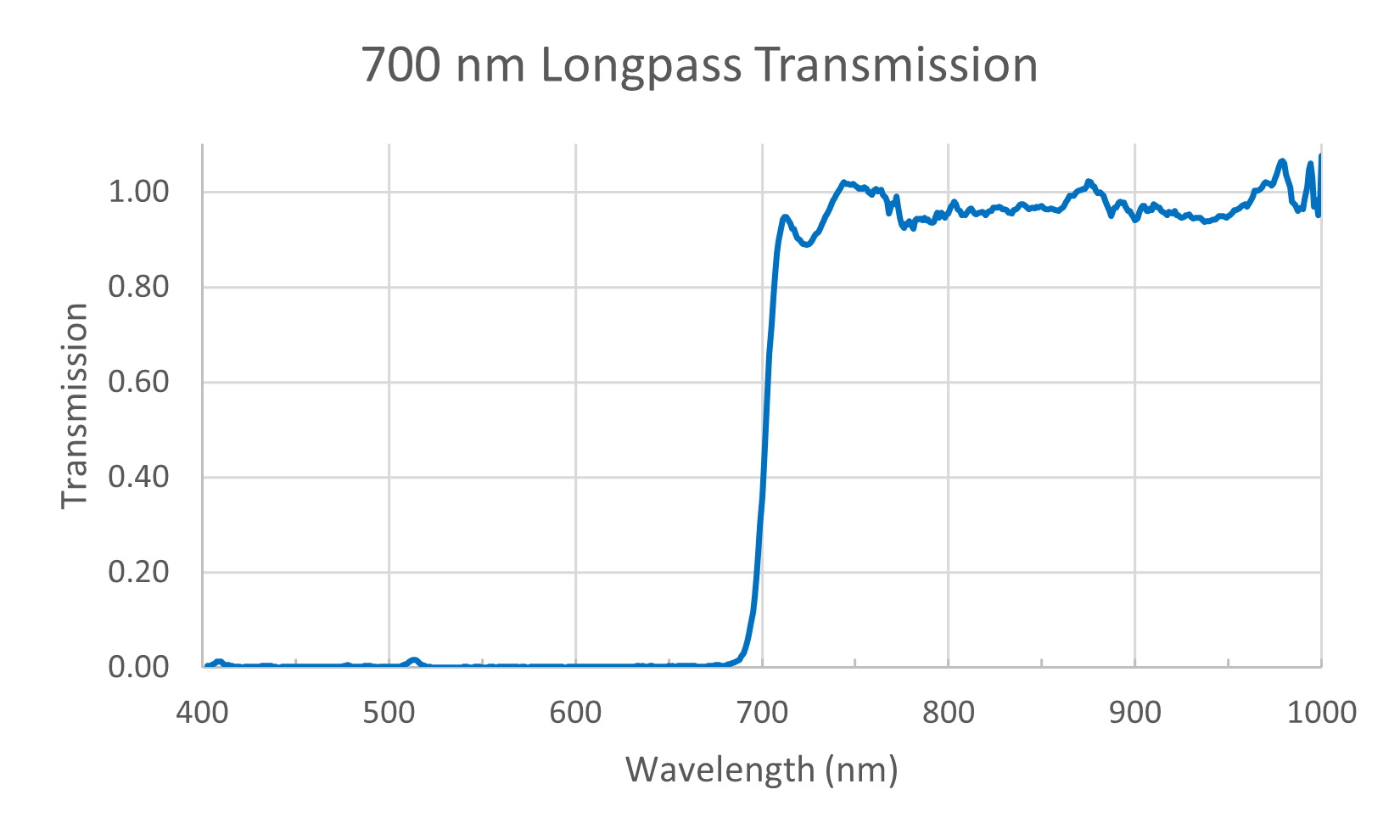

700 nm Longpass Optical Filter transmissionShortpass Transmission
600 nm Shortpass Optical Filter transmission
650 nm Shortpass Optical Filter transmission
700 nm Shortpass Optical Filter transmission
750 nm Shortpass Optical Filter transmission
800 nm Shortpass Optical Filter transmission
850 nm Shortpass Optical Filter transmission
900 nm Shortpass Optical Filter transmission| Optical Filter | Cut-on/off Wavelength | Filter Type |
|---|---|---|
| G2101A1 | 400 nm | Longpass |
| G2101B1 | 450 nm | Longpass |
| G2101C1 | 500 nm | Longpass |
| G2101D1 | 550 nm | Longpass |
| G2101E1 | 600 nm | Longpass |
| G2101F1 | 650 nm | Longpass |
| G2101G1 | 700 nm | Longpass |
| G2102A1 | 600 nm | Shortpass |
| G2102B1 | 650 nm | Shortpass |
| G2102C1 | 700 nm | Shortpass |
| G2102D1 | 750 nm | Shortpass |
| G2102E1 | 800 nm | Shortpass |
| G2102F1 | 850 nm | Shortpass |
| G2102G1 | 900 nm | Shortpass |
