Transmission Sample Holder (Two-Port)

Equipment Accessories, Spectroscopy Equipment

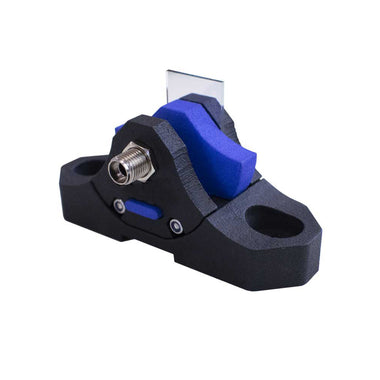

Sprung spectroscopy transmission holder for a wide variety of samples

For use in free space or fiber coupled arrangement and compatible with both metric and imperial optical tables

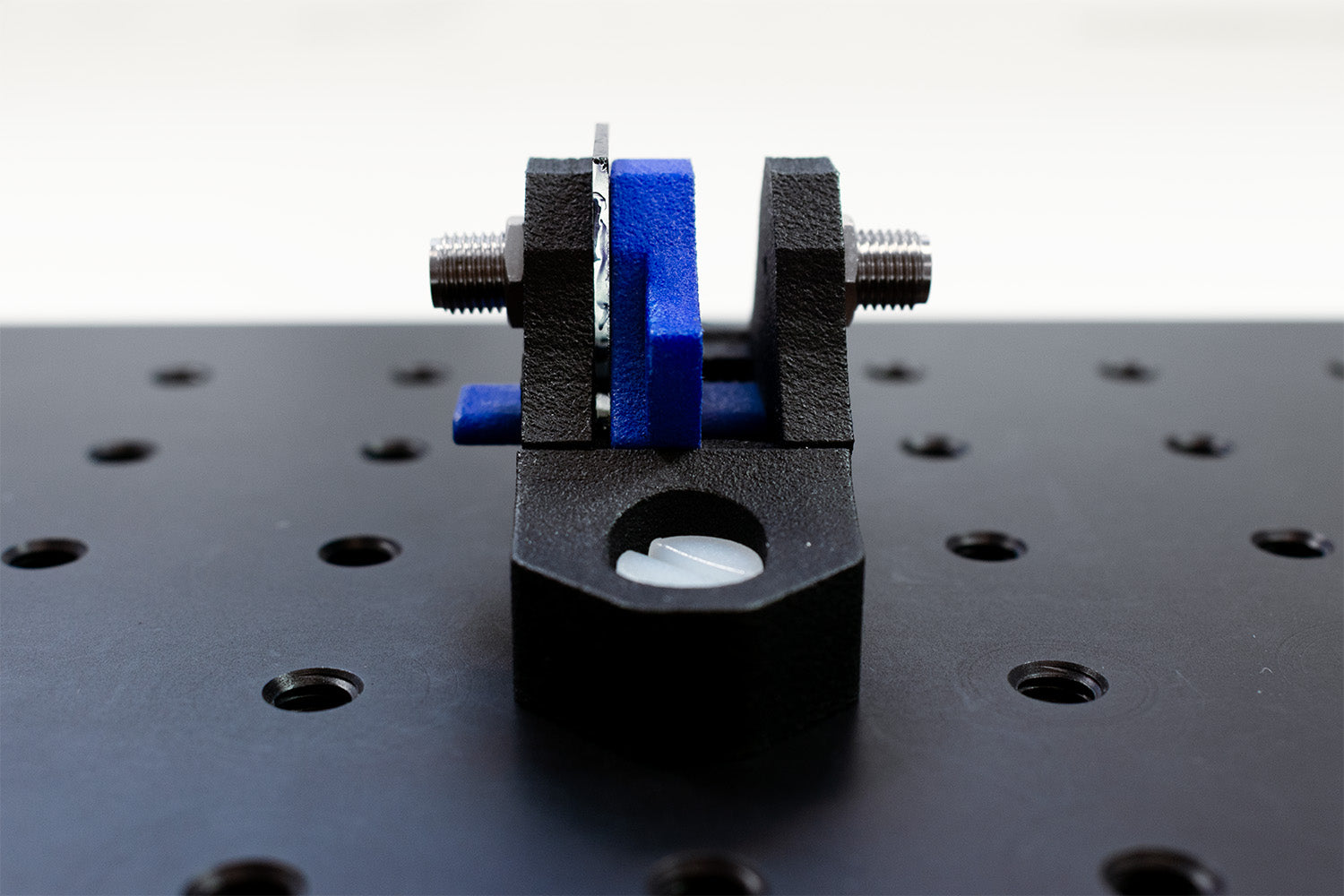

The Ossila two-port Spectroscopy Transmission Holder is designed to hold rigid samples or flexible films in position for optical transmission or absorption measurements. The four-port version additionally allows for reflectivity and photoluminescence measurements. The transmission holder can be used with SMA optical fibres or in a free space arrangement and can be bolted to a standard metric or imperial optical table.

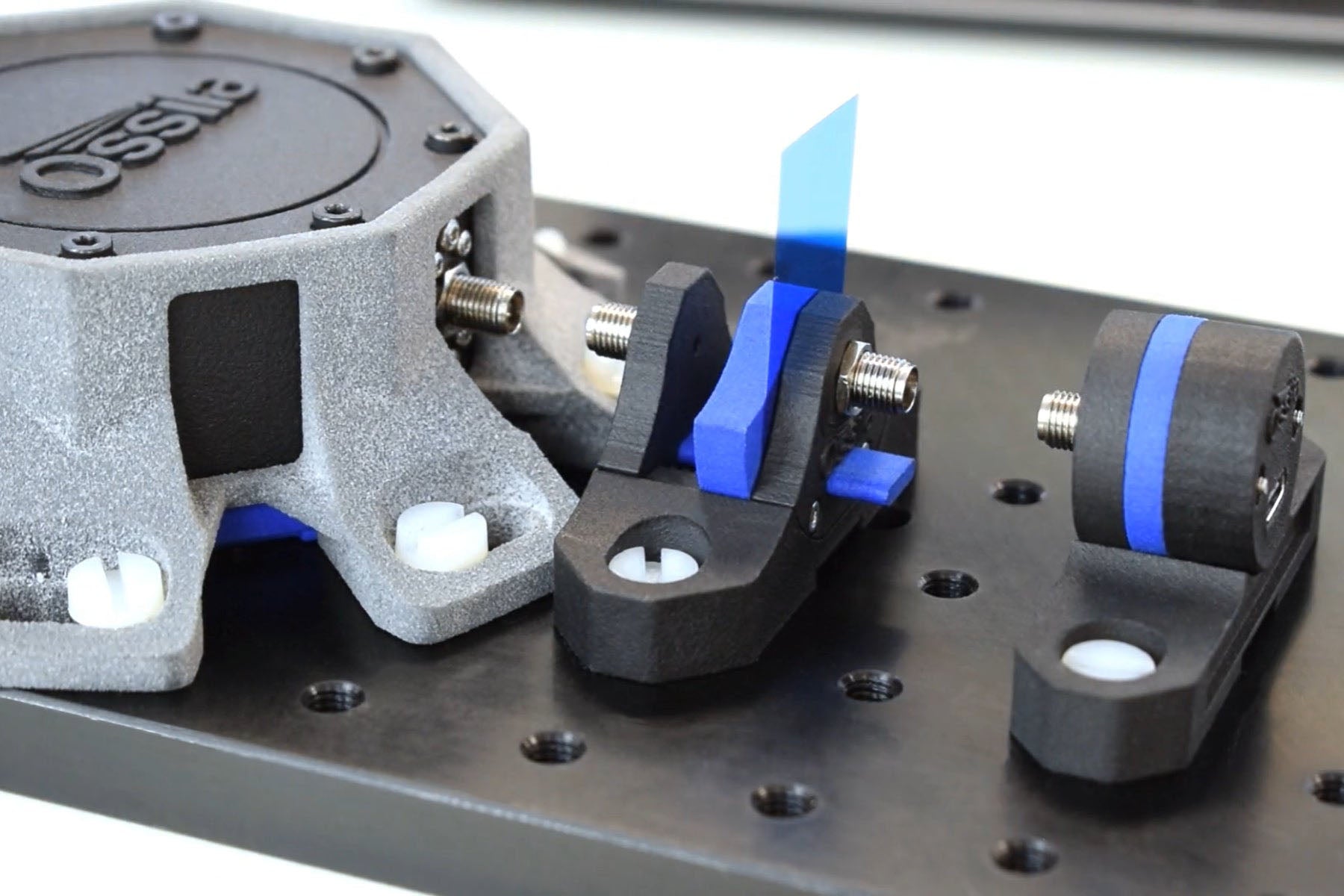

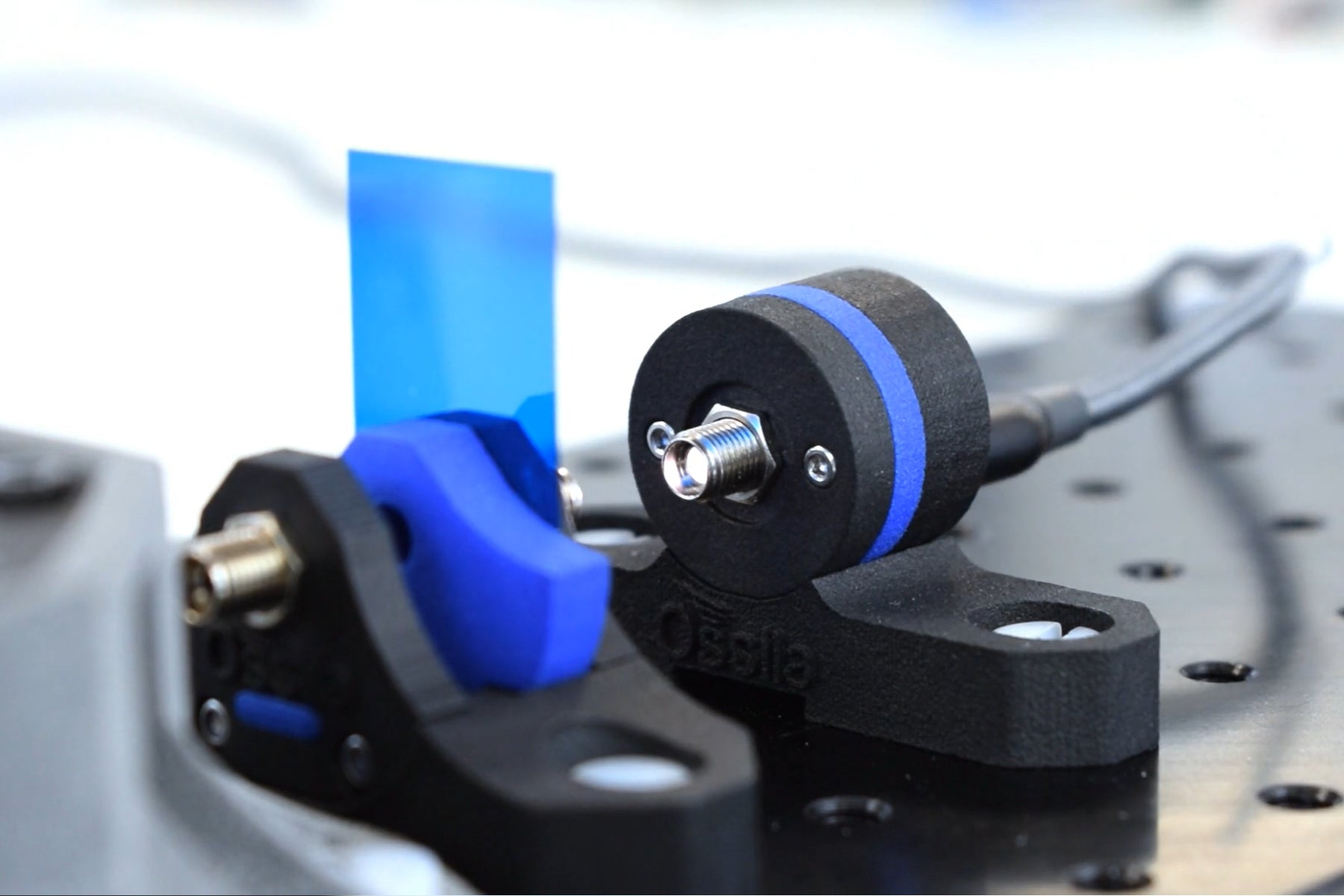

Part of the new range of spectroscopy equipment, the transmission holder is fully compatible with the Ossila USB Spectrometer. For the best value, we recommend the optical spectroscopy kit. Included with this kit is the Ossila Optical Spectrometer, transmission holder, broadband white light source, UV light source, spectrometer case, cuvette holder, breadboard plate, optical mirror (20 mm x 15 mm), and two SMA optical fibers.

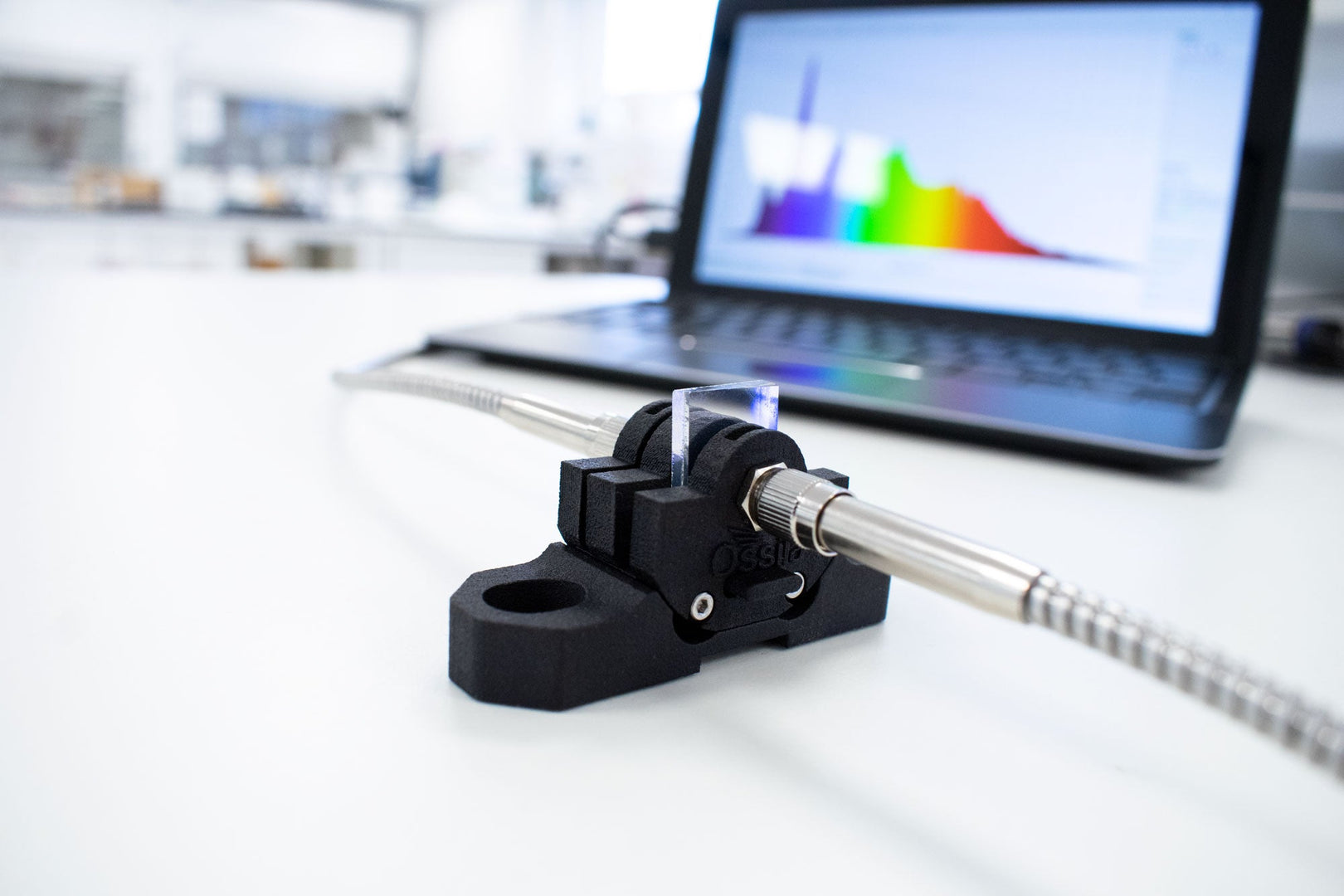

The transmission holder in a laboratory — Use the transmission holder (old version pictured) in a free space arrangement or couple with optical fiber cables

Specification

Body Material	Polyamide
Maximum Sample Thickness	6.5 mm
Fibre Connection	SMA 905
