50mm Compact Stage
Linear Stage User Manual
Product manual for Ossila Linear Stages.
Compact Motion System with a Small Lab Footprint
Ideal for precision positioning applications where space is at a premium
Overview | Specifications | Gallery | Software | In the Box | Related Products | Resources and Support

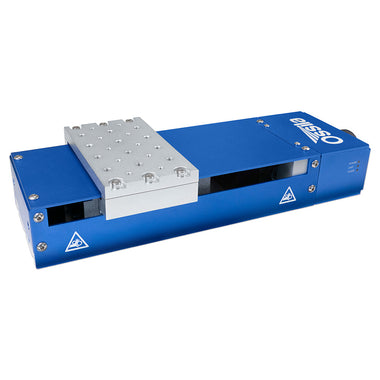

With a 50mm travel distance and a precision C7 ball screw drive, you can implement precise motion into research applications even when space is limited. The compact system maintains high quality performance while offering exceptional value. In more advanced applications, the modular design means you can combine multiple Ossila stages to achieve multi-axis positioning. Every stage is calibrated according to ISO 230-2:2014 standard with our traceable calibration system.
There is no need to purchase additional software with our free motion control console. The software enables you to easily home your stage, move to absolute positions, move by relative distances, and set the movement speed. For even greater flexibility, control your stage directly with a serial command library.
Achieve Precision
Precise and accurate motion control
Fits in Any Lab
Compact design with guaranteed precision
Great Value
Access precision motion control within your budget
Complete System
Includes a motor, control, and stage in one unit
Simple Integration
Designed for every laboratory setup
Built to Last
Constructed from high quality materials
Free Software
Intuitive and flexible software at no extra cost
Two-Year Warranty
Covered by the Ossila Warranty
Specifications
Drive | C7 precision ball screw with dual linear rails |
---|---|
Travel | 50 mm |
Maximum speed | 15 mm/s |
Maximum horizontal load | 10 kg |
Maximum vertical load | 3 kg |
Dimensions (L x W x H) | 28 cm x 13 cm x 7 cm |
Weight | 3 kg |
Compact Stage Gallery
Software
The Ossila Motion Control Console works to seamlessly control your linear stage. The software automatically detects which stages are connected and populates the workspace accordingly.
- The Ossila Motion Control Console is completely free. Install the software on as many PCs as you want and download future updates for free.
- The software is designed to be simple and easy-to-use, with no hidden menus or settings.
- Connect via USB and get started straight away, even without any programming knowledge.
Software Requirements
Operating System | Windows 10 or 11 (64-bit) |
---|---|
CPU | Dual Core 2 GHz |
RAM | 4 GB |
Available Hard Drive Space | 142 MB |
Monitor Resolution | 1440 x 960 |
Connectivity | USB |
In the Box
- 50mm Compact Linear Stage
- Power supply
- USB cable
- Test report
