Probe Station Platen Set
Equipment Accessories, Probe Station
Magnetic-Compatible Platens for High-Stability Probe Stations
Easily mount and position micromanipulators with confidence in custom probing setups
Specifications | Related Products | Resources and Support
Create a stable foundation for your custom probe station with our high-stability platens. Made from durable ferritic stainless steel, these precision-brushed platforms offer excellent ferromagnetic properties to achieve an optimal balance of friction and smoothness while minimizing glare and slippage. When paired with Ossila Micromanipulators, the carefully calibrated magnetic coupling delivers exceptional holding force without compromising repositioning. Your micromanipulators stay exactly where you need them while remaining easy to adjust with accuracy and confidence.
Compatible with both metric and imperial optical breadboards, mount the platens onto standard optical posts and pair them with your preferred sample chuck, stage, and microscope head. Whether you’re building a custom system or upgrading your current setup, you’ll find it easy to create a tailored solution that meets your exact needs.
Ferromagnetic
Stainless Steel
With minimal friction
for exceptional stability
For Existing and
Custom Setups
Compatible with metric and
imperial optical breadboards
For Right- and
Left-Handed Probing
Pair of platens for
ergonomic placement
Specifications
| Material | Stainless Steel 430 |
|---|---|
| Finish | #4 Brushed |
| Mounting Hardware | M6 screws, low-profile, hex socket |
| Dimensions per Platen (L x W x H) | 300 mm x 188 mm x 5 mm (11.81" x 7.40" x 0.20") |
| Weight per Platen | 2 kg |

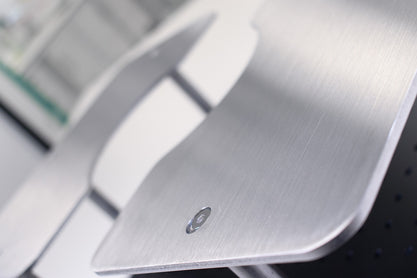

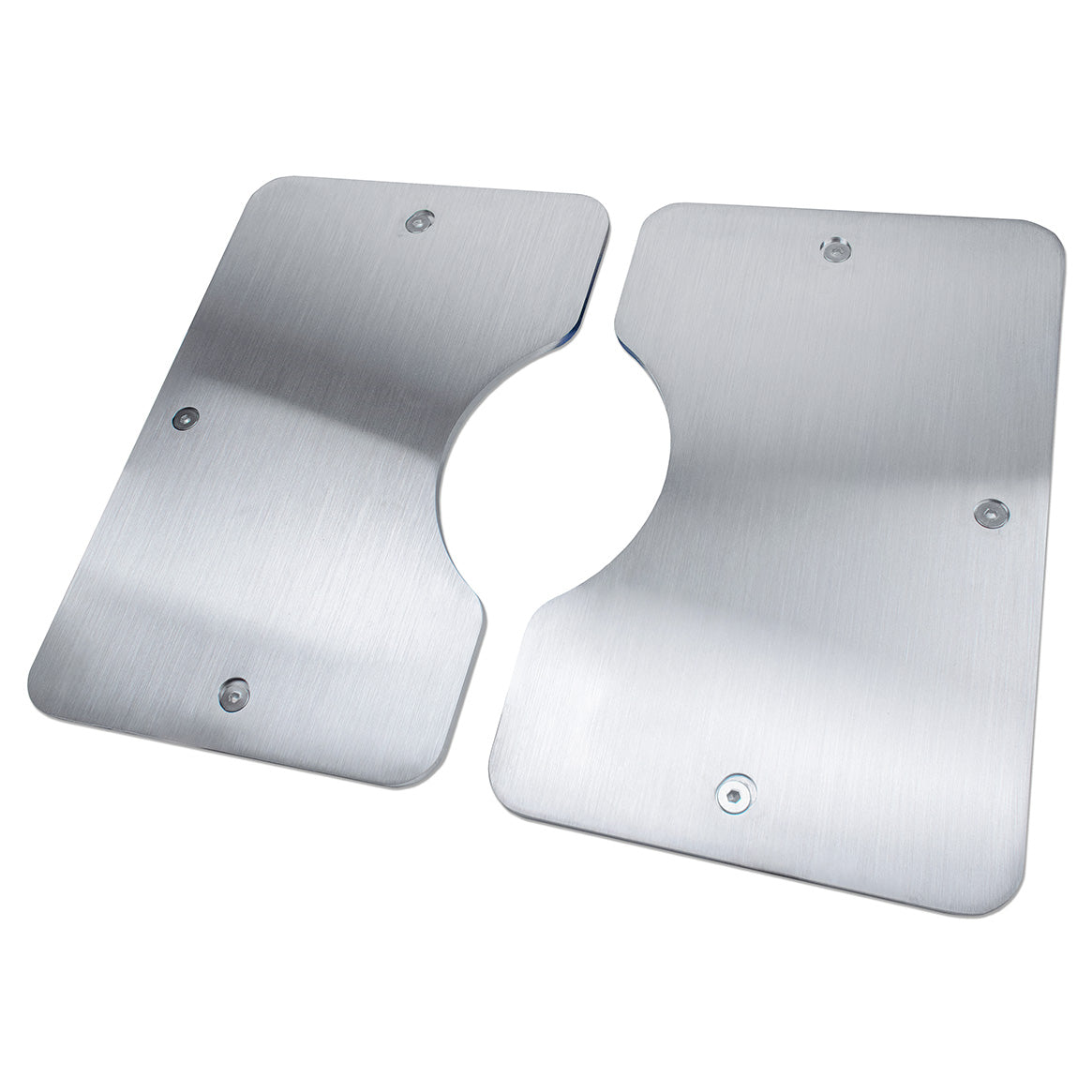

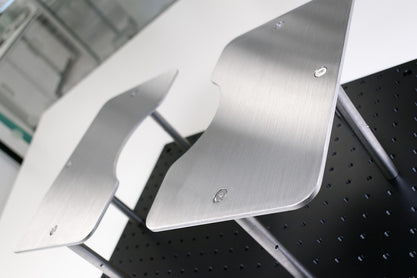

Probe Station Platen Set Gallery
Related Products
Resources
Troubleshooting: Micromanipulator Drift and Other Common Errors
Micromanipulator performance can suffer from various mechanical issues, including drift, backlash, side play, and sticking. Our engineers have implemented solid design principles to avoid potential movement issues from the start.
Read more...
