Integrated USB-based SiPM Detector
Highly sensitive, plug-and-play module with temperature correction
Overview | Specifications | Features | Technical Support
The Ossila Silicon Photomultiplier is a fully-integrated USB detector with power supply, detector, and 24-bit analog-to-digital converter. Both power and data communications are handled over the USB-C connection. Onboard temperature monitoring and correction removes much of the temperature dependent output inherent to SiPMs.
High Sensitivity
More sensitive than traditional photodiodes
Fully Integrated
SiMP detector with power supply and analog-to-digital converter
Temperature Correction
Dynamic bias voltage adjustments to reduce temperature dependence
Compact and Modular
With both post and rail mount options
for custom setups
Specifications
| Irradiance measurement range (approx.) | 1nW/cm² – 10uW/cm² |
|---|---|
| Spectral range | 200nm-1000nm |
| Maximum detection efficiency | 35% |
| Detector area | 3mm x 3mm |
| Connection | USB-C (combined power & communication) |
| Signal-to-noise ratio | >50,000:1 |
| Data rate (max) | 30Hz |
| Dimensions | 65mm x 65mm x 14mm |
| Weight | 100g |

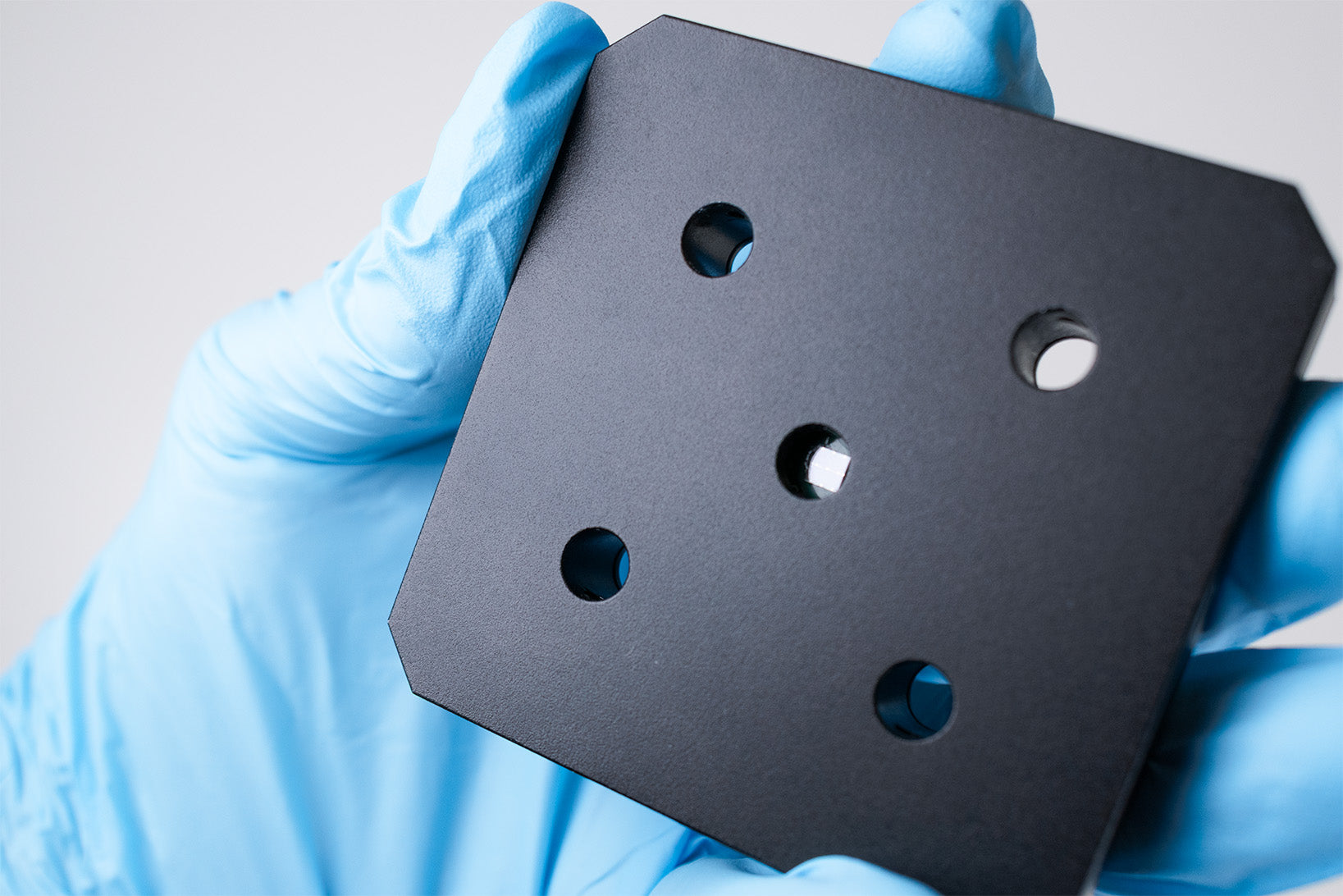

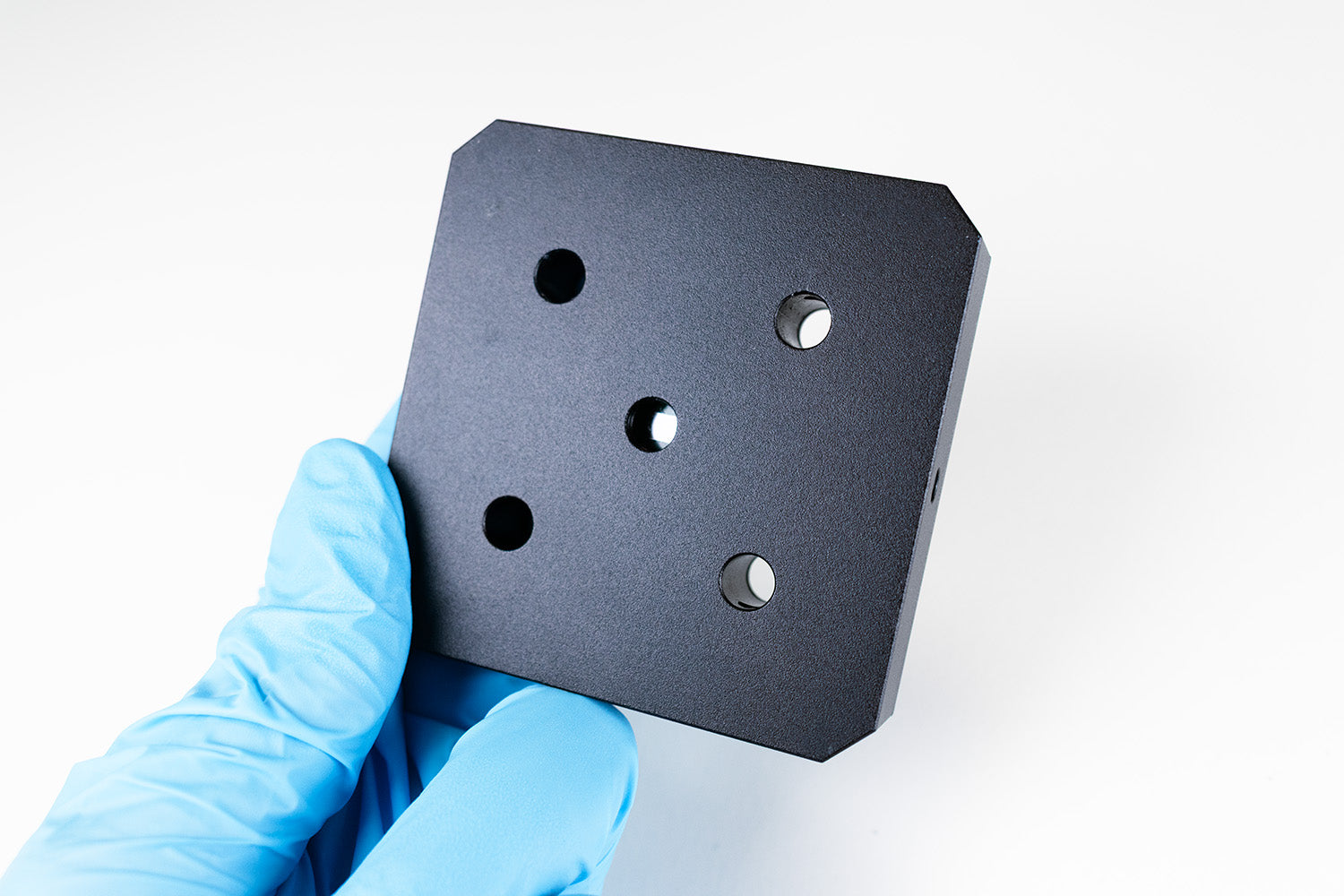

Gallery
USB Silicon Photomultiplier Features
High Sensitivity
SiPMs are biased above the breakdown voltage of silicon, meaning that they operate on the principle of avalanche (Geiger) detection, where a single photon triggers many electrons to be generated with the device. This makes them for more sensitive than traditional photodiodes.
Fully Integrated
SiPMs require a voltage supply high enough to put the detector into Geiger mode (typically 10's of volts). The Ossila USB SiPM requires only a USB connection to a host PC to power the device. An onboard 24-bit low noise analog-to-digital converter negates the need for any external signal processing. Counts are output over the USB connection, negating the need for any external signal processing.
Temperature Correction
The breakdown voltage of a SiPM is highly temperature dependent which results in a signal that can vary greatly with small temperature changes. The Ossila SiPM is calibrated to dynamically adjust the bias voltage to keep the overvoltage constant, resulting in a 10x reduction in temperature dependence.
