Tool Clamp Micromanipulator
Electrical Characterization, Lab Equipment, Motion Control, OFET Device Testing & Fabrication Equipment, Probe Station
General purpose manual micromanipulator with tool clamp
Precisely manipulate and position a wide variety of tools and devices
Overview | Specifications | Positioning Resolution | Gallery | In the Box | Accessories | Resources and Support

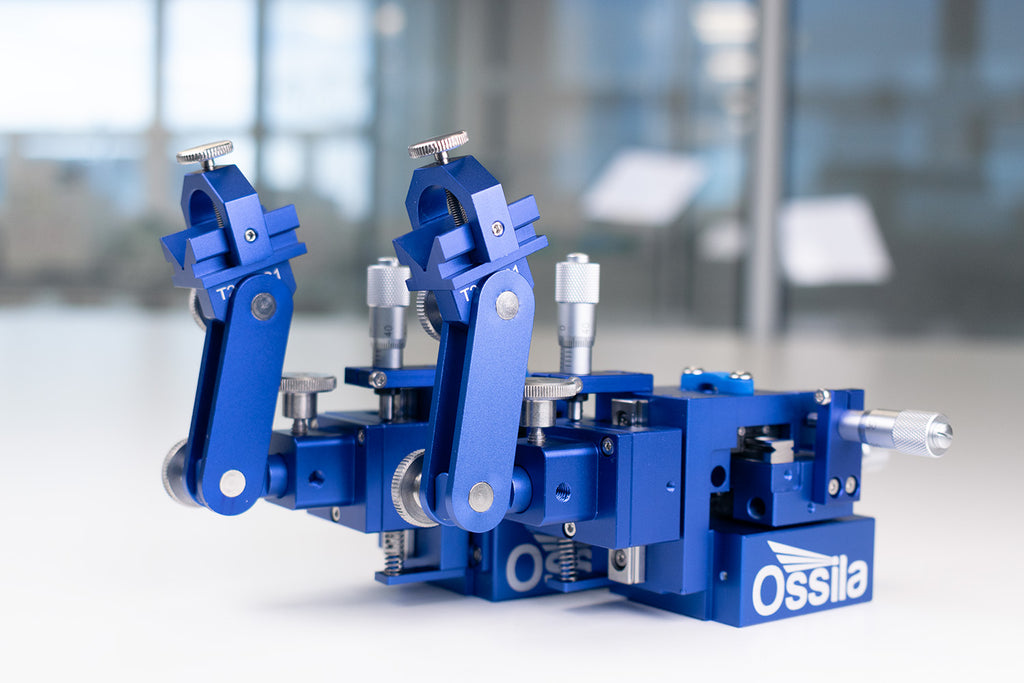

Accurately position most pen-shaped tools for applications ranging from fluid dispensing to optical alignment. Intuitively control motion in the X, Y, and Z axes down to 4 μm using the three precision micrometers. Available in either left- or right-handed configurations or as a pair.

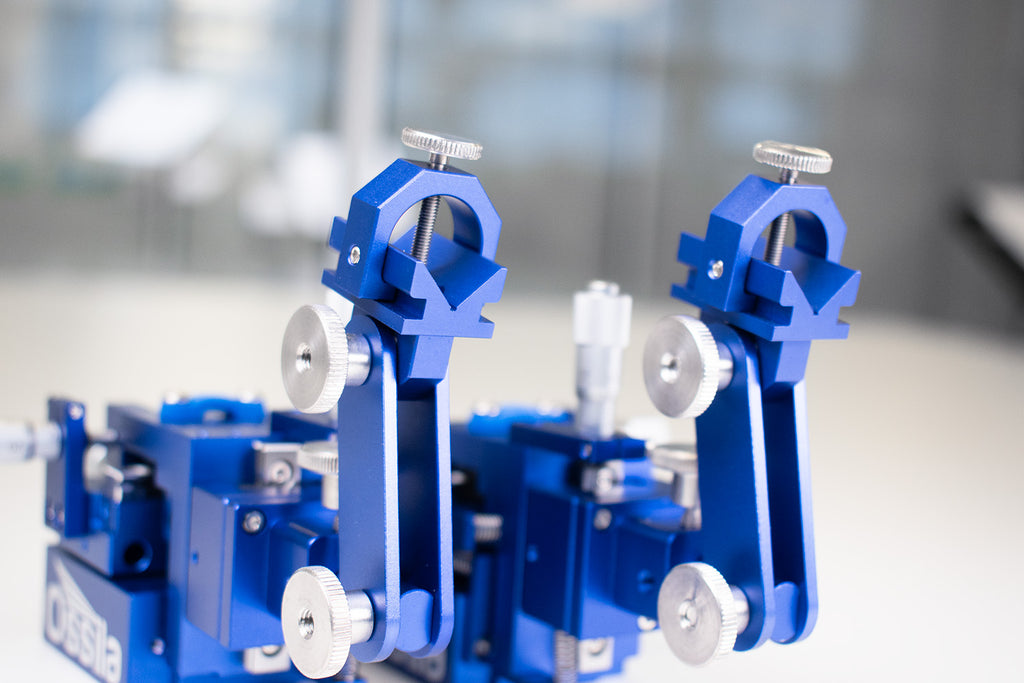

The universal tool clamp comes pre-fitted to the micromanipulator arm, and can be angled ±90 degrees, allowing for virtually any tool approach or contact angle. The 25 mm long V-groove clamping mechanism ensures consistent tool alignment and minimizes movement, while the compact dimensions ensure minimal interference around your sample or device under test.
Suitable for tools or devices from 1 mm to 13 mm in diameter, including:
- Syringes and micropipettes for accurate fluid dispensing, cell injection, or sample collection
- Optical fibers for precise light coupling, alignment, and spectroscopy
- Vacuum needles for delicate material handling, picking, and placing
For electrical probing, we recommend our micromanipulator with tungsten probe tip and SMA cable.
Compact Design
Space efficient with magnetic base for easy attachment to probe stations
Broad Tool Compatibility
Easily and securely holds a variety of cylindrical tools from 1 mm to 13 mm in diameter
Micron-Level Resolution
Choose your micrometers for a smallest achievable motion of 4-8 µm
Three-Axes Translation
Manually control motion in the X, Y, and Z axes with equal control and precision
Specifications
Motion
| Drive Axes | X, Y, Z |
|---|---|
| Drive Fine Movement | Micrometer |
| Maximum Axis Travel | 10 mm |
| Graduated Axis Travel | 6.5 mm |
| Micrometer Readout Resolution | 10 μm |
| Micrometer Head Thread Pitch | 50 threads per inch |
| Smallest Achievable Motion | Approx. 4-8 µm |
Tool Clamp
| Tool Diameter Range | 1-13 mm |
|---|---|
| Material | Anodized Aluminum |
| Dimensions (L x W x H) | 25 x 22 x 40 mm |
| Weight | 18 g |

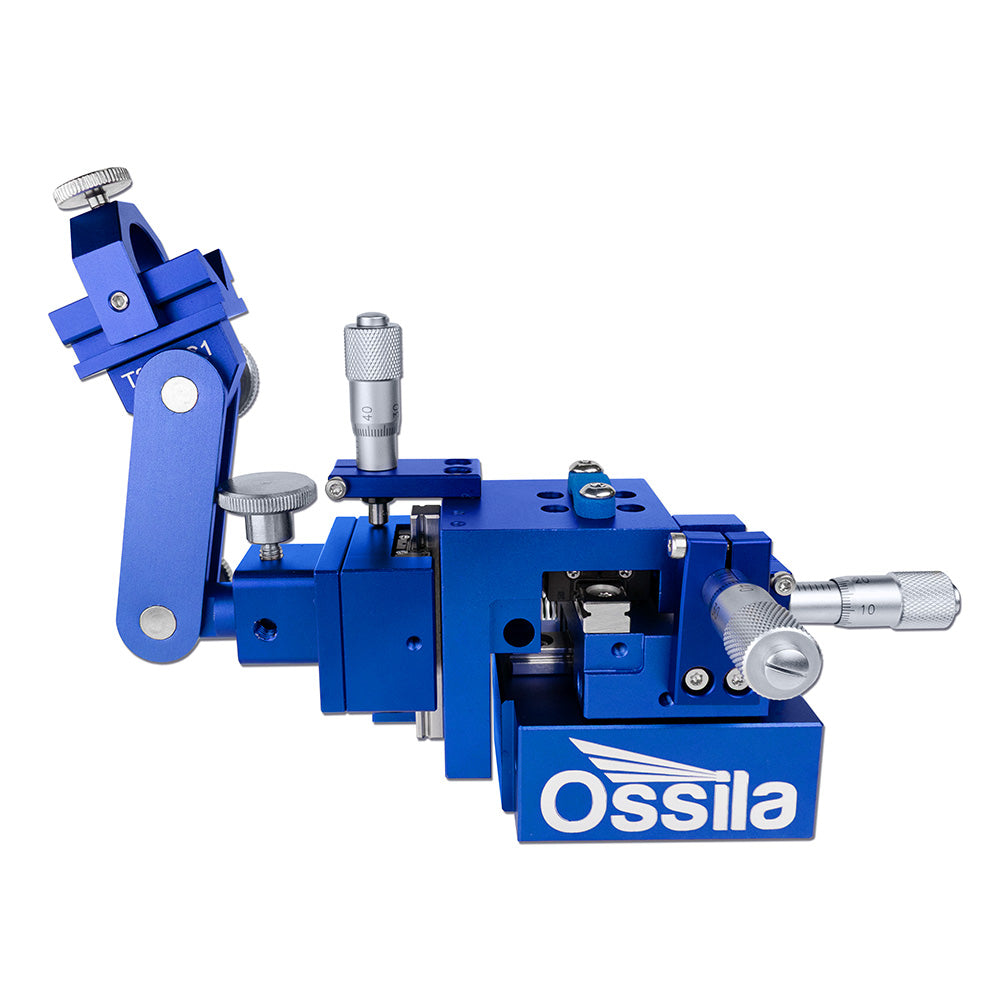

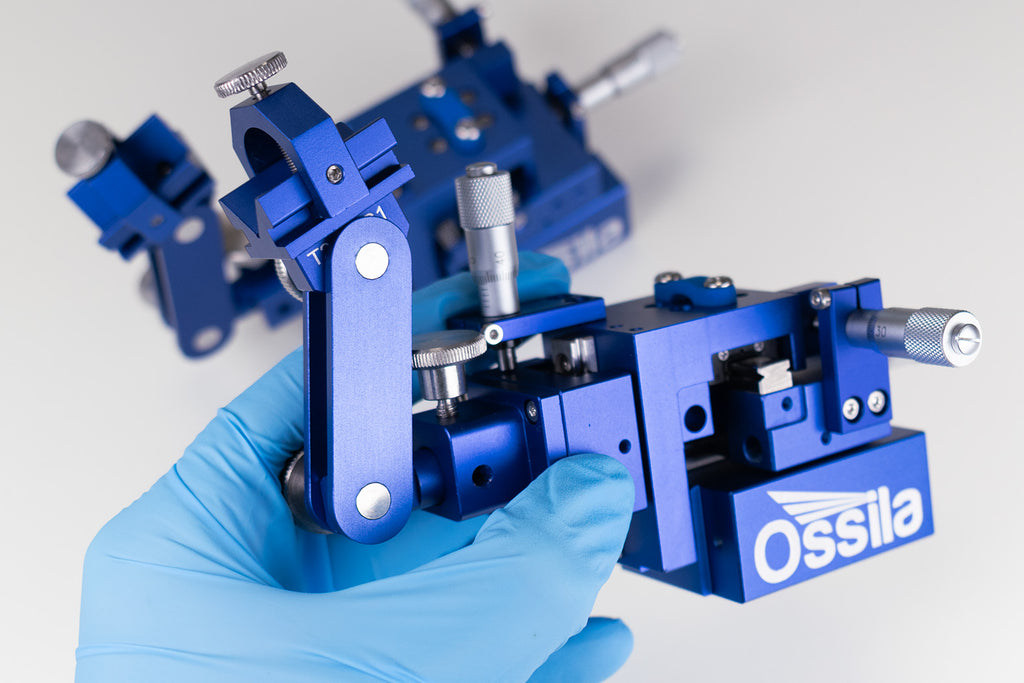

Universal Tool Micromanipulator Photos
Additional Specifications
| Base Type | Permanent Magnet |
|---|---|
| Body Material | Anodized Aluminum |
| Dimensions (L x W x H) | TBC |
| Extended Dimensions (L x W x H) | TBC |
| Weight | TBC |
In the Box
- Universal Tool Micromanipulator
- Documentation
Related Products
Resources
Micromanipulators in Biology
Micromanipulators have revolutionized the way we study living cells and cellular systems. In combination with a microscope, the technique uses high-precision tools to delicately manipulate single cells or subcellular components.
Read more...
