Micromanipulator SMA to Banana Interface
Electrical Characterization, Equipment Accessories, Probe Station
Easily connect Ossila Micromanipulators to banana plug SMUs
Grounded 4-port banana plug to SMA connection with minimal lead resistance
Specifications | Compatible Instruments | Grounding and Shielding | Gallery | Related Products | Resources and Support

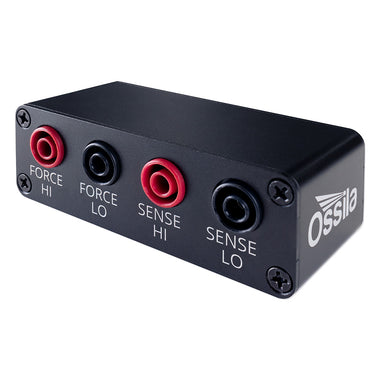

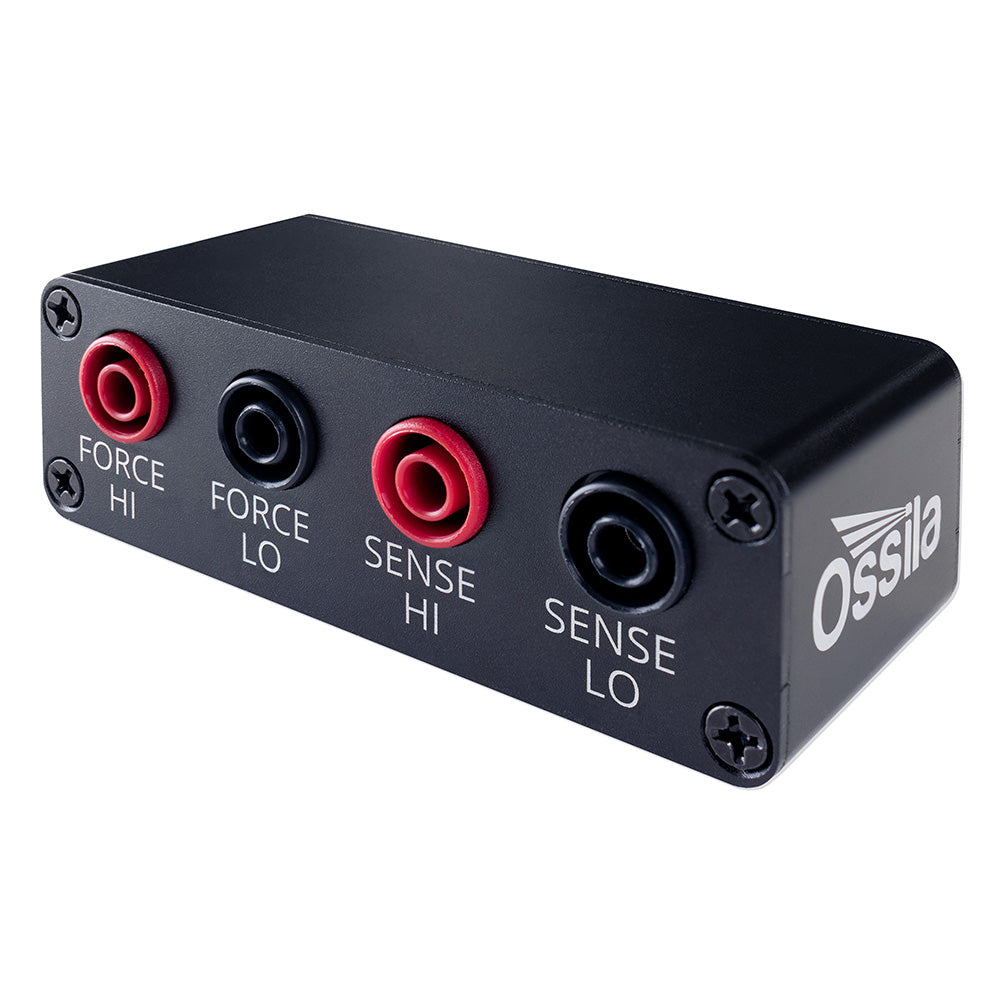

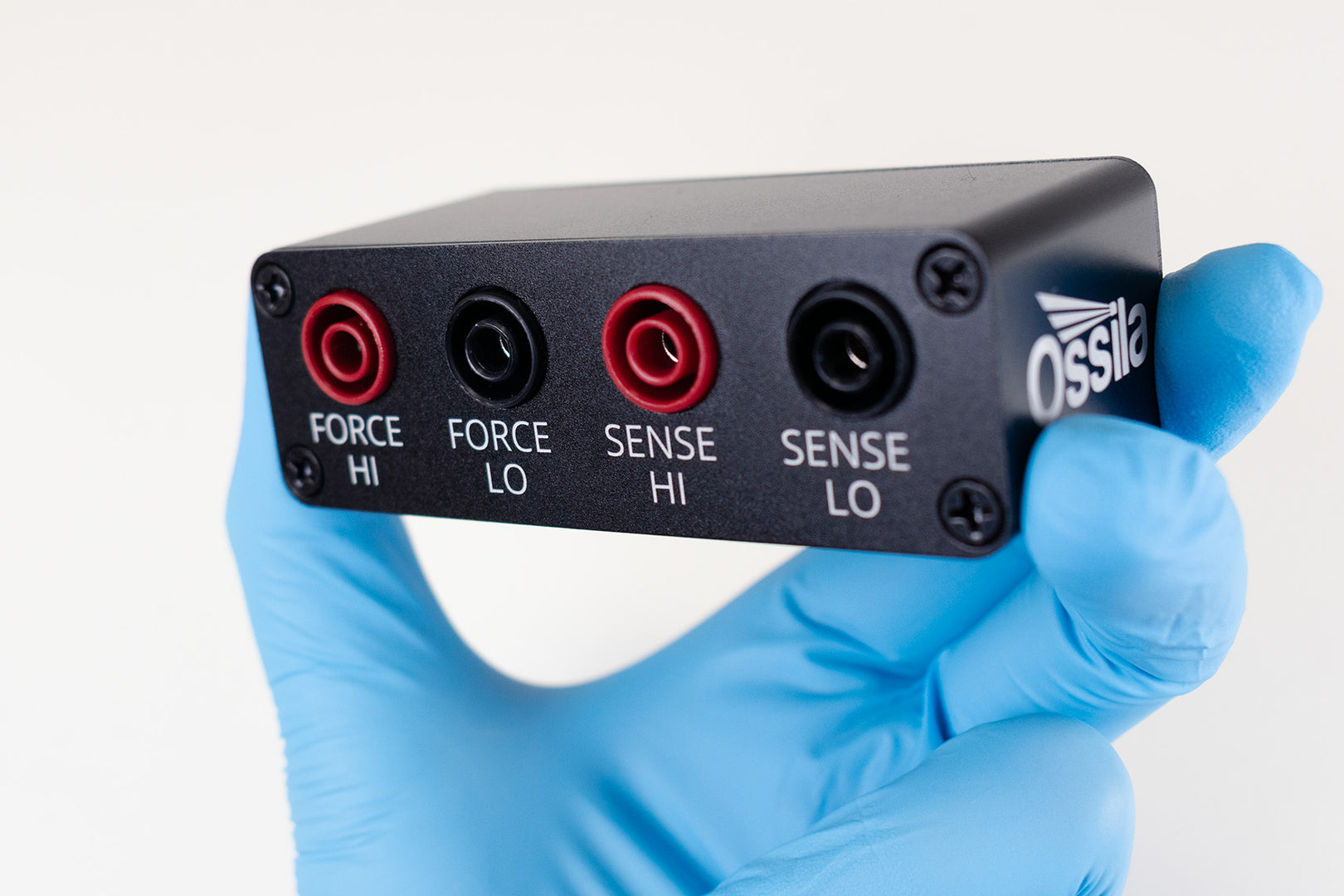

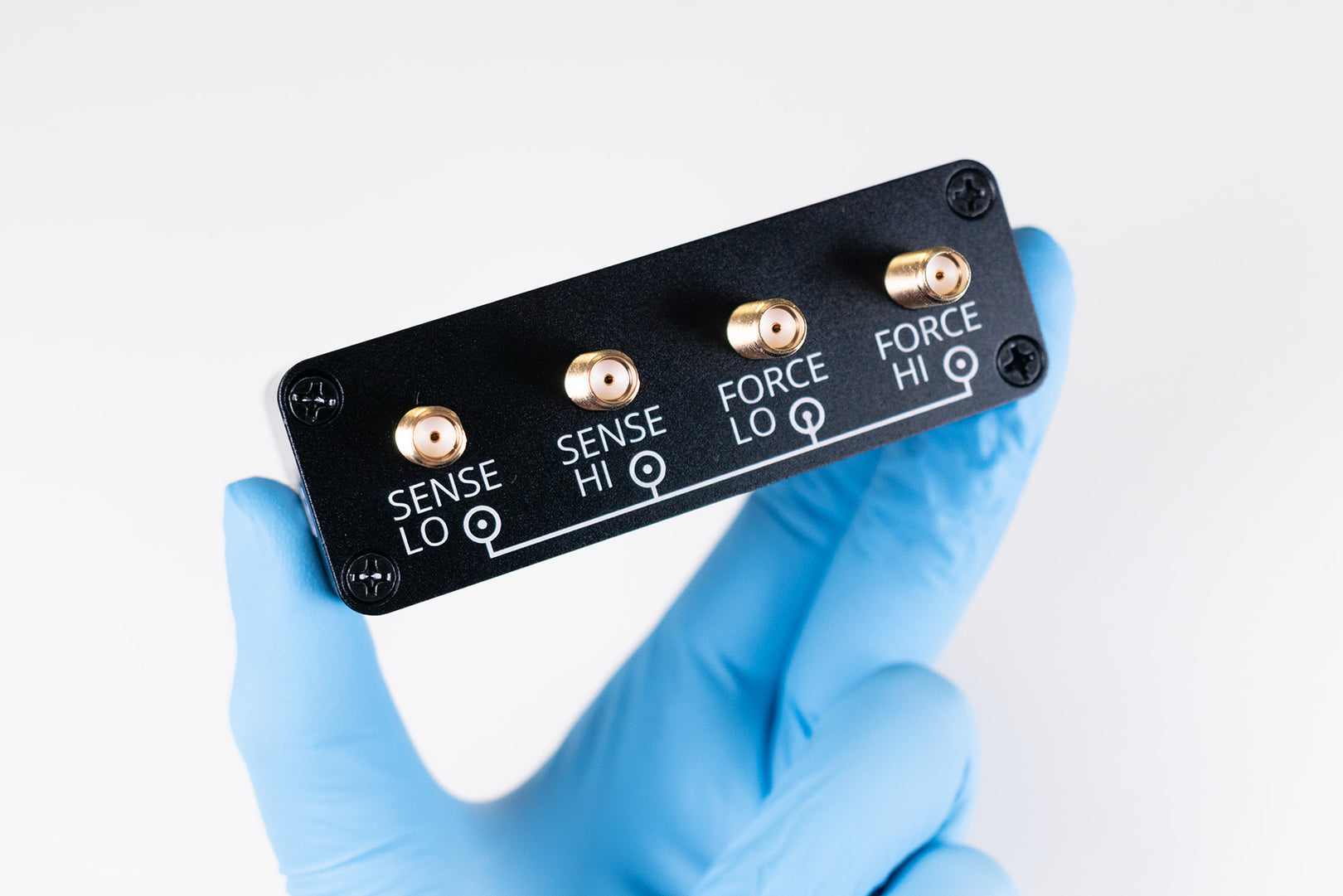

This adapter facilitates the integration of Ossila Micromanipulators with standard banana-connectorized SMUs. It features four SMA inputs mapping to four Banana outputs. This enables 4-wire Kelvin measurements (Force HI/LO and Sense HI/LO) to eliminate lead resistance errors and is crucial for integrating of Ossila Micromanipulators with a range of source measure units.
Easy Integration
No soldering, crimping, or wire stripping
Quick Set Up
Simple connections between instruments
Pre-Configured
For a reliable and robust interface
Specifications
| Connection Type | SMA-F to Banana Plug-F |
|---|---|
| Case Material | Anodized Aluminum, Black |
| Dimensions (L x W x H) | 84 x 51 x 28 mm |
| Available SMA / Banana Plug connections | Force HI, Force LO, Sense HI, Sense LO |
| Maximum Voltage (without cage) | 75 VDC, 50 VAC |
Compatible Instruments
These adapters allow users to connect Ossila micromanipulators to SMUs that support banana plug connections, such as:
- Keithley 2400 series
- Keysight B2900 series
- Rhode & Schwarz NGU series
*Ossila Ltd is not affiliated with, endorsed by, or sponsored by Keithley, Keysight, Rhode & Schwarz, or any other instrument manufacturers mentioned. All product names and trademarks are the property of their respective owners and are used for identification purposes only. Compatibility information is based on published interface standards and has not been confirmed through Ossila testing.
Chassis Grounding
The SMA shields on Ossila Micromanipulators are not electrically connected to the probe tip. If they are left floating, the shield of each cable can behave like an unintended antenna, allowing environmental noise to capacitively couple into the signal path.
To avoid this, the adapter provides a single, controlled grounding point. All coaxial cable shields are routed to the Force LO terminal so they effectively form a Faraday cage. This is a barrier against external interference, maintaining signal quality in unguarded setups while preventing unwanted ground loop paths.
SMA to Banana Interface Gallery
