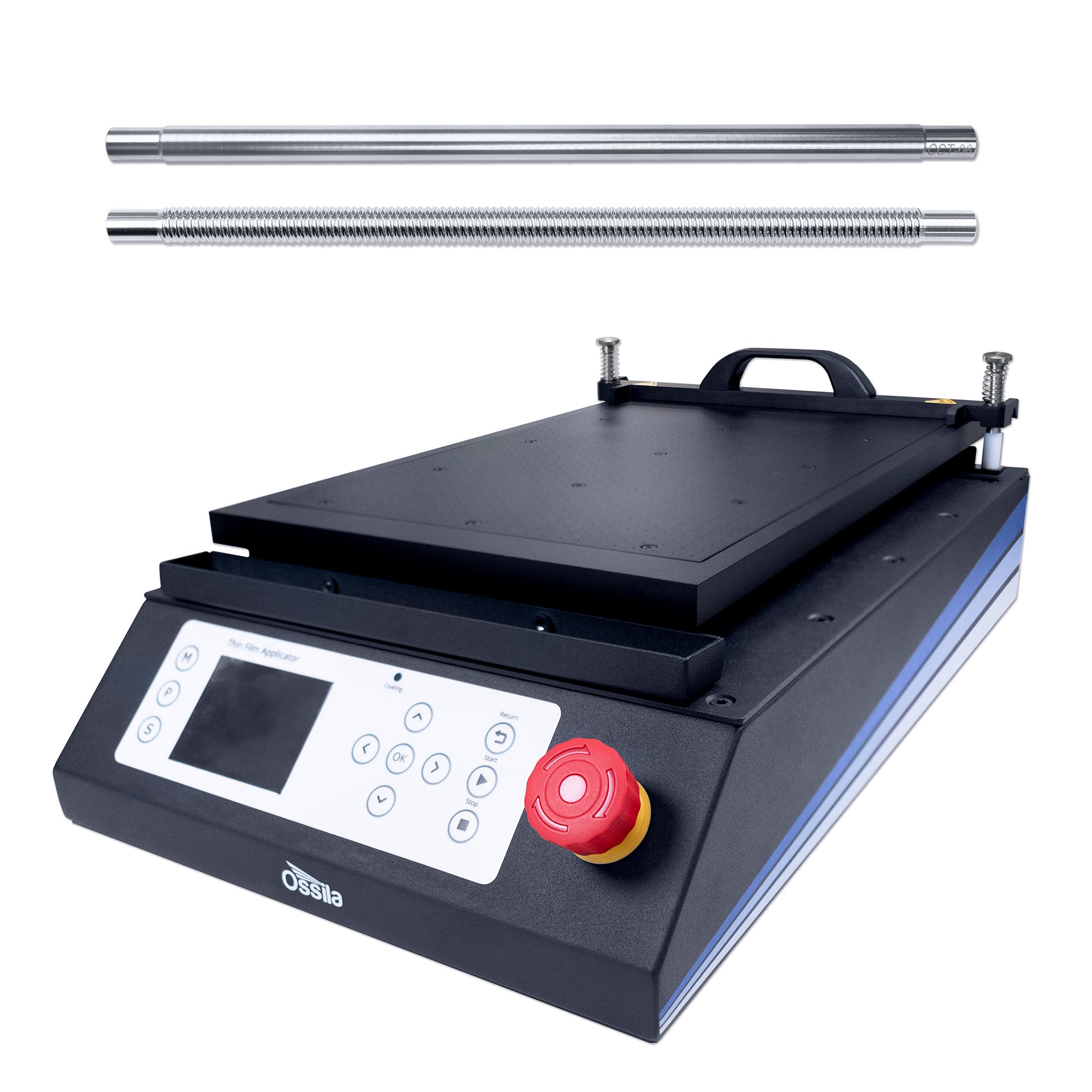

Bar Coater Machine with Wire-Wound or Formed Bar Applicators
Complete kit with 16 Meyer bars for versatile bar coating at a competitive price
Overview | Bar Coater Thickness | Specifications | Bar Coating Process | Features | Gallery | In the Box | Resources
The Ossila Bar Coater can standardize your bar coating methods. The Automatic Film Applicator controls bar movement to 0.01 mm.s-1 resolution, allowing coating speeds from 0.05 – 250 mm.s-1. With a maximum coating area of 290 x 225 mm, this kit is perfect for laboratory scale film optimization. Choose between a durable glass stage, or a vacuum-bed stage for easily securing flexible or foil substrates in place.
This bar coating machine comes with 16 compatible Mayer bars, so is capable of producing wet film thicknesses from 6 µm - 200 µm. Available with lower cost wire-wound bars, or more sturdy formed Mayer rods.
Dependable Thickness
Constistent and reliable coatings every time
Large Coating Area
With 290 x 225 mm coating area
Versatile Design
Easily change between stage type or coating applicator
Range of Mayer Bars
Available wet film thickness
6 – 200 µm
Bar Coater Thickness
Bar coater systems use Mayer bar coaters (metal bars with wire-wrapped around them, or bars formed into this shape) to coat a liquid across a large area. The spacing gaps created by the wire determine the wet film thickness.
The relationship between wire diameter and wet film coating thickness is approximately linear. For example, a Mayer bar using a wire with 0.06 mm diameter will produce a wet film thickness of 6 µm, a 0.47 mm bar will produce a 50 µm wet film, up to the 200 µm bar which has a diameter of 1.86 mm. Slight variations in this linear relationship could be due to interactions between the wire bar and coating solution, or the coating solution viscosity/concentration.
Specifications
Automatic Film Applicator
| Maximum Stage Travel Length | 290 mm (A4) |
|---|---|
| Minimum Stage Speed | 0.05 mm.s-1 |
| Maximum Stage Speed | 250 mm.s-1 |
| Stage Speed Increments | 0.01 mm.s-1 |
| Vacuum Stage | Anodized aluminum stage, 0.8 mm vacuum holes, square grid arrangement (7.75 mm spacing), 6 mm push-fit connector |
| Glass Stage | 8 mm toughened glass, printed grid pattern |
| Maximum Coating Width | 225 mm (accommodates Mayer bars with a 255 mm coating width) |
| Minimum Mayer Bar Length | 220 mm |
| Power Supply | DC 24 V, 2 A, via 100 – 240 V 50/60 Hz power adapter |
| Dimensions (D x W x H) | 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5") |
| Weight | 6.45 kg |
Mayer Rods
| Coating Width | 200 mm |
|---|---|
| Rod Material | 304 stainless steel |
| End Machining | M4 tapped |
| Total Width | 240 mm |
| Wire-Wound Rod Diameter | 9.9 mm |
| Formed Rod Diameter | 8.6 mm |
| Coating Thicknesses in Set (µm) | 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 150, 200 |

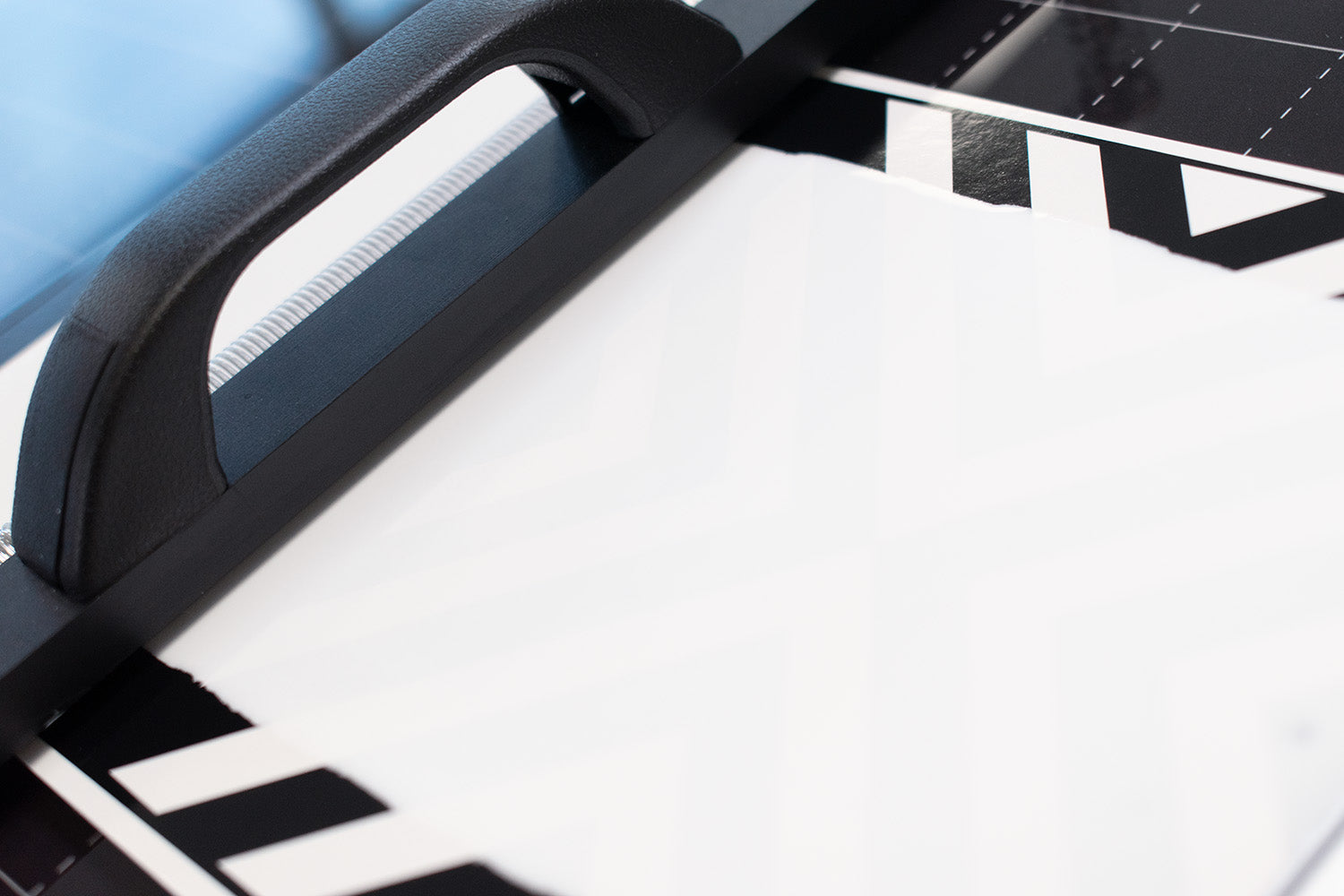

Bar Coating Process
Bar coating is a relatively simple technique, allowing users to create uniform large-area thin films. The process can be optimized through variation of the following parameters:
- Bar height and pressure
- Bar speed
- Solution concentration
- Solution viscosity
Using an automated bar coating machine can help improve process consistency and reliability by keeping bar pressure and speed consistent. Some other tips for optimizing your bar coating process include:
- Ensure your substrate and bar coater are clean before coating. Any dirt or debris can cause defects that can run through the entire film.
- Make sure your substrate is held firmly in place during coating. Vacuum stages can be useful for this application as they will hold flexible substrates still, flat and level.
- Use a spirit level to make sure your bar coater machine is level in all directions. This can help maintain unform coating along the desired coating width.
Bar Coater Features
Full Set of Mayer Rods
The Ossila Bar Coater includes a full set of 16 Mayer rods to give you complete flexibility in your coating processes. Ideal for comprehensive coating research, you can explore coating thicknesses from 6 µm to 200 µm. Plus, the system is also compatible many other types of applicator.
Formed or Wire-Wound
Choose between traditional wire-wound or new formed Mayer rods to fit your coating needs. Both achieve highly reproducible films, but formed rods are less prone to damage and contamination with an easily controlled packing density of the grooves.
Large Coating Area
Coat large-area samples, including sheet samples up to A4 size, with this complete bar coating system. With a programmable travel range up to 290 mm, you can also switch out your Mayer bars to vary your coating width because the system accommodates bar widths from 220 mm to 255 mm.
Wide Range of Coating Speeds
Using our tried and tested motorized stage, the bar coater achieves smooth, reliable movement. For coating with a wide range of solution viscosities without forming defects, you can set the speed as low as 0.05 mm.s-1 and up to 250 mm.s-1.
Choose Vacuum or Glass Stage
Mount the drip tray at either end of the system to match the direction of travel and quickly align your samples using the grid-patterned glass plate. You can also choose the vacuum bed stage to secure flexible samples. The quick-lock magnet stage design makes it easy to interchange stages for maximum flexibility.
Compatible Vacuum Pump
The Ossila Diaphragm Vacuum Pump is a perfect vacuum source for the Bar Coater. This pump provides a maximum vacuum of 330 mbar, with low noise (<45 dBA), requires minimal maintenance and has no contamination risk. With an integrated pressure gauge and simple 6 mm push fit connectors, the Vacuum Bed and Vacuum Pump system provides everything you need to start coating large area substrates.
Bar Coater Gallery
In the Box
- Ossila Automatic Film Applicator
- Mayer rod set (wire-wound or formed)
- Power supply
Bar Coater Accessories
Resources
How to Optimize Your Mayer Bar Coating Process
TThere are plenty of ways that you can optimize your bar coating process. Some of the main ways include changing Mayer rod and changing solution concentration and viscoscity.
