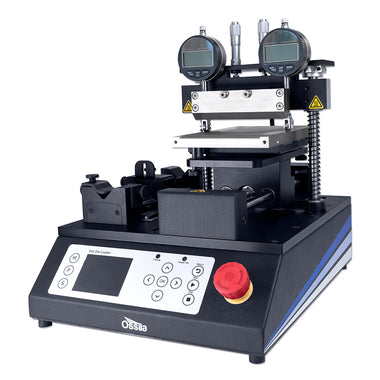

Versatile and Precise Slot Die Coating in Any Laboratory
Scale up your research with an adaptable and low cost coating system
Overview | Specifications | Features | Gallery | In the Box | Accessories | Resources and Support
Elevate your research with scalable coating technology. Our complete slot die coater features an integrated high-precision syringe pump and customizable head. With stage speeds ranging from 50 μm.s-1 to 75 mm.s-1, an improved flow rate range (0.5–624 μl.s-1 for a 5 ml syringe), easy levelling, and large coating area, you have full control over the parameters critical to improving the uniformity of your films.
This slot die coater is suitable for users at any level. With intuitive software and adaptable design, you control the flow rate, coating speed, plate temperature, alignment, channel thickness, head height, multiple step programming, and more. Our modular accessories make the Ossila Slot Die Coater easy to tailor to your specific coating needs.
Uniform Thin Films with Scalable Technology
With a maximum coating area of approximately 150 cm2
Adjustable Gap Height for Easy Optimization
2-point levelling system with precision micrometer heads
Range of Useful Accessories
Interchangeable design to expand coating capabilities

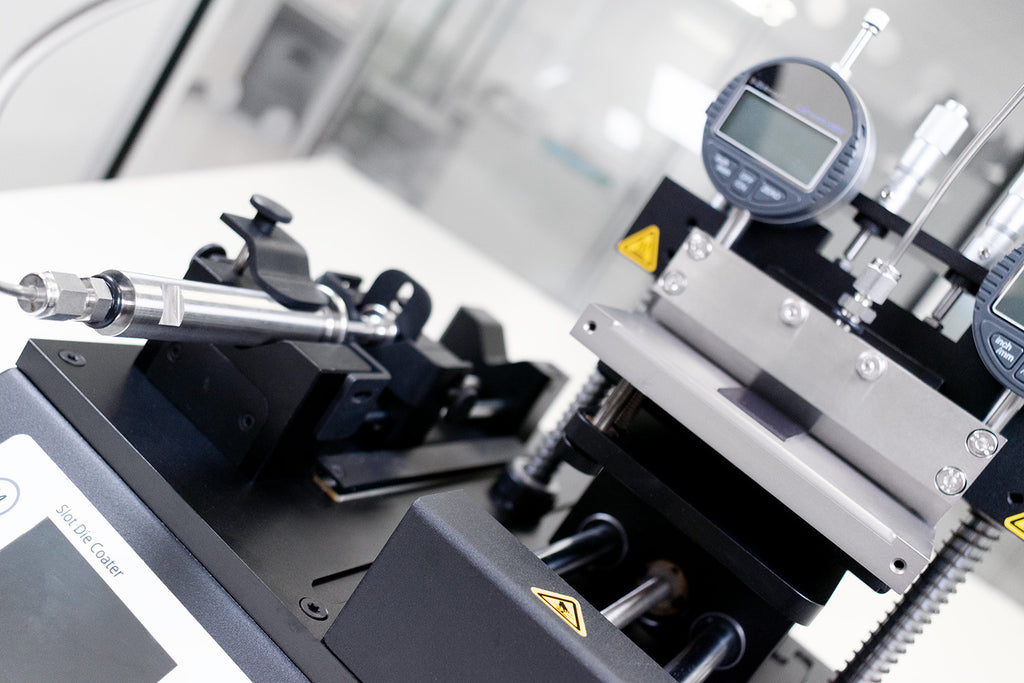

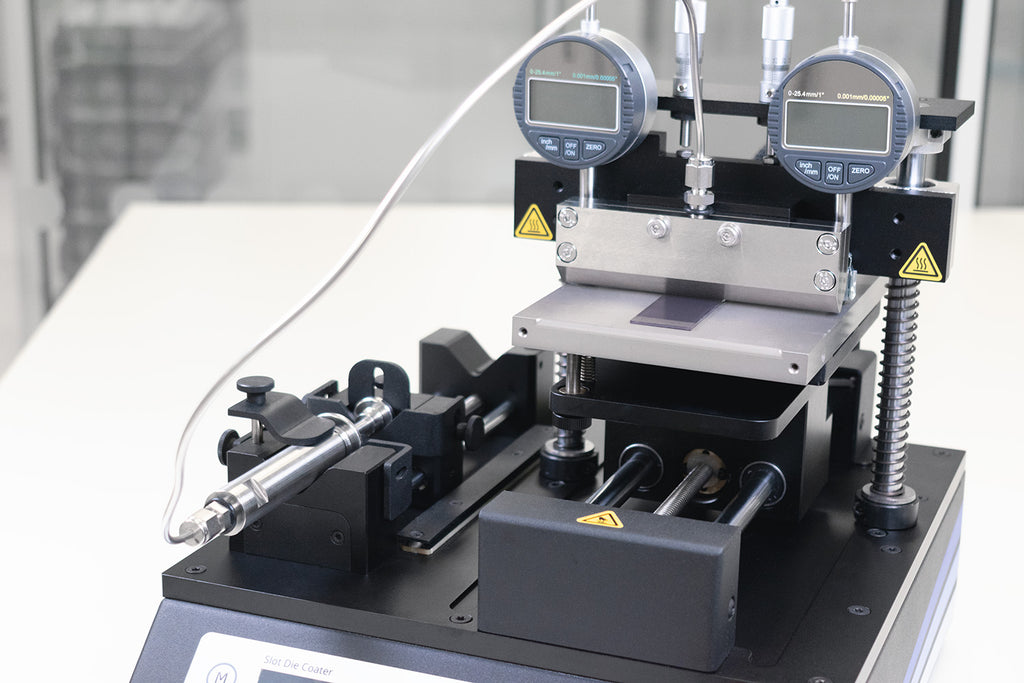

High Viscosity Model
for Advanced Films
Designed for viscosities of 1,000 to 10,000 cPs
Key Specifications
| Maximum Hotplate Temperature | 140 °C (284 °F) |
|---|---|
| Stage Surface Roughness (RMS) | <3 μm* |
| Stage Surface Flatness | <20 μm* |
| Linear Motion Levelness | 0.05% variation (50 μm/100 mm travel)* |
| Maximum Stage Travel Length | 150 mm (5.91") |
| Minimum Stage Speed | 50 μm.s-1 |
| Maximum Stage Speed | 75 mm.s-1 |
| Maximum Head to Substrate Travel Distance | 13 mm (0.51") |
| Minimum Syringe Speed | 6 μm.s-1 |
| Maximum Syringe Speed | 7.5 mm.s-1 |
* Values determined at a stage temperature of 21 °C (69.8 °F).
Slot Die Heads
| Standard | High Viscosity | |
|---|---|---|
| Viscosity Range | 0 – 1000 cPs | 1000 – 10,000 cPs |
| Head Inlet Connector | M5x0.8 Thread | 1/16 NPT |
| Tubing and Connector Material |
PTFE tubing High-density PP Luer lock connectors Stainless steel Luer lock to M5 thread connector |
1/8 inch OD 2.1 mm ID stainless steel tubing Stainless steel NPT compression fittings:
|
| Syringes | 5 ml high-density PP disposable | 5 ml precision stainless steel |
Complete Coating System
Reliable Deposition and Drying
Micro-step technology ensures precise solution flow, controlled start and end times, and a range of flow rates. Increase stage temperature to improve wetting and reduce the surface tension, as well as to optimize film drying. In high air flow conditions, control temperature offset to correct for differences between the substrate and stage.
Optimize Coating Parameters
Use the smooth, continuous motion across a range of speeds to alter the processing window, control film thickness, and find the best parameters for defect-free coatings. Vary the gap height, by adjusting the head relative to the stage, to improve the stability of the meniscus and alter the minimum wet film thickness.
Adapt to Different Coating Setups
With an adaptable slot die head, use interchangeable stainless steel shims and meniscus guides to control channel thickness, guide your meniscus, and carefully control your thin film coating. Plus, our add-on accessories enable you to expand your coating capabilities with one system.
Slot Die Coater Gallery
Additional Specifications
Slot Die Coater
| Maximum Head Width | 100 mm (3.94") |
|---|---|
| Power Supply | DC 24 V, 6.2 A, via 100 – 240 V 50/60 Hz power adapter |
| Dimensions (D x W x H) | 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5") |
| Weight | 10.35 kg |
Slot Die Heads
| 50 mm Head | 100 mm Head | |
|---|---|---|
| Material | Stainless steel | Stainless steel |
| Maximum Coating Width | 50 mm (1.97") | 100 mm (3.94") |
| Compatible Shims | 5 – 50 mm coating width | 75 – 100 mm coating width |
| Compatible Meniscus Guides | 15 – 50 mm coating width | 75 – 100 mm coating width |
User Manuals
Slot Die Coater Version 1 (L2005A1) user manual (legacy)
Slot Die Coater Version 2 (L2005A2) user manual
In the Box
- Slot die coating system
- Power supply
Standard Slot Die Head:
- Standard slot die head (with screw fittings and luer lock adapter)*
- Slot die coater PTFE tubing (pack of 5)*
- 5 ml (6 ml) Norm-Ject Disposable Luer Lock Syringe (pack of 10)*
- Meniscus guide set*
- Shim set*

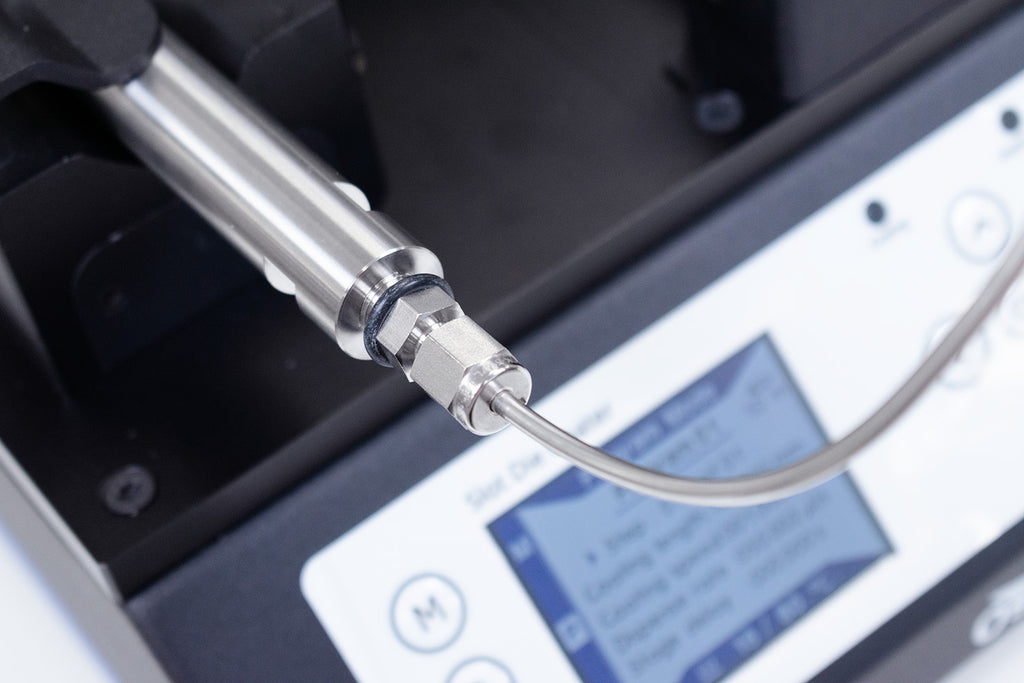

High Viscosity Slot Die Head:
- High viscosity slot die head
- Stainless steel tubing

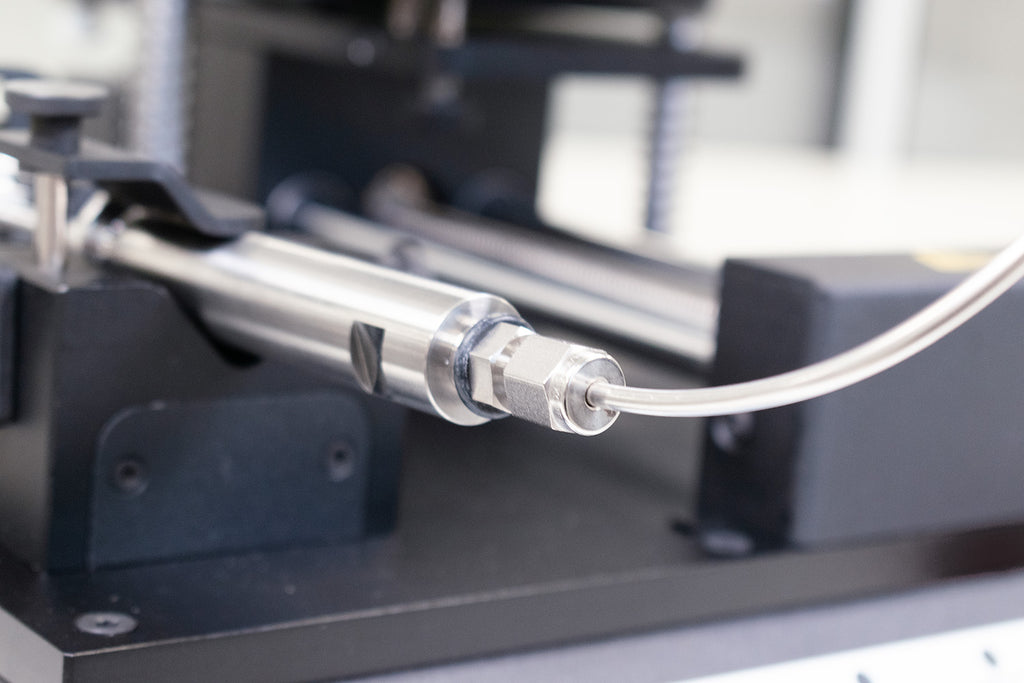

- 5 ml stainless steel syringe
- Meniscus guide set*
- High viscosity shim set
* Also available to be purchased separately
