Pin Your Coating Width For Controlled Slot Die Coating
A range of guides for better defined coating at various coating widths

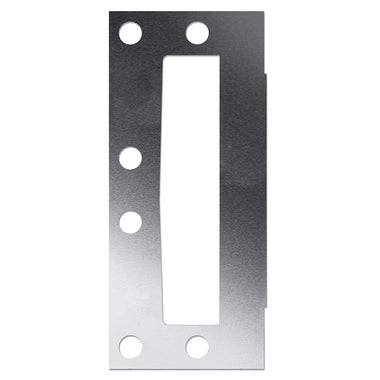

Meniscus guides aid in pinning the coating width for a better defined coating. Compatible with the 100 mm slot die head, our range of meniscus guides are available in packs of 3 with predefined coating widths, lip depths, and thicknesses to suit your coating needs. For more specific requirements, we also offer custom options which allow for multi-strip coatings.
Specifications
| Compatible with | Ossila 100 mm standard slot die head |
|---|---|
| Material | Stainless steel |
| Viscosity Range | 0 – 1000 cPs |
| Guide Thickness | 0.05 mm, 0.1 mm |
| Lip Depth | 0.5 mm, 1 mm, 1.5 mm |
| Number per Pack | 3 |
