Atomizing Spray Head Air Cap Set
6 interchangeable air caps for both internal and external mixing
Specifications | Gallery | Resources

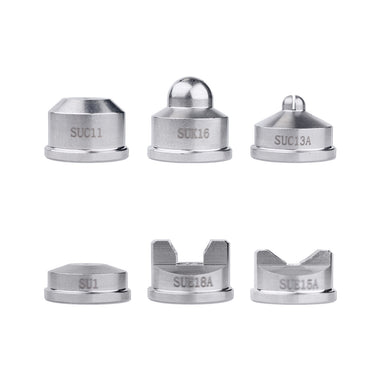

This set has 6 interchangeable air caps, designed for use with the gas atomizing spray head. The choice of spray head affects how the liquid and gas streams are combined, which impacts the spray shape, droplet size and deposition speed.
These nozzles come with the spray coater, and suitable for use with the atomizing spray head.
Specifications
| SUC11 | Internal | Narrow Cone Plume Shape |
| SUK16 | Internal | Wide Cone Pume Shape |
| SUC13A | Internal | Fan Plume Shape |
| SU1 | External | Cone Plume Shape |
| SUE18A | External | Wide Fan Plume Shape |
| SUE15A | External | Fan Plume Shape |
Spray Coater Gallery
Resources
Spray Coater Air Atomizing Head Assembly
The Ossila Spray Coater comes with an ultrasonic spray head and an air atomizing head. The air atomizing head works by combining pressurized liquid and gas streams to create a beam of spray droplets that can be directed towards a surface. The way that liquid and gas streams are combined impacts both the spray shape, the droplet size and distribution.
Read more...Accessories and Related Products
