Automate Your Coating Processes for Larger Substrates
Pair with a range of applicators for bar coating, doctor blade coating, and more
Overview | Specifications | Features | Gallery | In the Box | Applicators and Accessories
This adaptable coating system automates the movement of your chosen applicator, from Mayer bars, blade coaters, and gap applicators, to Sheen, Baker, or Bird applicators. Set the optimal speed, from 0.05 mm.s-1 to 250 mm.s-1, for your applicator and solution consistency to create uniform coatings across a large area. Choose between a simple glass stage for easy cleaning or a vacuum stage to securely hold your substrate in place (with or without compatible Diaphragm Vacuum Pump).
Mix and match the automatic system with our interchangeable applicators or opt for one of our complete coating kits:
- The Ossila Bar Coater includes a set of compatible Mayer rods for coating thicknesses from 6 µm to 200 µm.
- The Ossila Doctor Blade Coater enables micron-level thickness adjustments with a single applicator.
Repeatable Coatings
Made Simple
Program consistent speeds to standardize your coatings
Uniform Coatings on
a Range of Substrates
Up to 225 mm coating widths across
a 290 mm travel distance
Switch Between a Wide
Range of Applicators
Experiment with different coating techniques with one system
Efficient Setup with
Quick Lock Design
Easy stage and drip tray cleaning between different coatings
Specifications
| Maximum Stage Travel Length | 290 mm (A4) |
|---|---|
| Minimum Stage Speed | 0.05 mm.s-1 |
| Maximum Stage Speed | 250 mm.s-1 |
| Stage Speed Increments | 0.01 mm.s-1 |
| Vacuum Stage | Anodized aluminum stage, 0.8 mm vacuum holes, square grid arrangement (7.75 mm spacing), 6 mm push-fit connector |
| Glass Stage | 8 mm toughened glass, printed grid pattern |
| Maximum Coating Width | 225 mm (accommodates Mayer bars with a 255 mm coating width) |
| Minimum Mayer Bar Length | 220 mm |
| Power Supply | DC 24 V, 2 A, via 100 – 240 V 50/60 Hz power adapter |
| Dimensions (D x W x H) | 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5") |
| Weight | 6.45 kg |
Automate Your Coating Processes
Intuitive and Simple Coatings
Achieve smooth, continuous movement across a wide range of speeds, allowing you to coat different solution viscosities without forming defects. With a quick locking magnet, the stage can be removed and reinstalled, or even switched between the glass and vacuum stage, with ease for quick and efficient cleaning between coatings. The drip tray includes the same design so you can clean up excess solution from your system.
Versatile Coating Area
Perfect for coating large area samples up to A4, scaling up your coating processes with a wide range of techniques has never been easier. The automatic film applicator ensures compatibility with different applicator techniques; from Mayer bars, blade coaters, and gap applicators, to Sheen, Baker, or Bird applicators. Plus, the glass plate stage is pre-printed with a grid pattern so you can quickly setup and align your samples.
Ideal for Flexible Substrates

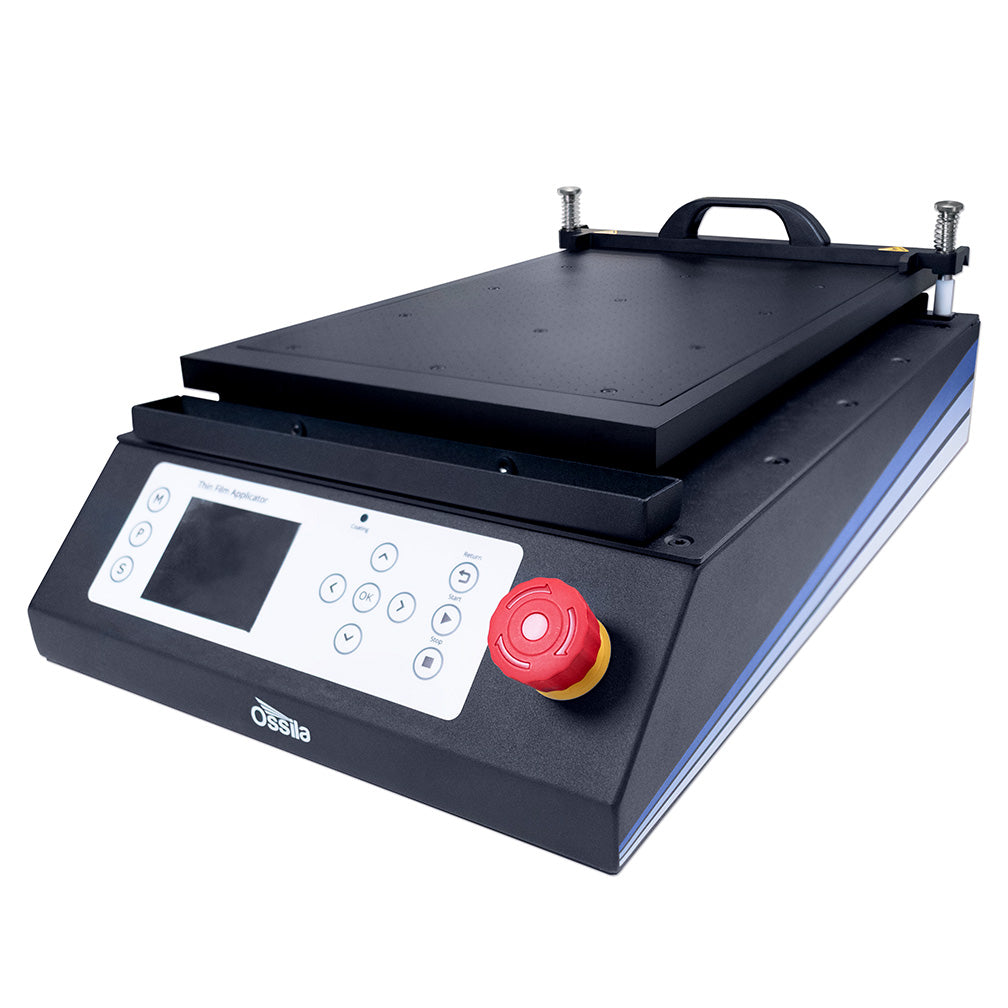

If you are coating flexible substrates, choose the vacuum stage paired with the Ossila Vaccum Pump. With a maximum vacuum of 330 mbar and a 7 L/min maximum flow rate, it is perfect for securing flexible or foil substrates. The vacuum stage is comes with grid-based design so you can easily define vacuum area to fit your substrate.
Automatic Film Applicator Gallery
In the Box
- Ossila Automatic Film Applicator
- Power supply
Applicators and Accessories
