Achieve Precise Probing with Micromanipulator Probe Tips
10-piece set provides excellent value for your probing needs
Specifications | Related Products | Resources and Support
Our tungsten and beryllium copper alloy (BeCu) probe tips provide a reliable and precise solution for micromanipulator probing of semiconductors, components, and other microelectronic devices. Each set contains 10 individual probes, crafted from high-purity tungsten or BeCu and carefully packaged for exceptional durability.
Available in several tip diameters and materials, our tips allow for accurate contact with small features, including piercing through oxide layers for direct access. These probes are 32 mm in length with a 0.508 mm shaft diameter, providing compatibility with the Ossila Micromanipulator and other probe holders.
High-Quality Materials
For long-lasting performance
Ultra-Fine Probing
5 µm or 20 µm tip diameters for accurate measurements
10-Piece Set
Excellent value and convenience
Specifications
| Product Code | T3008A1 | T3008B1 | T3008C1 |
|---|---|---|---|
| Shaft Diameter | 0.508 mm | 0.508 mm | 0.508 mm |
| Total Length | 32 mm | 32 mm | 32 mm |
| Tip Diameter | 20 μm | 5 µm | 20 µm |
| Material | >99.95% pure tungsten | >99.95% pure tungsten | Beryllium Copper Alloy |

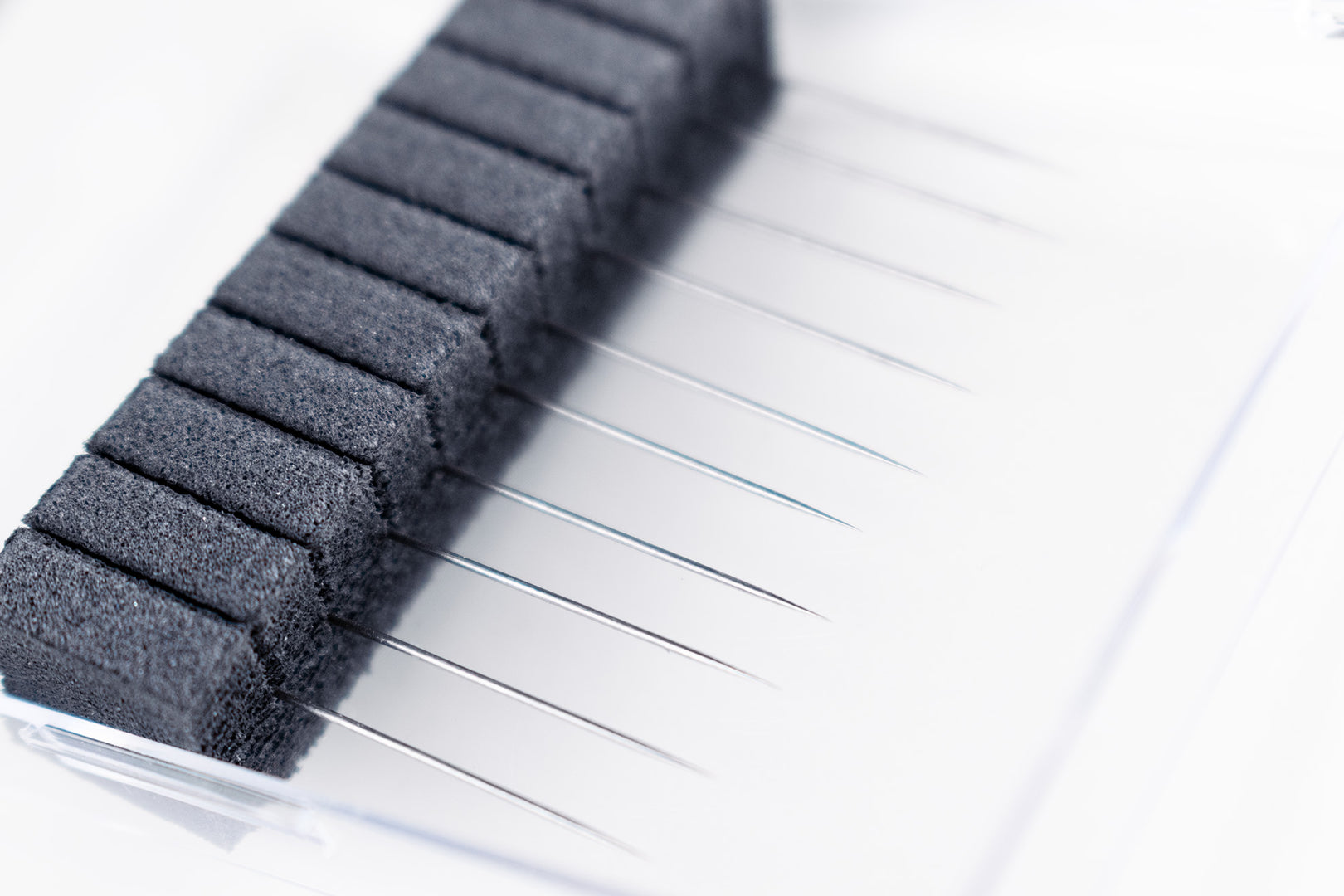

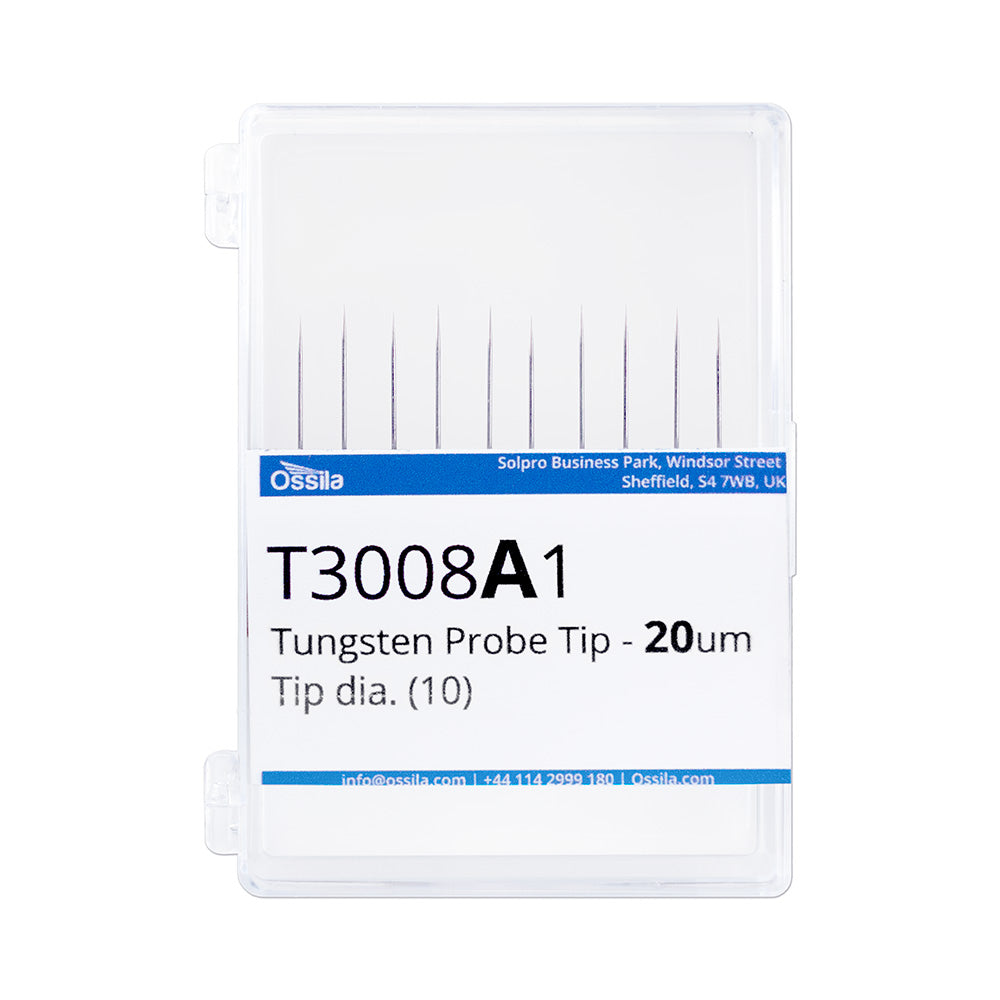

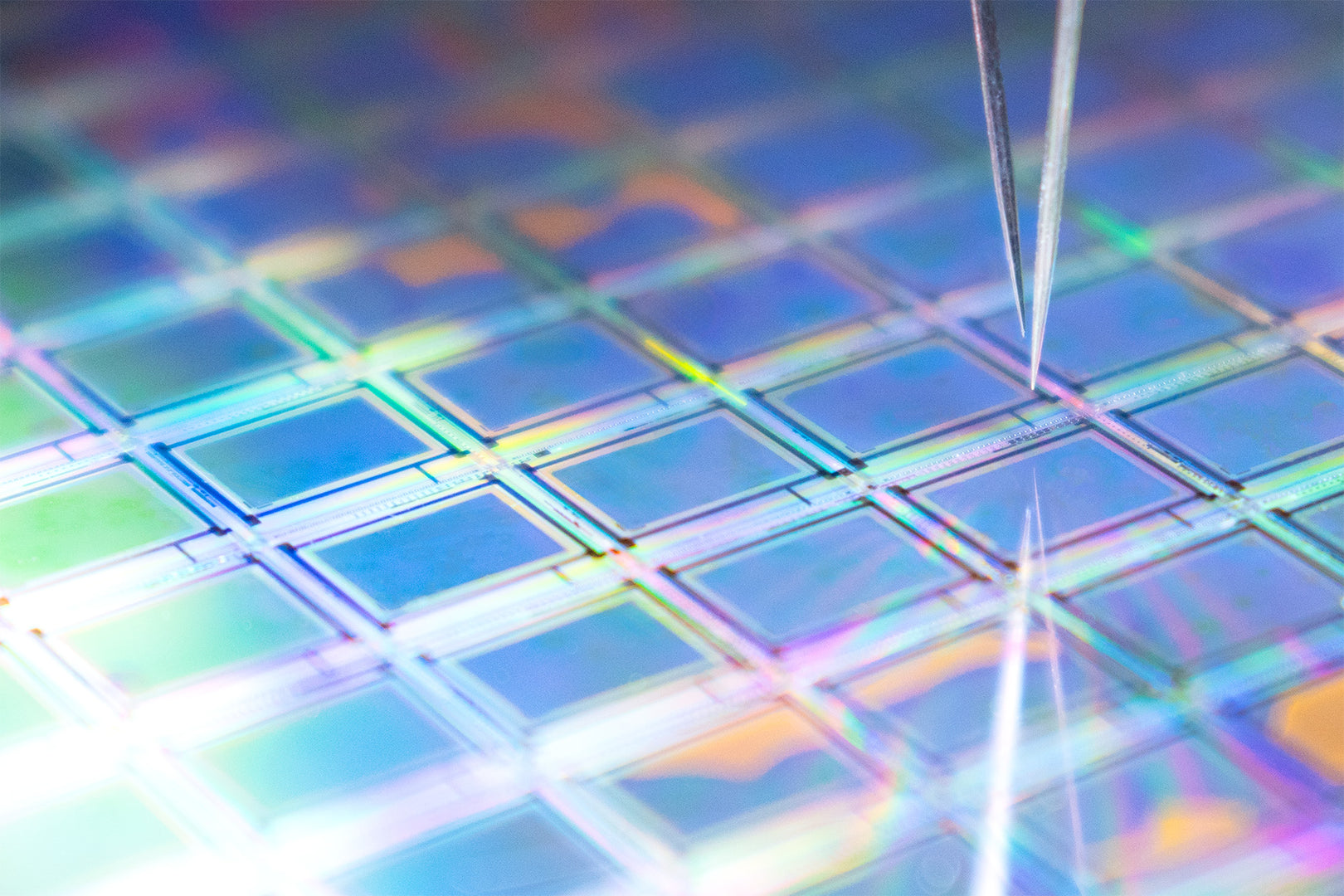

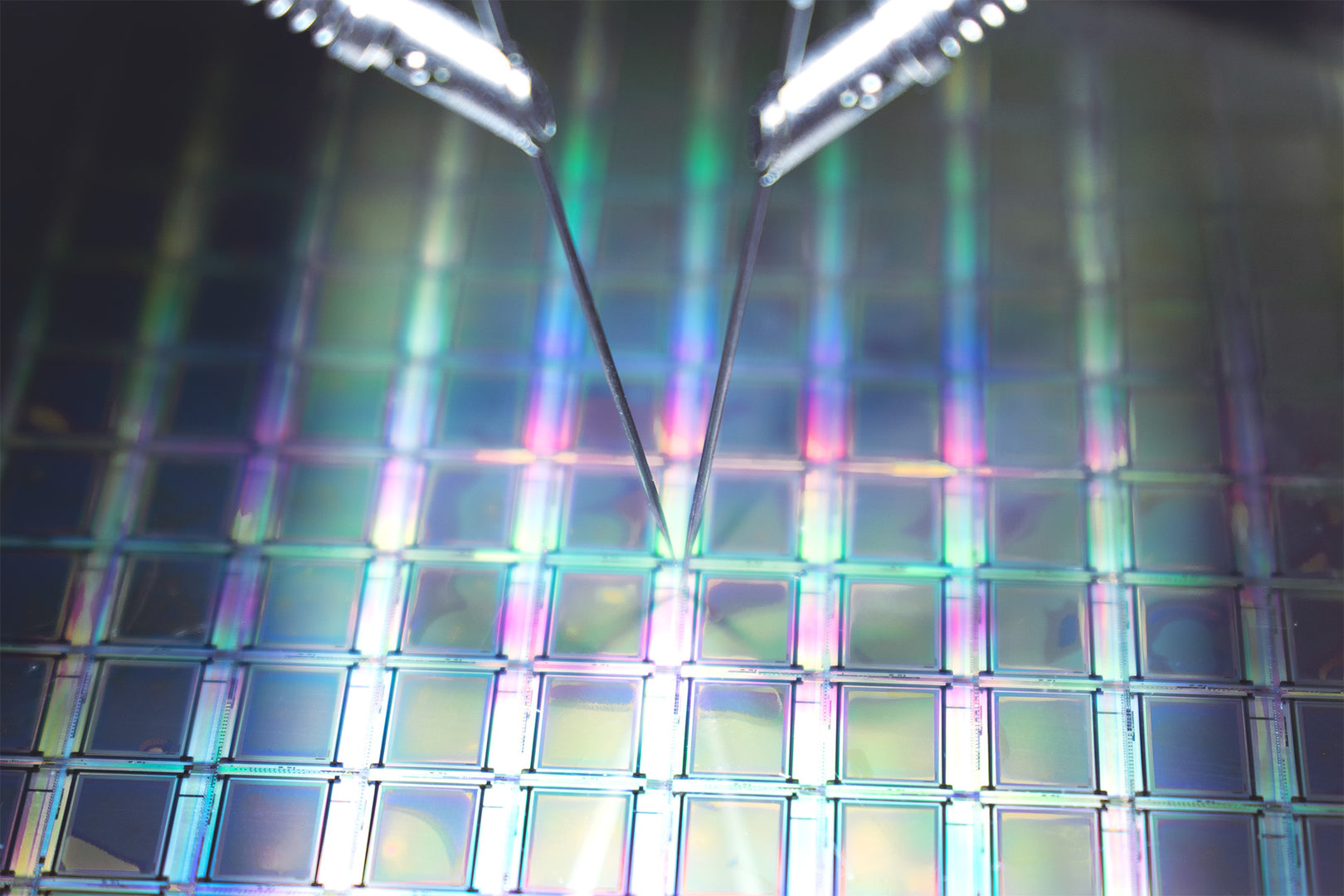

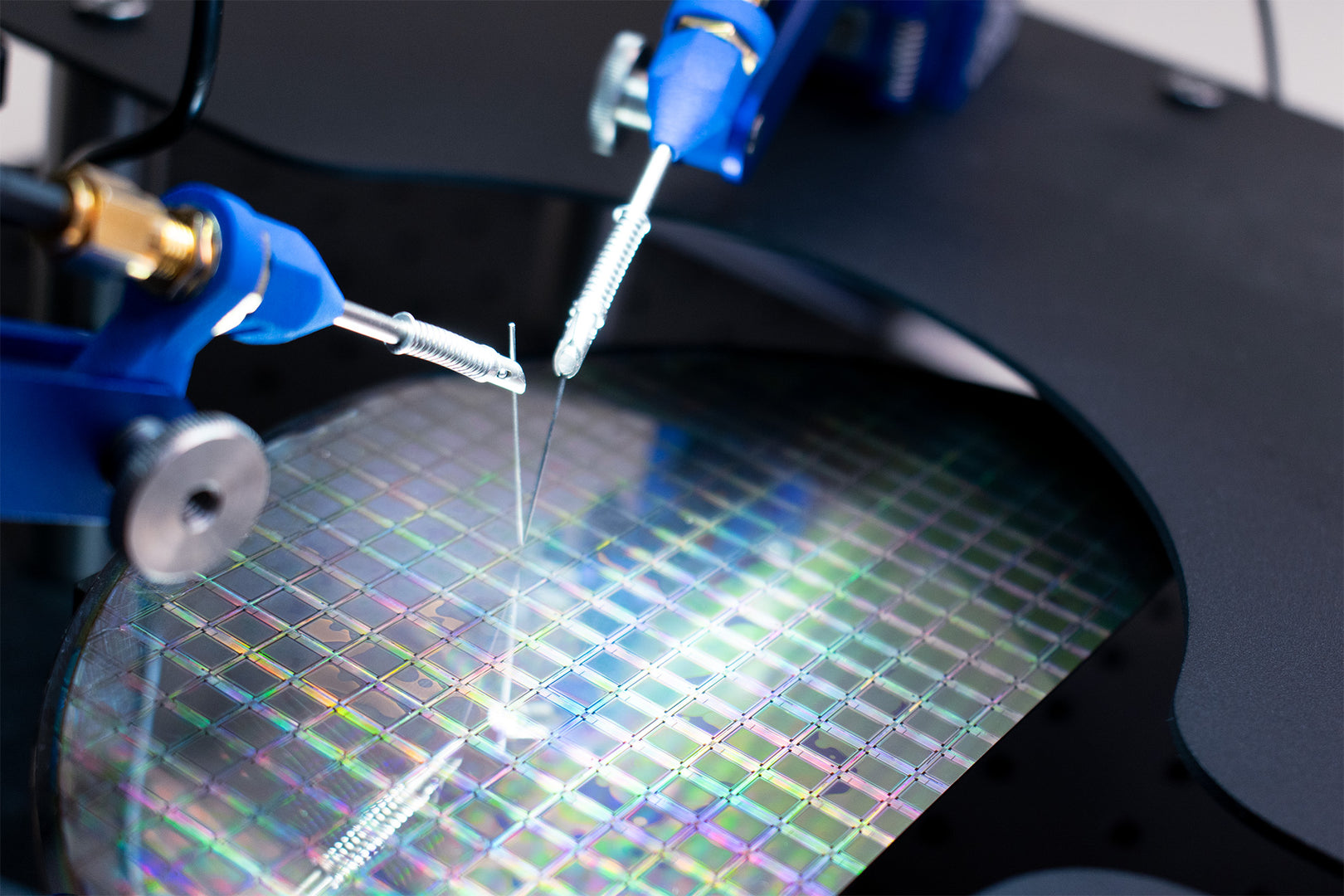

Probe Tip Gallery
