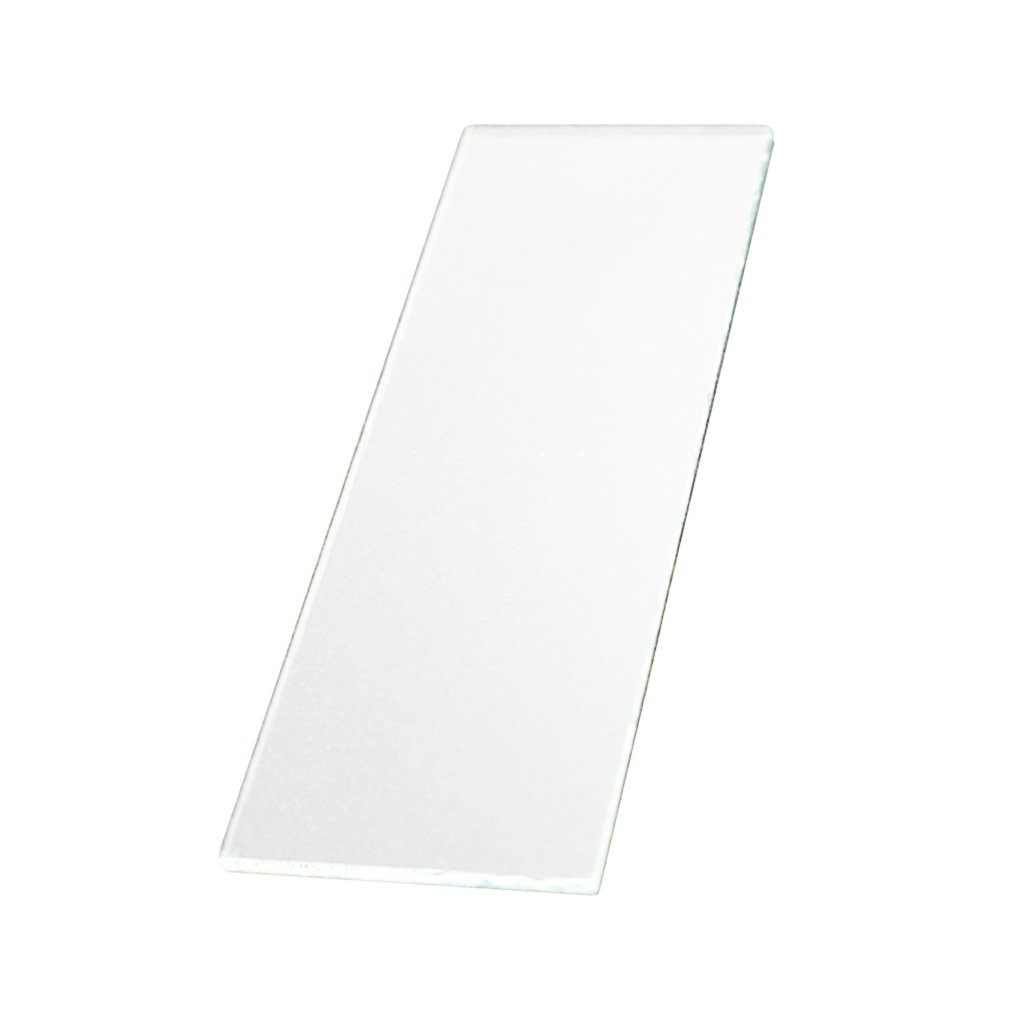

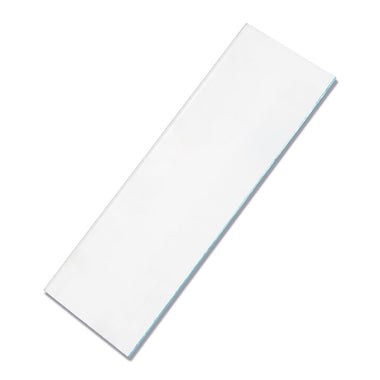

Quartz Coated Microscope Slides
High Quality Quartz Coated Glass Microscope Slides
Compatible with advanced microscopy techniques
Our ultra-flat glass microscope slides are coated with a 20 nm layer of synthetic quartz. The durability, thermal stability, and chemical resistance of quartz coated slides makes them an ideal choice for many different research applications.
Quartz coated slides have enhanced optical properties to achieve superior image quality for detailed observation and analysis of samples. With a high transparency to UV light, these slides also improve the effectiveness of fluorescence microscopy and other advanced microscopy techniques.
Specifications
| Substrate Size | 25 mm x 75 mm |
|---|---|
| Thickness | 1.1 mm |
| Glass Type | Polished soda lime, float glass |
| Substrate Coating | 20 nm SiO2 |
| Refractive Index | 1.5 |
| Flatness | 50 nm per 20 mm (typical) |
| Glass Roughness | 1 nm RMS (by AFM) |
