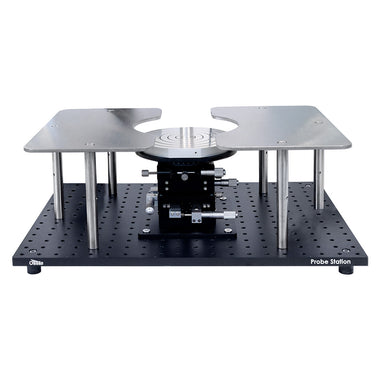

Probe Station Base

A Stable Foundation for Your Probing Setup

Configure a custom probe station setup that suits your experiments

Overview | Specifications | Gallery | Related Products

Designed for small-scale experiments, this base is a stable foundation for your custom probe station setup to facilitate the experiments you want. With the Ossila Probe Station Base, configure a low-noise, stable measurement environment for consistent, high-quality data collection.

Mount and position your micromanipulators and more on the spacious magnetic platens and easily integrate additional components using the standard optical breadboard base. The vacuum-compatible chuck securely holds samples from 5 mm to 150 mm, while the vibration isolation and electrical grounding reduce noise in your measurements and directly support the reliability and repeatability your research depends on.

Stable, Low Noise Foundation

Stability in custom probing configurations

Configure a Custom Setup

Optical breadboard base and spacious magnetic platens

Simple and Ergonomic Design

For straightforward and efficient workflows

Specifications

Base Station & Platens

Base	Aluminum optical breadboard, 25 mm hole spacing
Vibration Isolation	Elastomeric vibration dampening mounts
Natural Frequency	12 Hz
Effective Vibration Isolation	>17 Hz
Maximum Supported Load	880 N total
Platen Material	Ferromagnetic stainless steel
Platen Height	150 mm
Platen Capacity	Up to 8 Ossila Micromanipulators
Overall Dimensions	(L x W x H) 50 x 35 x 19 cm

Chuck Stage

Stage Travel	25 mm (X, Y), 10 mm (Z), 360° (coarse rotation), 15° (fine rotation)
Stage Resolution	0.01 mm (X, Y, Z), 0.1° (rotation)
Minimum Substrate Size	5 mm diameter
Maximum Substrate Size	150 mm diameter
Chuck Diameter	155 mm
Chuck Material	Aluminum
Chuck Type	Vacuum (selectable zones)
Chuck Isolation	>99 MΩ at 500 VDC
Chuck Leakage Current	<75 pA at ± 75 VDC
Vacuum Connection	Ø=6mm Push-In Tube, Female port
