Glass Photoelectrochemical Cell
High Quality Borosilicate Glass Photoelectrochemical Cell
Designed for two or three electrode photoelectric effect studies
Specifications | Pricing | Gallery | In the Box | Related Products | Technical Support

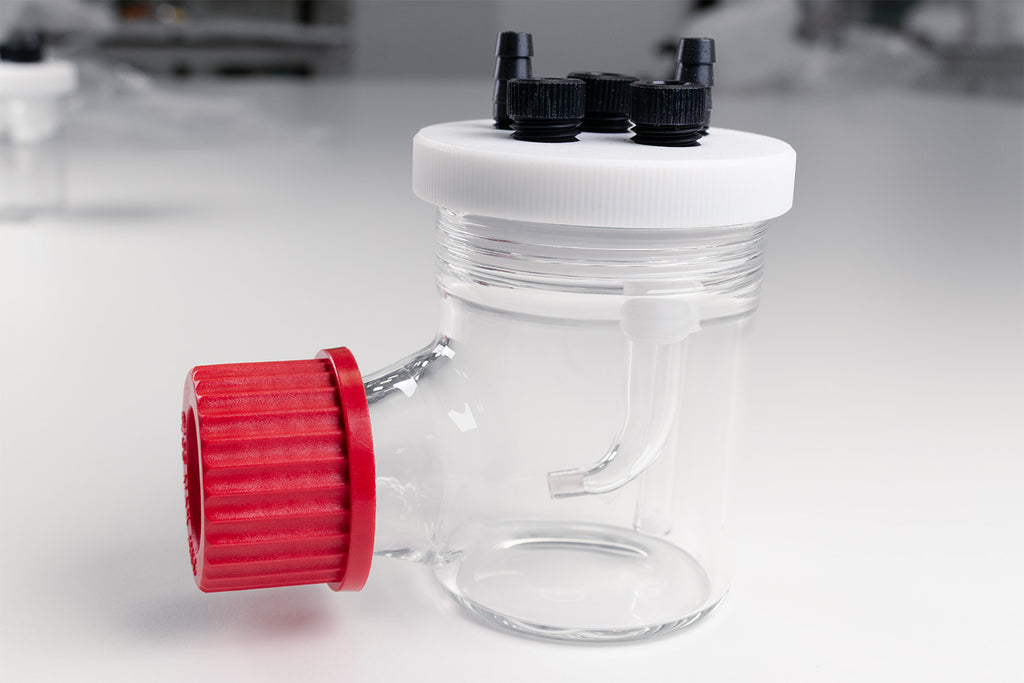

A high quality two or three electrode glass photoelectrochemical cell designed for photoelectric effect studies. The screw-fit PTFE lid includes electrode inlets to accommodate a working electrode, a counter electrode, and a reference electrode, plus two gas inlets.
Photoelectrochemical cells are based on a semiconductor–electrolyte interface. The working electrode, also referred to as photoanode, is normally an n- or p-type semiconductor, i.e. a polymer semiconductor on an ITO/FTO substrate, held by a platinum plate electrode holder. In photoelectrochemical cells, the counter electrode can be platinum or platinum free.

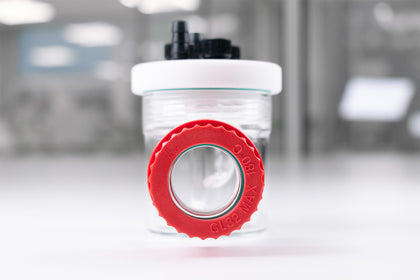

Transparent Window(s)
Enabling in-situ observation of photocatalytic reactions

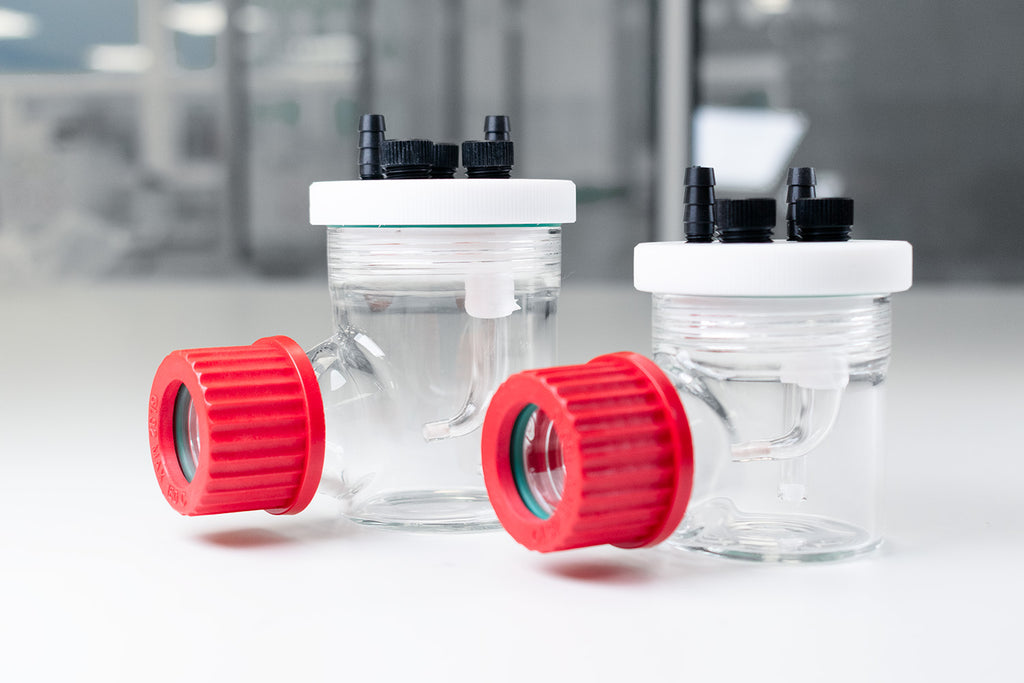

Range Of Sizes
Choose electrochemical cell to fit your experiment
Range of Accessories
Compatible with our wide range of electrodes
Expert Support
From in-house scientists & our
customer care team
Specifications
| Product Name | Product Code | Cell Volume (Window*) | Cell Volume (Thread*) | Cell Volume (Full) |
|---|---|---|---|---|
| Glass Photoelectrochemical Cell - 50 ml | C2017A1 | 65 ml | 80 ml | 100 ml |
| Glass Photoelectrochemical Cell - 100 ml | C2017B1 | 100 ml | 120 ml | 150 ml |
*The volume of the Cell is measured with liquid filled till above the optical window (notation: Window), filled till the thread (notation: Thread) and filled till the cell is full (notation: Full).
| Cell Body Material | Borosilicate glass |
|---|---|
| Optical Window Material | Quartz JS2 |
| Optical Window Diameter | 29 mm |
| Optical Window Cap Size | 24 mm center hole |
| Internal Seal Size | 52 mm outer diameter, 3 mm cross section |
| Rubber O-ring Size | 30 mm outer diameter, 3 mm cross section (5.5 mm & 10 mm O-rings also included) |
Pricing and Options
| Product Name | Product Code | Price |
|---|---|---|
| Glass Photoelectrochemical Cells - 50 ml | C2017A1 | £400 |
| Glass Photoelectrochemical Cells - 100 ml | C2017B1 | £460 |
Product Gallery
In the Box

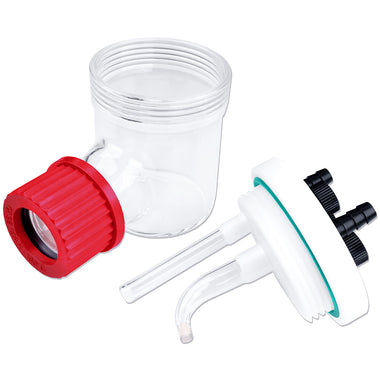

The photoelectrochemical cell components:
- Electrode inlet screw-in adaptor x 3
- Gas inlet screw-in adaptor, flat x2
- Luggin capillary and gas bubbler
- Screw-on cap for optical window
- Internal seal
- Rubber O-ring
Additional accessories included:
- 1m potentiostat PTFE tubing
- PTFE white tape
- Cell electrode inlet, blank x1
- PTFE rod 6.2mm electrode inlet stopper x3
- PTFE rod 3mm air inlet stopper x2
- Extra 5.5mm & 10mm O-rings
Photoelectrochemical Cell (PEC) Set up
Glass Photoelectrochemical Cells: with or without a water jacket. One with PTFE body also available. A JS2 Quartz optical windows included in the package
