Photoelectrochemical H-Cell With Double Optical Windows
Photoelectrochemical H-Cell (PECs) With Double Optical Windows
High quality borosilicate glass photoelectrochemical H-cell with high purity quartz optical windows for electrochemistry studies, JGS2 Quartz 0.220-2.5 (μm)
Overview | Specifications | Pricing and Options | Gallery | Related Products
Photoelectrochemical H-cell with dual optical windows allow photocatalytic reactions to convert light energy into chemical energy or electricity. The H-cell with dual optical windows features two optical windows, made of high purity quartz with a transmittance >95%.
This design allows both compartments to be illuminated, supporting two photoelectrodes operate simultaneously. The anode and cathode chambers are bridged and can be separated by ion-exchange membrane. Easily align the photoelectrodes with the optical window for maximum light exposure and absorption. This design has detachable chambers and replaceable optical windows, making it convenient to set-up, disassemble and easy to clean.
This PEC can be used for tandem photoelectrochemical systems, where a photoanode and photocathode both contribute to the overall photovoltage, potentially reducing the external bias required. Alternatively, the configuration can be used for independent studies of anodic and cathodic photoresponses under identical experimental conditions. The photoelectrochemical H-cell with dual optical windows can be used for photoelectrocatalytic reactions, CO2 reduction, light induced water-splitting, photo corrosion, and artificial photosynthesis.
Separate Electrodes
Avoid cross-contamination with ion-membrane diffusion
Range of Accessories
Compatible with our wide range of electrodes
Transparent Window(s)
Enabling in-situ observation of photocatalytic reactions
Expert Support
From in-house scientists & our
customer care team
Note: The quoted volume (100 ml) is the total volume across the H-cell set up needs to fill up to the bridge, therefore each half-cell has a volume of about 50-60 ml.
Specifications
All dimensions are in millimetres.
| Port | Diameter |
|---|---|
| Gas Inlet/Outlet Ports | 3 mm |
| Electrode Ports | 6.5 mm |
| Sampling Window | 3 mm |
| Membrane | Inner - 15.5 mm, Outer - 40 mm |
| Optical Window | Inner - 24 mm, Outer - 40 mm |
| Product Code | Half-cell Volume (Bridge*) | Half-cell Volume (Window*) | Half-cell Volume (Thread*) | Half-cell Volume (Full) |
|---|---|---|---|---|
| C2017P1 | 65 ml | 75 ml | 80 ml | 105 ml |
*The volume of the half-cell is measured with liquid filled above the H-cell bridge (notation: Bridge), filled above the optical window (notation: Window), filled till the thread (notation: Thread) and filled till the cell is full (notation: Full).
This Cell Accomodates:
- Two photoactive electrodes (one in each half cell)
- Two sampling window (one per half cell)
- A counter/ auxiliary electrode (in either half cell)
- Gas inlets/outlets tubes in both half cells
Screw fit lid, secure screws and O-ring seals for all ports to ensure an airtight operation.
Pricing and Options
| Product Name | Product Code | Price |
| Photoelectrochemical H-cell With Double Optical Windows - 100 ml | C2017P1 | £890 |

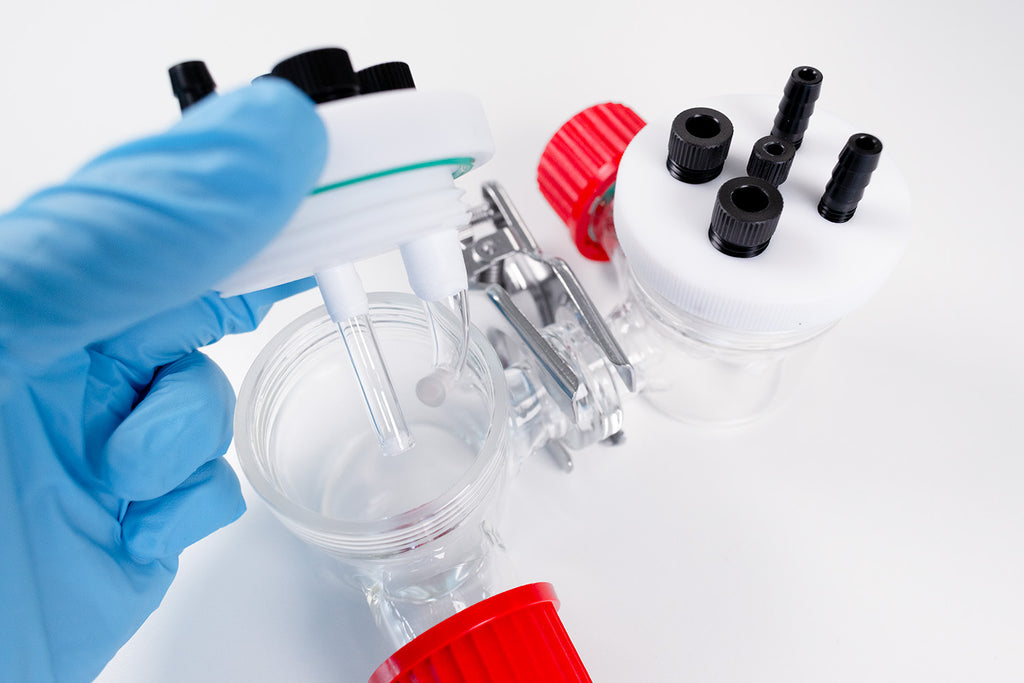

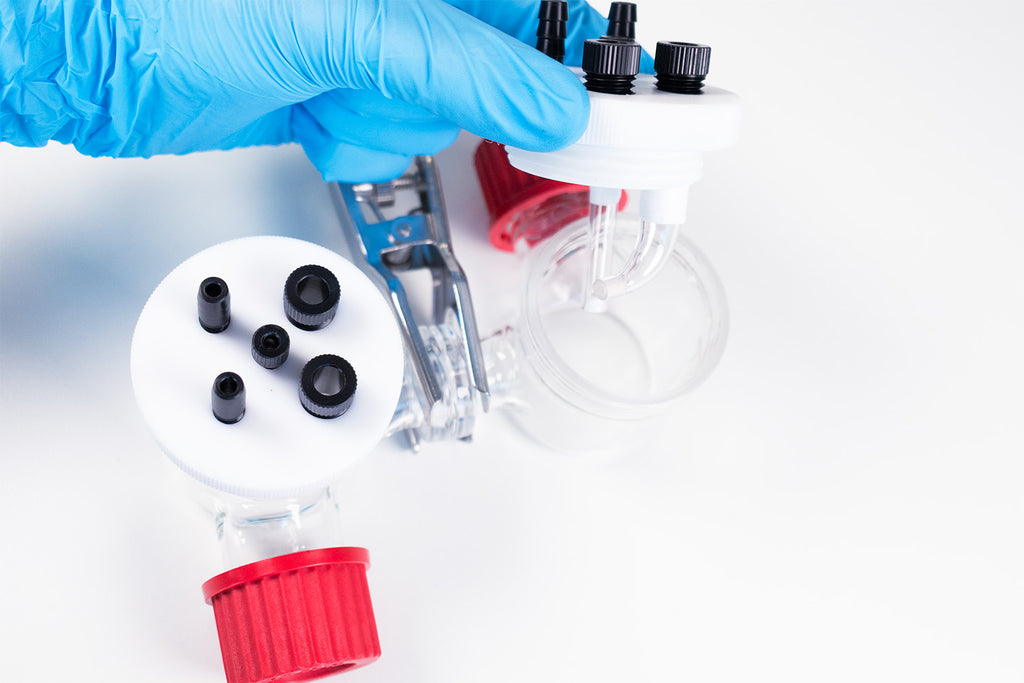

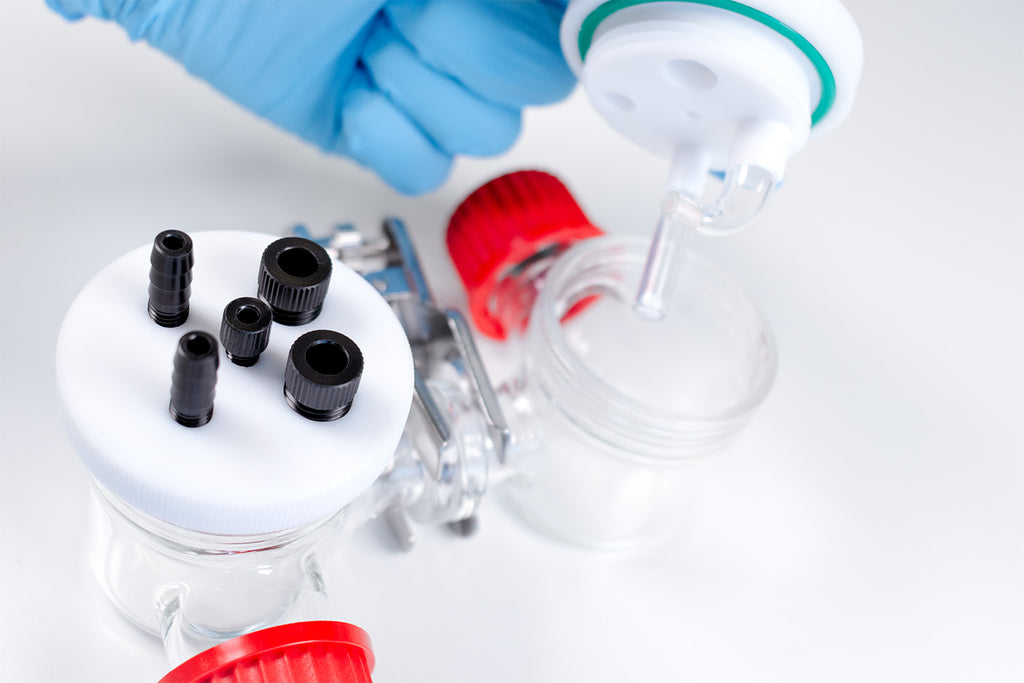

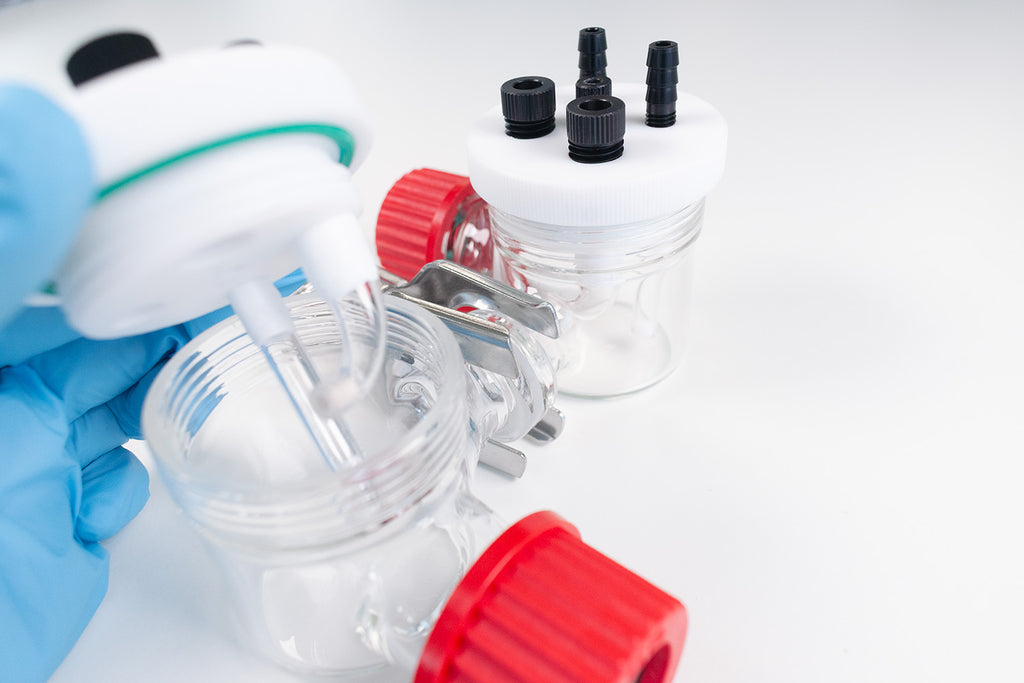

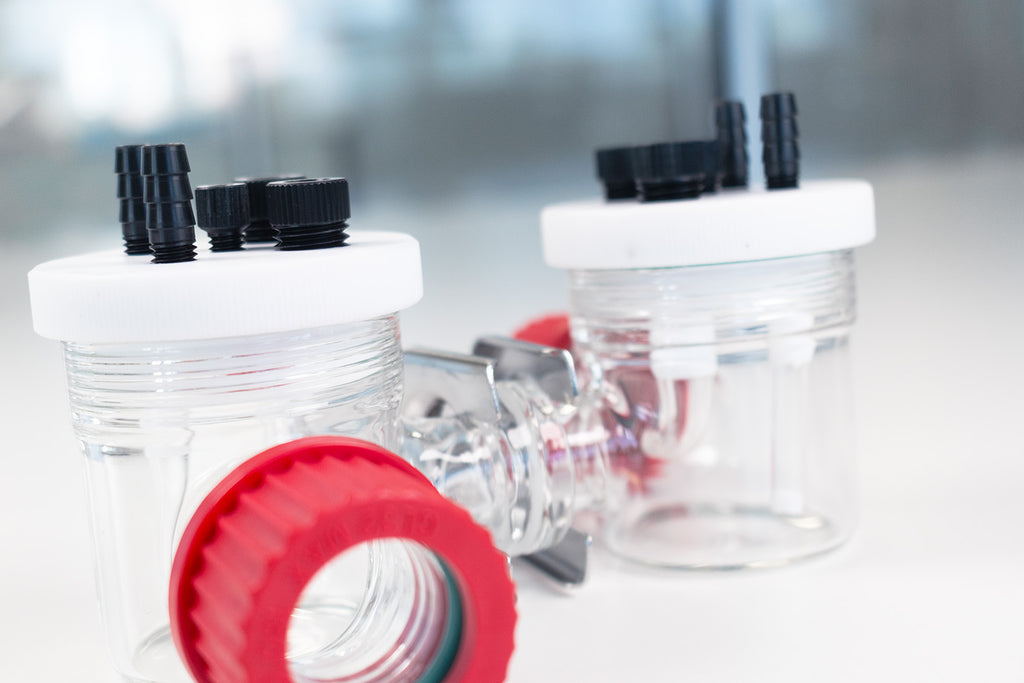

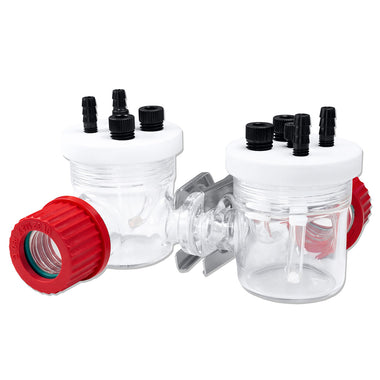

Photoelectrochemical H-Cell With Double Optical Windows Gallery
