Photoelectrochemical H-Cell

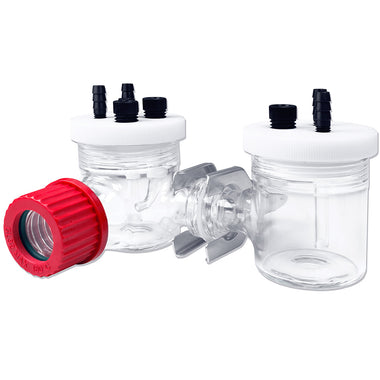

H-Type Photoelectrochemical Cells with High Quality Quartz Window
Includes a wide range of accessories for easy setup and customization
Specifications | In the Box | Gallery | Related Products | Technical Support

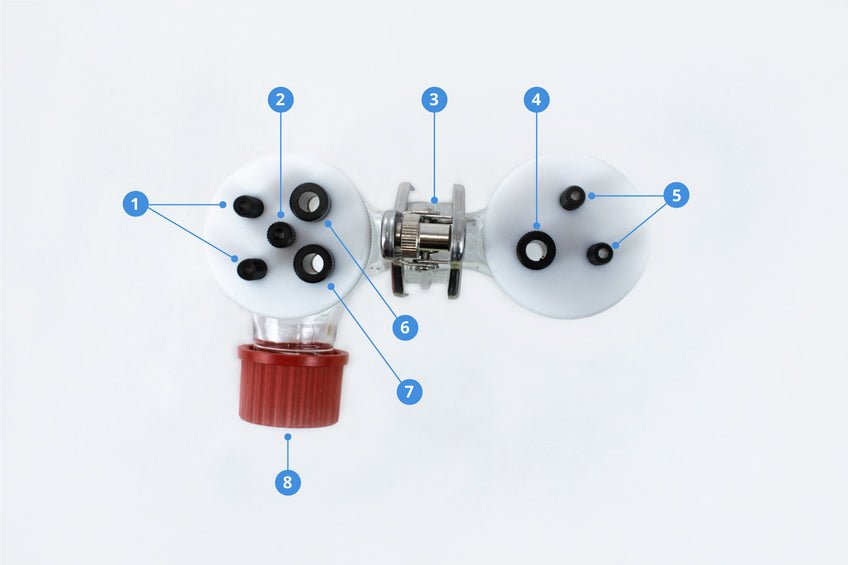

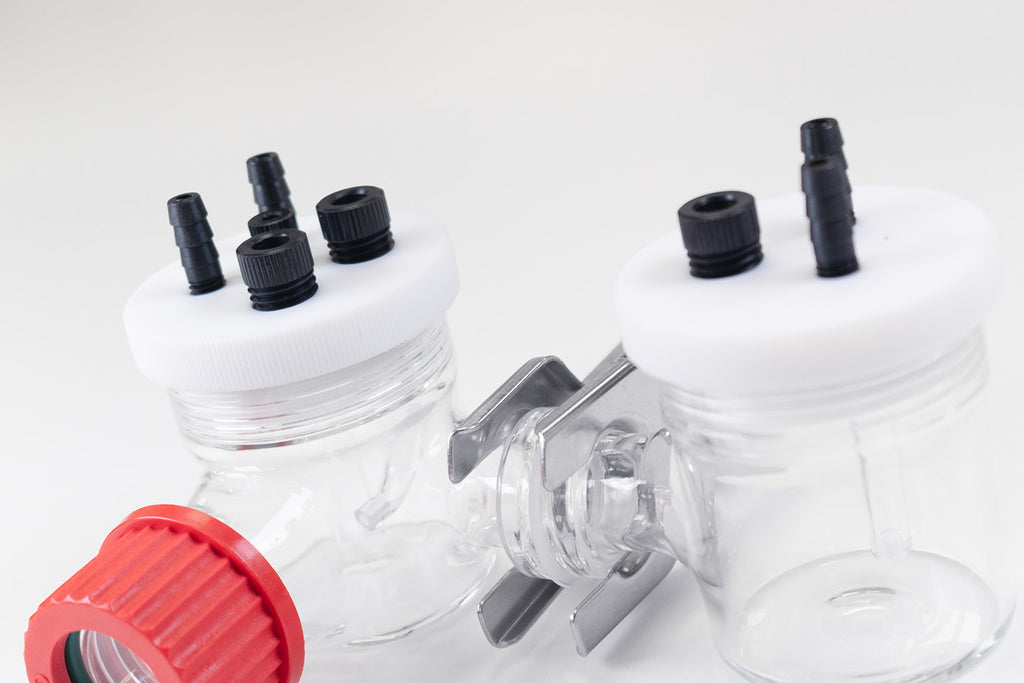

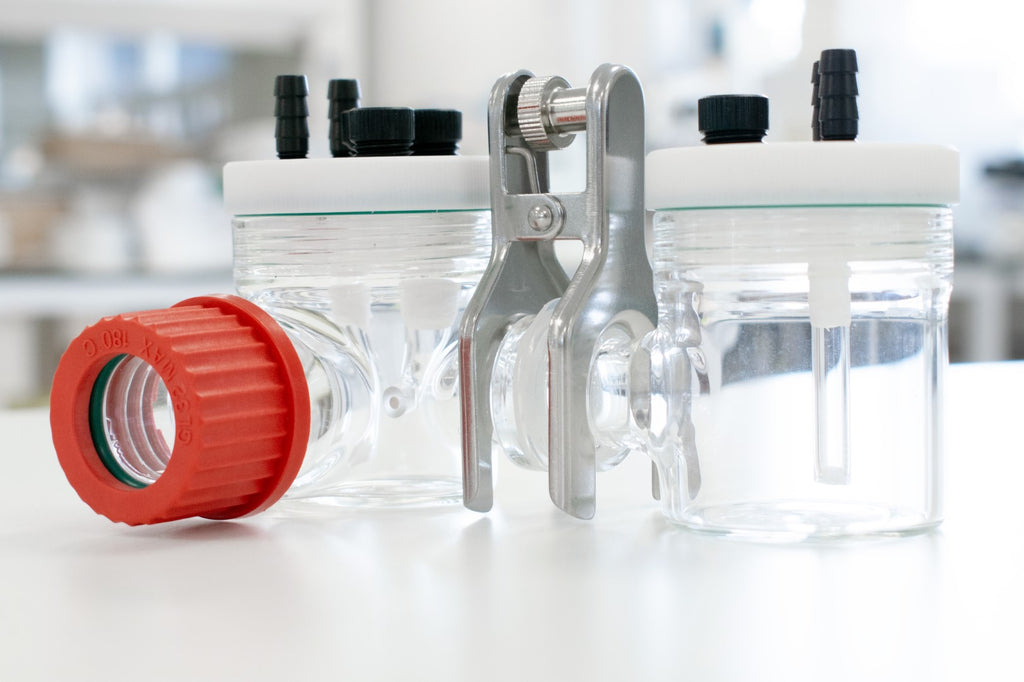

Run photoelectrochemical studies concurrently with the H-type cell. Our photoelectrochemical h-cell features one optical window, gas inlet and outlet for degassing, counter electrode feedthrough, working electrode feedthrough, reference electrode feedthrough, and a sample window.
Please Note: The quoted volume (100 ml) is the total volume across the H-cell set up, therefore each half-cell has a volume of about 50-60 ml. Other volumes (50-500ml) of photoelectrochemical H-cells with or without water bath are also available with a lead time. Please contact us for further information.
Transparent Window
Enabling in-situ observation of photocatalytic reactions
Separate Electrodes
Avoid cross-contamination with
ion-membrane diffusion
Designed to Last
Quality materials, spare parts,
and technical support
Expert Support
From in-house scientists & our
customer care team
Specifications
| Body Material | Borosilicate glass |
|---|---|
| Optical Window Material | Quartz JS2, 0.220-2.5 μm |
| Optical Window | 24 mm inner diameter |
| Membrane Lock | 15.5 mm inner diameter |
| Electrode Feedthroughs | 6.5 mm diameter |
| Gas Feedthroughs | 3 mm diameter |
| Product Code | Half-cell Volume (Bridge*) | Half-cell Volume (Window*) | Half-cell Volume (Thread*) | Half-cell Volume (Full) |
|---|---|---|---|---|
| C2017F1 | 65 ml (left), 50 ml (right) | 75 ml (left), N/A (right) | 80 ml (left), 65 ml (right) | 105 ml (left), 90 ml (right) |
*The volume of the half-cell is measured with liquid filled above the H-cell bridge (notation: Bridge), filled above the optical window (notation: Window), filled till the thread (notation: Thread) and filled till the cell is full (notation: Full). Left refers to the half cell with an optical window; right refers to the half-cell without an optical window.
In the Box*
- Glasswear body x 2
- Internal seal 52 mm OD (3 mm dia cross section)
- Gas bubbler x 2
- Luggin capillary x 1
- Cell electrode inlet screw in adaptor x 3
- Cell gas inlet screw in adaptor x 4
- Silicone disc 5 mm dia
Additional accessories included:
- Silicone seals 30 mm diameter x 2
- Pinch clamp
- 1m potentiostat PTFE tubing
- Potentiostat white tape PTFE x 1
- Cell electrode inlet blank x 1
- Rubber O-ring OD 10 mm extras
- Rubber O-ring OD 5.5 mm extras
- PTFE rod 6.2 mm electrode inlet stopper x 3
- PTFE rod 3 mm air inlet stopper x 4
*H-cell membrane not included

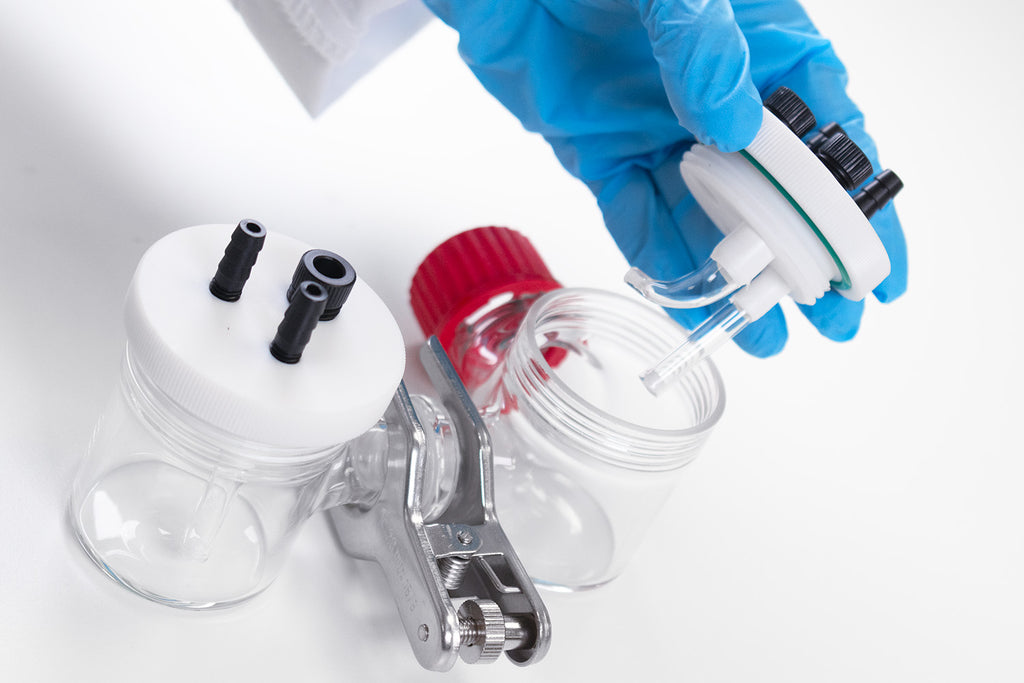

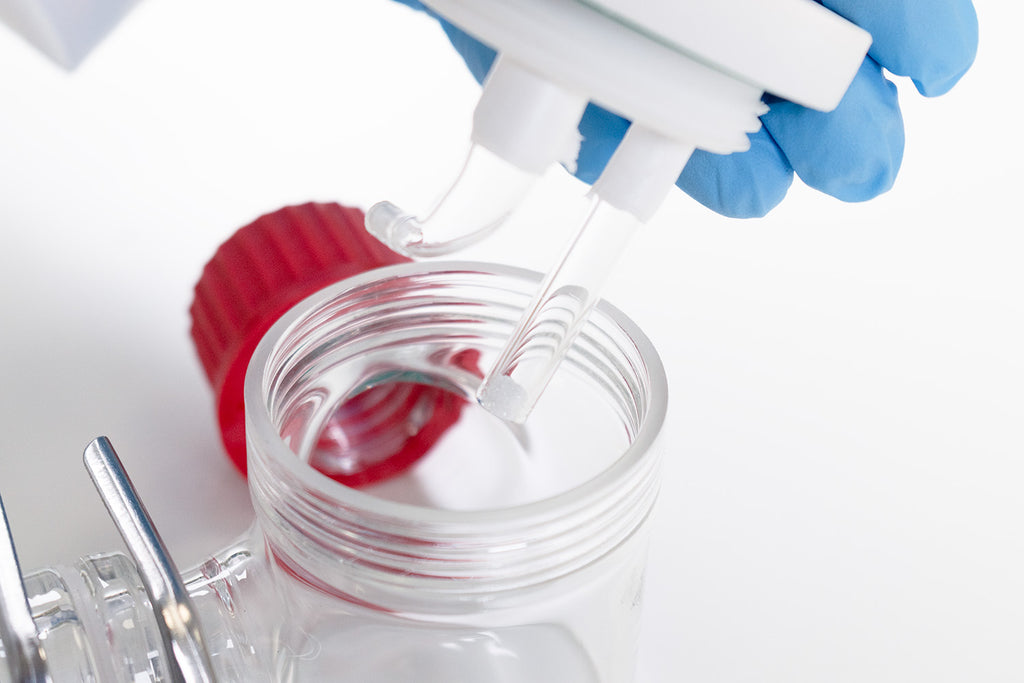

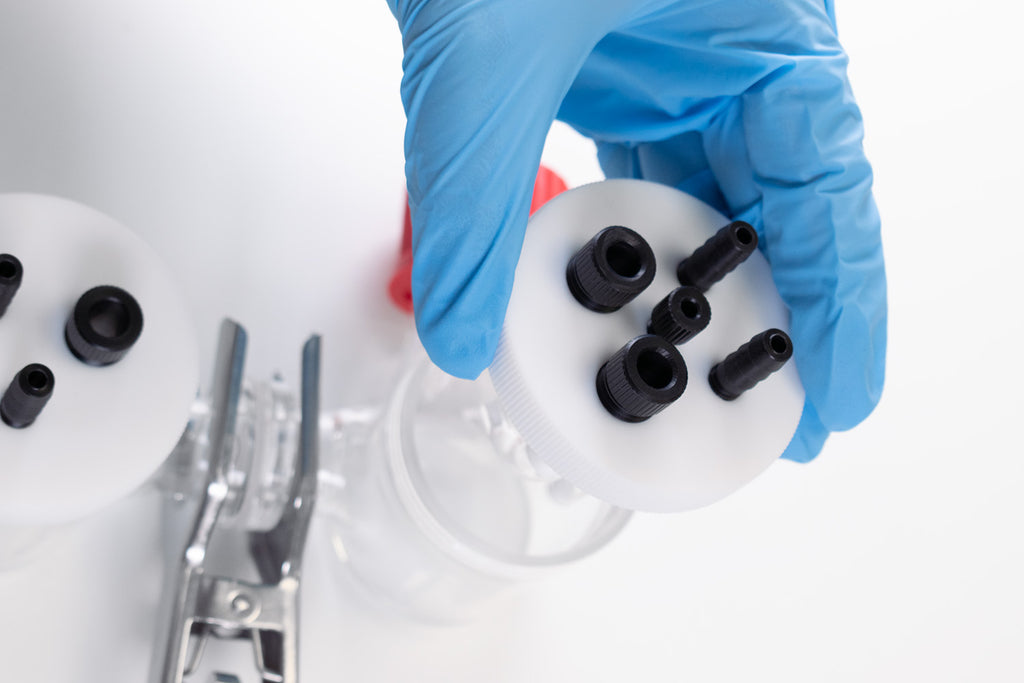

Photoelectrochemical H-Cell Setup
H-type Photoelectrochemical Cells: A few variants available including water jackets and dual optical windows. All cells included with Quartz Optical window, sampling window, lugging capillary, and a gas bubbler attached to Working Electrode compartment, addition to standard parts
