Gold Disc Working Electrode

Electrochemistry Supplies, Electrodes


Product Code C2013B1
Price £210 ex. VAT

High quality gold disc working electrodes

Perfect for use in standard electrochemistry cells for cyclic voltammetry and more


Overview | Specifications | Pricing and Options


The gold disc working electrode has high resistance to oxidation in both air and acids, making it a perfect option to use in standard electrochemical cells for cyclic voltammetry, linear sweep voltammetry and investigation for the oxidation and reduction potentials or organic and inorganic semiconductors. Organic semiconductors such as polymers in solution can be drop-cast onto the disc to form films, or alternatively the electrochemical cell can be set up to measure the properties of a material in solution. Both gold and platinum disc working electrodes are easy to use and clean.

Solvent and acid resistant working electrodes are now available to buy with either a highly polished platinum (included with our potentiostat system) or gold disc embedded in polytetrafluoroethylene (PTFE) or polyether ether ketone (PEEK) plastic bodies. Save up to 5% when you buy a pack of 5 electrodes or up to 10% when you buy a pack of 10 electrodes. Ossila also offers an electrochemical cell kit with electrodes. Qualifying orders ship free as part of the Ossila Guarantee.

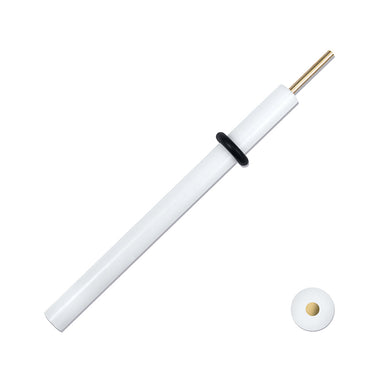

Gold disc working electrode

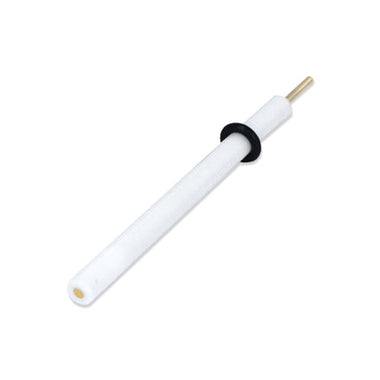

Gold Disc Working Electrode

High quality gold disc working electrode in 2 mm diameter.

From £210

Platinum disc working electrode

Gold Electrode Multipacks

Buy gold disc working electrode in pack of 5 to save up to 5% or pack of 10 to save up to 10%.

From £1050

For L-shaped and net gold electrodes, please contact us.

Specifications


All dimensions are in millimetres.

Gold Disc Working Electrode Dimensions
Gold Working Electrode Dimensions (mm)
Available disc diameter (n) size(s) 2 mm
Purity 99.99%

Pricing and Options


Product Name Product Code Price
Gold Disc Working Electrode - 2 mm diameter - PTFE Body - Single C2013B1 £210
Gold Disc Working Electrode - 2 mm diameter - PTFE Body - Pack of 5 C2013B1-5 £1050
Gold Disc Working Electrode - 2 mm diameter - PTFE Body - Pack of 10 C2013B1-10 £1900
Gold Disc Working Electrode - 2 mm diameter - PEEK Body C2019B1 £240

Learn More


peek vs ptfe PEEK vs PTFE

The choice of whether to use PEEK (polyether ether ketone) or PTFE (polytetrafluoroethylene, Teflon) comes down to the conditions of your planned experiments. The key polymer properties to consider are:

Read more...
