Electrochemical Cell for Three Electrode System


Order Code: C2012A1
Not in stock
Price: Loading...

Electrochemical cells and cell kits for cyclic voltammetry

Electrochemical cells available with or without working, counter and reference electrodes


Three electrode electrochemical cells designed for cyclic voltammetry studies. Available as stand alone electrochemical cells or as electrochemical cell kits comprising of both the cell and three electrodes.

Electrochemical Cells

Electrochemical Cell Kits

Standard

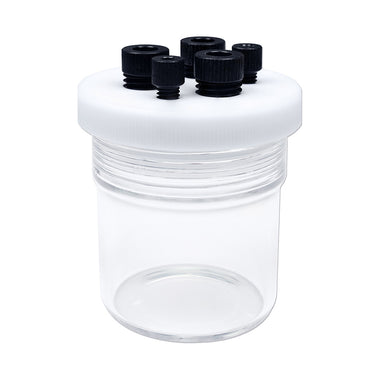

Standard electrochemical cell

From £147.00

Luggin

Luggin electrochemical cell

From £200.00

Standard

Standard electrochemical cell kit

From £420.00

Luggin

Luggin electrochemical cell kit

From £473.00

*Please see 'specifications' for more details

The Luggin type of electrochemical cell has a gas bubble filter inlet to reduce the gas shock and bubbling to the solution and a reference electrode pocket bridge that brings the reference electrode a closer contact to the working electrode.

The electrochemical cell kit is complete with the electrochemical cell itself and three electrodes including a platinum disc working electrode, a platinum wire counter electrode and a non-aqueous Ag/Ag+reference electrode. Together with the Potentiostat for Cyclic Voltammetry developed at Ossila, it offers a unique experience of cyclic voltammetry studies either in solution or in film.

Ossila Potentiostat for Cyclic Voltammetry

Perform cyclic voltammetry with the Ossila Potentiostat

  • Low price at just £1600.00
  • Includes electrodes and electrochemical cell
  • Free worldwide shipping and two year warranty

The electrochemical cell is where the chemical reaction happens by passing electricity through the electrodes. With the potentiostat and selected three electrodes, cyclic voltammetry can be carried out to obtain both oxidation and reduction potentials of the semiconducting materials, i.e. OLED small molecules or OPV polymers. Highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels can thus be calculated from the measurements.

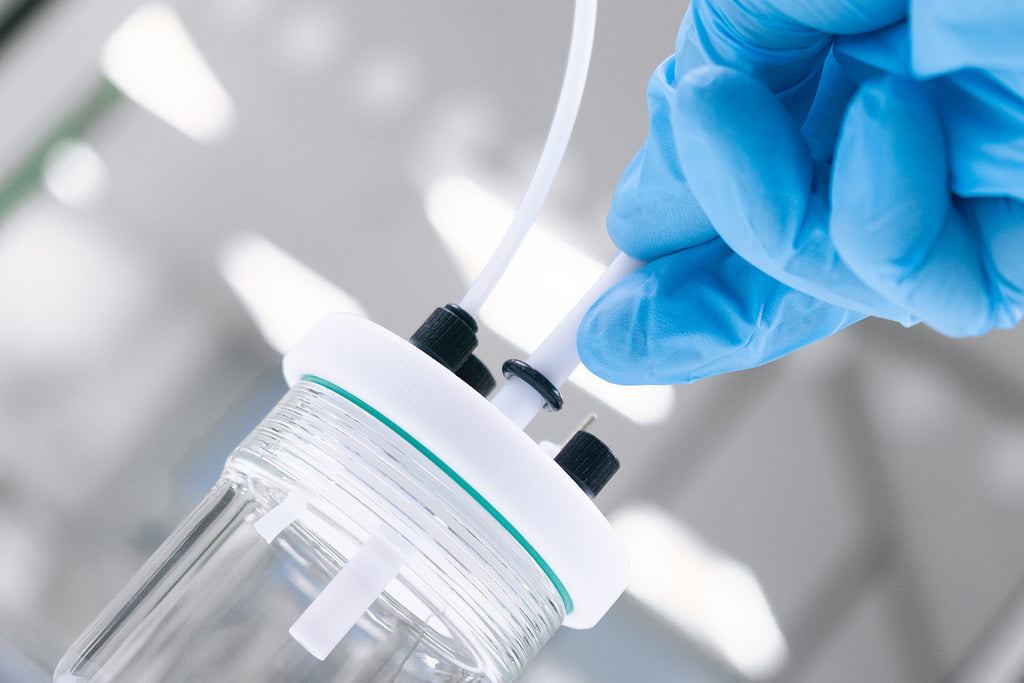

Electrochemical cell

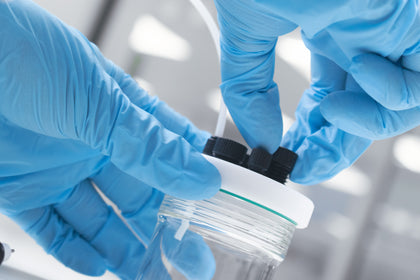

Cyclic Voltammetry Electrochemical Cell

What is an Electrochemical Cell?

An electrochemical cell is a device that is used either to generate electricity from a spontaneous chemical reaction or that uses electricity to drive a non-spontaneous chemical reaction.

The electrochemical cell with three electrodes is an electrically driven electrolytic type of cell that is designed for the use of cyclic voltammetry.

The Three Electrode System

For a better control and measurement of the current and potential going through the cell during the electricity driven chemical reaction, it is better to use a three electrode system to reduce and compensate the potential changes caused by large currents passing through the working and counter electrodes.

Apart from working electrode where chemical reactions happen and the counter electrode which serves as a current source, there is the third electrode called capillary reference electrode in the three electrode system. Not passing any current, the reference electrode is to act as a reference in measuring and controlling the working electrode potential. Ideally, the reference electrode should be placed as close as possible to the working electrode surface, i.e. the use of the Luggin capillary reference electrode to reduce the current resistance (I times R) drop since the bad conducting of organic solvents. This is also referred to as Ohmic drop which is the amount of potential lost from the reference electrode to the working electrode, caused by the Ohmic resistance between these 2 electrodes.

Applications

Electrochemistry is a powerful tool to probe reactions involving electron transfers, while cyclic voltammetry has long been well known for its versatile applications in a number of areas such as chemistry, physical chemistry, biochemistry and biology involving electron transfer process.

The electrochemical cell of 3 electrode system can potentially be used, not limited to, for the following characterization and measurements of electrically driven chemical reactions of metals, metal complexes, inorganic and organic compounds including polymers.

  • Chemical analysis and synthesis
  • Redox potentials
  • Metabolic processes and biosensors
  • Electron transfer mechanism and reversibility of a reaction
  • Thermodynamic and kinetic studies
  • Energy levels of semiconducting small molecules and polymers (HOMO/LUMO)
  • Corrosion
  • Battery and energy studies

Specifications

Normal Electrochemical Cell

Electrode Cell Dimensions

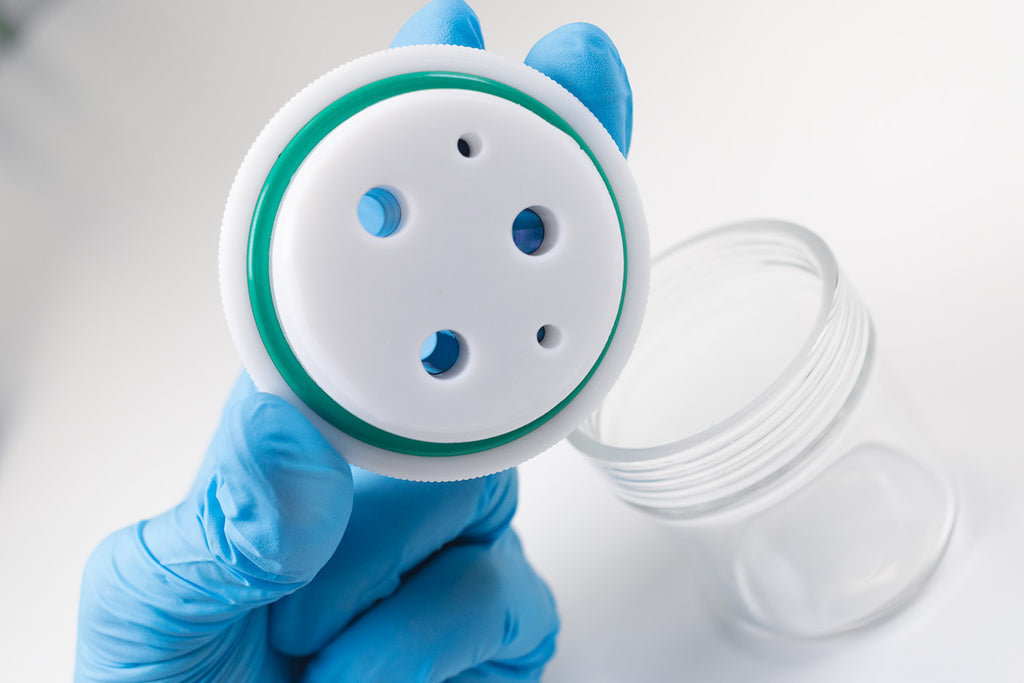

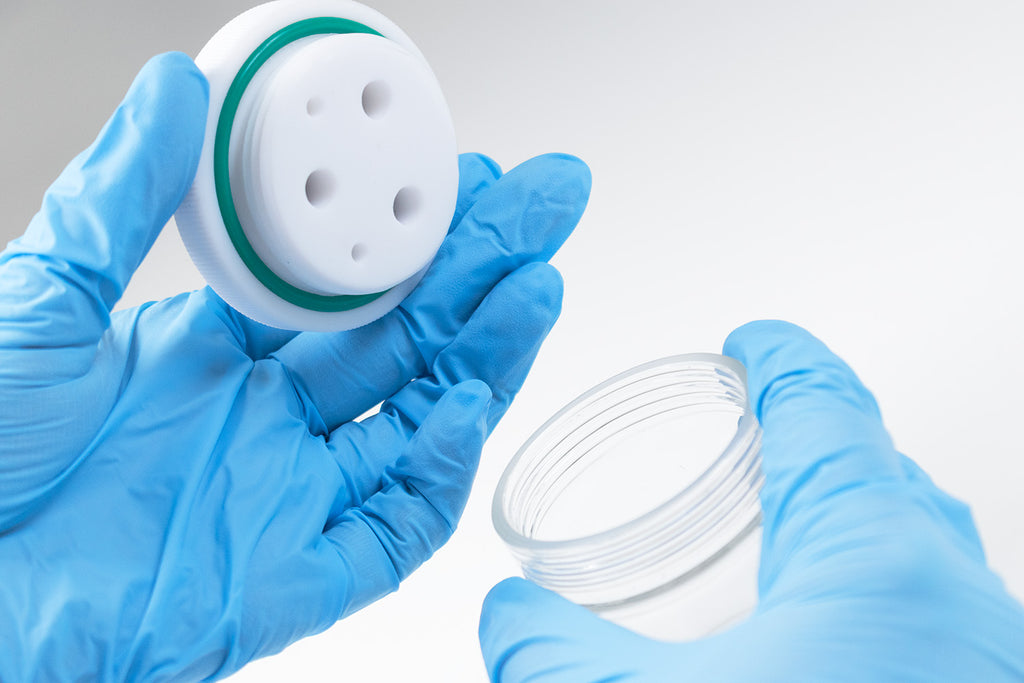

Screw-fit PTFE lid with 3-electrode holes and 2-gas holes

Luggin Type Electrochemical Cell

Electrode Cell Dimensions

Screw-fit PTFE lid with 3-electrode holes, detachable gas bubbler inlet, gas outlet and a detachable, location-adjustable Luggin pocket bridge for reference electrode.

Platinum Disc Working Electrode
Platinum Working Electrode Dimensions
Platinum Wire Counter Electrode
Platinum Counter Electrode Dimensions
Non-aqueous Ag/Ag+ Reference Electrode
Ag/Ag+ Reference Electrode Dimensions

*All dimensions are in millimeters.

Pricing and Options

The standing alone electrochemical cells come as the normal and Luggin type electrochemical cells. The complete electrochemical cell kit of three electrode system comes with three electrodes and a high quality cell.

The electrochemical cell is available to be purchased alone, as electrochemical cell kits or together with Potentiostat for Cyclic Voltammetry at reduced prices.

Product Name Product Code Price
Normal electrochemical cell C2012A1 £147.00
Luggin type electrochemical cell C2012B1 £200.00
Normal electrochemical cell kit C2016A1 £420.00
Luggin type electrochemical cell kit C2016B1 £473.00
Normal electrochemical cell kit purchase with Potentiostat* C2016A1 £300.00*
Luggin type electrochemical cell kit purchase with Potentiostat* C2016B1 £350.00*

*These prices do not include the price of the Ossila Potentiostat.


To the best of our knowledge the technical information provided here is accurate. However, Ossila assume no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
