Electrochemical Cell with Water Bath
High Quality Borosilicate Glass Electrochemical Cell with Built-in Water Bath
Control the temperature inside the cell using the water bath with separate inlet and outlet
Specifications | Benefits of a Water Bath | In the Box | Gallery | Related Products | Technical Support

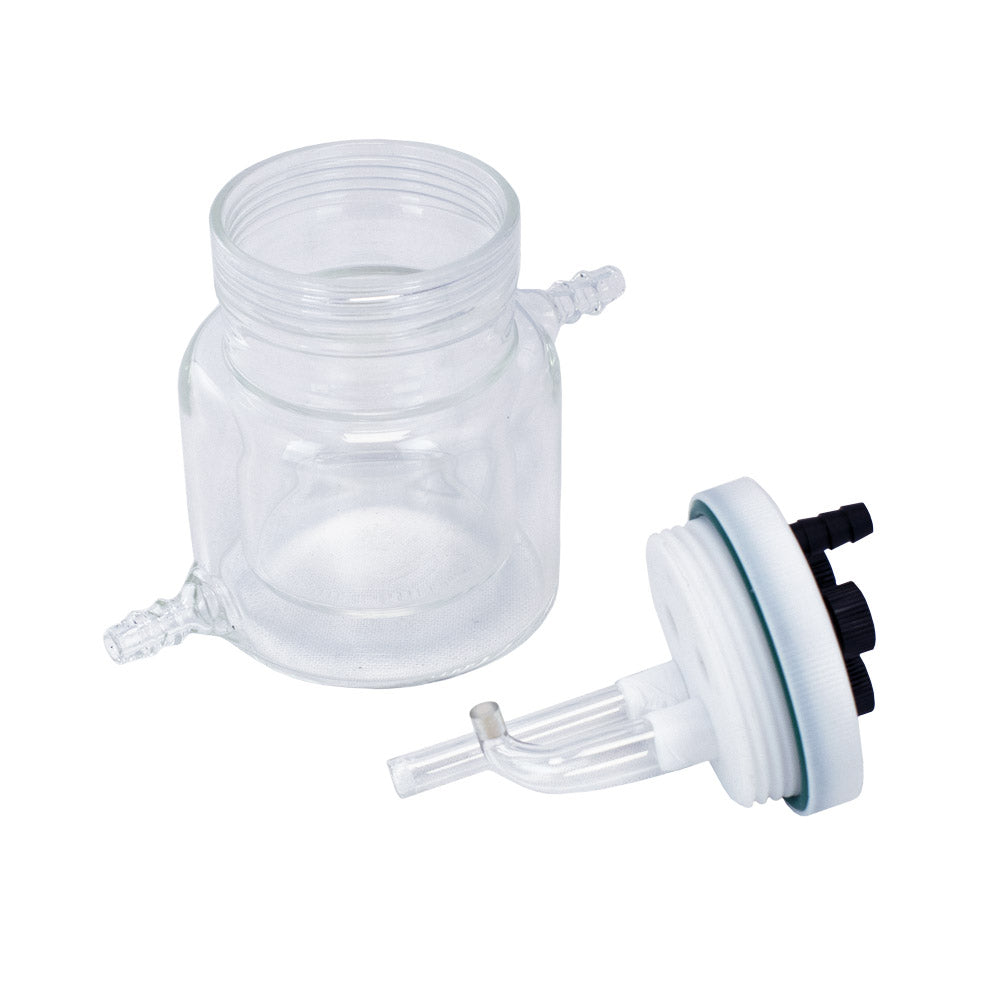

Perfect for conducting temperature-controlled electrochemical experiments, this cell combines a 100 ml glass electrochemical cell with a wrap around water bath. The water bath helps maintain a reaction temperature without interacting with the internal environment, ensuring higher experimental control.

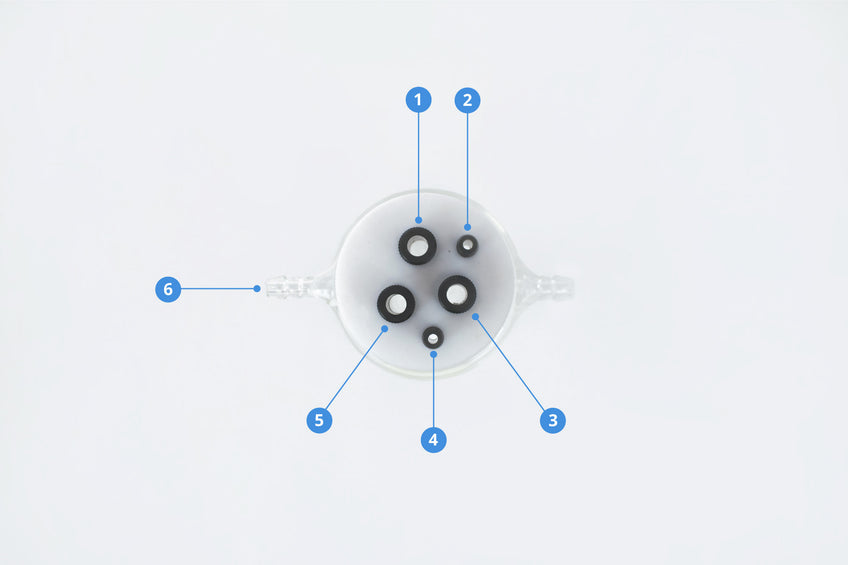

The electrochemical cell itself has three electrode feedthroughs and two gas ports (for degassing). Additionally, this cell comes with a gas inlet bubble filter which prevents bubbling or gas shock through the solution, interrupting experiments. The external water bath has seperate inlets and outlets for continual flow of heated solution. The Luggin capillary positions the reference electrode bridge closer to the working electrode, reducing errors in potential measurements.
Designed To Last
Quality materials, spare parts, and technical support
Temperature Control
Isolated water bath for sensitive experiments
Range of Accessories
Compatible with our wide range of electrodes
Expert Support
From in-house scientists & our
customer care team
Specifications
| Volume | 100 ml |
|---|---|
| Body Material | Borosilicate glass |
| Lid Material | PTFE |
| Electrode Ports | 6.5 mm diameter |
| Gas Inlets | 3 mm diameter |
Please note: Luggin capillary curved salt bridge tip may deteriorate in strong acid or basic electrolyte. Direct use of reference electrode without Luggin capillary is thus suggested in such conditions.
User Manual
Electrochemical Cell with Water Bath User Manual
Benefits of a Water Bath
A water bath helps to maintain a stable, controlled temperature within the electrochemical cell. Without any direct contact between the water and the electrolyte or reactants, water flows from an external reservoir through an integrated jacket built around the electrochemical cell.
Introducing temperature control helps maintain consistency between experiments as many electrochemical reactions are temperature sensitive, with changing temperature affecting reaction rates and equilibrium.
Playing a more active role in experiments, a water bath can drive or supress reactions and can also absorb heat created in exothermic reactions, as well as supplying heat needed for endothermic reactions.

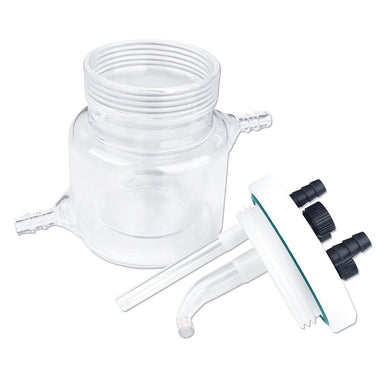

In the Box
Electrochemical Cell Body
- Glasswear Body
- Screw Cap
- Internal Seal 52mm OD (3mm Dia cross section)
- Gas bubbler x1
- Luggin capillary x1
- Cell Electrode inlet screw in adaptor x 3
- Cell Gas Inlet screw in adaptor Flat x2
Additional accessories included:
- 1m Potentiostat PTFE Tubing
- PTFE White Tape x1
- Cell Electrode inlet Blank x1
- PTFE Rod 6.2mm electrode inlet stopper x3
- PTFE Rod 3mm air inlet stopper x2
- Rubber O-ring OD 10mm Extras
- Rubber O-ring OD 5.5mm Extras

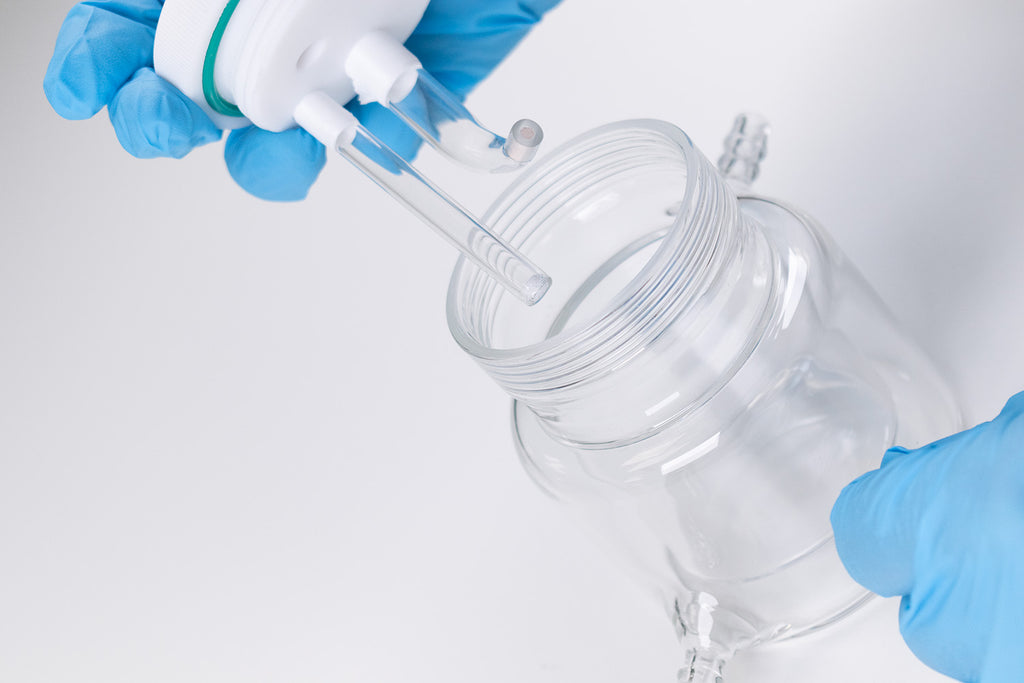

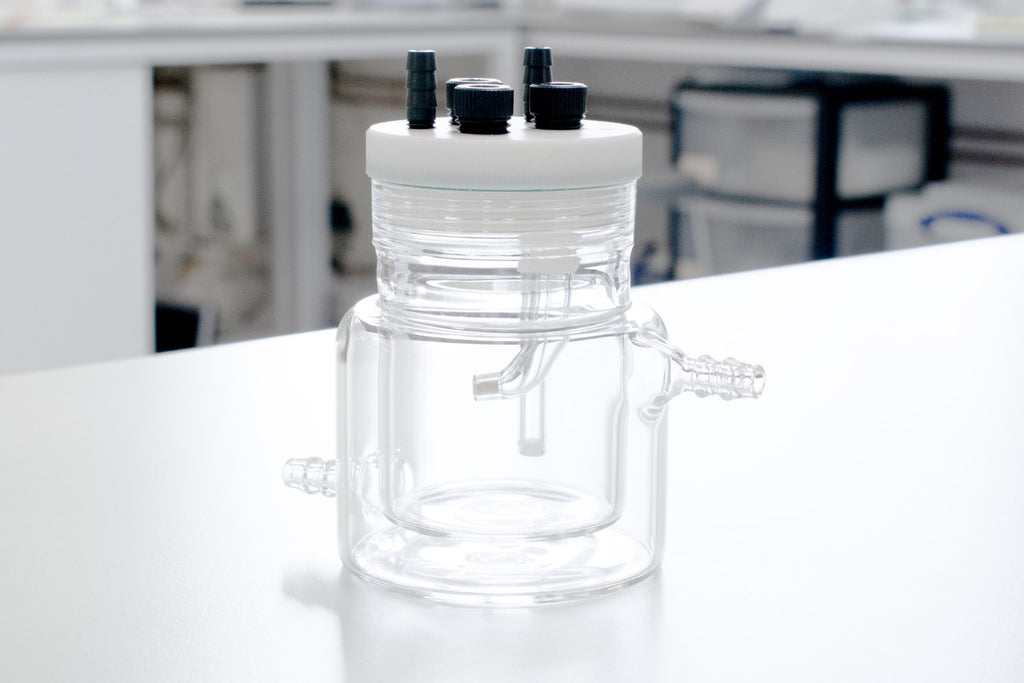

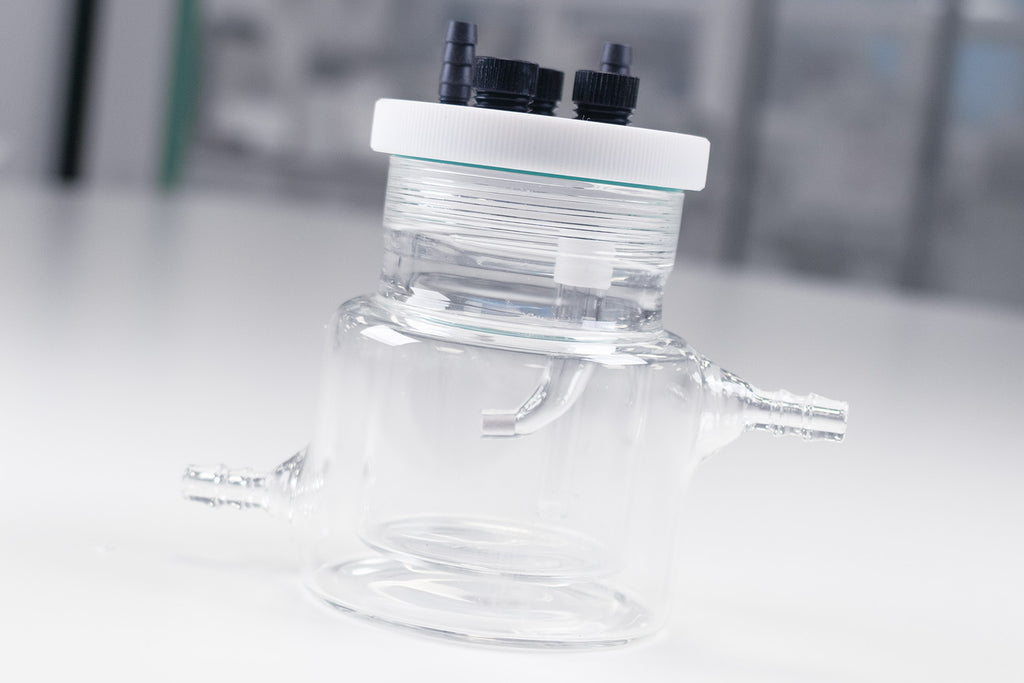

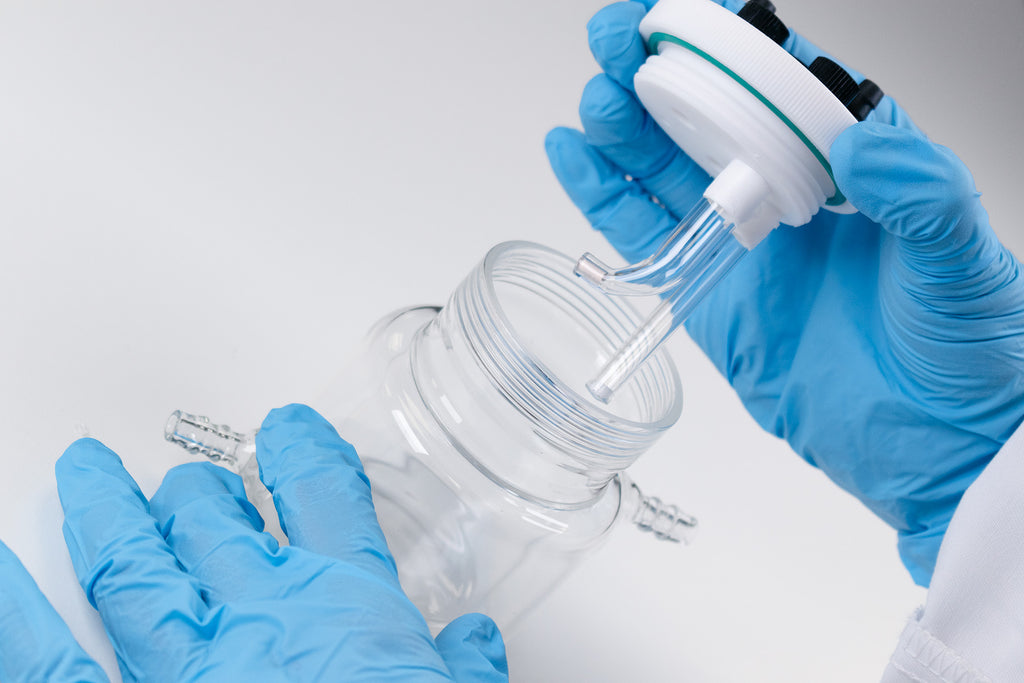

Electrochemical Cell with Water Bath Gallery
