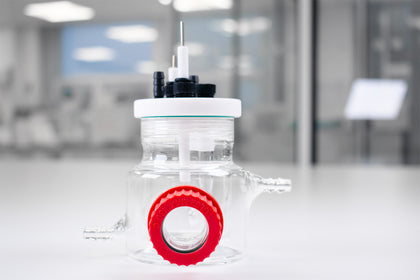

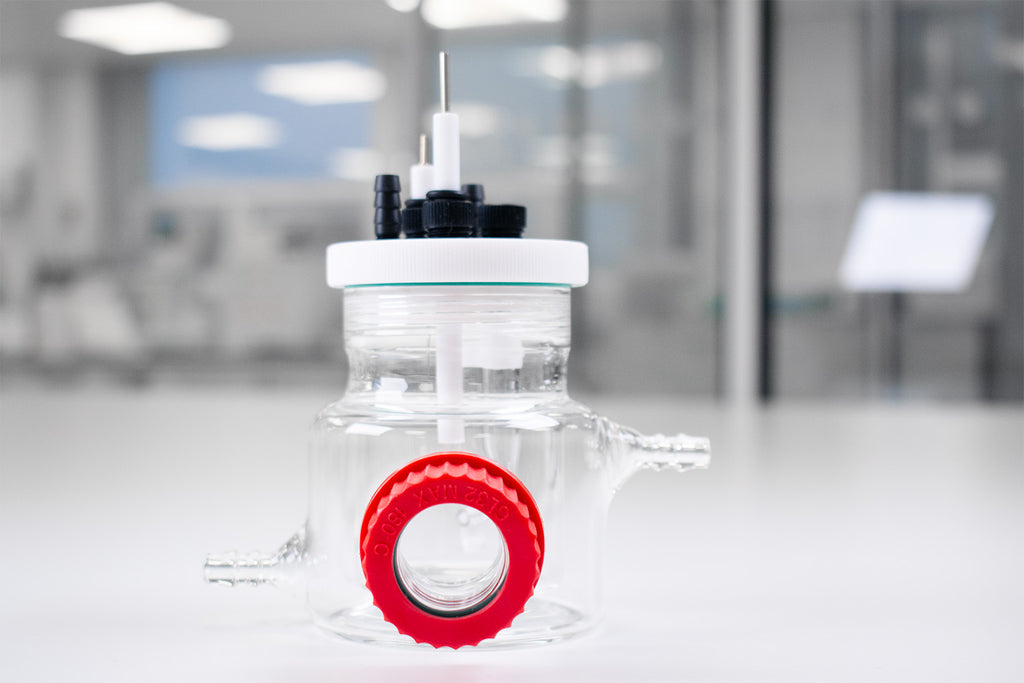

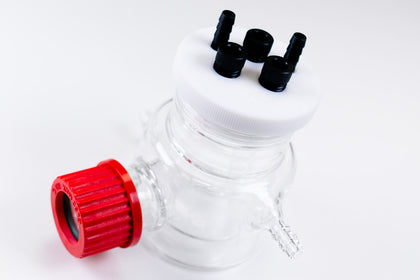

Glass Photoelectrochemical Cell with Water Bath
Easy Temperature Control in Photoelectrochemical Studies
High quality quartz optical window for reliable observation and analysis
Specifications | In the Box | Gallery | Related Products | Technical Support
The glass photoelectrochemical cell comes with a built-in water bath, perfect for experiments that require variable temperatures or stable temperature control. With an optical window, gas and water inlets and outlets, and three electrode feedthroughs, perform high quality photoelectrochemical reserach.
Transparent Window
Enabling in-situ observation of photocatalytic reactions
Temperature Control
Isolated water bath for sensitive experiments
Range of Accessories
Compatible with our wide range
of electrodes
Expert Support
From in-house scientists & our
customer care team
Specifications
| Cell Volume | 100 ml |
|---|---|
| Body Material | Borosilicate glass |
| Optical Window Material | Quartz JS2, 0.220-2.5 μm |
| Optical Window Diameter | 29 mm |
| Optical Window Cap Size | 24 mm center hole |
| Rubber O-ring Size | 30 mm outer diameter, 3 mm cross section (5.5 mm & 10 mm O-rings also included) |
User Manual
Glass Photoelectrochemical Cell with Water Bath User Manual

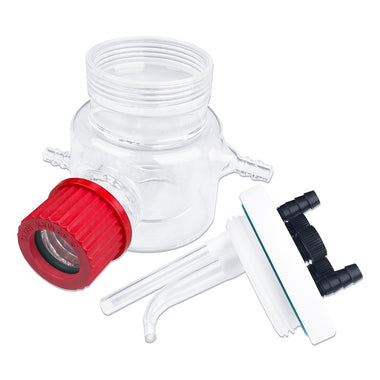

In the Box
- Glasswear body
- Internal seal 53 mm (3 mm dia cross section)
- Gas bubbler x 1
- Luggin capillary x 1
- Cell electrode inlet screw in adaptor x 3
- Cell gas inlet screw in adaptor flat x 2
- Optical window
- Screw-on cap with 24 mm center hole
- Quartz optical window 29 mm dia
- Rubber O-ring 30 mm OD / 3 mm cross section
Additional accessories included:
- 1m potentiostat PTFE tubing
- PTFE white tape x 1
- Cell electrode inlet blank x 1
- PTFE rod 6.2 mm electrode inlet stopper x 3
- PTFE rod 3 mm air inlet stopper x 2
- Rubber O-ring OD 10 mm extras
- Rubber O-ring OD 5.5 mm extras

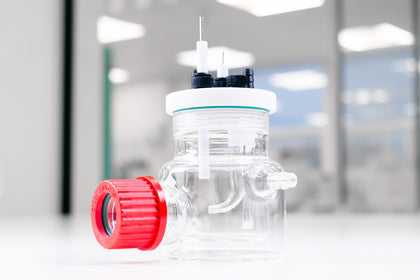

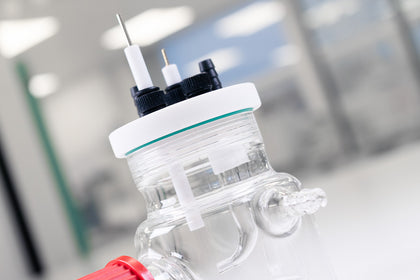

Photoelectrochemical Cell (PEC) Set up
Glass Photoelectrochemical Cells: with or without a water jacket. One with PTFE body also available. A JS2 Quartz optical windows included in the package
