Spectroelectrochemical Cell
Integration of electrochemical and spectroscopic investigations into one miniature cuvette
Designed for electrochemical studies of catalysis, batteries, and fuel cells, UV-Vis-NIR, In-situ Raman, Operando ultraviolet–visible optical spectroelectrochemistry, SEC cell
Overview | Specifications | Gallery | In the Box | Literature | Related Products | Technical Support
The spectroelectrochemical cell is a transparent electrochemical cell device designed for real-time spectroscopic characterisation of electrochemical reactions happening on the surface of the electrode under applied potential. The spectroelectrochemical cell features an all-quartz cuvette with high transmission across the UV–Vis–NIR spectrum from 220 nm to 2500 nm. The spectroelectrochemical cell adopts a three-electrode system of a working electrode, a platinum counter electrode and a silver chloride reference electrode. The working electrode is either platinum mesh or platinum plate electrode holder secured film electrode.
The spectroelectrochemical cell is suitable for in-situ UV-Vis and Raman spectroscopy studies of the chemical reactions in the electrochemical cuvette cell, capturing the chromic, spectroscopic, structural and surface changes in reaction intermediates and products at the electrode-solution interface. It finds applications in monitoring electrode surface changes, studying reaction mechanisms, oxidation-state tracking, and analysing structural changes in materials for catalysis, batteries, fuel cells and biomedical research.
Specifications
| Product Code | M2051M1 | M2051P1 |
|---|---|---|
| Body Material | Quartz JGS2 | Quartz JGS2 |
| Cover Lid | PTFE | PTFE |
| Working Electrode | Platinum Mesh | Platinum Plate Electrode Holder |
| Counter Electrode | Platinum Wire | Platinum Wire |
| Reference Electrode | Silver Chloride | Silver Chloride |
| Cuvette External dimension | 12.5*12.5*45 mm |
|---|---|
| Internal top dimension: | 10*10 mm |
| Internal gap: | 2 mm in width and 10 mm in depth |
| Cell volume capacity: | 200 μL |

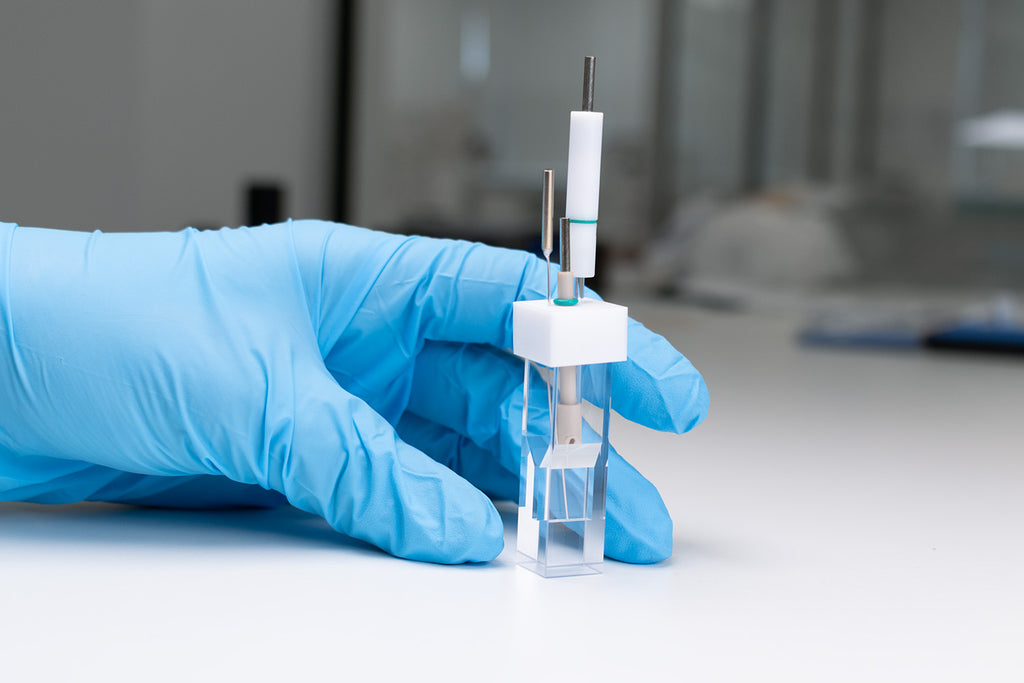

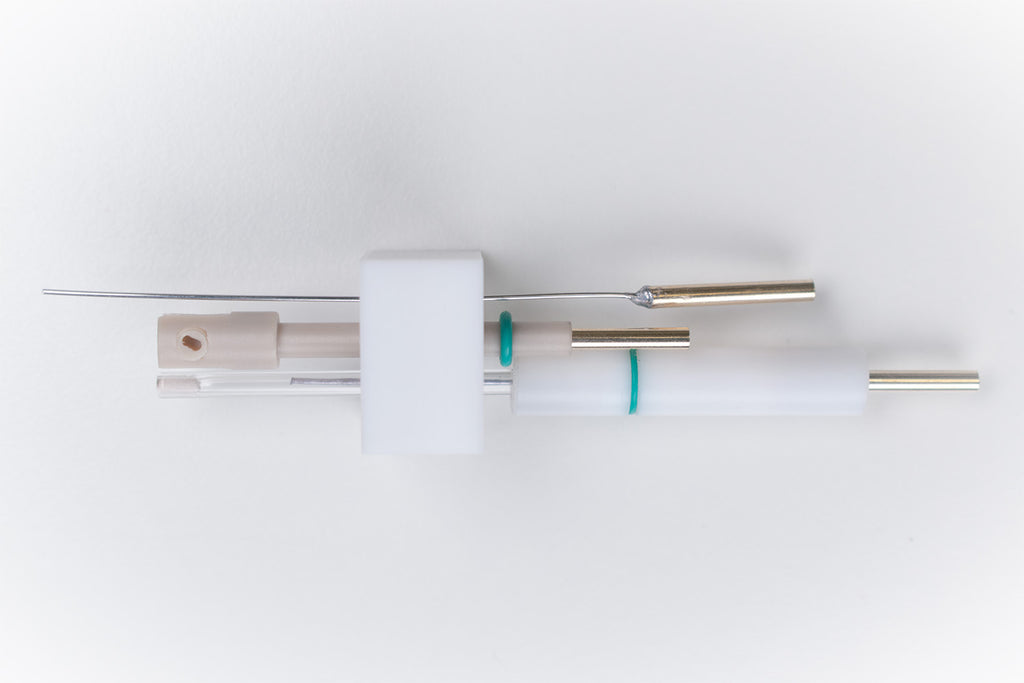

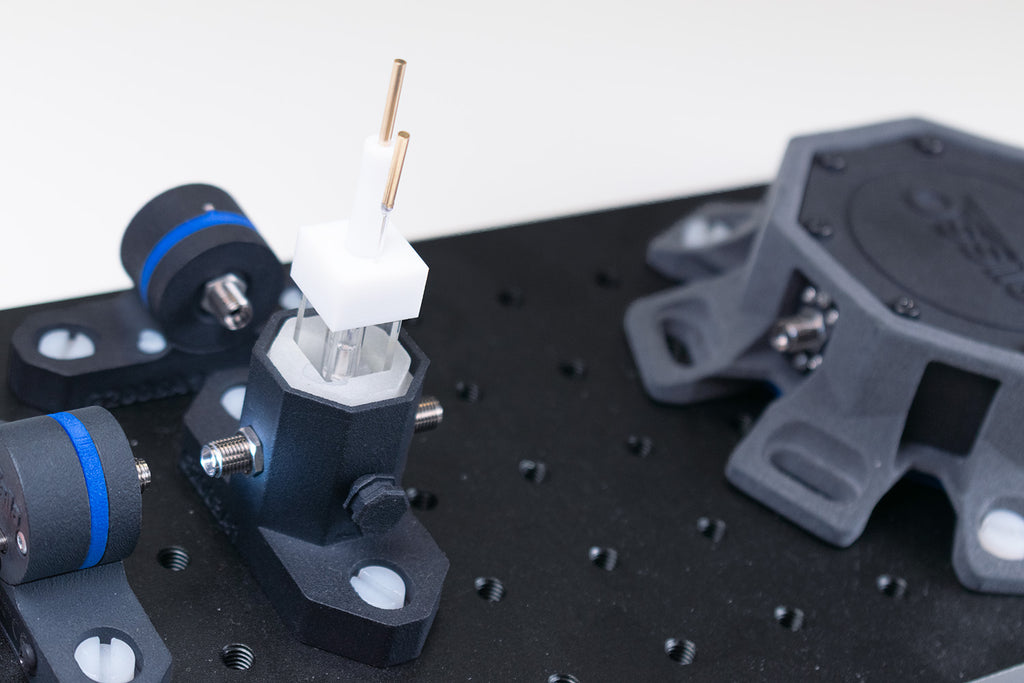

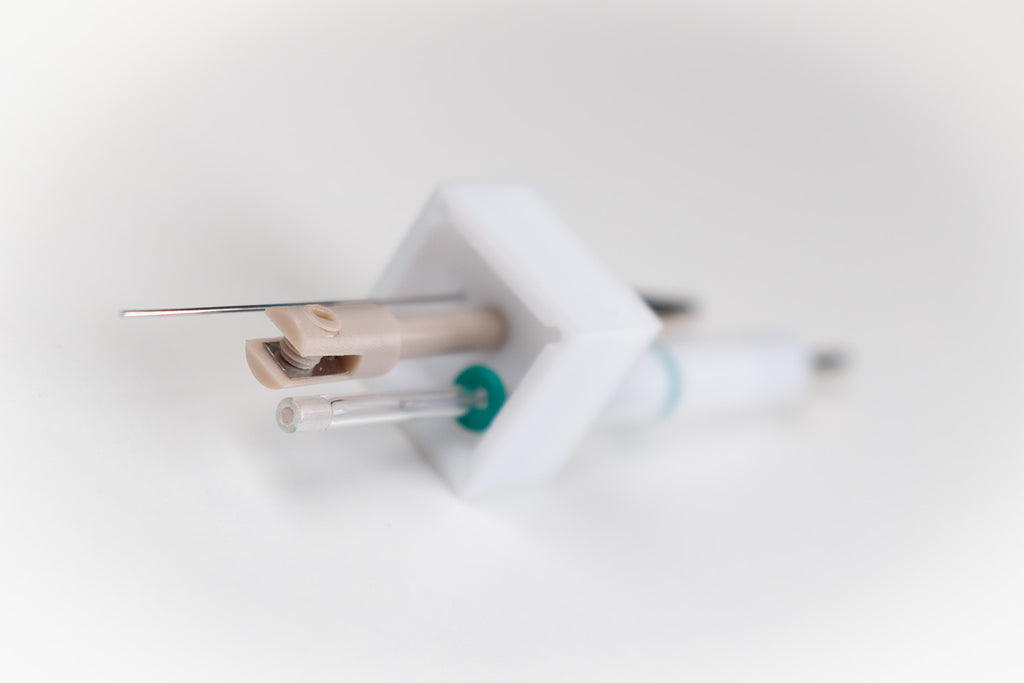

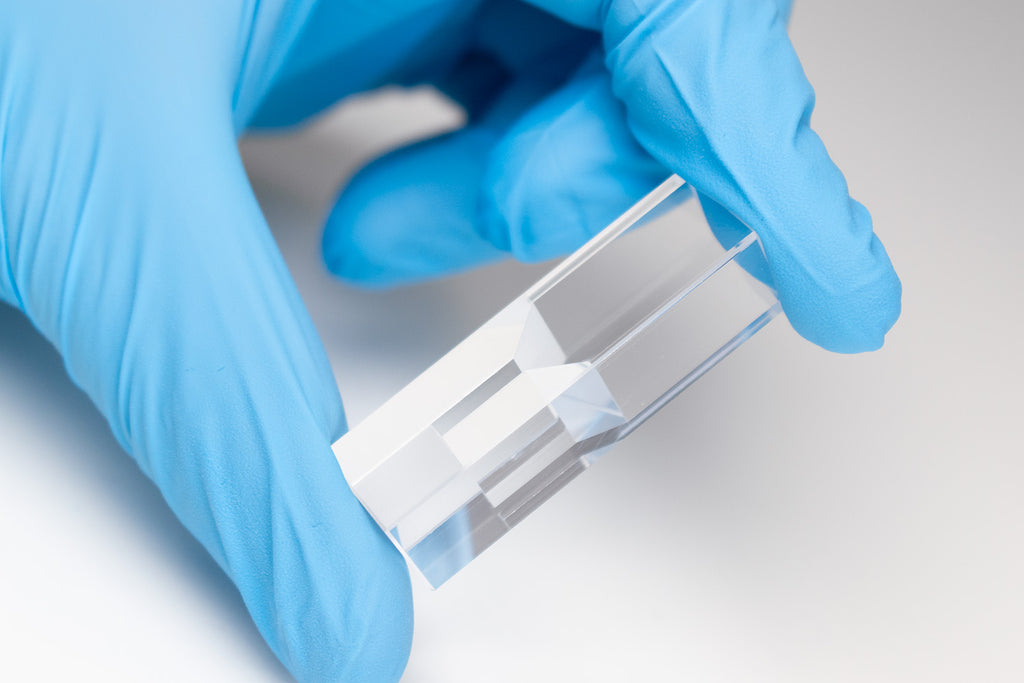

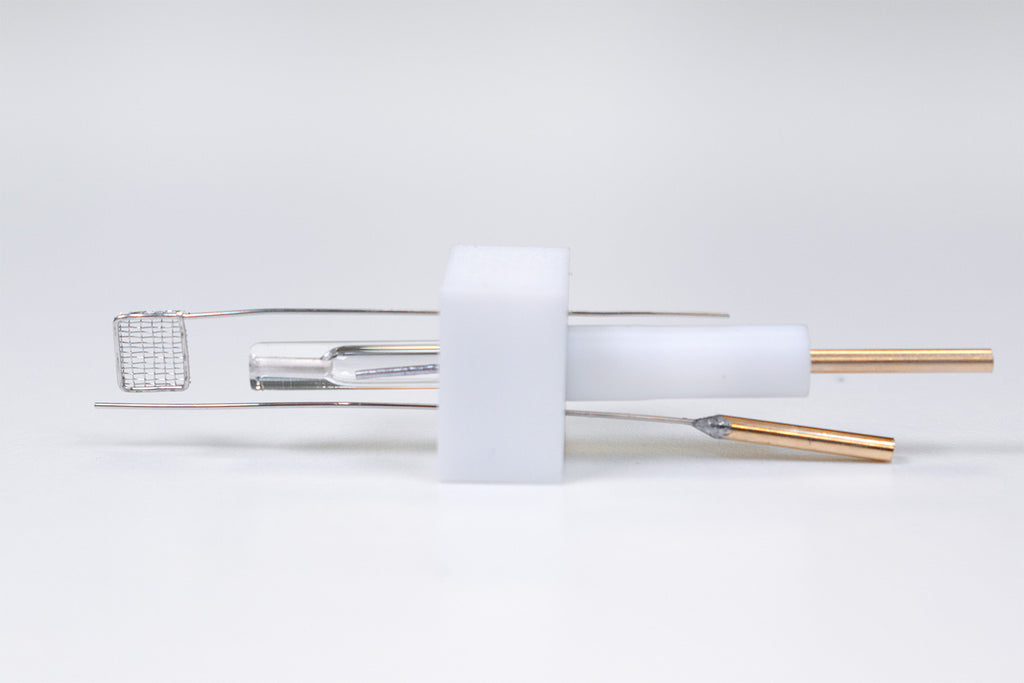

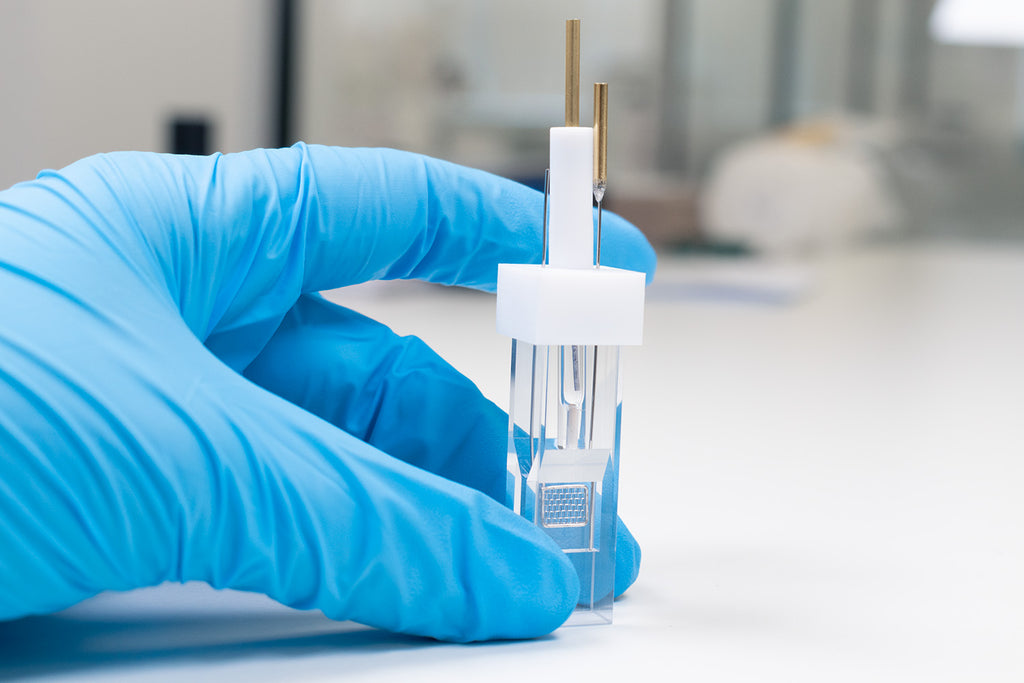

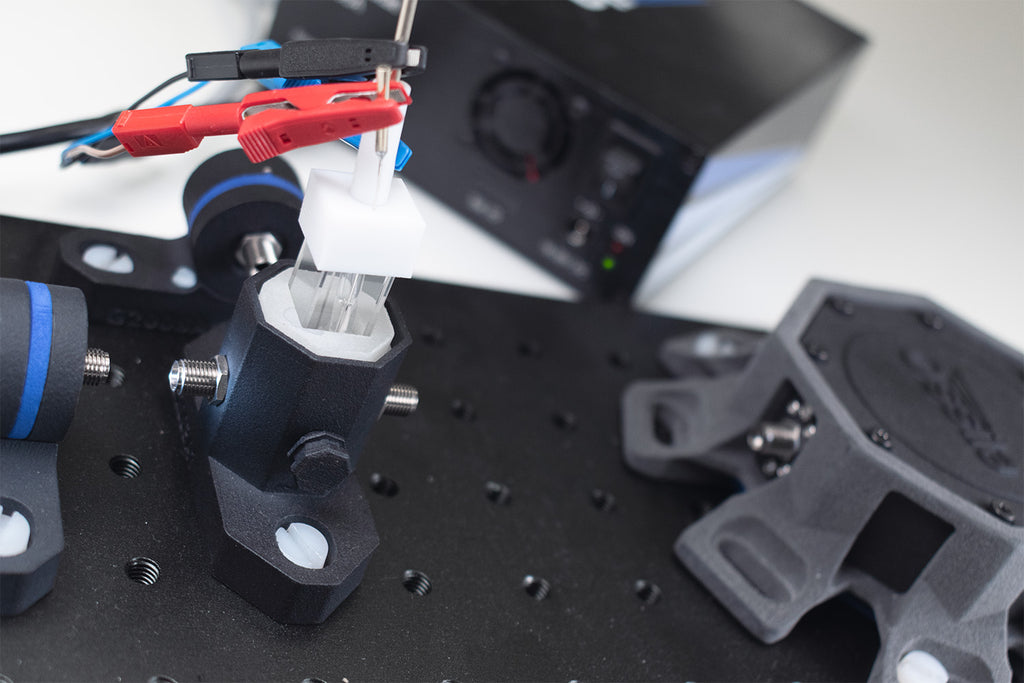

Product Gallery
In the Box
Included with Platinum mesh (M2051M1):
- 200 μL Cuvette & PTFE Cap
- Platinum Mesh Working Electrode
- Platinum Wire Counter Electrode
- Silver Chloride (AgCl) Reference Electrode
Included with Platinum Plate Holder (M2051P1):
- 200 μL Cuvette \& PTFE Cap
- Platinum Plate Electrode Holder Working Electrode
- Platinum Wire Counter Electrode
- Silver Chloride (AgCl) Reference Electrode
- Screwdriver
- Fluoroelastomer O-Rings
Literature and Reviews
- K. Lee et al. (2017), Electrochemical and spectroscopic methods for evaluating molecular electrocatalysts, Nat. Rev. Chem. 1, 0039; DOI: 10.1038/s41570-017-0039.
- J. Cerda et al. (2013), Spectroelectrochemical measurements of redox proteins by using a simple UV/visible cell, Electrochem. Commun., 33, 76-79; DOI: 10.1016/j.elecom.2013.05.004.
- H. Eren et al. (2022), Permanent Electrochemical Doping of Quantum Dot Films through Photopolymerization of Electrolyte Ions, Chem. Mater. 34 (9), 4019–4028; DOI: 10.1021/acs.chemmater.2c00199.
- B. Kim et al. (2025), In-situ spectroelectrochemical analysis for understanding photophysical properties of halide perovskite nanocrystals, Curr. Opin. Electrochem., 51, 101676; DOI: 10.1016/j.coelec.2025.101676.
