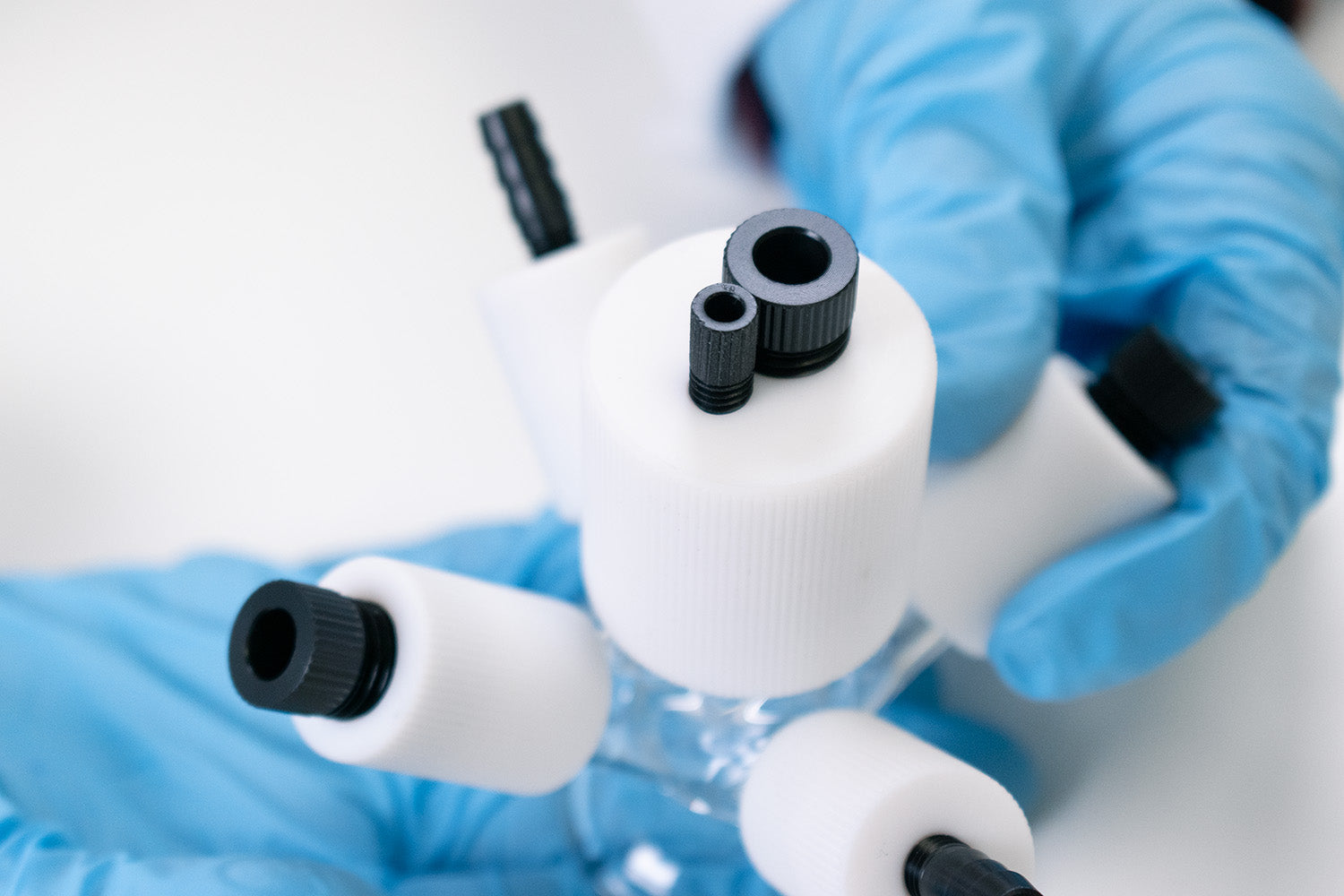

Sealed Micro-Electrochemical Cell with Sampling Window
Small-Volume Cell with Sampling Window
Minimize consumption of rare or expensive electrolytes
Product Details | Gallery | Related Products | Technical Support
A compact electrolytic cell featuring a high borosilicate glass cell body with a small volume of 10 ml and five ports to accommodate three electrodes, gas inlet and outlet. The sampling window enables monitoring, via solution extraction or probe insertion, without compromising the experiment.
Low Volume
Minimize electrolyte volume needed
Sampling Window
For monitoring experiments without compromise
Range of Accessories
Compatible with our wide range of electrodes
Expert Support
From in-house scientists & our
customer care team
Use expensive or rare electrolytes efficiently with this small-volume electrochemical cell, while also maintaining a small distance between the electrodes, reducing unwanted resistances. The enhanced sealing, using tightly-fixed lids, joined by threads and further secured with fluorine rubber O-rings, allows the small volume electrochemical cell to provide a secure oxygen free or gas atmosphere while facilitating easy access to the glass tank body for quick and easy experiment setup and clean up.
Specifications
| Body Material | High Borosilicate Glass |
|---|---|
| Lid Material | PTFE |
| Cell Volume | 10 ml |
| Compatible Electrodes | Regular 6 mm electrodes (not included) |
| Gas Inlet/Sampling Window Diameter | 3 mm |
| Type | Sealed, with sampling window and gas inlet/outlet |
Micro-Electrochemical Cell with Sampling Window
In the Box
The Sealed Micro-Electrochemical Cell components:
- Borosilicate glass body
- PTFE screw cap
- FKM fluororubber internal seal
- Polyoxymethylene (POM) electrode secure screw x1
- Polyoxymethylene (POM) sample window secure screw x1
- Polyoxymethylene (POM) electrode secure screw with PTFE cap x2
- Polyoxymethylene (POM) gas inlet/outlet secure screw with PTFE cap x2
Additional accessories included:
- PTFE 1m tubing
- FKM fluororubber o-rings/li>
- PTFE Rod Stoppers and Caps
- PTFE Sealing Tape
- Syringe Needle
- Electrode Fixing Screws and O-rings
Sealed Micro-Electrochemical Cell Setup
Sealed Micro-Electrochemical Cell Setup: with or without a sampling window. body also available.10 ml cells with Three Electrode Ports and Two Gas Inlet/Outlets
