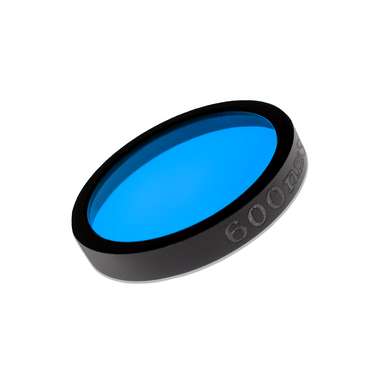

Shortpass Filter
Equipment Accessories, Spectroscopy
Range of Dielectric Shortpass Optical Filters
High performance filters for spectroscopy measurements
Overview | Specifications | Gallery | Related Products | Resources and Support
Shortpass optical filters from Ossila for isolating regions of the electromagnetic spectrum for fluorescence measurements, absorption measurements, and more. Our filters have >90% transmission in the region of transmittance and are OD4 in the suppressed region (~0.01% transmission).

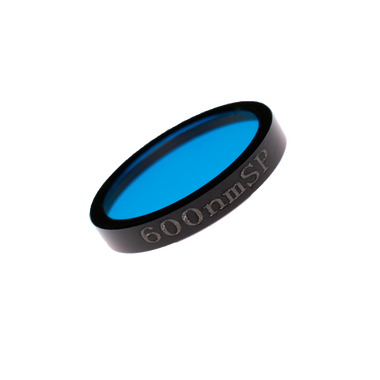

Each individual filter is housed in an outer ring to aid in handling and enhance the OD through prevention of scattering. The ring is labeled as shortpass along with the cut-off wavelength.
For more comprehensive applications, you can buy our shortpass optical filter set.
Specifications
| Dimension | Ø25.0 mm |
|---|---|
| Thickness | 4.0 mm |
| Optical Density | 4 |
Shortpass Transmission Data
600 nm Shortpass Optical Filter transmission
650 nm Shortpass Optical Filter transmission
700 nm Shortpass Optical Filter transmission
750 nm Shortpass Optical Filter transmission
800 nm Shortpass Optical Filter transmission
850 nm Shortpass Optical Filter transmission
900 nm Shortpass Optical Filter transmission
| Optical Filters Included | Cut-off Wavelength |
|---|---|
| G2102A1 | 600 nm |
| G2102B1 | 650 nm |
| G2102C1 | 700 nm |
| G2102D1 | 750 nm |
| G2102E1 | 800 nm |
| G2102F1 | 850 nm |
| G2102G1 | 900 nm |

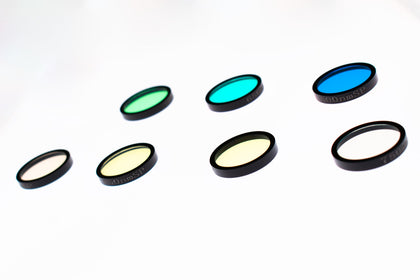

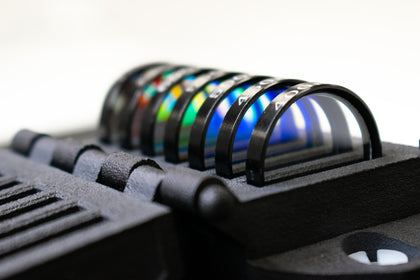

Shortpass Optical Filter Gallery
