Automated I-V Test System Solar Simulator Bracket
Equipment Accessories, Lab Equipment, Photovoltaic Testing, Solar Simulator
Fixed working distance solar simulator bracket for automated I-V test systems
Add an Ossila solar simulator to your compatible I-V test system
Overview | Specifications | In the Box | Related Products | Resources and Support

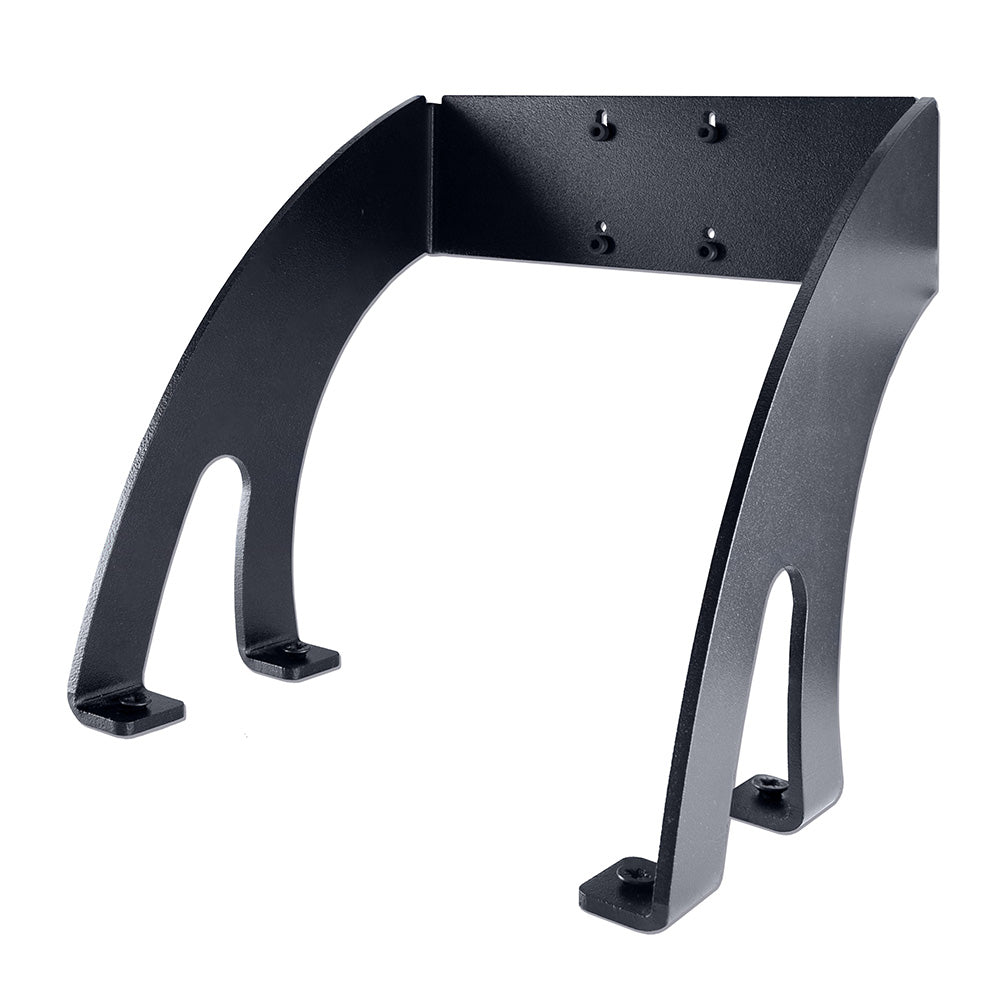

Attach an Ossila LED Solar Simulator lamp to an Automated Solar Cell I-V Test System with this handy bracket. Included as part of the Automated Solar Cell Testing Kit, this bracket allows you to connect systems bought separately. Compatible with new automated test sytems for 20 x 15 mm substrates or 25 x 25 mm substrates and all Ossila solar simulator lamps, with or without the indoor light filter. Not compatible with generic riser boards.
To fit, simply screw the base to the I-V test system using the supplied screws, and attach your solar simulator lamp to the plate above the automated test board. When attaching the solar simulator lamp, choose the upper two holes if you are using the test board for 20 x 15 mm substrates (S2006) or the lower two holes if you are working with 25 x 25 mm substrates (S211). Regardless of which test system you are using, the purpose-made bracket holds the solar simulator at a fixed 8.5 cm working distance from your substrate, reducing room for error and improving the repeatability of your results.
Fixed Working Distance
For accurate and repeatable measurements at an 8.5 cm working distance
Easy to fit
Screws onto automated test systems and LED solar simulator lamps
Retrofittable
Upgrade your existing test system (where compatible) by adding a solar simulator
Optimised Workflow
Create an integrated system for taking I-V measurements with automatic pixel switching
Compatibility
Compatible with automated Solar Cell I-V Test Systems for 20 x 15 mm substrates or 25 x 25 mm substrates (T2003B3 and T2003E3) purchased from November 4 2022. Compatible systems include the code J1000A3-xxxx on the underside of the unit. Please check before purchasing.
Specifications
| Dimensions | 135 x 152 x 135 mm (L x W x H) |
|---|---|
| Fixed Lamp Height | 85 mm |
In the Box
- Fixed solar simulator bracket
- Attachment screws and allen keys
