Blue Formulated PEDOT:PSS with Good Electrochromic Performance
Ideal for transparent electrodes in electrochromic devices, biosensors, and more, formulated for screen printing
Specifications | Choose a Material | MSDS | Related Products
S V3 PEDOT:PSS is an electrochromic material with good electrochromic performance. Formulated for screen printing, this blue PEDOT:PSS dispersion/paste in glycols can be processed to form a flexible or rigid substrate. Offering high conductivity, flexibility, and optical transparency, S V3 PEDOT:PSS is used for transparent electrodes in printed electronics such as electrochromic devices. The applications vary from wearable printed biosensors and electrochromic indicators/displays to smart wearable textiles and electroluminescence (EL) lightings.
During the initial light-emitting electrochemical cell (LEC) operation, majority of the anions in the active layer materials can be transferred into a spray-coated S V3 PEDOT:PSS positive electrode. Depending on the thickness of the S V3 PEDOT:PSS electrode, the initial ion concentration in the active material for peak performance can be increased by a factor of 4 - 10.
Highly Transparent
85% transmission
to active layer
Versatile Applications
Electrochromic devices, biosensors, and more
Quality Formulation
Create high performance electronic devices
High Conductivity
Sheet resistance of
350 – 500 Ohm/sq
Technical Data
| Product Name | Clevios™ S V3 |
|---|---|
| Solvent | Glycols (Paste) |
| Composition | PEDOT/PSS (1:2.5 w/w) |
| CAS Number | 155090-83-8 |
| Solid Content | N/A |
| Sheet Resistance | 100 – 1000 Ω/sq |
| Conductivity | High conductivity |
| Viscosity | 1.5 – 6.0 Pa.s |

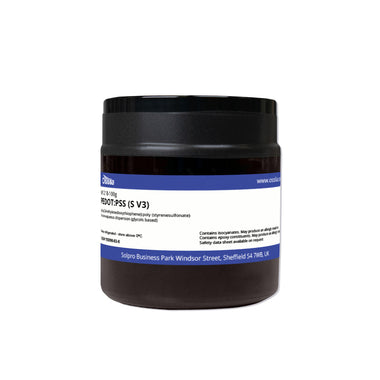

| Packaging | 100 g of solution (paste) sealed in a light resistant bottle with temperature indicator |
| Storage | 3 – 5 °C |
Choosing a PEDOT:PSS Material
S V3 STAB, S V4, and S V4 STAB are also available in our range of PEDOT:PSS. As formulated pastes for screen-printing transparent conductive electrodes, these materials offer the following advantages:
- Thermoforming into three dimensional shapes, in mold-electronics
- Highly conductive
- Transparent
- Flexible
- Screens can be easily cleaned by water
| Product | Description | Sheet Resistance* (Ohm/sq) | Transmission* (%) |
|---|---|---|---|
| S V3 | Standard dispersion for screen printing | 350 – 500 | 85 |
| S V3 STAB | S V3 with improved environmental stability | 450 – 600 | 86 |
| S V4 | Highly conductive formulation | 250 – 400 | 85 |
| S V4 STAB | S V4 with improved environmental stability | 300 – 500 | 86 |
*Typical sheet resistance and transmission values measured on prints made with standard 140/31 screen on Melinex 506, transmission value including substrate.
MSDS Document
S V3 PEDOT:PSS MSDS SheetTransparent Electrode Applications
- Printed electronics
- Electroluminescence lamps
- Electrochromic device
- Piezoelectric devices
- Smart wearable textiles
- Biosensors
- Thermoelectrics
Literature and Reviews
- L. Gomes et al. (2016), Increasing the electrical conductivity of electrochromic PEDOT:PSS films – A comparative study, Sol. Energy Mater. Sol. Cells, 144, 631-640; DOI: 10.1016/j.solmat.2015.10.001.
- L. Stehien et al. (2016); Investigation of the Thermoelectric Power Factor of KOH-Treated PEDOT:PSS Dispersions for Printing Applications, Energy Harvest. Syst., 3 (1), 101-111; DOI: 10.1515/ehs-2014-0060.
- A. Fall et al. (2022), Spinning of Stiff and Conductive Filaments from Cellulose Nanofibrils and PEDOT:PSS Nanocomplexes, ACS Appl. Polym. Mater., 4 (6), 4119–4130; DOI: 10.1021/acsapm.2c00073.
- D. Rana et al. (2024), Tissue-like interfacing of planar electrochemical organic neuromorphic devices, Neuromorph. Comput. Eng., 4, 034010; DOI 10.1088/2634-4386/ad63c6.
- E. Auroux et al. (2021); Evidence and Effects of Ion Transfer at Active-Material/Electrode Interfaces in Solution-Fabricated Light-Emitting Electrochemical Cells, Adv. Electron. Mater., 7 (8), 2100253; DOI: 10.1002/aelm.202100253.
