Product Code M2310A1-100mg
Price $325 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Ir(dpm)(piq)2, deep red emitting phosphorescent dopant

High-purity (>99.0%) and available online for priority dispatch


Ir(dpm)(piq)2, namely bis(phenylisoquinoline)(2,2,6,6-tetramethylheptane-3,5-dionate) iridium(III), is an iso-structure to Ir(dpm)PQ2. Ir(dpm)(piq)has one  2,2,6,6-tetramethylheptane-3,5-dionate with two bulky tert-butyl groups and two phenylisoquinoline ligands coordinated to the iridium core.

Ir(dpm)(piq)2 is a deep red emitting phosphorescent dopant and relatively about 30 nm red-shifted while comparing that of Ir(dpm)PQ2.

General Information

CAS number 1202867-58-0
Chemical formula C41H39IrN2O2
Molecular weight 783.98 g/mol
Absorption λmax 354, 479 nm (in DCM)
Photoluminescence λem 628 nm (in DCM)
HOMO/LUMO ET = 2.07 eV [1]
Chemical name Bis(phenylisoquinoline)(2,2,6,6-tetramethylheptane-3,5-dionate) iridium(III)
Synonyms
  • Ir(piq)2(tmd)
  • Piq2Ir(dpm)
  • Bis[2-(1-isoquinolinyl)phenyl](2,2,6,6-tetramethyl-3,5-heptanedionato)iridium
Classification / Family Iridium Complex, Organic electronics, TADF-OLEDs, Panchromatic photoinitiating systems, Red phosphorescent dopant materials, Sublimed materials.

Product Details

Purity Sublimed >99.0% (HPLC)
Melting point TGA > 310 °C (0.5% weight loss)
Appearance Red powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed materials.

Chemical Structure

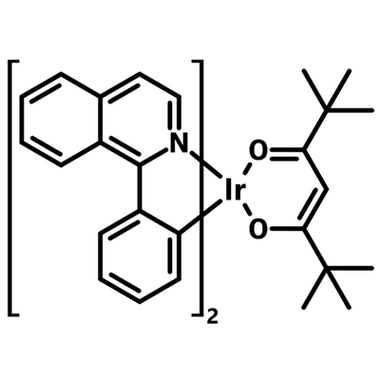

Chemical structure of Ir(dpm)(piq)2, CAS No. 1202867-58-0
Chemical structure of Bis(phenylisoquinoline)(2,2,6,6-tetramethylheptane-3,5-dionate) iridium(III) [Ir(dpm)(piq)2], CAS 1202867-58-0.

Device Structure(s)

Device structure ITO/MoO3/TAPC/BSB:Ir(dpm)(piq)3 (4 wt%)/Eu(TTA)3Phen (0.3 wt%): Ir(dpm)(piq)3:BCBP/TPBi/LiF/Al
Colour red light emitting device Red
Max. Luminance 63,110 cd/m2
Max. current Efficiency 61.71 cd/A
Max. Power Efficiency 64.59 Im/W

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2310A1 100 mg £260
Sublimed (>99.0% purity) M2310A1 250 mg £520
Sublimed (>99.0% purity) M2310A1 500 mg £950
Sublimed (>99.0% purity) M2310A1 1 g £1600

MSDS Documentation

Ir(dpm)(piq)2 MSDS sheet

Literature and Reviews

  1. Photoredox process induced polymerization reactions: Iridium complexes for panchromatic photoinitiating systems, S. Telitel et al., C. R. Chim 19, 71-78 (2016); DOI: 10.1016/j.crci.2015.06.016.
  2. Solution-Processed Organic Light-Emitting Diodes Using a Photo-Crosslinkable Hole-Transporting Layer, J. Park et al., J. Nanosci. Nanotechnol., 20 (8), 4661-4665(2020); DOI: 10.1166/jnn.2020.17832..

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
