Product Code M2231A1-100mg
Price $325 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Ir(dpm)PQ2, orange to red phosphorescent emitter

High-purity (>99.0%) and available online for priority dispatch


Bis(2-phenylquinoline)(2,2,6,6-tetramethylheptane-3,5-dionate)iridium(III) - Ir(dpm)PQ2, also known as Ir(PQ)2(tmd) is an orange to red phosphorescent emitter. The ligand 2,2,6,6-tetramethylheptane-3,5-dionate corrdinated to the iridium centre is sterically hindered with two bulky tert-butyl groups at both ends.

Ir(dpm)PQ2 is often either used in pure red as a single emitting layer material or in white emitting highly efficient OLED devices for its low lying triplet energy state and greater stability, preventing triplet-triplet annihilation thus leading to higher device efficiencies.

General Information

CAS number 713079-03-9
Full name Bis(2-phenylquinoline)(2,2,6,6-tetramethylheptane-3,5-dionate)iridium(III)
Chemical formula C41H39N2O2Ir
Molecular weight 783.98 g/mol
Absorption* λmax 333 nm in DCM
Fluorescence λem 595 nm in DCM
HOMO/LUMO HOMO 5.10 eV, LUMO 3.10 eV [1]
Synonyms PQ2Ir(dpm), PQ2Ir, Ir(PQ)2(tmd), Bis[2-(2-quinolinyl)phenyl](2,2,6,6-tetramethyl-3,5-heptanedionato)iridium
Classification / Family Iridium Complex, Organic electronics, TADF-OLEDs, Orange to red phosphorescent dopant materials, Sublimed materials.

* Measurable with an optical spectrometer, see our spectrometer application notes.

Product Details

Purity Sublimed* >99.0% (HPLC)
Melting point TGA >290 °C (0.5% weight loss)
Appearance Red powder/crystals

* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials.

Chemical Structure

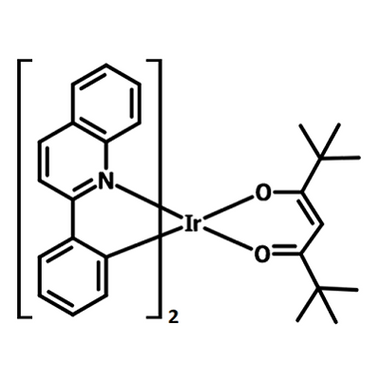

Chemical structure of Ir(dpm)PQ2 (CAS 713079-03-9)
Chemical structure of Ir(dpm)PQ2, CAS No. 713079-03-9

Device Structure(s)

Device structure ITO/HATCN (5 nm)/NPB (40 nm)/TCTA (5 nm)/BBPI (6 nm)/CBP (3 nm)/CBP:8 wt% Ir(PPy)3 (10 nm)/CBP (3 nm)/BBPI:1.0 wt% PQ2Ir (8 nm)/TPBi (40 nm)/LiF (1 nm)/Al [1]
Colour White white light emitting device
Max Current Efficiency 71.4 cd/A
Max EQE 33.5%
Max. Power Efficiency 61.5 lm W-1
Device structure ITO (130 nm)/TAPC (40 nm)/TCTA (5 nm)/PQ2Ir(dpm) 2 wt % doped CBP (1 nm)/Ir(ppy)3 6 wt % doped CBP (1 nm)/Ir(dbfmi)* 10 wt % doped PO9 (10 nm)/B3PyPB (50 nm)/LiF (0.5 nm)/Al (100 nm) [2]
Colour White white light emitting device
Max. Current Efficiency 53.7 cd/A
Max. EQE 23.3%
Max. Power Efficiency 55.2 lm W-1
Device structure ITO/HATCN (10 nm)/NPB (30 nm)/HTM (10 nm)/6 wt% PQ2Ir:BCzPh:SF2-TRZ (25 nm)/T2T (10 nm)/NBPhen (40 nm)/LiF (1 nm)/Al (100 nm), [3]
Colour Red red light emitting device
Max. Current Efficiency 33.6 cd/A
Max. EQE 19.8%
*For chemical structure information, please refer to the cited references.

MSDS Documentation

Ir(dpm)PQ2 MSDSIr(dpm)PQ2 MSDS sheet

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2231A1 100 mg £260
Sublimed (>99.0% purity) M2231A1 250 mg £520
Sublimed (>99.0% purity) M2231A1 500 mg £950
Sublimed (>99.0% purity) M2231A1 1 g £1600

Literature and Reviews

  1. Highly efficient single- and multi-emission-layer fluorescent/phosphorescent hybrid white organic light-emitting diodes with ~20% external quantum efficiency, X. Li et al., J. Mater. Chem. C, 3, 9233 (2015); DOI: 10.1039/c5tc02050f.
  2. High-Efficiency Blue and White Organic Light-Emitting Devices Incorporating a Blue Iridium Carbene Complex, H. Sasabe et al., Adv. Mater., 22, 5003–5007 (2010); DOI: 10.1002/adma.201002254.
  3. Predicting Operational Stability for Organic Light-Emitting Diodes with Exciplex Cohosts, Z. Wang et al., Adv. Sci., 6, 1802246 (2019); DOI: 10.1002/advs.201802246.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
