Anolyte Reservoir for MEA Electrolyzers and GDE Flow Cells
A 3-port 100 ml Electrolyte Reservoir/Tank supporting storage, circulation, and ventilation
Specifications | In the Box | Gallery | Pricing | Related Products | Technical Support
The Anolyte Tank is a 100 mL reservoir for anolyte circulation in GDE flow cell and MEA electrolyser setups. Its simpler three-port design reflects the anode side's typically lower monitoring demands (in typical applications, usually just O₂ evolution and electrolyte turnover, without the same gas-product sampling needs as the cathode side).
In both water electrolysis and CO2RR, anodic process of oxygen evolution reaction (OER) is a well-characterized reaction. Hence, less attention is given towards studying the reaction pathways at the anode. This means the anolyte tank doesn't need the same complexity as its catholyte counterpart. An inlet/outlet pair handles circulation, while the third port covers both O₂ venting and occasional sampling for pH or conductivity checks (useful for tracking electrolyte depletion in acidic PEM systems, or carbonate crossover effects in AEM/BPM configurations where anolyte can pick up species migrating from the cathode side).
For most bench-scale runs, this three-port arrangement keeps the anolyte side simple to plumb and maintain while providing opportunity to analyze the electrolyte degradation before it affects cell performance. For any complicated study, same 5-port reservoir designed as catholyte reservoir can be used as the anolyte reservoir.

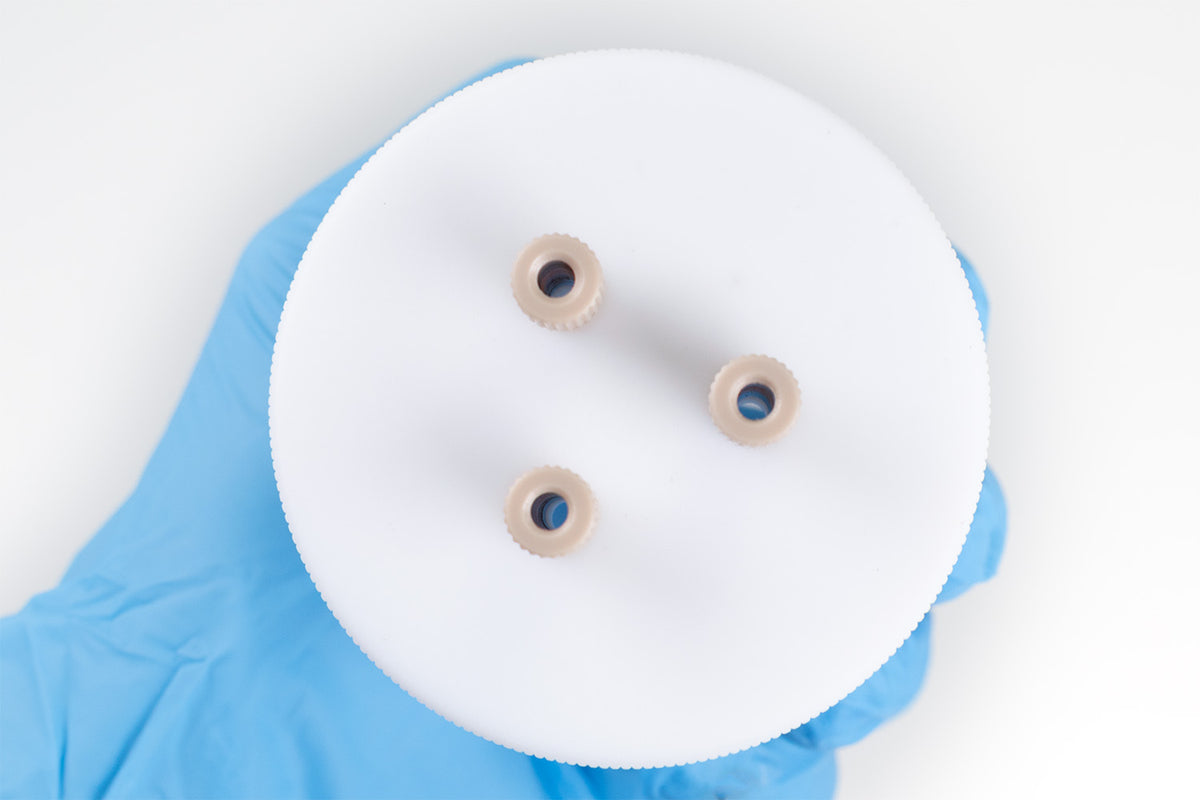

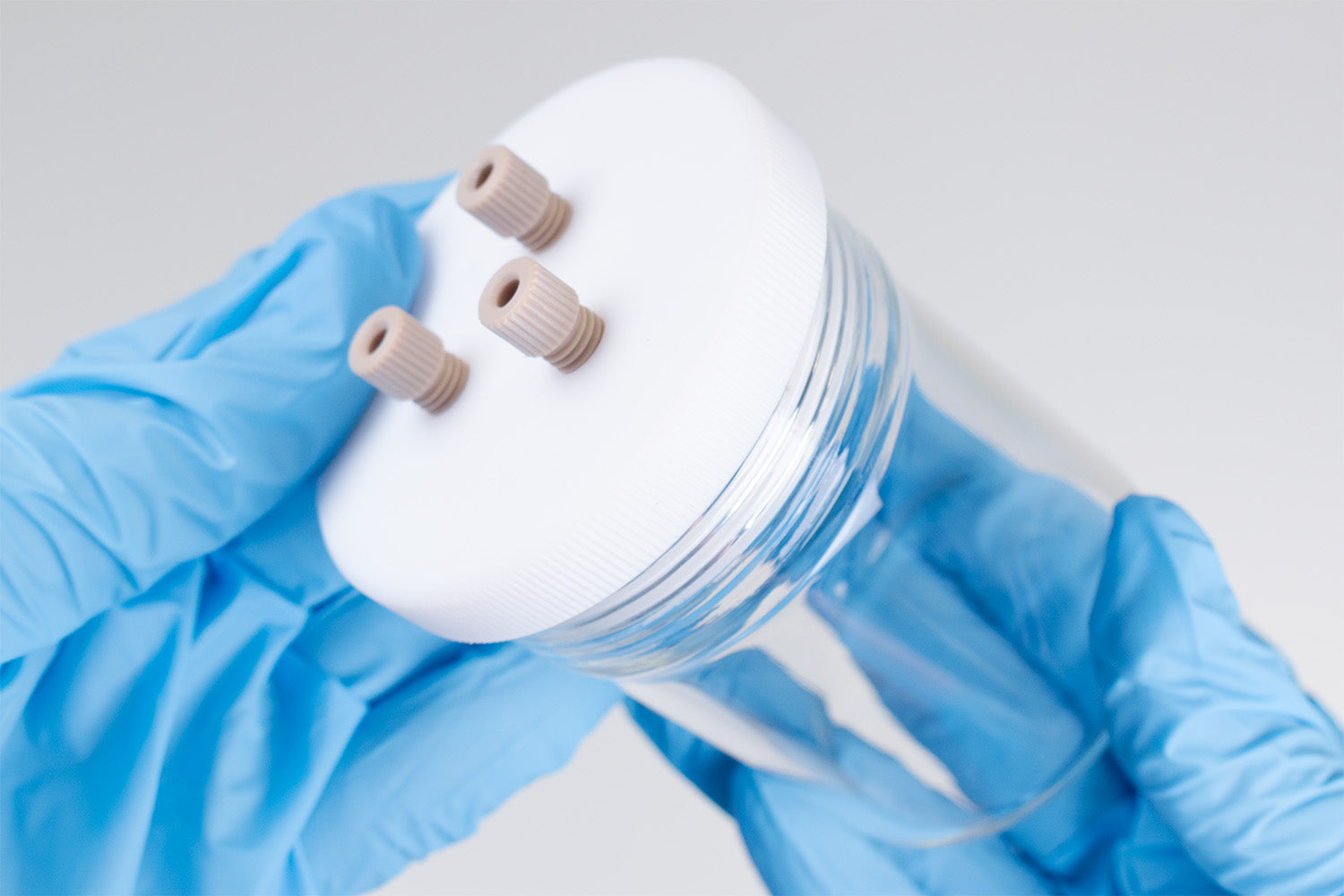

Suggested Port Usage: 1. Anolyte Inlet (return from cell), 2. Anolyte Outlet (to pump/cell), 3. Gas Vent (anode-evolved gas release, e.g. O₂) /Sampling Port
Simpler Reservoir
Supports Circulation, Ventilation/ In-line Analysis
Chemical Resistant
Excellent resistant across the full pH range

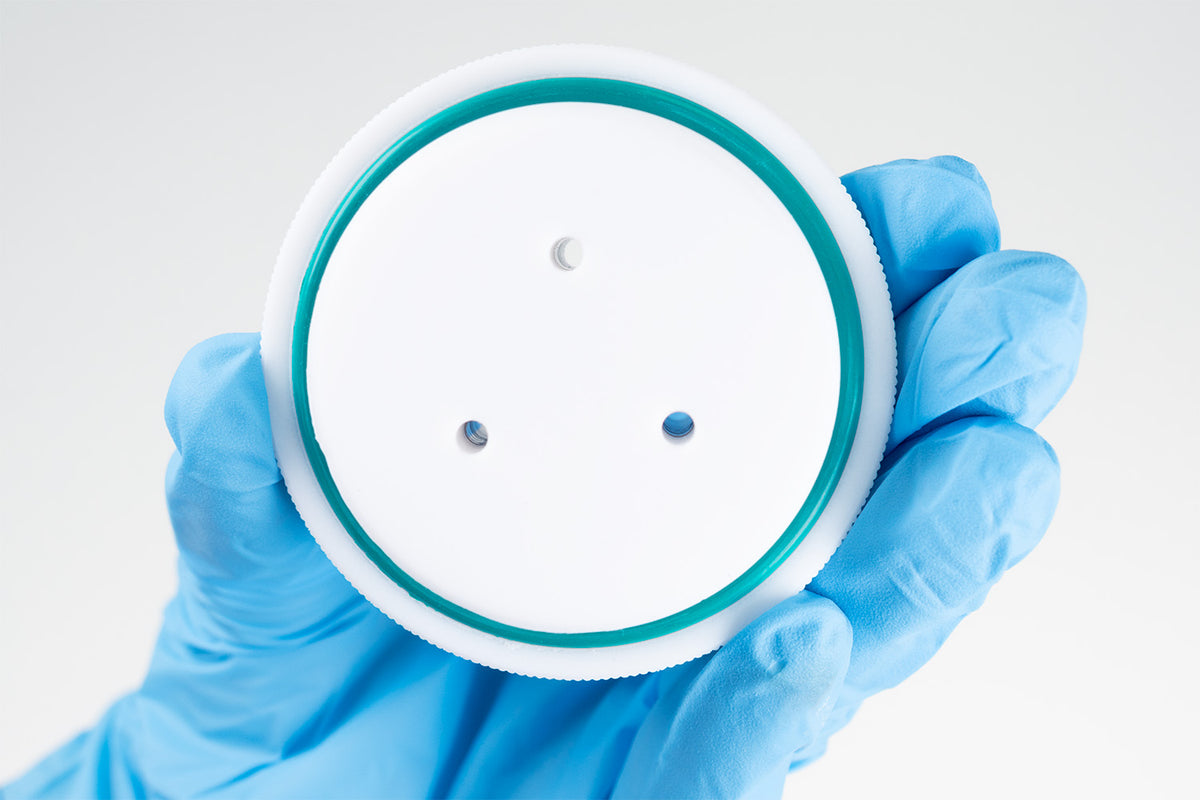

Effective Sealing
Sealed design minimising catholyte evaporation and gas ingress
Compatibility
Compatible with Ossila and other MEA Electrolyzers, GDE Flow Cells, and PSE Electrolyzers
Specifications
| Product Name | Anolyte Reservoir |
|---|---|
| SKU | C2052A1 |
| Volume | 100 ml |
| Body Material | Borosilicate Glass |
| Lid Material | PTFE |
| Port Material | PEEK |
| Number of Ports | 3 |
| Port (inner) Diameter | 3 mm |
User Manual
Product Name User ManualIn the Box
- Glass Body
- PTFE Screw Caps with PEEK electrode secure screw
- Circular Sampling window septa
- PTFE rod 3mm air inlet/ outlet stopper
- O-rings
- Spare PEEK electrode secure screw
- PTFE tubing
- Sampling Needle

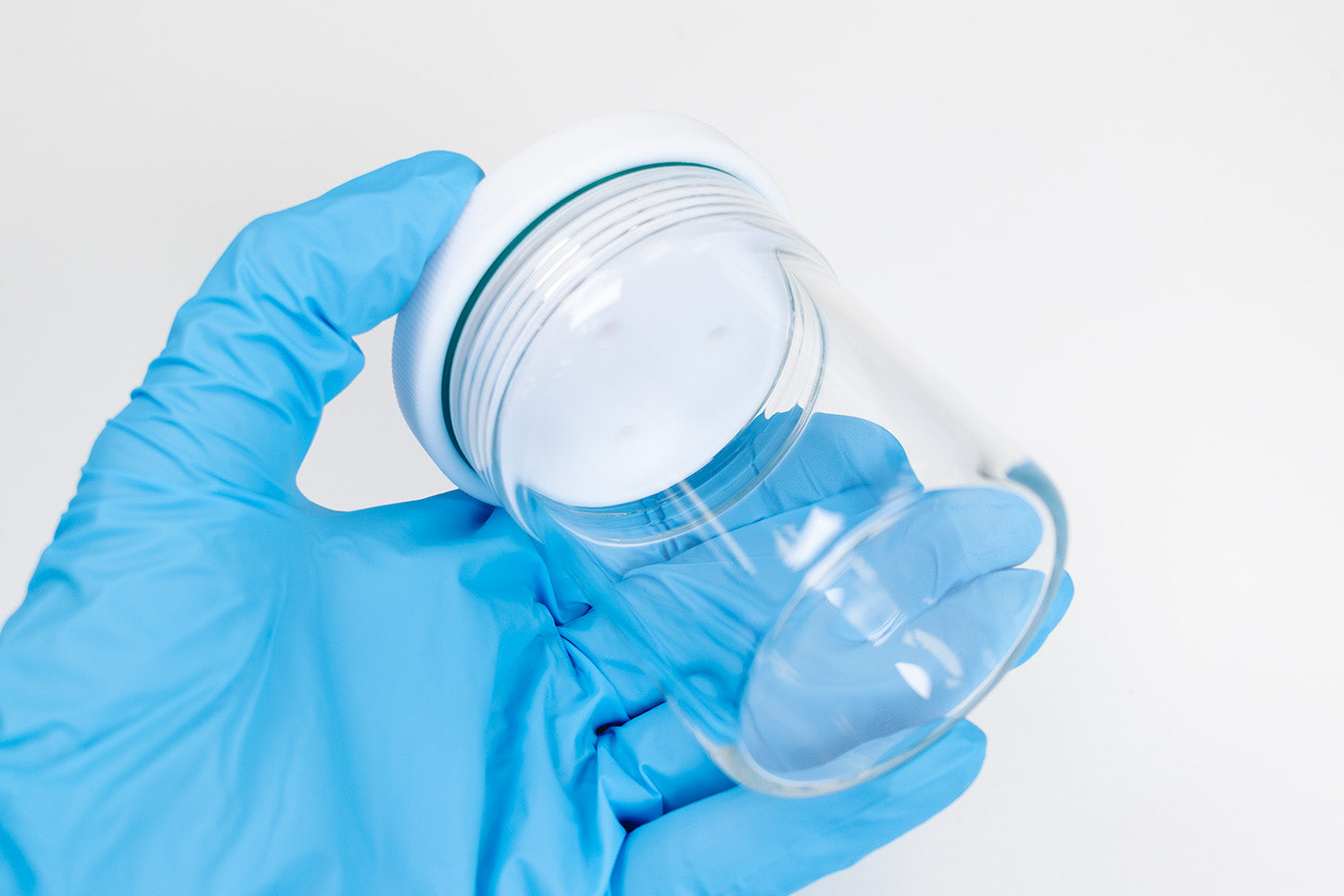

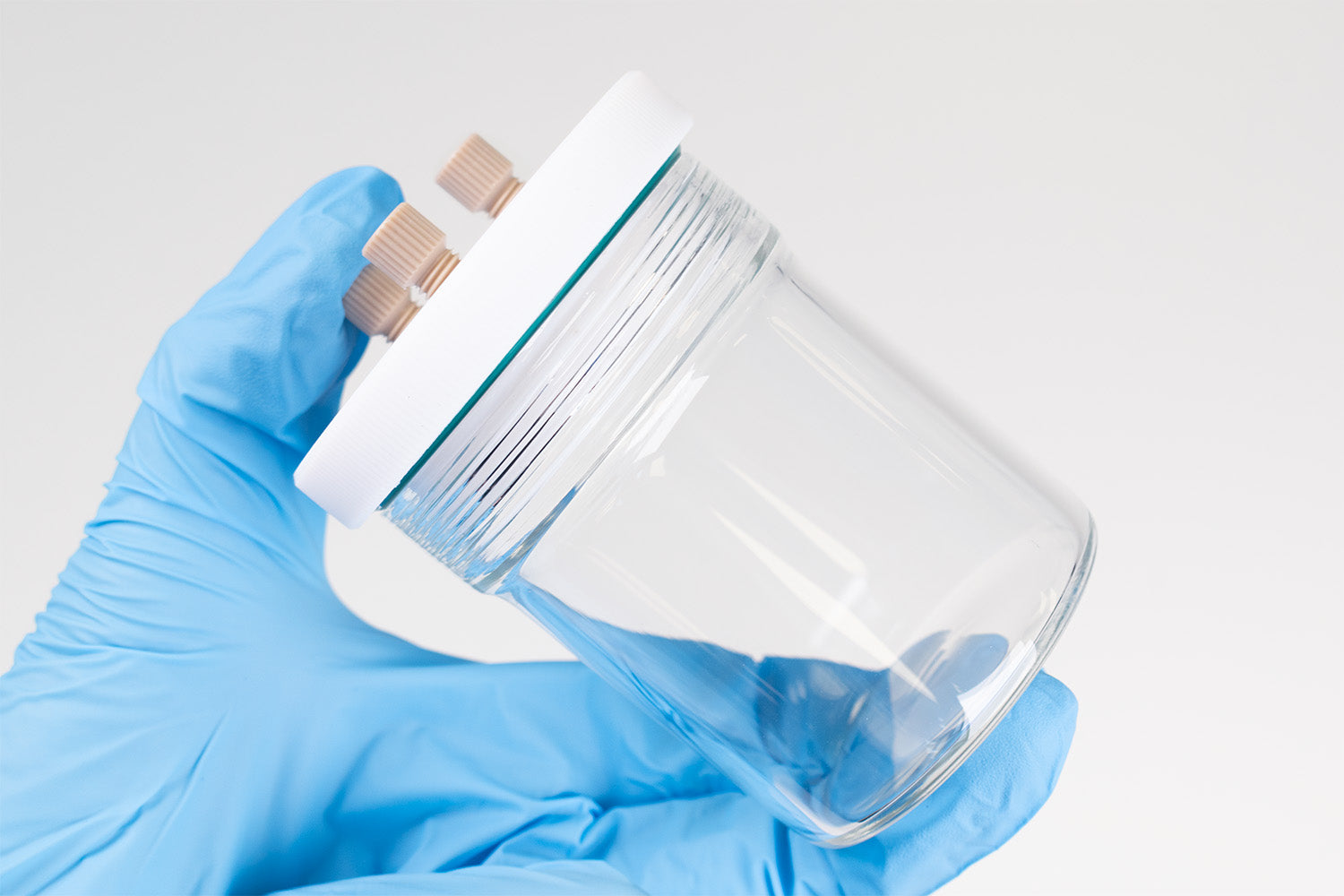

Anolyte Reservoir Gallery
Pricing and Options
| Product Name | Product Code | Price |
|---|---|---|
| Anolyte Reservoir | C2052A1 |
£160 |
