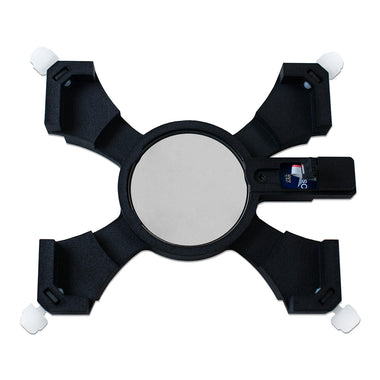

Indoor Light Simulation Filter
All Measurement Equipment, Equipment Accessories, Solar Simulators
Guarantee Reliable Testing of Indoor Photovoltaic Devices
Easily replicate indoor illumination levels
Overview | Specifications | Gallery | Resources
Our indoor light simulation filter is compatible with the Ossila solar simulators, allowing you to match the spectral output for testing and characterizing indoor photovoltaic devices. Achieve class ABA illumination over a 20 mm diameter area at two different illuminance levels. The filter enables the solar simulator to meet the specifications required for the IEC TS 62607-7-2:2023 international standard.
Simply attach the filter to your Ossila Solar Simulator and set the indoor illumination level using the Solar Simulator Console software.
All new solar simulators are sold pre-calibrated for both solar and indoor photovoltaics. Calibration of units purchased before 20/05/2024 is free with the purchase of an indoor light simulation filter. Please contact us to arrange your calibration. We'll ask you to safely package your solar simulator, arrange the shipping, and send it to our R&D hub in Sheffield, UK. Once calibrated, we'll cover the cost to ship it back to you.
Specifications
| Illuminance Levels | 1000 lx, 200 lx |
|---|---|
| Spectral Coincidence | A |
| Spatial Non-Uniformity | B - 20 mm diameter |
| Temporal Stability | SA |
| Dimensions | 14 cm x 12 cm x 2 cm |
| Weight | 70 g |
Please note: the specifications given are guidelines. IEC TS 62607-7-2:2023 requires the device under test to fully classify the illumination source.

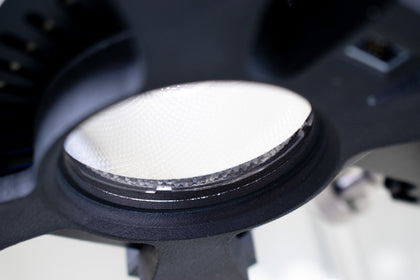

Indoor Light Filter Gallery
