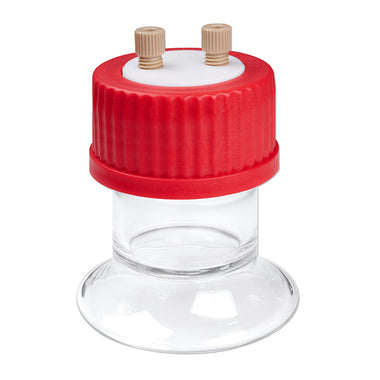

Gas Buffer and Stabilization Cell
Pneumatic Surge Dampening for Precision GDE and Flow Cell Electrochemistry
A 2-port, 25 ml Stabilization Cell for Gas Chromatography (GC) Injection and GDE Protection
Specifications | In the Box | Gallery | Pricing | Related Products | Technical Support
A 25 ml Gas Buffer Cell that acts as an inline pneumatic shock absorber designed specifically for laboratory-scale electrochemical systems, such as CO₂ reduction (CO₂RR), CO reduction, and fuel cell setups.
When testing delicate Gas Diffusion Electrodes (GDEs) at 1 cm² to 4 cm² scales, the critical three-phase interface is highly vulnerable to pressure disruptions. This stabilization cell isolates your electrochemical reactor from the downstream pressure spikes and vacuum pulses caused by online analytical sampling equipment. The 25 ml cell can reach rapid equilibrium to track transient changes in Faradaic efficiency with minimal lag time and dead volume while providing sufficient volume to absorb pressure fluctuations.
For optimal performance, mount the 25 ml Gas Buffer Cell inline directly between the flow cell gas exhaust and your online analytical instrument (GC/MS).
We reccomend installing a low-volume condensation knockout trap immediately before the buffer cell inlet to capture electrolyte vapours and moisture carried over from the humidified GDE exhaust.
Optimised Volume
Absorb pressure fluctuations with minimal dead volume
Protect Delicate GDE
Prevents sudden backpressure shocks
Stable Gas Chromatography Injections
Dampens rapid pressure pulses
Rapid Equilibration
Support downstream analytics
Specifications
| Volume | 25 ml |
|---|---|
| Body Material | Borosilicate Glass |
| Lid Material | PTFE |
| Port Material | PEEK |
| Number of Ports | 2 |
| Port (inner) Diameter | 3 mm (Convertable to Standard Swagelok Fittings) |
| Recommended Flow rates | 10 mL/min to 50 mL/min |
| Maximum Operating Pressure | Up to 2 bar |
User Manual
Gas Stabilizer Cell User Manual
In the Box

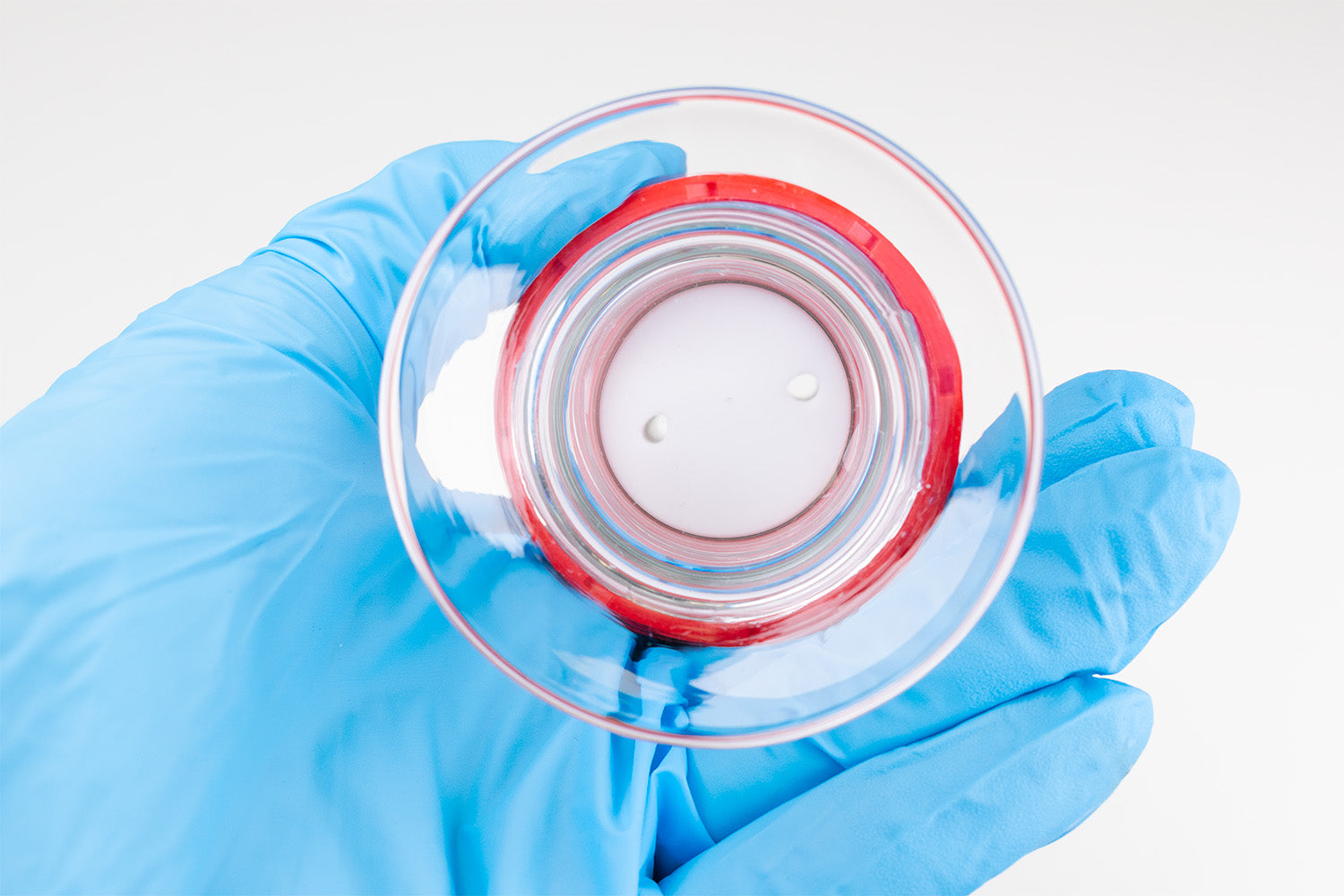

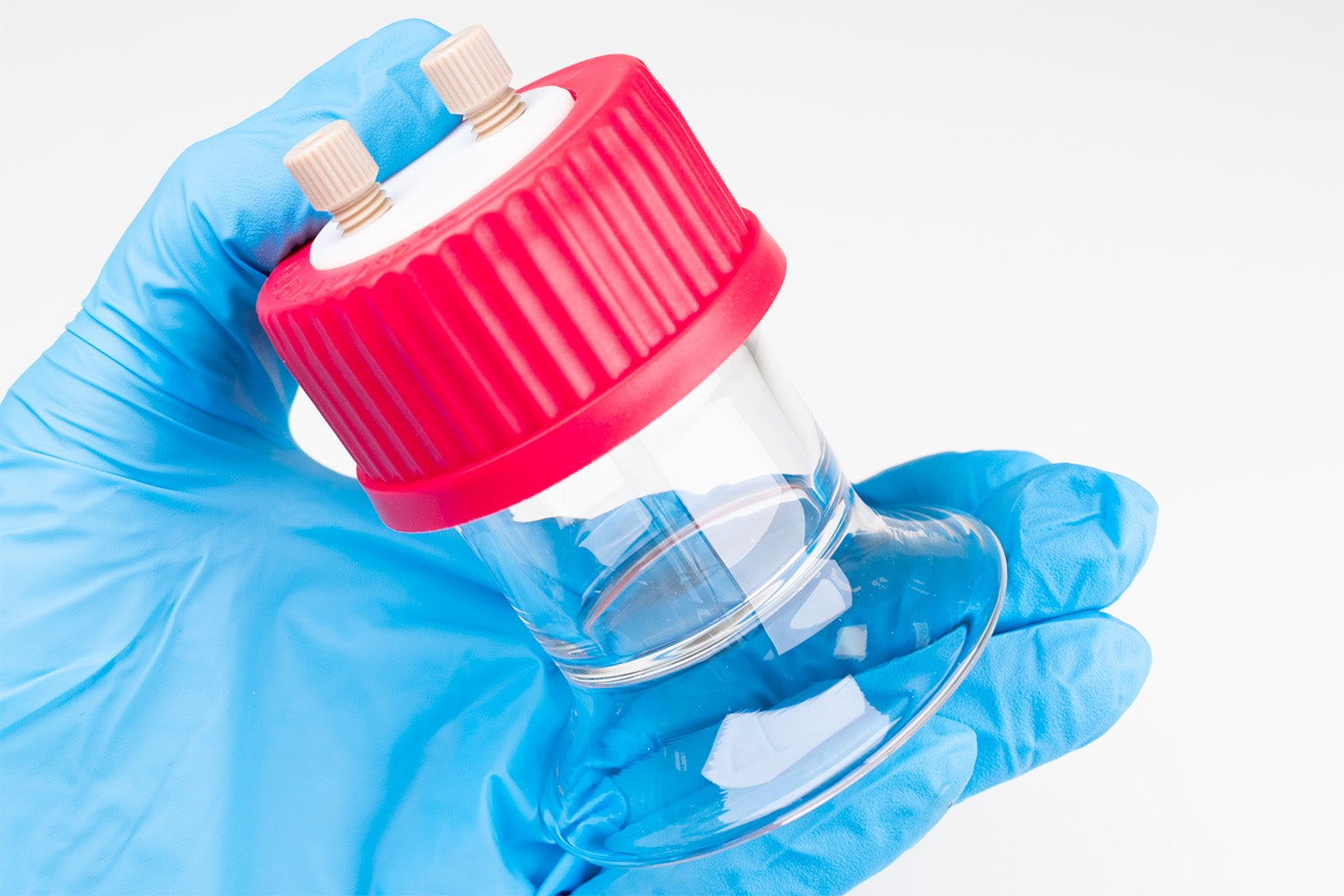

- Glass Body
- Secure screw Cap

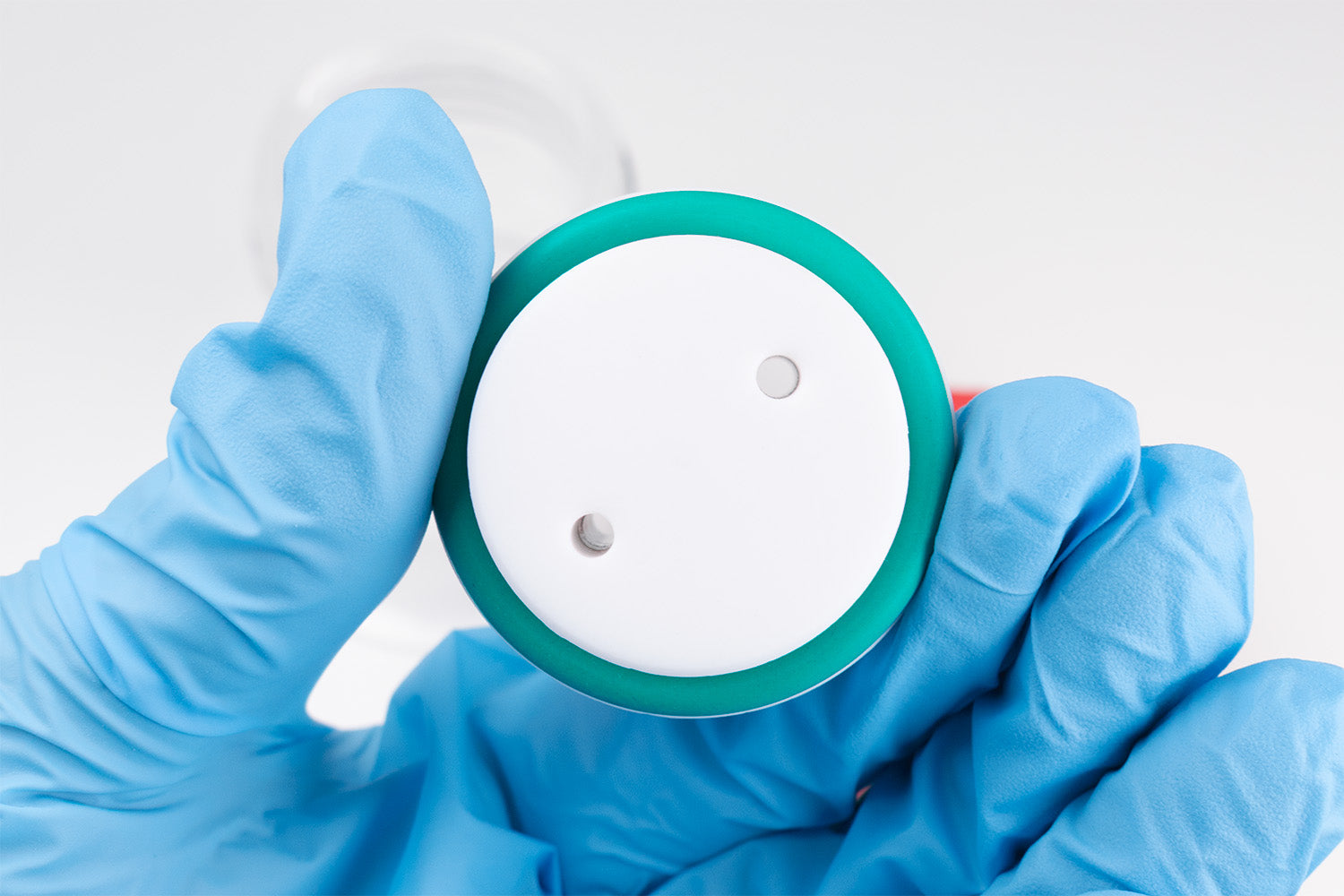

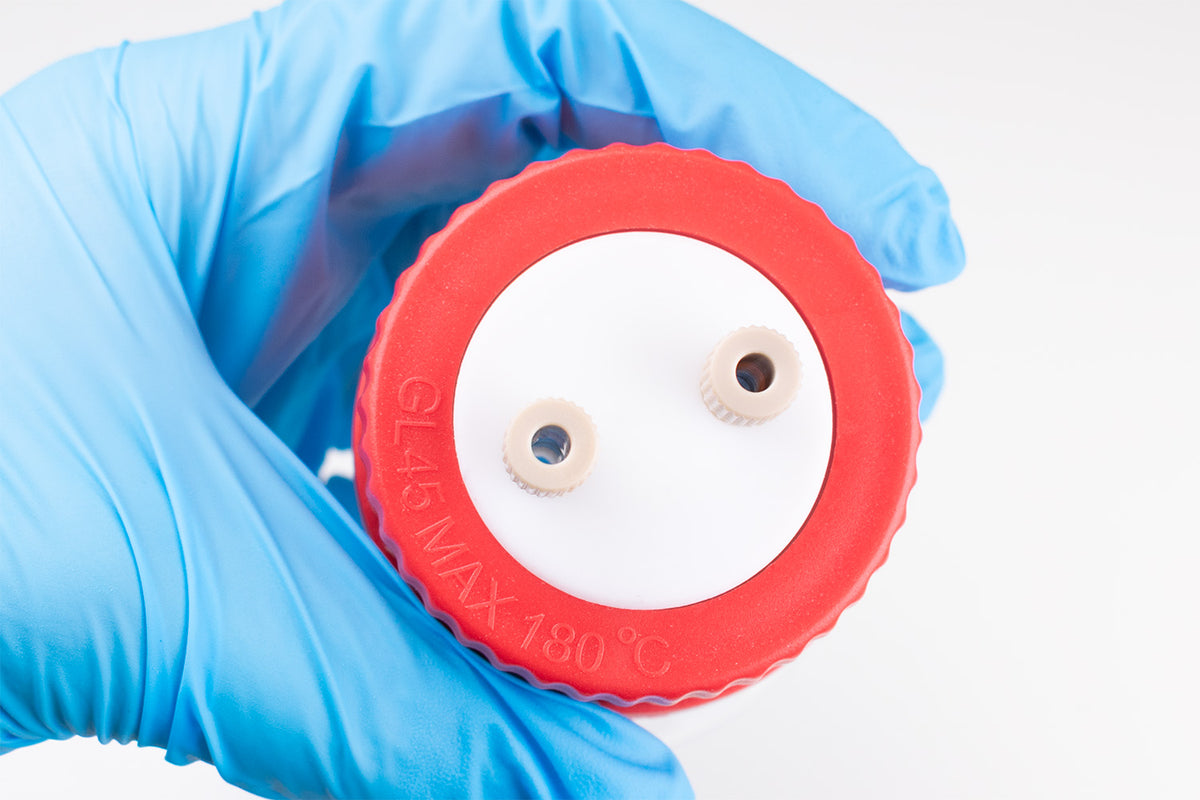

- PTFE Lid with PEEK Gas inlet/Outlets
- Gas Locks
- Spare PEEK electrode secure screws & O-Rings
- PTFE tubing

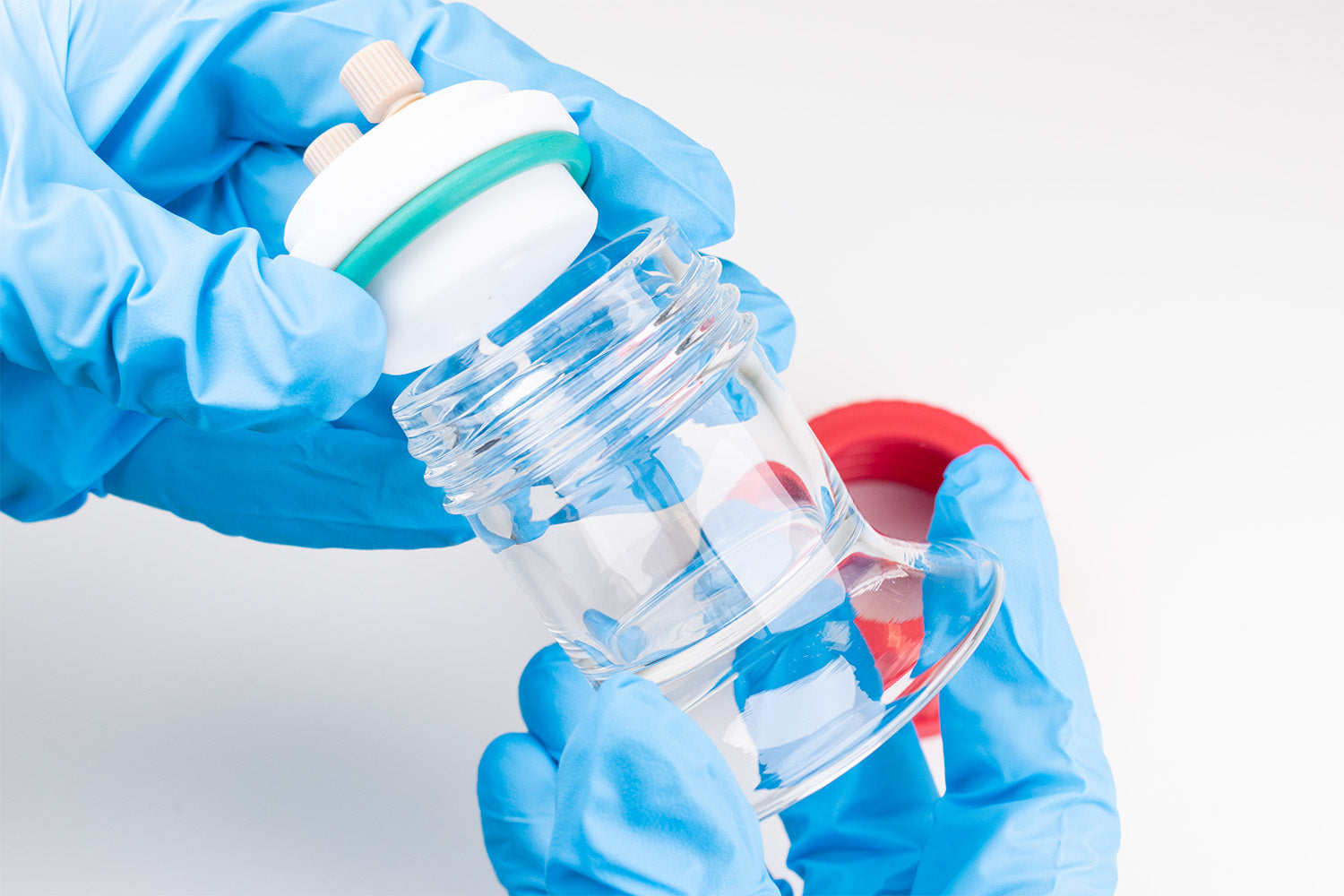

Gas Stabilizer Cell Gallery
