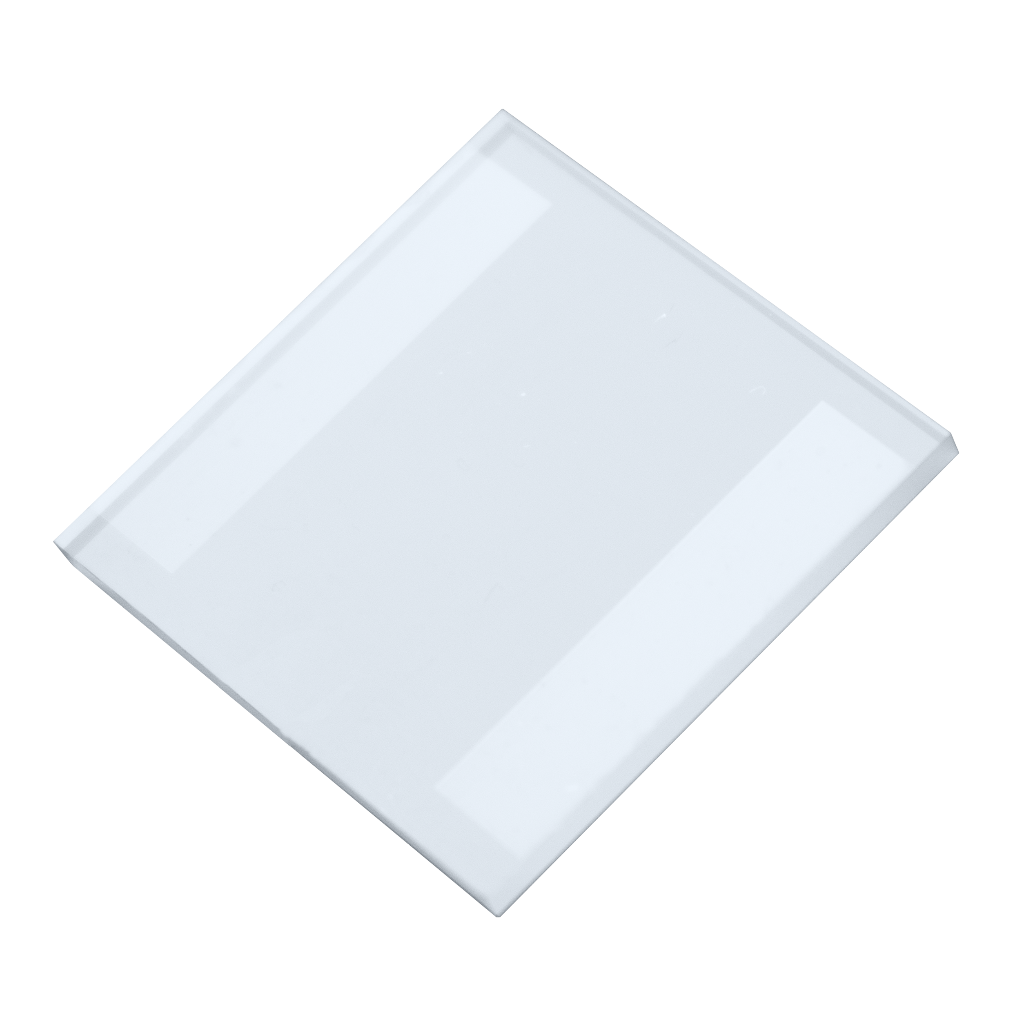

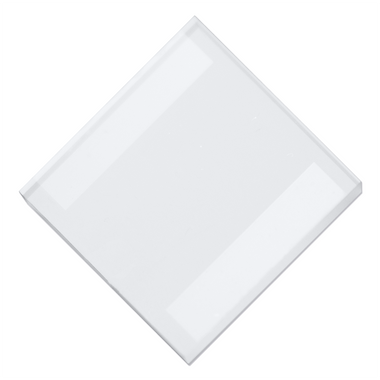

FTO Glass Substrates, 25 mm Square, PV and OLED
Substrates and Fabrication
Patterned FTO Substrates for Rapid OLED and PV Prototyping
Large pixels for record breaking-devices
Specifications | Related Products | Resources and Support
The 25 mm square substrates have been designed to help the community take the next step in scaling up active areas. When combined with our deposition masks, these substrates allow four pixels per substrate, with active areas of 48 mm2 each, or a single large pixel with an active area of 255 mm2 .
Specifications
| Substrate size | 25 mm x 25 mm |
|---|---|
| Thickness | 1.6 mm |
| Glass type | Polished soda lime, float glass |
| Substrate coating | FTO |
| FTO thickness | 300 nm |
| FTO resistance | 6 - 9 Ω/square |
| Pixel Sizes | 48 mm2 (6 mm x 8 mm) or 255 mm2 (15 mm x 17 mm) |
