CAS Number 1482413-54-6

Carbaldehyde Monomers, COF Ligands, Materials, Porous Organic Frameworks

Product Code B4531-1g
Price £200 ex. VAT

Covalent Organic Frameworks (COFs) Tripyridylbenzene Ligand

Trigonal ligand linker for covalent organic frameworks (COFs) in application of palladium recovery, carbon dioxide adsorption and photocatalyst

Specifications | MSDS | Literature and Reviews

5,5'',5''''-(Benzene-1,3,5-triyl)tripicolinaldehyde (BTPA) has three 5-pyridylaldehyde groups joined on a central benzene ring at meta-positions. The nitrogen rich electron deficient monomer has been engaged in the construction of covalent organic frameworks (COFs).

Antiparallel stacked covalent organic framework, BHTH-BTPA-ACOF, constructed by the condensation of 2,5-bis(3-hydroxypropoxy)terephthalohydrazide and 5,5′,5″-(benzene-1,3,5-triyl)tripicolinaldehyde, has both pyridine and hydrazine-carbonyl traps with high Pd(II) binding affinity, enabling the capture of Pd (II) ions under various conditions. BHTH-BTPA-ACOF shows a fast kinetics, excellent selectivity, and a high adsorption capacity of 412.9 ± 14.2 mg g-1 for Pd (II) in a 3M nitric acid solution.

MOF and COF ligands

MOF and COF ligands

Nitrogen rich ligand for cross-linked COF networks

Worldwide shipping for 910231-21-9

Worldwide shipping

Quick and reliable shipping

High purity 910231-21-9

High purity

>98% High purity

Facile reactions

Facile reactions

Readily for polycondensation reactions to form imine linkages

Sub-stoichiometric 2D PY-COF, featuring triangular tritopic 5,5'',5''''-(benzene-1,3,5-triyl)tripicolinaldehyde and tetratopic pyrene tetraaniline linkers, demonstrates absolute CO2 uptake capacities of 146 mg g-1, 1,67 time higher CO2 adsorption capacity than the stoichiometric PY2B-COFs.

General Information

CAS Number 1482413-54-6
Chemical Formula C24H15N3O3
Full Name 5,5',5''-(Benzene-1,3,5-triyl)tripicolinaldehyde
Molecular Weight 393.39 g/mol
Synonyms BTPA, BTTPA, 5,5'-(5-(5-Formylpyridin-2-yl)-1,3-phenylene)dipicolinaldehyde, 1,3,5-tris(2’-formylpyridyl-5’)benzene
Classification / Family Tripyridylbenzene, Picolinaldehyde, COF ligands

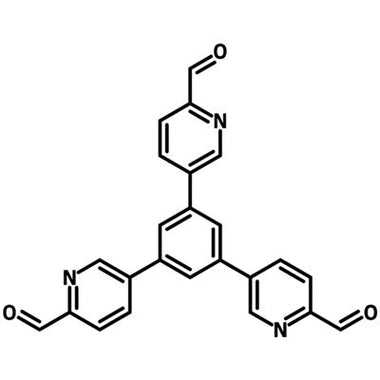

Chemical Structure

1482413-54-6 - 5,5'',5''''-(benzene-1,3,5-triyl)tripicolinaldehyde (BTPA) chemical structure
5,5'',5''''-(Benzene-1,3,5-triyl)tripicolinaldehyde (BTPA) Chemical Structure, 1482413-54-6

Product Details

Purity > 98%
Melting Point n.a.
Appearance Beige powder/crystals

MSDS Documentation

1482413-54-6 - 5,5'',5''''-(benzene-1,3,5-triyl)tripicolinaldehyde (BTPA)5,5',5''-(Benzene-1,3,5-triyl)tripicolinaldehyde MSDS Sheet

Literature and Reviews

  1. Covalent Organic Framework with Predesigned Single-Ion Traps for Highly Efficient Palladium Recovery from Wastes, Y. Xie et al., CCS Chem., 2303404 (2023); DOi: 10.31635/ccschem.023.202303404.
  2. Linkage Engineering by Harnessing Supramolecular Interactions to Fabricate 2D Hydrazone-Linked Covalent Organic Framework Platforms toward Advanced Catalysis, C. Qian et al., J. Am. Chem. Soc., 142 (42), 18138–18149 (2020); DOi: 10.1021/jacs.0c08436.
  3. Sub-Stoichiometric Covalent Organic Frameworks, C. Qian et al., Adv. Funct. Mater., 2313905 (2024); DOI: 10.1002/adfm.202313905.
