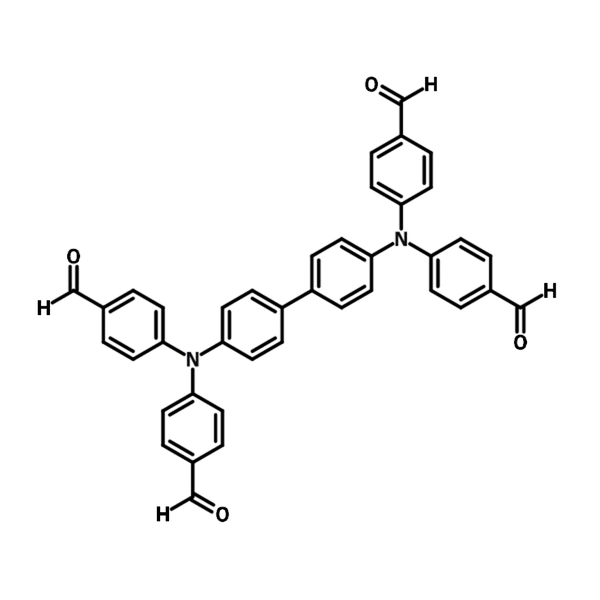

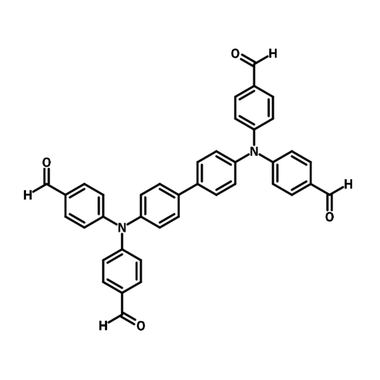

4,4',4'',4'''-([1,1'-Biphenyl]-4,4'-diylbis(azanetriyl))tetrabenzaldehyde

CAS Number 865448-72-2

Carbaldehyde Monomers, Chemistry Building Blocks, COF Ligands, Monomers, Non-Heterocyclic Building Blocks, Porous Organic Frameworks

MSDS

4,4',4'',4'''-([1,1'-Biphenyl]-4,4'-diylbis(azanetriyl))tetrabenzaldehyde CAS 865448-72-2

Covalent Organic Frameworks (COFs) Tetraphenylbenzidine Ligand

Substituted with four aldehyde groups for the synthesis of porous organic frameworks employed as photocatalysts and two-photon absorption materials

Overview | Product Information | MSDS | Related Products

4,4',4'',4'''-([1,1'-Biphenyl]-4,4'-diylbis(azanetriyl))tetrabenzaldehyde (CAS number 865448-72-2) is a tetraphenylbenzidine derivative functionalized with four aldehyde groups. With a tetratopic geometry, it is commonly used for the synthesis of imine-linked COFs. The resulting COFs from 4,4',4'',4'''-([1,1'-biphenyl]-4,4'-diylbis(azanetriyl))tetrabenzaldehyde and porphyrin are effective heterogeneous photocatalysts for reversible addition-fragmentation chain-transfer polymerization through photoinduced electron transfer. Additionally, such COFs are applied in hydrogen evolution from water, exhibiting a hydrogen evolution rate up to 10 mmol/g·h.

COFs based on 4,4',4'',4'''-([1,1'-biphenyl]-4,4'-diylbis(azanetriyl))tetrabenzaldehyde also find applications in two-photon absorption with a high two-photon cross-section value of 8756 GM/chromophore.

MOF and COF Ligands

Tetraphenylbenzidine ligand for cross-linked COF/MOF networks

Facile Reactions

Aldehyde possesses excellent reactivity

High Purity

> 98% pure

Worldwide Shipping

Quick and reliable shipping

General Information

CAS Number	865448-72-2
Chemical Formula	C₄₀H₂₈N₂O₄
Full Name	4,4',4'',4'''-(4,4'-Biphenyldiyldinitrilo)tetrabenzaldehyde
Molecular Weight	600.66 g/mole
Synonyms	N,N,N',N'-Tetra(4-formylphenyl)benzidine, BDTB, BDTA
Classification or Family	Porous organic frameworks, COFs, Aldehydes, Tetraphenylbenzidines

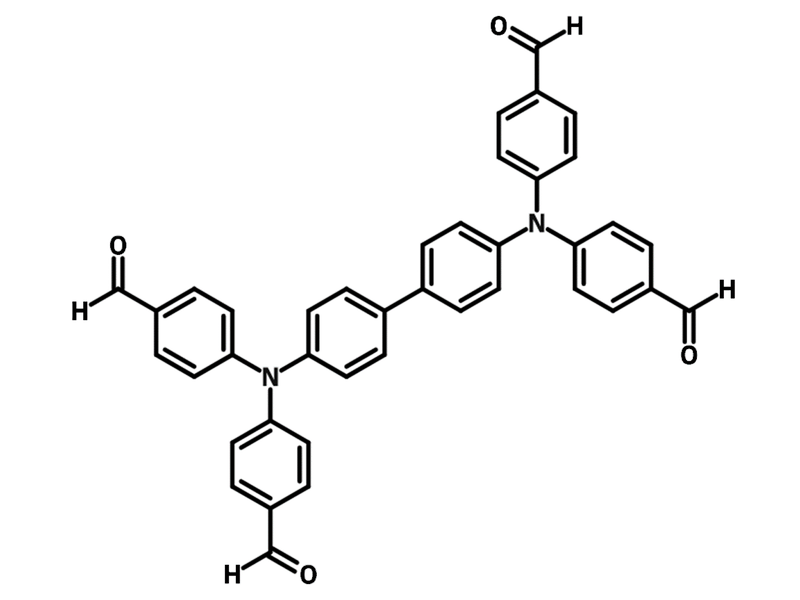

Chemical Structure

Product Details

Purity	> 98%
Melting Point	N/A
Appearance	Yellow powder

MSDS Documentation

4,4',4'',4'''-([1,1'-Biphenyl]-4,4'-diylbis(azanetriyl))tetrabenzaldehyde MSDS Sheet

References

Porphyrin-based donor–acceptor COFs as efficient and reusable photocatalysts for PET-RAFT polymerization under broad spectrum excitation, Y. Zhu et al., Chem. Sci., 12, 16092 (2021); DOI: 10.1039/d1sc05379e.
Identification of two-dimensional covalent organic frameworks with mcm topology and their application in photocatalytic hydrogen evolution, P.-J. Tian et al., Chem. Sci., 15, 9669 (2024); DOI: 10.1039/d4sc01780c.
Covalent organic framework for efficient two-photon absorption, L. Zhang et al., Matter, 2, 1049–1063 (2020); DOI: 10.1016/j.matt.2020.01.019.

We stock a wide range of Porous Organic Frameworks available to purchase online. Please contact us if you cannot find what you are looking for.
