4',5'-Bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine

CAS Number 2458125-05-6

COF Ligands, Materials, Porous Organic Frameworks

4',5'-Bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine MSDS

4',5'-Bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine CAS 2458125-05-6

Covalent Organic Frameworks (COFs) Triphenyls Ligand

Cross shaped linker for covalent organic frameworks (COFs) in application of chemical sensors, photocatalyst for hydrogen evolution reactions (HERs)

Overview
Related Products

4',5'-Bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine (BAPTPDA) is a cross-shaped terphenyl with 4 aniline groups sitting at 1,2,4,5-positions of a benzene ring. It has been mainly engaged as a tetratopic linker to construct COFs by condensation reactions with acids or aldehydes.

Magnetic covalent organic framework Fe₃O₄@COF(BAPTPDA-Dt), prepared by the Schiff base condensation of 2,5-dihydroxy-1,4-benzenedicarboxaldehyde and 4',5'-bis(4-aminophenyl)-[1,1':2',1″-terphenyl]-4,4″-diamine, demonstrates excellent magnetism, stability and recyclability. Fe₃O₄@COF(BAPTPDA-Dt) exhibits rapid extraction and sensitive determination of AFM1 and AFM2 in milk with negligible matrix effect.

Imine-linked COFs with 4',5'-bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine building blocks has also been used as photocatalysts for hydrogen evolution reactions (HERs). The orientation of nitrogen atom in the imine bond has great impact on the efficiency of exciton dissociation and charge separation processes by the influence of local charge polarization and delocalization imposed by nitrogen..

MOF and COF ligands

Terphenyl ligand linker for cross-linked COF networks

Worldwide shipping

Quick and reliable shipping

High purity

>97% High purity

Facile reactions

Readily for polycondensation reactions to form imine linkages

General Information

CAS Number	2458125-05-6
Chemical Formula	C₃₀H₂₆N₄
Full Name	4',5'-Bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine
Molecular Weight	442.55 g/mol
Synonyms	BAPTPDA, 1,2,4,5-Tetra(4-aminophenyl)benzene
Classification / Family	Triphenyls, Anilines, COF ligand

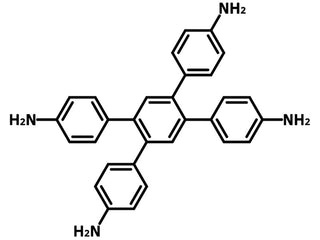

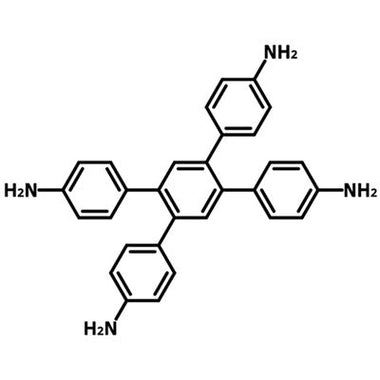

Chemical Structure

Product Details

Purity	> 97%
Melting Point	n.a.
Appearance	Off-white to beige powder/crystals

MSDS Documentation

4',5'-Bis(4-aminophenyl)-[1,1':2',1''-terphenyl]-4,4''-diamine MSDS Sheet

Literature and Reviews

Construction of a magnetic covalent organic framework for magnetic solid-phase extraction of AFM1 and AFM2 in milk prior to quantification by LC–MS/MS, J. Li et al., Microchim Acta 189, 149 (2022); DOI: 10.1007/s00604-021-05090-8.
Inducing local charge polarization by constructing isomeric covalent organic frameworks with different orientations of imine bonds for enhancing photocatalytic hydrogen evolution, H. He et al., J. Mater. Chem. A, 12, 227-232 (2024); DOI: 10.1039/D3TA05173K.
3D Covalent Organic Frameworks Selectively Crystallized through Conformational Design, H. Nguyen et al., J. Am. Chem. Soc., 142 (48), 20335–20339 (2020); DOI: 10.1021/jacs.0c11064.
