Product Code B3881-1g
Price $100 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Covalent Organic Frameworks (COFs) Triphenylethylene Ligand

A formyl bridging ligand linker for covalent polymeric frameworks (CPFs) in application of aggregation induced emission (AIE), and iodide ion and mercury cation detections


4-(1,2,2-Triphenylvinyl)benzaldehyde (TPVBA) contains a tetraphenylethylene (TPE) core with one aldehyde function group joined at 4-position of one of the phenyl rings.

TPE-CMS luminescent polymeric nanoprobes (LPNs), obtained by mixing 4-(1,2,2-triphenylvinyl) benzaldehyde with carboxyl methyl starch sodium (CMS) and amino phenylboronic acid in a one-pot reaction, showed high water dispersibility, well biocompatibility and efficient cell internalization behaviour.

TPE-QN, a tetraphenylethene (TPE)-functionalized quinolinium salt with hexafluorophosphate (PF6) as the counterion, exhibited intense red emission in aqueous media. The emission of TPE-QN can be effectively quenched in the presence of I, For this reason, TPE-QN can be used as a fluorescent sensor for I with a great low detection limit of 22.6 nM. Moreover, TPE-QN can act as a secondary fluorescent sensor for Hg2+ with a detection limit of 71.8 nM due to the high affinity between Hg2+ and I.

MOF and COF ligands

MOF and COF ligands

Aldehyde ligand for end-capping COF networks

Worldwide shipping for 1289218-74-1

Worldwide shipping

Quick and reliable shipping

High purity 1289218-74-1

High purity

>98% High purity

Facile reactions

Facile reactions

Aldehyde possesses excellent reactivity

General Information

CAS Number 1289218-74-1
Chemical Formula C27H20O
Full Name 4-(Triphenylvinyl)benzaldehyde
Molecular Weight 360.45 g/mol
Synonyms TPVBA, TPE-CHO, 1-(4-Formylphenyl)-1,2,2-triphenylethene
Family tetraphenylethylenes, Carbaldehydes, COFs

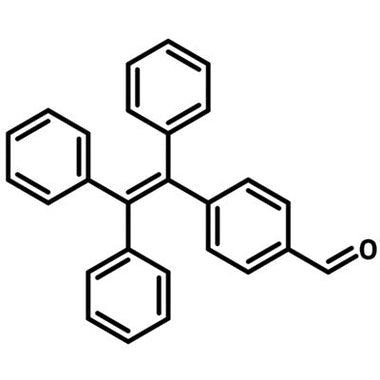

Chemical Structure

1289218-74-1 - 4-(1,2,2-triphenylvinyl)benzaldehyde chemical structure
4-(1,2,2-triphenylvinyl)benzaldehyde (TPVBA) Chemical Structure, 1289218-74-1

Product Details

Purity >98%
Melting Point 151 °C
Appearance White to off-white to yellow powder/crystals

MSDS Documentation

1289218-74-1 - 4-(1,2,2-triphenylvinyl)benzaldehyde4-(1,2,2-Triphenylvinyl)benzaldehyde MSDS Sheet

Literature and Reviews

  1. Fabrication and biological imaging application of AIE-active luminescent starch based nanoprobes, M. Liu et al., Carbohydr. Polym., 142, 38-44 (2016); DOI: 10.1016/j.carbpol.2016.01.030.
  2. A highly sensitive fluorescent sensor with aggregation-induced emission characteristics for the detection of iodide and mercury ions in aqueous solution, R. Zhang et al., J. Mater. Chem. C, 4, 10479-10485 (2016); DOI: 10.1039/C6TC03696A.
  3. Efficient blue non-doped OLEDs with new tetraphenylethene-based aggregation-induced emission molecules, D. Tavgeniene et al., Dye. Pigm., 216, 111319 (2023); DOI: 10.1016/j.dyepig.2023.111319.
  4. Hydrazine Detection during Ammonia Electro-oxidation Using an Aggregation-Induced Emission Dye, K. Siddharth, J. Am. Chem. Soc. 2021, 143 (5), 2433–2440 (2012);
  5. Non-Doped Sky-Blue OLEDs Based on Simple Structured AIE Emitters with High Efficiencies at Low Driven Voltages, A. Islam et al., Chem. Asian Chem., 12 (17). 2189-2196 (2017); DOI: 10.1002/asia.201700833.
  6. An Aggregation-Induced Emission-Based “Turn-On” Fluorescent Probe for Facile Detection of Gaseous Formaldehyde, X. Zhao et al., CS Sens., 3, 10, 2112–2117 (2018); DOI: 10.1021/acssensors.8b00664.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
