Riser Boards for Automated I-V Test Systems
Electrical Test Boards, Equipment Accessories,
Riser Boards for Different Substrate Types
Use different substrate designs on the same measurement system

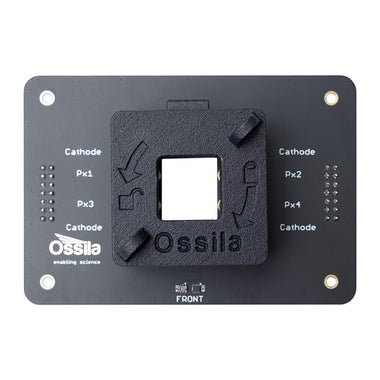

User-swappable riser boards for the Ossila Solar Cell I-V Test System and LED Measurement System.
Changing the riser board allows for different substrate designs to be used on the same measurement system. The Solar Cell I-V Test System can be converted into an LED Measurement System through the installation of the appropriate riser board.
The generic riser board has tool-free terminal block connectors allowing up to 12 wires to be multiplexed, allowing for maximum flexibility in device design.
Please note that these riser boards are compatible with Solar Cell I-V Test Systems and LED Measurement Systems with product codes ending in '3' (e.g. T2003A3), purchased after August 2022. Please contact us if you require riser boards for previous versions of the systems.
| Substrate Compatibility | |||||
 Suitable for 25 x 25 mm substrates |
|
|
|||
 Suitable for 20 x 15 mm substrates |
|
|
|||
 Suitable for 75 x 25 mm substrates |
|
||||
 |
|
|
|||
 Suitable for 25 x 25 mm substrates |
|
|
|||
 Suitable for 20 x 15 mm substrates |
|
|
|||
