Gas Dispersion Tube
Gas Bubbler with a Sintered Porous Glass Frit
Maintain reproducible reaction conditions in either gas reduction or evolution reactions, or remove the dissolved oxygen before sensitive experiments
Specifications | Gallery | Pricing | Related Products | Technical Support

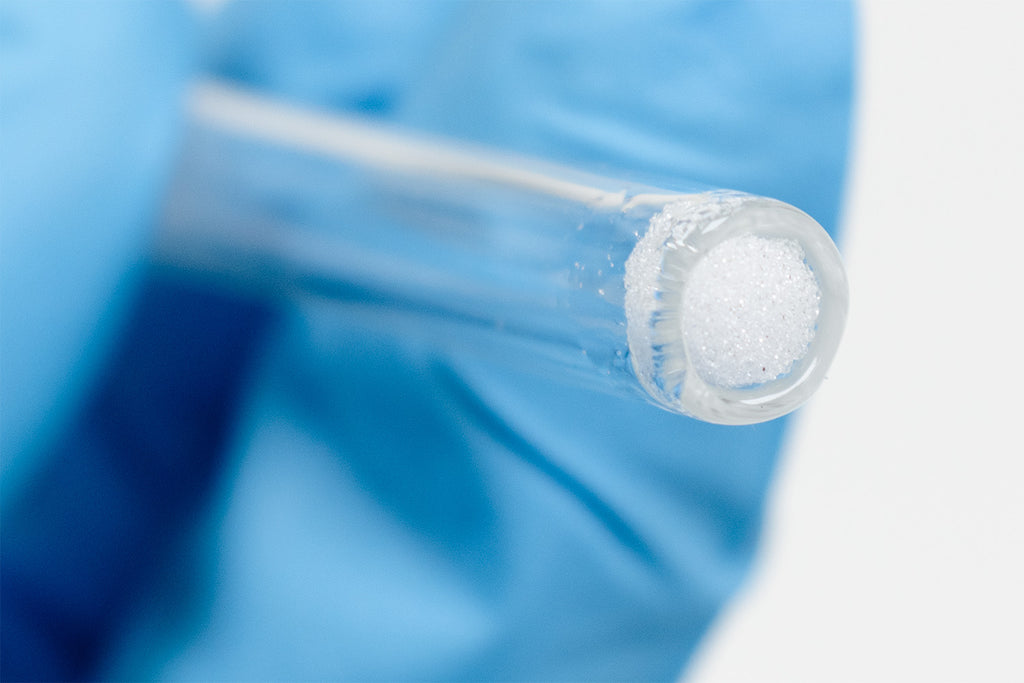

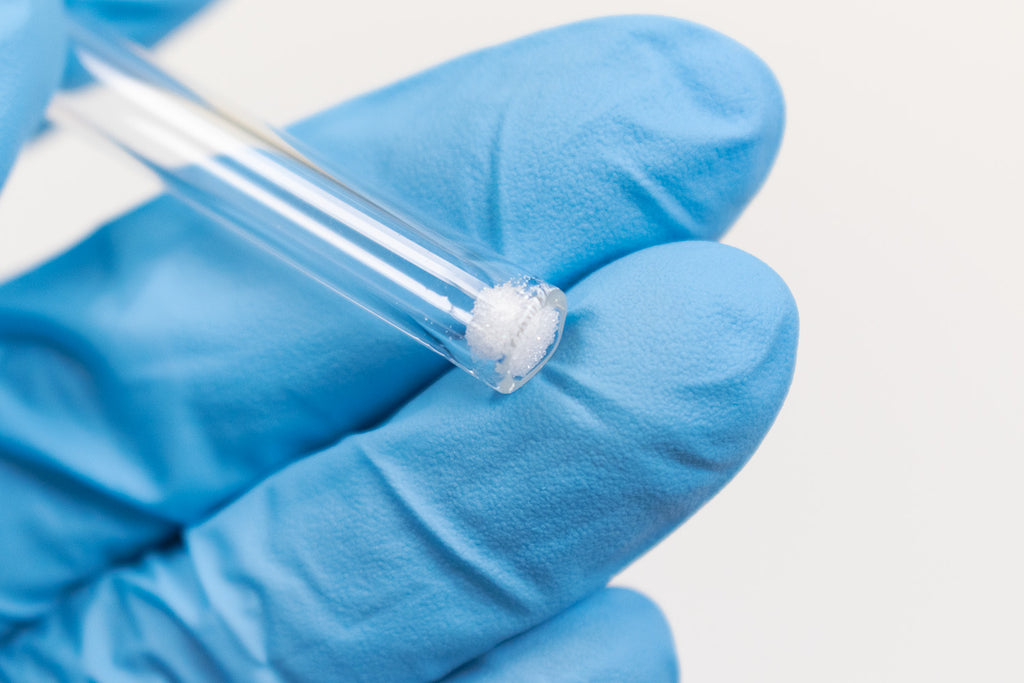

A gas dispersion tube or a bubbler is a slender tube fitted with a sintered glass frit at the tip, used to introduce and disperse gas into the electrolyte as a fine stream of bubbles. The frit breaks the gas flow into small, evenly distributed bubbles, maximising gas-liquid contact area and improving mass transport to and from the electrolyte.
The dispersion tube supports three distinct functions, depending on the experiment:
- Purging: Remove dissolved gases (typically oxygen) from the electrolyte before an experiment begins, using an inert gas such as N₂ or Ar. This is standard practice before HER and OER studies, where dissolved O₂ can interfere with electrode kinetics or introduce background reduction currents.
- Saturation: Pre-equilibrate the electrolyte with a specific reactant gas so its dissolved concentration reaches a known, stable value before measurement begins. This is essential for CO₂RR, where the electrolyte must be CO₂-saturated, and NRR, where N₂ saturation defines the available nitrogen feedstock. Similarly for ORR, where the electrolyte must be O₂-saturated.
- Sparging: A continuous gas flow is maintained throughout the experiment, replenishing gas consumed at the electrode surface and holding a steady dissolved gas concentration during extended CO₂RR, ORR or NRR testing.

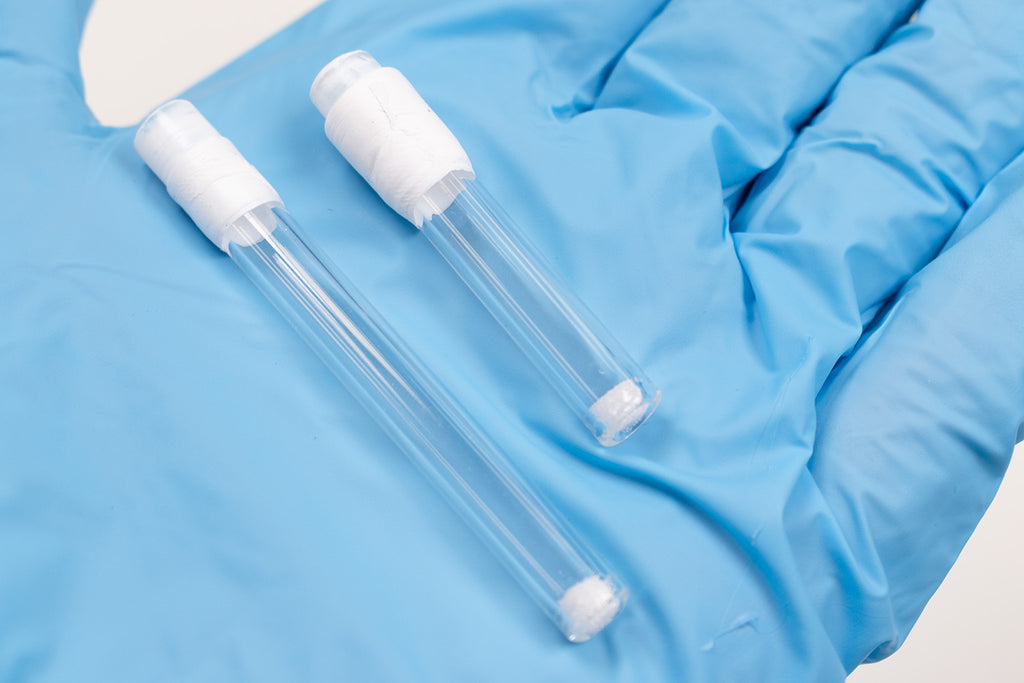

Available in two lengths, 45 mm and 60 mm, to accommodate different cell depths and electrode configurations compatible with Ossila Electrochemical Cells and similar products.
Efficient Gas Dispersion
Disperse gas into the electrolyte as a fine stream of bubbles
Three Functions
Supports purging, saturation, and sparging workflows
Reaction Reproducibility
Help to maintain repeatability across reduction and evolution reactions
Flexibility
Available in 45 mm and 60 mm lengths to suit different cell geometries
Specifications
| Product Name | Gas Dispersion Tube (45mm) | Gas Dispersion Tube (60mm) |
|---|---|---|
| SKU | C2047B1 | C2047D1 |
| Length | 45 mm | 60mm |
| Material | Borosilicate Glass | Borosilicate Glass |
| Tip/Frit Material | Glass | Glass |
| Tip/Frit Diameter | 5 mm | 5 mm |
| Outer Diameter | 7 mm | 7 mm |
| Electrolyte Compatibility | Not recommend for strongly acidic or alkaline or molten salt electrolytes | Not recommend for strongly acidic or alkaline or molten salt electrolytes |
Gas Dispersion Tube Gallery
Pricing and Options
| Product Name | Product Code | Price |
|---|---|---|
| Gas Dispersion Tube (45 mm) | C2047B1 | £25 |
| Gas Dispersion Tube (45 mm)- Pack of 5 | C2047B1-5 | £110 |
| Gas Dispersion Tube (60 mm) | C2047D1 | £25 |
| Gas Dispersion Tube (60 mm)- Pack of 5 | C2047D1-5 | £110 |
