Product Code M2222A1-100mg
Price $296 ex. VAT

Fluorescent Blue Emitter of Pyrene Derivative

Used in highly efficient fluorescent top-emission organic light-emitting diodes


Product Information | MSDS | Related Products


BD-1 (CAS 1252914-27-4) is symmetrically structured with a 3,8-diisopropyl-1,6-diamine-pyrene core, and two dibenzo[b,d]furan and 4-isopropylphenyl peripheral end groups. Four isopropyl alkyl groups not only promotes greater solubility but also prevents the quenching of the excimers.

BD-1 is a fluorescent blue emitter and normally an anthracene derivative 1,2-ADN is selected as effective host for BD-1 for improving the external quantum efficiency (EQE) of fluorescent OLEDs by utilizing triplet–triplet annihilation. Top-emission organic light-emitting diodes (TEOLEDs) utilising BD-1 as the blue emitting layer material without  indium tin oxide (ITO) but a silver (Ag) layer demonstrated a high efficiency of 139.9 cd/A/CIEy at a current density of 10 mA/cm[1, 2].

General Information


CAS number 1252914-27-4
Chemical formula C64H56N2O2
Molecular weight 885.14 g/mol
HOMO/LUMO HOMO = 5.52 eV, LUMO = 2.78 eV
Chemical name N1,N6-bis(dibenzo[b,d]furan-4-yl)-3,8-diisopropyl-N1,N6-bis(4-isopropylphenyl)pyrene-1,6-diamine
Synonyms BDFDPPDA, NFDIP
Classification / Family Pyrene derivatives, Triarylamines, Blue fluorescent emitter, Sublimed materials, Semiconducting small molecules

Product Details


Purity Sublimed* >99.0% (HPLC)
Melting point n.a.
Appearance White powder/crystals

* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials for OLED devices.

Chemical Structure

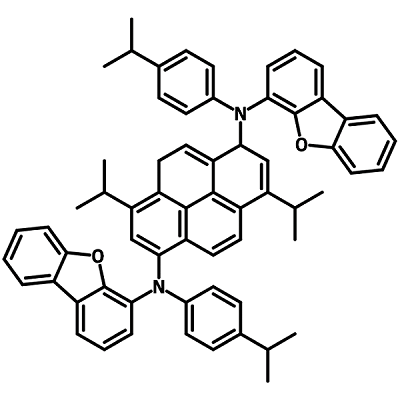

1252914-27-4, BD-1 chemical structure
Chemical structure of N1,N6-bis(dibenzo[b,d]furan-4-yl)-3,8-diisopropyl-N1,N6-bis(4-isopropylphenyl)pyrene-1,6-diamine (BD-1), CAS 1252914-27-4

Device Structure(s)


Device structure ITO (70 nm)/Clevios HIL 1.3 N (10 nm)/HAT-CN (5 nm)/Specific HTL (30 nm)/1,2-ADN:BD-1 (5 wt%, 25 nm)/1,2-ADN (25 nm)/Py-hpp2 (1 nm)/Al [1]
Colour blue light emitting device Blue
Max. EQE 9.3%
Max. Current Efficiency 11.0 cd/A
LT95 (hours) 646


Device structure ITO (70 nm)/Clevios HIL 1.3 N (10 nm)/HAT-CN (5 nm)/Specific HTL (30 nm)/1,2-ADN:BD-1 (5 wt%, 25 nm)/DBzA:Liq (1:1, 25 nm)/Liq (1 nm)/Al [1]
Colour blue light emitting device Blue
Max. EQE 9.5%
Max. Current Efficiency 11.5 cd/A
LT50 (hours) 1325

Pricing


Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2222A1 100 mg £219
Sublimed (>99.0% purity) M2222A1 250 mg £438
Sublimed (>99.0% purity) M2222A1 500 mg £700
Sublimed (>99.0% purity) M2222A1 1 g £1120

MSDS Documentation


BD-1 MSDSBD-1 MSDS sheet

Literature and Reviews


  1. Effects of Energy-Level Alignment on Operating Voltages of Blue Organic Light-Emitting Diodes, T. Sasaki et al., Adv. Mater. Interfaces, 2201925 (2022); DOI: 10.1002/admi.202201925.
  2. Electron blocking materials based on dimethyl-dihydrobenzofuran derivatives for highly efficient and long-lifetime blue fluorescent organic light-emitting diodes, B. Hu et al., Org. Electron., 87, 105916 (2020); DOI: 10.1016/j.orgel.2020.105916.
  3. Fabrication of highly efficient blue top-emission organic light-emitting diodes on different reflective electrodes, Z. Ci et al., Org. Electron., 95, 106197 (2021); DOI: 10.1016/j.orgel.2021.106197.
  4. High-refractive-index capping layer improves top-light-emitting device performance, B. Hu et al., Appl. Opt., 59 (13), 4114-4121 (2020); DOI: 10.1364/AO.391419.
