Low-Resistance Carbon Screen Printing Ink
Ideal for screen printing membrane switches and flexible circuits
Product Information | Process Recommendation | MSDS | Related Products | Technical Support
A carbon-graphite conductive ink engineered for screen printing applications. The low-resistance paste makes it ideal for printing membrane switches and flexible electronics. This carbon ink delivers superior mechanical durability for excellent resistance against wear from surface-mounting technology components and hybrid circuits, alongside exceptional adhesion (5B, ASTM D3359) to pre-treated PET and common rigid PCB substrates.
Conductive Carbon Ink
Strong adhesion ideal for
screen-printed thin films
Versatile Applications
Flexible printed circuits
and membrane switches
High Quality Formulation
For reliable and impactful
electronics research
Low Resistance Material
Tailored conductivity with
mechanical durability
Product Information
| Product Name | Heraeus Electronics, PriElex™ C-250J |
|---|---|
| CAS Number | 1333-86-4/7782-42-5 |
| Chemical Formula | C |
| Other Names | Carbon conductive ink, conductive carbon ink, carbon screen printing ink, carbon paste |
| Classification or Family | Screen printing, Flexible electronics, Carbon, Conductive inks |
| Solid Content | 50 ± 2% |
| Solvent | Diethylene glycol monoethyl ether acetate (DEGMEA), naphtha |
| Particle Size | < 25 µm (D95) |
| Resistivity | ≤ 0.022 Ω⋅m |
| Viscosity | 23.5 – 36.5 kcPs (Vt-04, No.2 spindle, 25 °C) |
| Theoretical Coverage | 160 m2/kg (14 µm thickness) |
| Appearance | Black ink/paste |

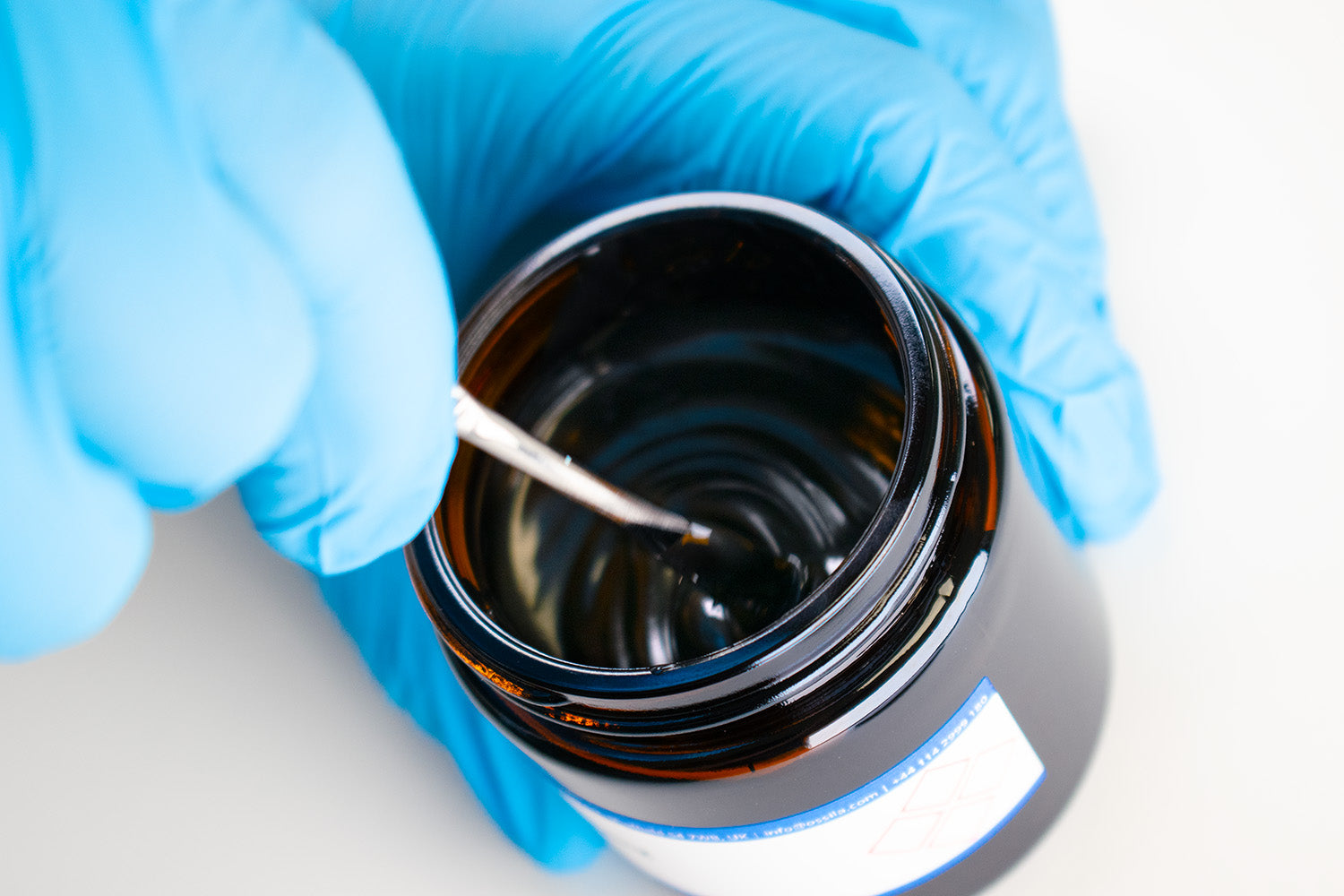

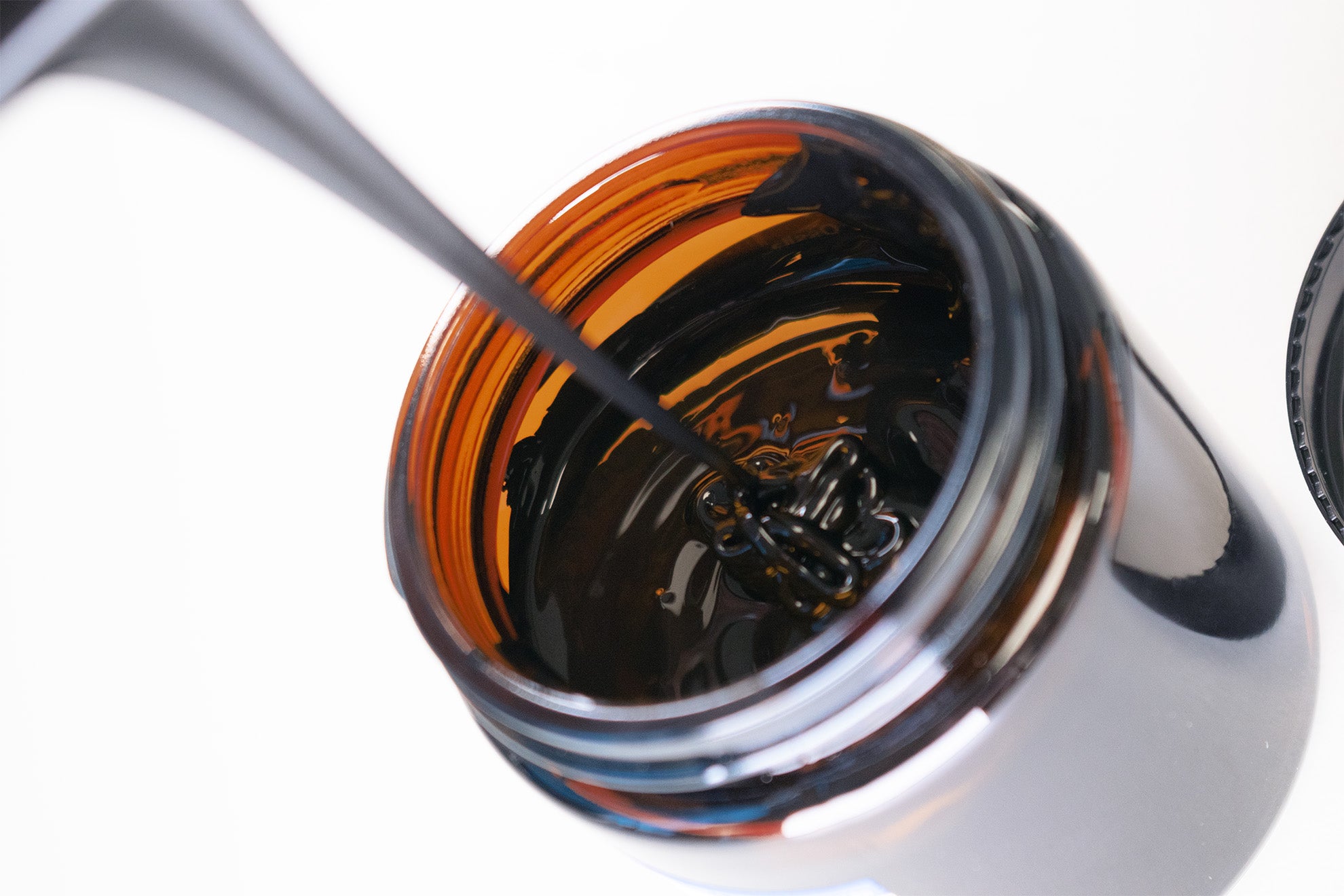

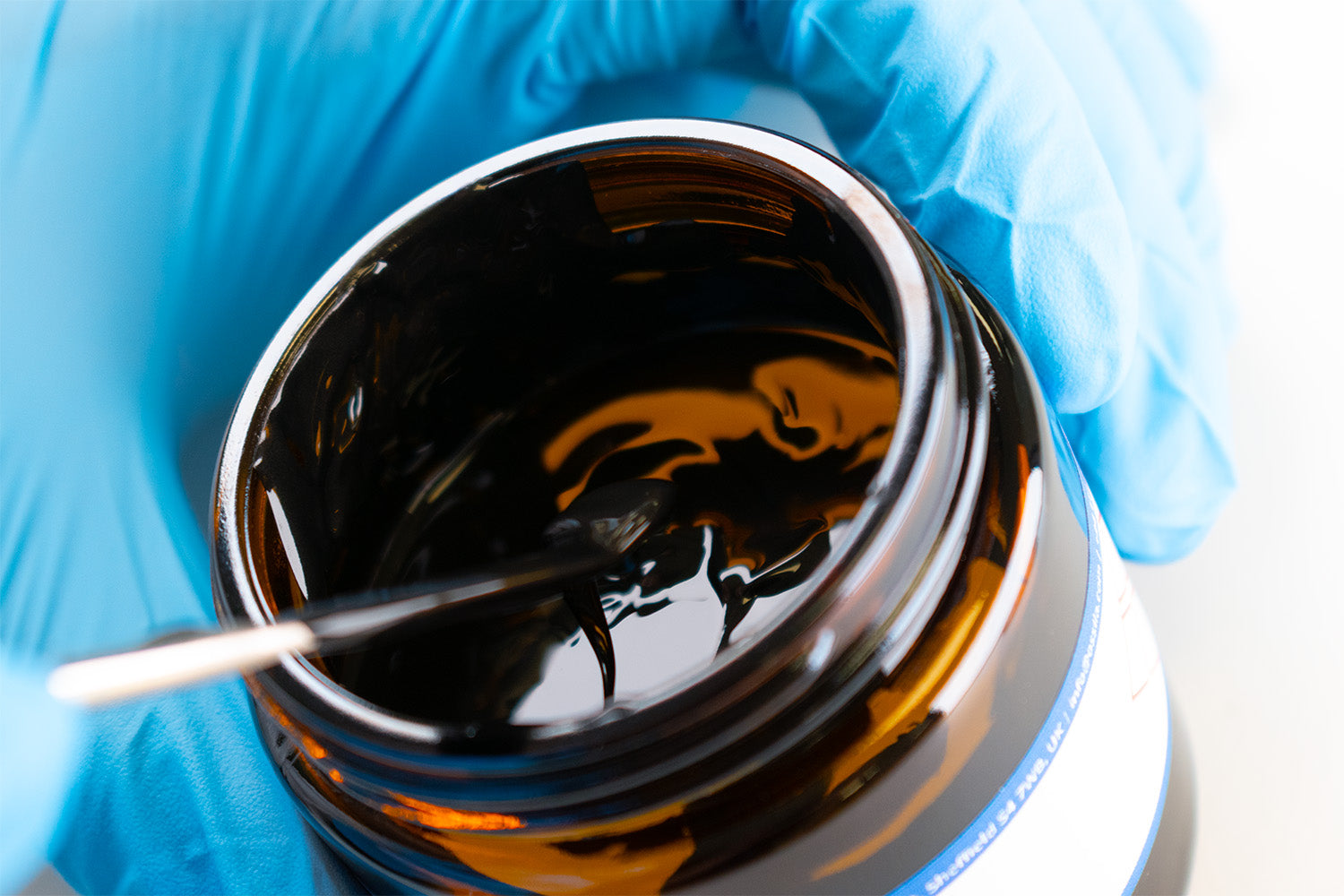

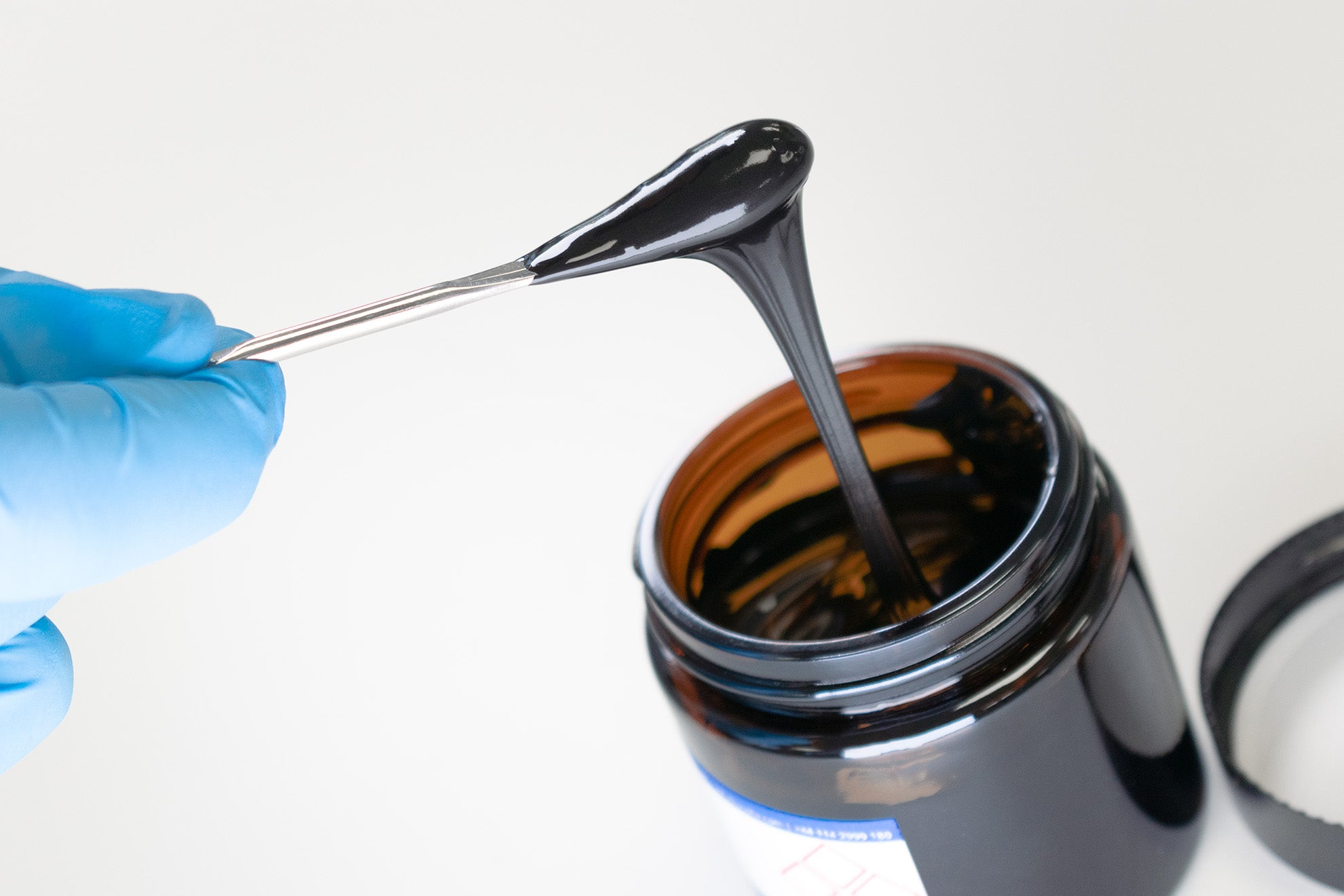

Carbon Conductive Ink Gallery
Process Recommendation
| Use | Mix thoroughly before use |
|---|---|
| Type of Screen | Polyester Mesh (157 to 230 TPI) or steel Mesh (165 to 325 TPI) |
| Recommended Substrates | Print-treated PET, rigid PCB substrates |
| Drying Temperature | 100 – 130 °C |
| Cleaning | Suitable screen cleaner with a final pass of acetone/MEK to clean up any residual solvents/film |
MSDS Documentation
