5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde

CAS Number 805246-78-0

Carbaldehyde Monomers, COF Ligands, Materials, Porous Organic Frameworks

5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde MSDS

5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde CAS 805246-78-0

Covalent Organic Frameworks (COFs) Quinquephenyl Ligand

A trigonal bridging ligand linker for covalent organic frameworks (COFs) in application of photocatalysts for hydrogen evolution reactions (HERs), hydrochloric acid and ammonia vapor sensing, and anticancer activity

Overview
Related Products

5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde (TFBPB) has a trigonal structure with three 4-formyl-[1,1'-biphenyl] units attached to a central benzene ring at 1,3,5-positions.

With the combination of efficient light harvesting capability of a suitable band gap and catalytic sites, covalent organic framework TFBPB-TAT-COF with D-A type alternating units of TFBPB and 2,4,6-tris(4-aminophenyl)-1,3,5-triazine shows promise as an ideal photo absorber and photocatalyst for hydrogen revolution reactions (HERs). TFBPB-TAT-COF also shows excellent anticancer activity for human colorectal carcinoma HCT-116 cells.

MOF and COF ligands

Ethene ligand for cross-linked COF networks

Worldwide shipping

Quick and reliable shipping

High purity

>97% High purity

Facile reactions

Readily for polycondensation reaction to form imine or double bond linkages

Vinyl tetrazine-linked covalent organic frameworks TA-COF-2, obtained from Knoevenagel condensation reaction between 3,6-bis((E)-2-([1,1'-biphenyl]-4-yl)vinyl)-1,2,4,5-tetrazine and TFBPB, demonstrates high crystallinity and specific surface areas of 1114 m² g⁻¹ with favourable band gaps and position as photocatalyst in the arylboronic acids oxidation and light-induced coupling of benzylamines. TA-COF-2 also shows sensing capability with reversible colour changes upon exposure to HCl solution, HCl vapor, and NH₃ vapor.

General Information

CAS Number	805246-78-0
Chemical Formula	C₄₅H₃₀O₃
Full Name	5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde
Molecular Weight	618.72 g/mol
Synonyms	TFBPB, TFBB, 1,3,5-Tris(4-formylbiphenyl)benzene
Classification / Family	Quinquephenyls, Aldehydes, COF ligands

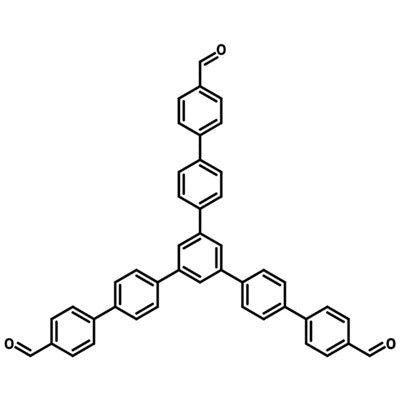

Chemical Structure

805246-78-0 - 5''-(4'-formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde — 5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde (TFPBP) Chemical Structure, 805246-78-0

Product Details

Purity	> 97%
Melting Point	T_m = 158–160 °C
Appearance	Off-white powder/crystals

MSDS Documentation

5''-(4'-Formyl-[1,1'-biphenyl]-4-yl)-[1,1':4',1'':3'',1''':4''',1''''-quinquephenyl]-4,4''''-dicarbaldehyde MSDS Sheet

Literature and Reviews

Photoelectrochemical water splitting with a triazine based covalent organic framework, A. Pradhan et al., Sustainable Energy Fuels, 6, 4248-4255 (2022); DOI: 10.1039/D2SE00827K.
A new triazine based π-conjugated mesoporous 2D covalent organic framework: its in vitro anticancer activities, S. Das et al., Chem. Commun., 54, 11475-11478 (2018); DOI: 10.1039/C8CC07289B.
Tetrazine-Linked Covalent Organic Frameworks With Acid Sensing and Photocatalytic Activity, A. Zadehnazari et al., Adv. Mater., 2311042 (2023); DOI: 10.1002/adma.202311042.
