2',5'-Dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde

CAS Number 111759-27-4

Carbaldehyde Monomers, Chemistry Building Blocks, COF Ligands, Materials, Monomers, Porous Organic Frameworks

2',5'-Dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde MSDS

2',5'-Dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde CAS 111759-27-4

Covalent Organic Frameworks (COFs) Terphenyl Ligand

An aldehyde functionalised bridging ligand linker for COFs in application of photocatalytic reactions

Overview
Related Products

2',5'-Dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde, CAS number 111759-27-4, is a linear ligand linker for covalent organic frameworks with one aldehyde at each end of the linear structure and two methoxy groups sitting on the opposite positions of the middle phenyl ring.

Microporous covalent organic framework (COF), Py-DMTA-COF, synthesized from 4,4′,4′′,4′′′-(pyrene-1,3,6,8-tetrayl)tetraaniline tecton as the nodes and 2,5-dimethoxyterephthalaldehyde as the rigid linear linker, demonstrated great photocatalytic activity with broad substrate applicability and great recyclability for the preparation of thiophosphinates from phosphine oxides and thiols.

COF-JLU25, an electron-rich COF-based photocatalyst constructed by integrating electron-donating building blocks of 1,3,6,8-tetrakis(4-aminophenyl)pyrene (PyTA) and 2',5'-dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde, was engaged as a photocatalyst for the oxidative hydroxylation of arylboronic acids. It showed great photocatalytic activity with high efficiency, robust reusability, and low catalyst loading.

MOF and COF ligands

Aldehyde ligand for cross-linked COF networks

Worldwide shipping

Quick and reliable shipping

High purity

>97% High purity

Facile reactions

Aldehyde possesses excellent reactivity

General Information

CAS Number	111759-27-4
Chemical Formula	C₂₂H₁₈O₄
Full Name	2',5'-Dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde
Molecular Weight	346.38 g/mol
Synonyms	TPDA, DMTA, [1,1':4',1''-Terphenyl]-4,4''-dicarboxaldehyde, 2',5'-dimethoxy-
Classification / Family	Terphenyls, COF ligands

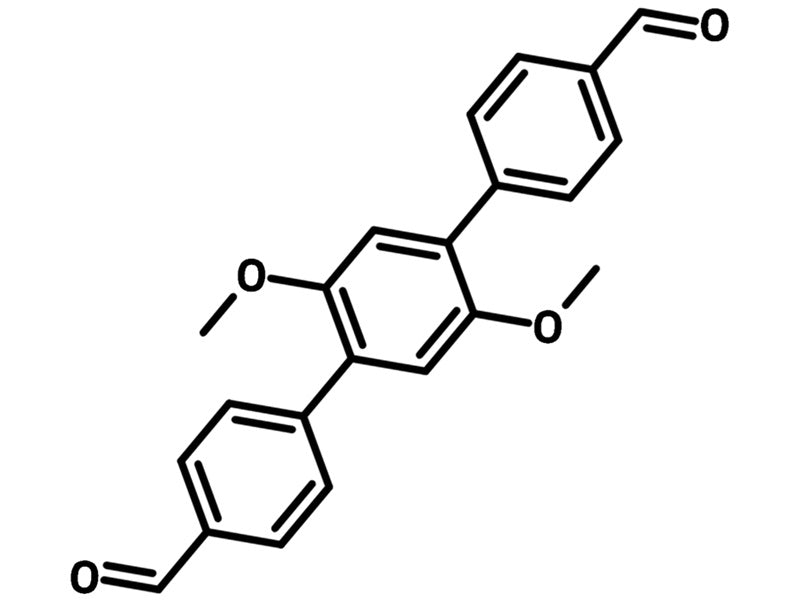

Chemical Structure

Product Details

Purity	>98%
Melting Point	N/A
Appearance	Light green powder/crystals

MSDS Documentation

2',5'-Dimethoxy-[1,1':4',1''-terphenyl]-4,4''-dicarbaldehyde MSDS Sheet

Literature and Reviews

Application of Electron-Rich Covalent Organic Frameworks COF-JLU25 for Photocatalytic Aerobic Oxidative Hydroxylation of Arylboronic Acids to Phenols, G. Xiao et al., Eur. J. Org. Chem., 2021 (29), 3986-3991 (2021); DOI: 10.1002/ejoc.202100173.
Design of Photoactive Covalent Organic Frameworks as Heterogeneous Catalyst for Preparation of Thiophosphinates from Phosphine Oxides and Thiols, H. Qiao et al., Chem. Eur. J., 28 (26), e202200600 (2022); 10.1002/chem.202200600.
Engineering Covalent Organic Frameworks as Heterogeneous Photocatalysts for Organic Transformations, H. Chen et al., Angew. Chem. Int. Ed., 61 (47), e202204938 (2022); DOI: 10.1002/anie.202204938.
