4',4''',4'''''-Nitrilotris([1,1'-biphenyl]-4-carbaldehyde)

CAS Number 872689-79-7

Carbaldehyde Monomers, Chemistry Building Blocks, COF Ligands, Materials, Monomers, Porous Organic Frameworks

4',4''',4'''''-Nitrilotris([1,1'-biphenyl]-4-carbaldehyde) MSDS

4',4''',4'''''-Nitrilotris([1,1'-biphenyl]-4-carbaldehyde) CAS 872689-79-7

Covalent Organic Frameworks (COFs) Triarylamine Ligand

A formyl functional ligand linker for COFs in application of carbon dioxide adsorption, photocatalysts and sensors

Overview
Related Products

4',4''',4'''''-Nitrilotris([1,1'-biphenyl]-4-carbaldehyde) (NTBCA), CAS number 872689-79-7, has a triangular structure with triarylamine core and three aldehyde functional groups. The triarylamine core is electron rich and the aldehyde groups condense with amines to form imine linkages in covalent organic framework (COFs).

Covalent organic framework HAT-NTBCA-COF, featuring [C6 + C3] symmetric units of propeller-like hexaamino-hexaazatriphenylene ([NH₂]₆HAT) nodes and triangular symmetric linker NTBCA with imine linkages showed high thermal stability with CO₂ uptakes of HAT-NTBCA-COF being 6.0 wt% (273 K) and 3.7 wt% (298 K).

[3 + 4] condensation reaction forming imine linkages between triangular 4′,4′″,4′″″-nitrilotris([1,1′-biphenyl]-4-carbaldehyde) with rectangular 4,4′,4″,4′″-(ethene-1,1,2,2-tetrayl)tetraaniline gave COF-1. With great thermal and chemical stability, COF-1 served as efficient photocatalyst for the cross-dehydrogenative coupling reaction and also the asymmetric α-alkylation of aldehydes integrated with a MacMillan imidazolidinone as the chiral catalyst under visible light.

MOF and COF ligands

Aldehyde ligand for cross-linked COF networks

Worldwide shipping

Quick and reliable shipping

High purity

>98% High purity

Facile reactions

Aldehyde possesses excellent reactivity

General Information

CAS Number	872689-79-7
Chemical Formula	C₃₉H₂₇NO₃
Full Name	4',4''',4'''''-Nitrilotris([1,1'-biphenyl]-4-carbaldehyde)
Molecular Weight	557.64 g/mol
Synonyms	NTCBA, [1,1-Biphenyl]-4-carboxaldehyde,4-[bis(4-formyl[1,1-biphenyl]-4-yl)amino]-
Classification / Family	Triarylamine, COF ligands

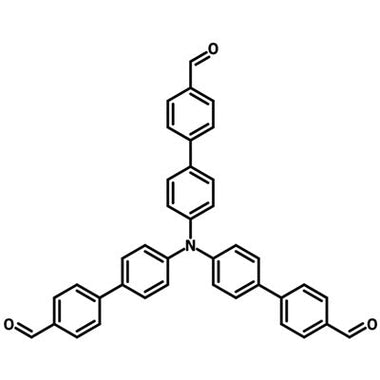

Chemical Structure

Product Details

Purity	>98%
Melting Point	N/A
Appearance	Yellow to orange powder/crystals

MSDS Documentation

4',4''',4'''''-Nitrilotris([1,1'-biphenyl]-4-carbaldehyde) MSDS Sheet

Literature and Reviews

Construction of 2D covalent organic frameworks by taking advantage of the variable orientation of imine bonds, S. Xu et al., Chem. Commun., 53, 2431-2434 (2017); DOI: 10.1039/C6CC09906H.
Rational synthesis of interpenetrated 3D covalent organic frameworks for asymmetric photocatalysis, X. Kang et al., Chem. Sci., 11, 1494-1502 (2020); DOI: 10.1039/C9SC04882K.
Precision Construction of 2D Heteropore Covalent Organic Frameworks by a Multiple-Linking-Site Strategy, C. Qian et al., 22 (49), 17784-17789 (2016); DOI: 10.1002/chem.201603043.
Nitrogen-rich covalent organic frameworks: a promising class of sensory materials, H. Bhambri et al., Mater. Adv., 3, 19-124 (2022); DOI: 10.1039/D1MA00506E.
Reticular Synthesis of tbo Topology Covalent Organic Frameworks, X. Kang et al., J. Am. Chem. Soc., 142, 38, 16346–16356 (2020); DOI: 10.1021/jacs.0c06605.
Covalent Organic Frameworks: From Structures to Applications, Q. tran et al., Polymers, 15(5), 1279 (2023); DOI: 10.3390/polym15051279.
Macrocycle-Based Covalent Organic Frameworks, Y. Yuan et al., 35 (16), 2210952 (2023); DOI: 10.1002/adma.202210952.
Covalent Organic Frameworks: Structures, Synthesis, and Applications, M. Lohse et al., Adv. Funct. Mater., 28 (33), 1705553 (2018); DOI: 10.1002/adfm.201705553.
