CAS Number 883236-47-3

Carbaldehyde Monomers, COF Ligands, Materials, Porous Organic Frameworks

Product Code B4551-1g
Price £53 ex. VAT

Covalent Organic Frameworks (COFs) Triphenylamine Ligand

Trigonal star shaped linker for covalent organic frameworks (COFs) in application of photocatalyst, OLEDs and organic solar cells

Specifications | MSDS | Literature and Reviews

Tris[4-(5-formyl-2-thienyl)phenyl]amine (TTA-TPA) is a derivative of triphenylamine with thiophene-2-carbaldehyde function groups at the positions that are opposite to the central nitrogen. Tris[4-(5-formyl-2-thienyl)phenyl]amine finds application in OLEDs, organic solar cells and covalent organic frameworks (COFs). With both triphenylamine core and extended thienyl groups, π-conjugated structures derived from tris[4-(5-formyl-2-thienyl)phenyl]amine is electron rich, serving as either hole transporting layer (HTL) or photoactive dyes for organic electronic devices. With three peripharal aldehyde end groups, it could form imine linkers with amines through Schiff base condensation reaction for the construction of COFs.

Bulk-heterojunction solar cell based on a solution-processable three-dimensional molecular architecture comprising tris[4-(5-formyl-2-thienyl)phenyl]amine and 1-(2-ethylhexyl)-4-methyl-2,6-dioxo-1,2,5,6-tetrahydropyridine-3-carbonitrile achieved device PCE of 4.76% with [6,6]-phenyl-C61-butyric acid methyl ester (PC61BM) as the acceptor.

MOF and COF ligands

Electron-rich ligand linker for cross-linked COF networks

Worldwide shipping for 910231-21-9

Worldwide shipping

Quick and reliable shipping

High purity 910231-21-9

High purity

>97% High purity

Facile reactions

Facile reactions

Readily for polycondensation reactions to form imine linkages

General Information

CAS Number 883236-47-3
Chemical Formula C33H21NO3S3
Full Name Tris[4-(5-formyl-2-thienyl)phenyl]amine
Molecular Weight 423.51 g/mol
Synonyms TTA-TPA, TFTPA, 5,5',5''-(Nitrilotris(benzene-4,1-diyl))tris(thiophene-2-carbaldehyde)
Classification / Family Triphenylamine, Aldehydes, COF ligand

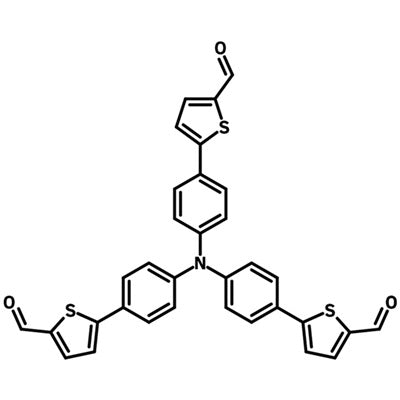

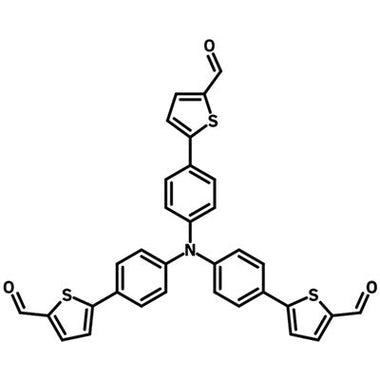

Chemical Structure

883236-47-3 - tris[4-(5-formyl-2-thienyl)phenyl]amine chemical structure
Tris[4-(5-formyl-2-thienyl)phenyl]amine (TTA-TPA) Chemical Structure, 883236-47-3

Product Details

Purity > 97%
Melting Point Tm = 230 °C
Appearance Orange powder/crystals

MSDS Documentation

883236-47-3 - tris[4-(5-formyl-2-thienyl)phenyl]amineTris[4-(5-formyl-2-thienyl)phenyl]amine MSDS Sheet

Literature and Reviews

  1. Enhancing the efficiency of solution-processable bulk-heterojunction devices via a three-dimensional molecular architecture comprising triphenylamine and cyanopyridone, R. Hangarge et al., Dyes Pigm., 137, 126-134 (2017); DOI: 10.1016/j.dyepig.2016.10.008.
  2. Chiral Aggregates of Triphenylamine-Based Dyes for Depleting the Production of Hydrogen Peroxide in the Photochemical Water-Splitting Process, B. Adelizzi et al., Helv. Chim. Acta., e1900065 (2019); DOi: 10.1002/hlca.201900065.
  3. Peripheral group effects on the photophysical and photovoltaic properties of bulk-heterojunction type solar cells based on star-shaped conjugate molecules with triphenylamine core, Y. Kao et al., Mater. Chem. Phys., 163, 138-151 (2015); DOI: 10.1016/j.matchemphys.2015.07.024.
